Paddys Ridge Details

Property	Value
Rupture Count	8,710
Ruptures Above Sect Min Mag	8,709
Ruptures w/ Nonzero Rates	44
Magnitude Range	[6.85, 8.43]
Length Range	[21, 797] km
Total Rate	1.4003374E-4 /yr
Multi-Fault Rate	1.4003374E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	86

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

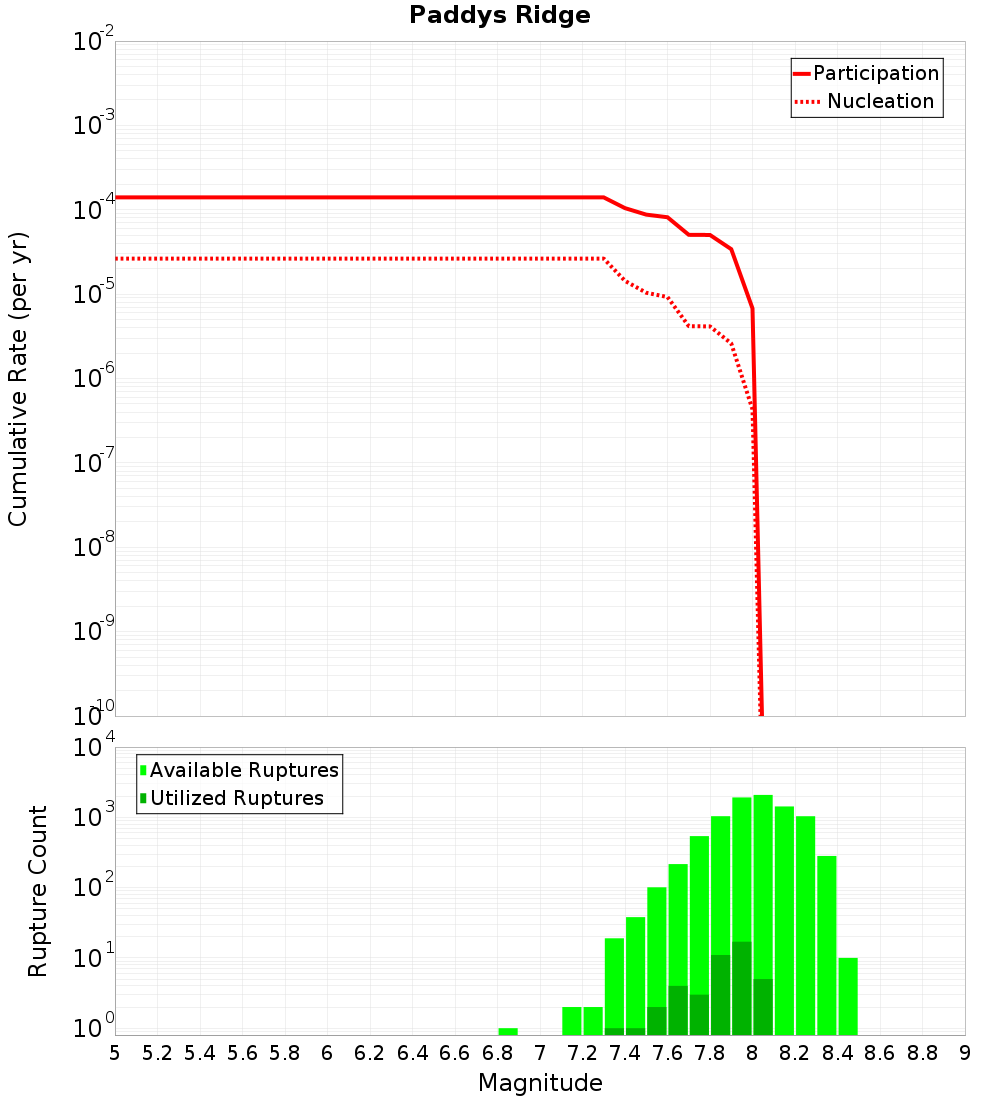

Magnitude-Frequency Distribution

Incremental	Cumulative

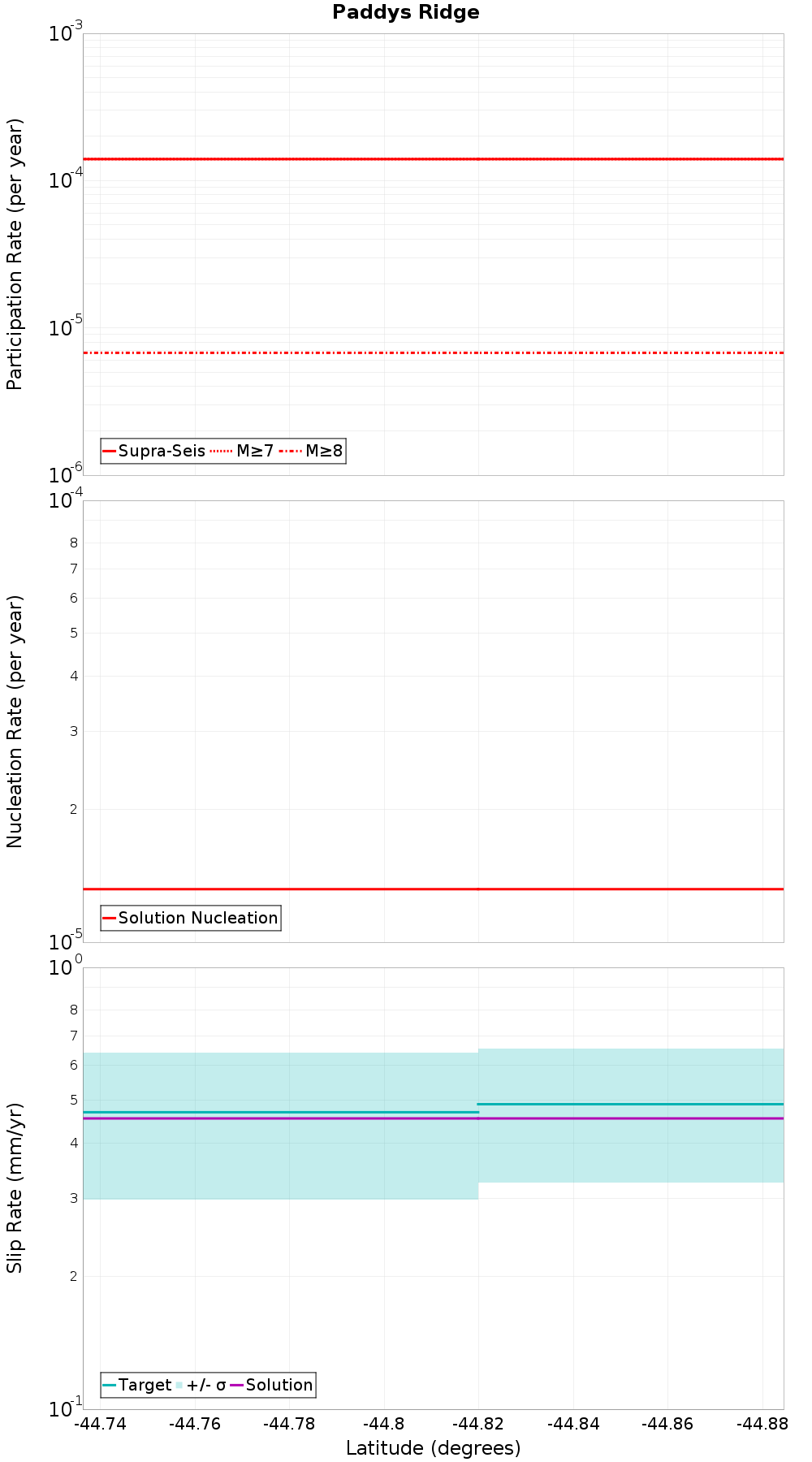

Along-Strike Values

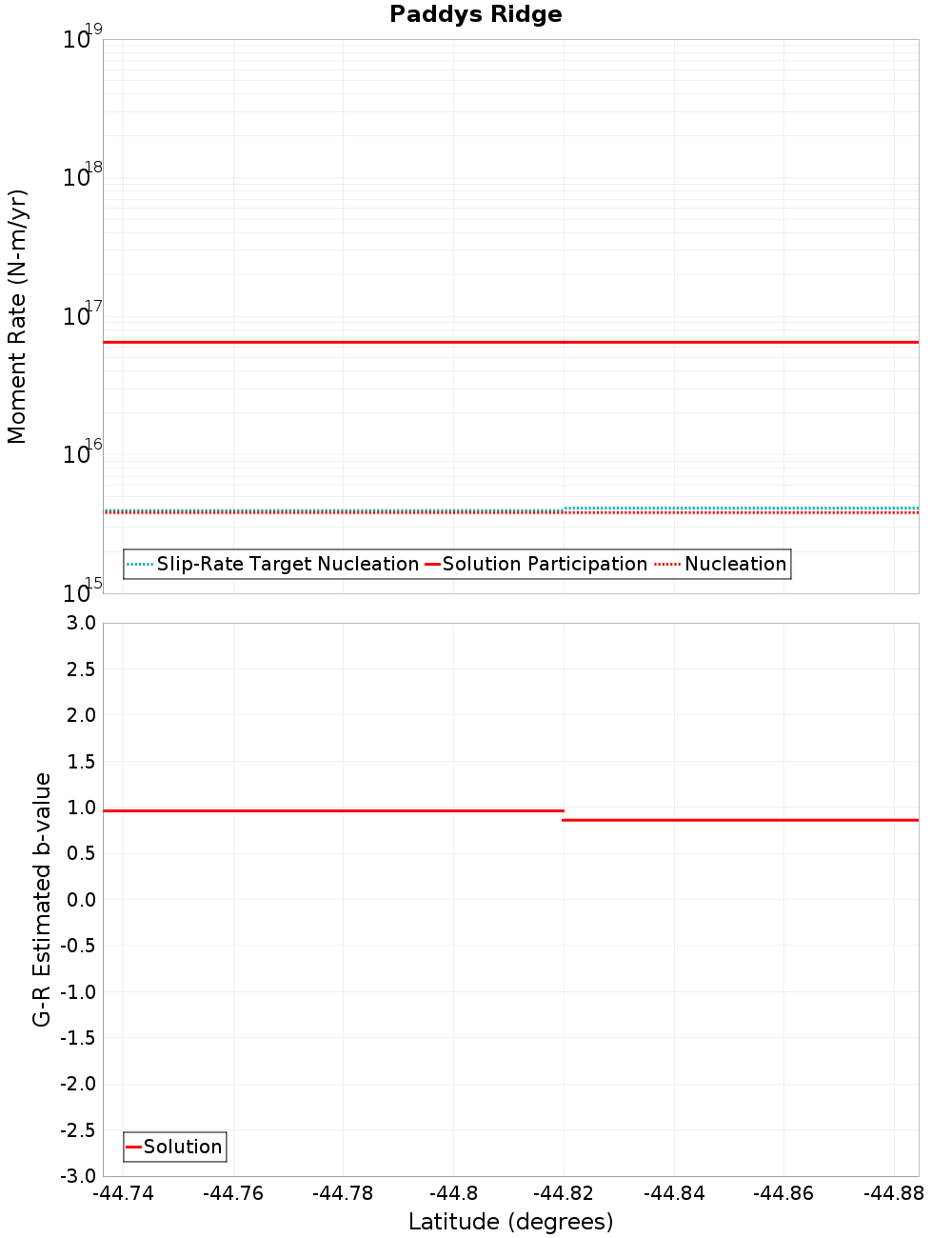

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Pisa, 0.16 km away
Roaring Meg, 0.24 km away
NW Cardrona South, 1.01 km away
Cardrona - Hawea, 1.23 km away
NW Cardrona North, 1.63 km away
Dunstan, 5.46 km away
Cluden, 6.25 km away
Motatapu, 10.99 km away
Goodger, 11.59 km away
Grandview, 12.38 km away
Lindis River, 13.41 km away

Pisa, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	true
Co-rupture Count	5,859
Co-rupture Rate	0.0

Roaring Meg, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	true
Co-rupture Count	2,116
Co-rupture Rate	4.1389212E-5

NW Cardrona South, 1.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	5.477754E-6

Cardrona - Hawea, 1.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	true
Co-rupture Count	8,515
Co-rupture Rate	5.5530447E-5

NW Cardrona North, 1.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	false
Co-rupture Count	190
Co-rupture Rate	1.4764759E-5

Dunstan, 5.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	true
Co-rupture Count	290
Co-rupture Rate	9.2280105E-5

Cluden, 6.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Motatapu, 10.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	false
Co-rupture Count	62
Co-rupture Rate	2.6322426E-5

Goodger, 11.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Grandview, 12.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	false
Co-rupture Count	39
Co-rupture Rate	0.0

Lindis River, 13.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
