Alpine: Caswell - South George Details

PropertyValue
Rupture Count76,755
Ruptures Above Sect Min Mag76,752
Ruptures w/ Nonzero Rates2,297
Magnitude Range[6.71, 8.68]
Length Range[15, 1,083] km
Total Rate0.002312413 /yr
Multi-Fault Rate0.002312413 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults197

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

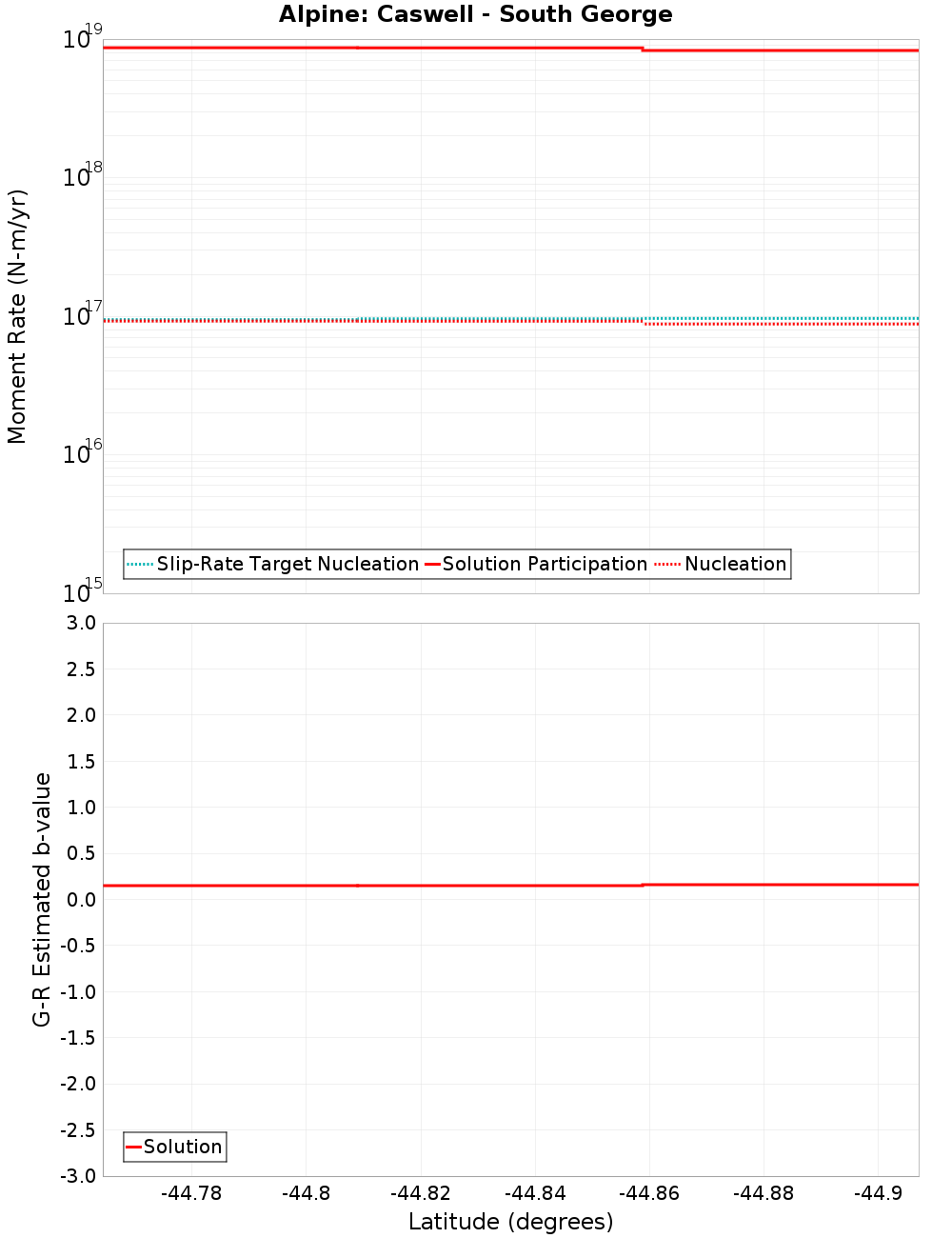

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Caswell, 0 km away
Alpine: George landward, 0.03 km away
Alpine: George seaward, 0.03 km away
Central Wedge 1 & 2 & 3, 2.4 km away
Madagascar, 11.87 km away

Alpine: Caswell, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?true
Co-rupture Count66,772
Co-rupture Rate0.0018929442

Alpine: George landward, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?true
Co-rupture Count39,021
Co-rupture Rate8.2716794E-4

Alpine: George seaward, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?true
Co-rupture Count37,970
Co-rupture Rate0.0014923492

Central Wedge 1 & 2 & 3, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?true
Co-rupture Count645
Co-rupture Rate2.4726178E-5

Madagascar, 11.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
