Hunter Valley Details

Property	Value
Rupture Count	15,416
Ruptures Above Sect Min Mag	15,414
Ruptures w/ Nonzero Rates	323
Magnitude Range	[7.07, 8.63]
Length Range	[22, 797] km
Total Rate	8.5320156E-5 /yr
Multi-Fault Rate	8.5318854E-5 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	113

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

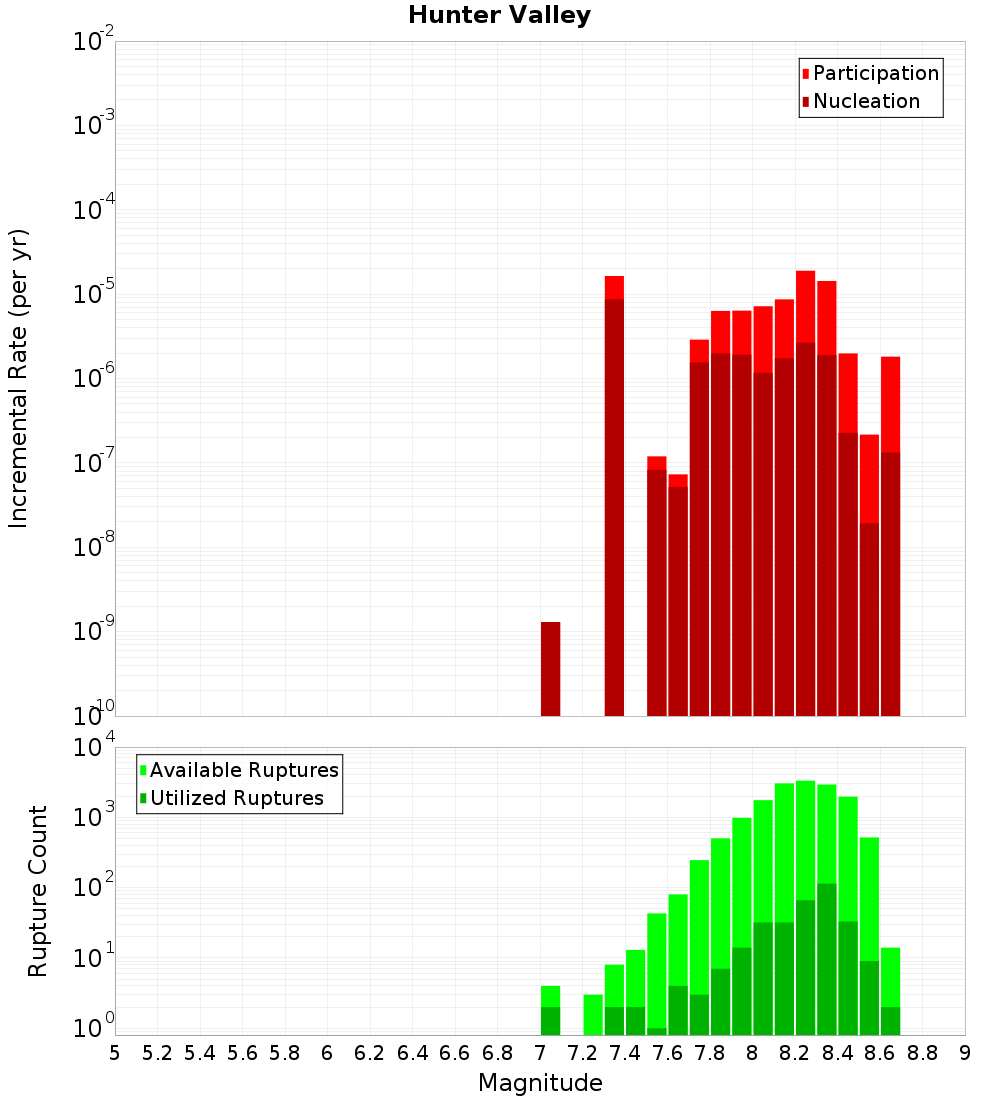

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

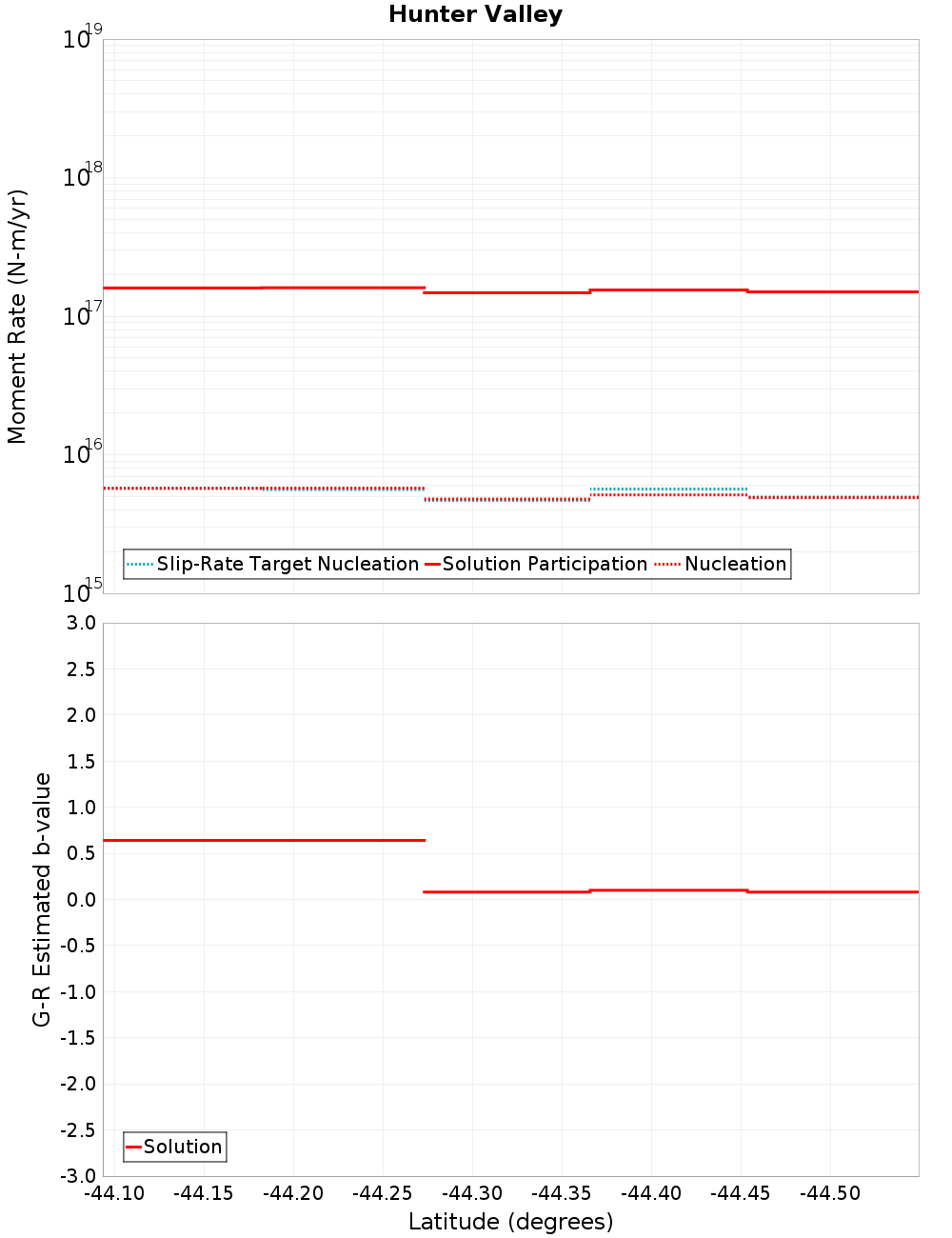

Moment-Rates and b-Values

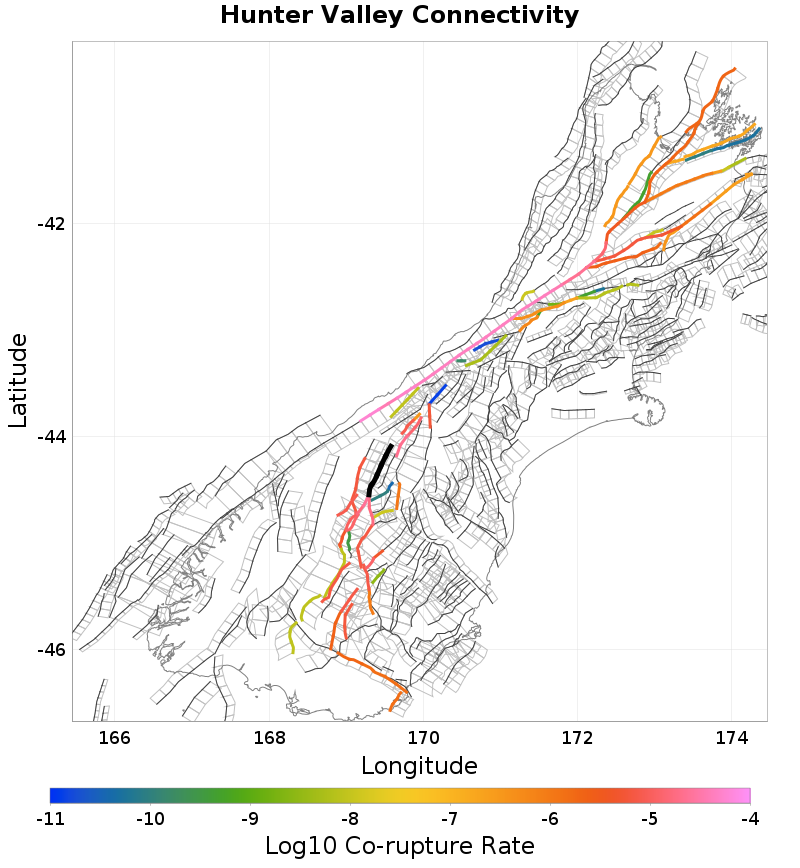

Connectivity

Nearby Sections

Fault Section
Wanaka, 0.26 km away
Cardrona - Hawea, 0.63 km away
Grandview, 1.98 km away
Timaru Creek, 4.93 km away
Dingle, 6.56 km away
Motatapu, 6.8 km away
Hopkins, 7.71 km away
Landsborough 2, 10.99 km away
Barrier Range, 14.29 km away
Alpine: Jacksons to Kaniere, 14.34 km away

Wanaka, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,733
Co-rupture Rate	6.296209E-6

Cardrona - Hawea, 0.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	true
Co-rupture Count	7,461
Co-rupture Rate	2.3985474E-5

Grandview, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	true
Co-rupture Count	4,448
Co-rupture Rate	1.7165345E-5

Timaru Creek, 4.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	true
Co-rupture Count	144
Co-rupture Rate	1.0026106E-10

Dingle, 6.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	true
Co-rupture Count	206
Co-rupture Rate	0.0

Motatapu, 6.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	false
Co-rupture Count	2,016
Co-rupture Rate	8.031492E-6

Hopkins, 7.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	true
Co-rupture Count	6,689
Co-rupture Rate	2.1131598E-5

Landsborough 2, 10.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	false
Co-rupture Count	143
Co-rupture Rate	0.0

Barrier Range, 14.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	false
Co-rupture Count	150
Co-rupture Rate	0.0

Alpine: Jacksons to Kaniere, 14.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	true
Co-rupture Count	11,153
Co-rupture Rate	6.921717E-5
