Kelly Details

PropertyValue
Rupture Count201,753
Ruptures Above Sect Min Mag201,747
Ruptures w/ Nonzero Rates1,586
Magnitude Range[6.81, 8.71]
Length Range[17, 1,083] km
Total Rate0.001544884 /yr
Multi-Fault Rate0.0013954109 /yr (90.32%)
Directly-Connected Faults6
All Co-Rupturing Faults264

Table Of Contents

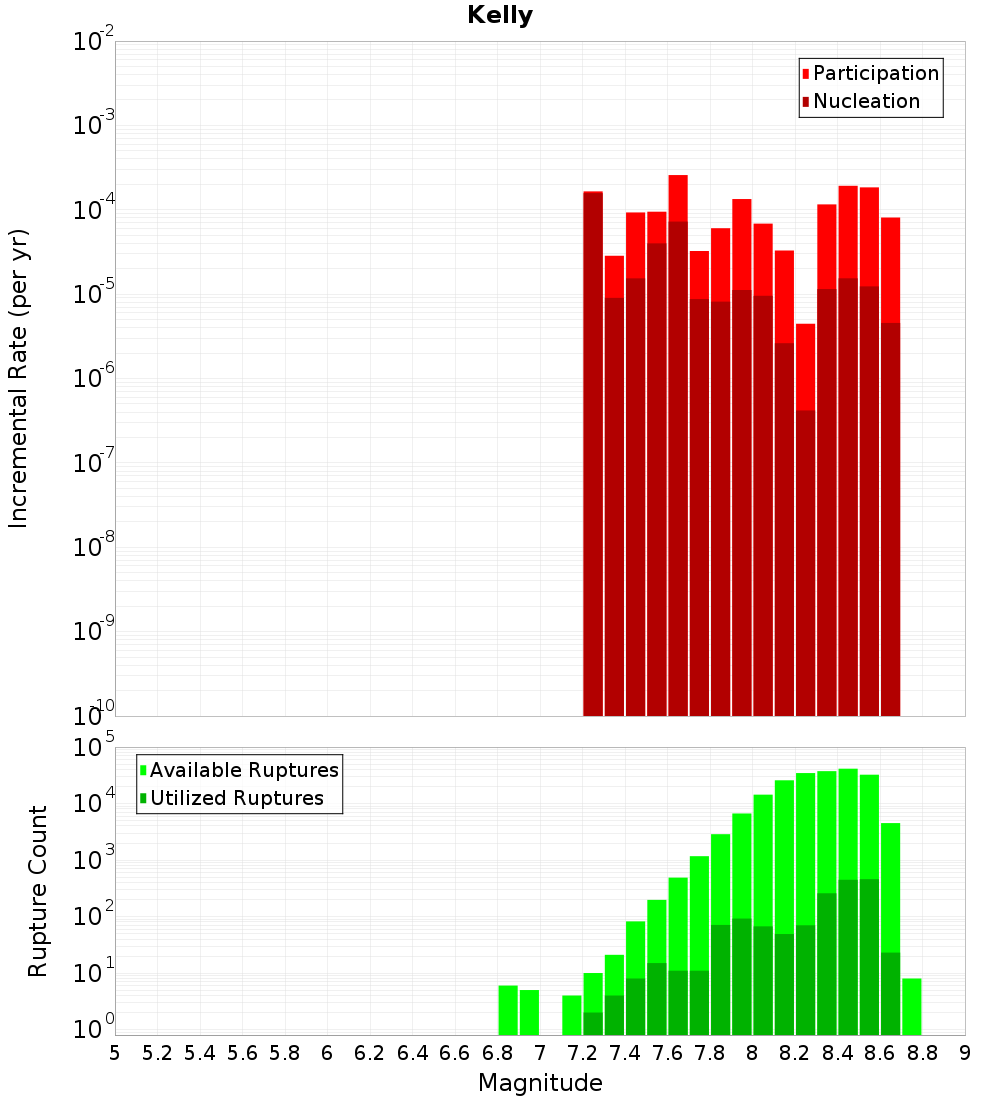

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

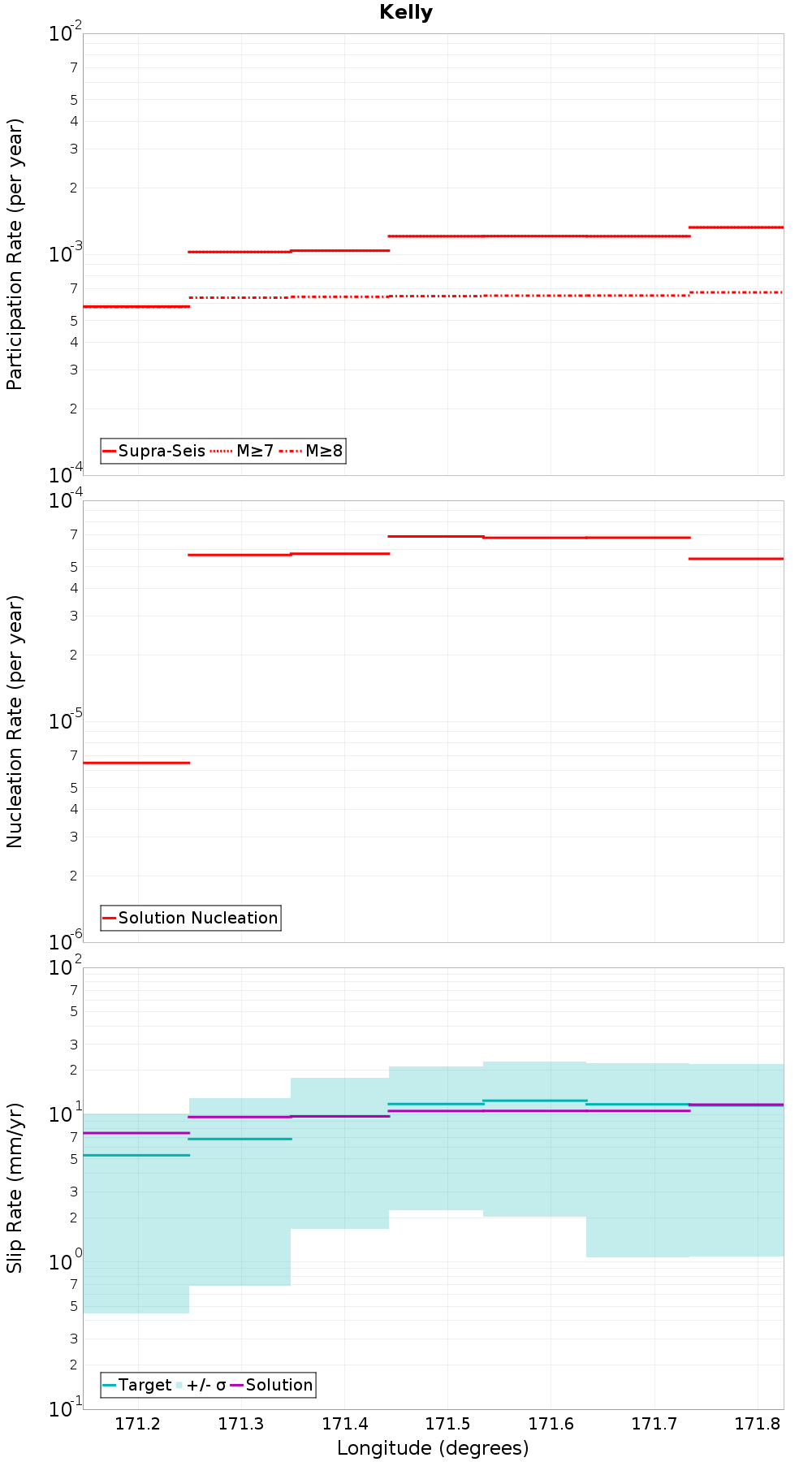

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

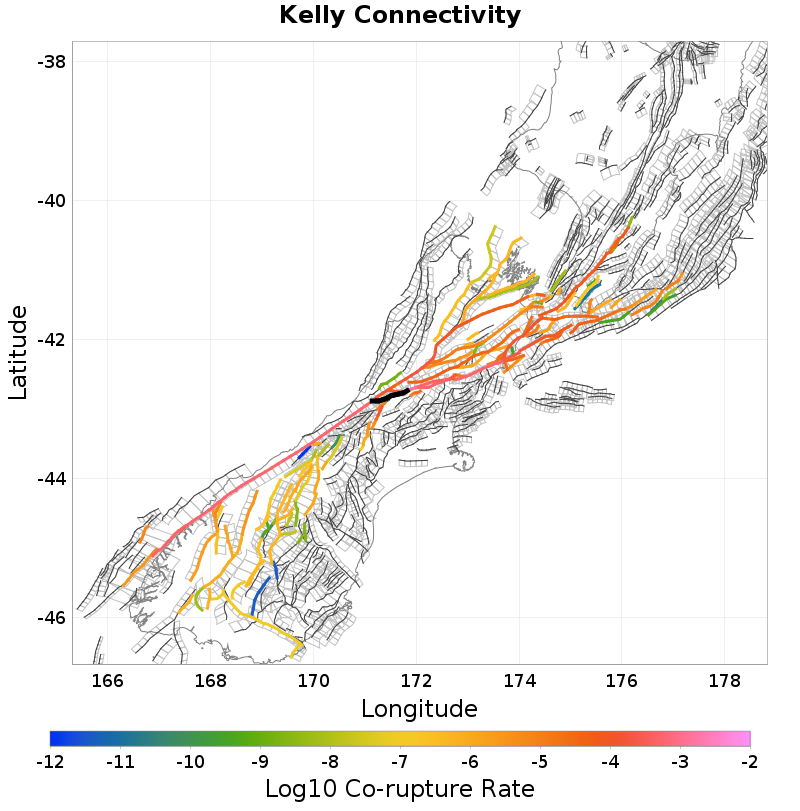

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Jacksons to Kaniere, 0 km away
Hope: Hurunui, 0 km away
Hope: Taramakau, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.1 km away
Hohonu North, 0.14 km away
Hohonu South, 0.29 km away
Hohonu, 0.43 km away
Poulter, 9.5 km away
Mistake - Rolleston, 10.23 km away
Cape Foulwind 1, 11.54 km away
Clarence: Southwest, 13.14 km away
Mungo, 13.58 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?true
Co-rupture Count165,080
Co-rupture Rate5.776548E-4

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?true
Co-rupture Count144,501
Co-rupture Rate0.0011297709

Hope: Taramakau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?true
Co-rupture Count18,061
Co-rupture Rate3.0956347E-4

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?true
Co-rupture Count49,963
Co-rupture Rate5.2364793E-4

Browning Pass, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?false
Co-rupture Count1,850
Co-rupture Rate1.2894957E-5

Hohonu North, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?true
Co-rupture Count24,137
Co-rupture Rate1.4456475E-9

Hohonu South, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?true
Co-rupture Count26,244
Co-rupture Rate0.0

Hohonu, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?false
Co-rupture Count7,058
Co-rupture Rate1.4456475E-9

Poulter, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?false
Co-rupture Count354
Co-rupture Rate2.5041565E-5

Mistake - Rolleston, 10.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?false
Co-rupture Count6,662
Co-rupture Rate1.7480123E-4

Cape Foulwind 1, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?false
Co-rupture Count240
Co-rupture Rate0.0

Clarence: Southwest, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?false
Co-rupture Count12,093
Co-rupture Rate5.4923235E-5

Mungo, 13.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?false
Co-rupture Count1,201
Co-rupture Rate0.0

Kakapo, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?false
Co-rupture Count55,530
Co-rupture Rate5.0972693E-4

Hope: Hope River, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?true
Directly Connected?false
Co-rupture Count93,838
Co-rupture Rate5.6251173E-4
