Pukerua - Shepherds Gully: 3 Details
| Property | Value |
|---|---|
| Rupture Count | 763 |
| Ruptures Above Sect Min Mag | 761 |
| Ruptures w/ Nonzero Rates | 91 |
| Magnitude Range | [6.88, 8.63] |
| Length Range | [17, 942] km |
| Total Rate | 1.4952966E-4 /yr |
| Multi-Fault Rate | 1.4949669E-4 /yr (99.98%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 60 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

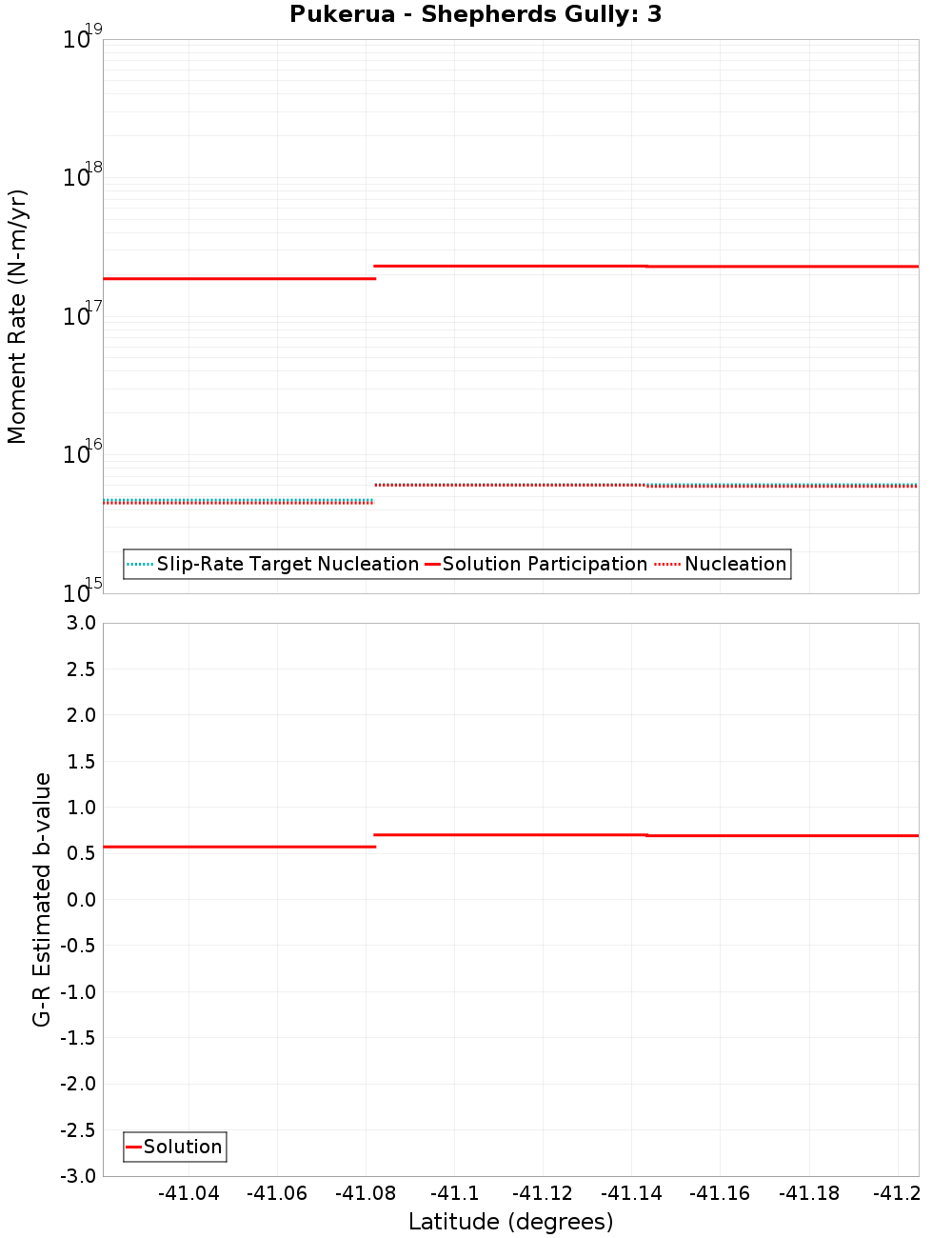

Moment-Rates and b-Values

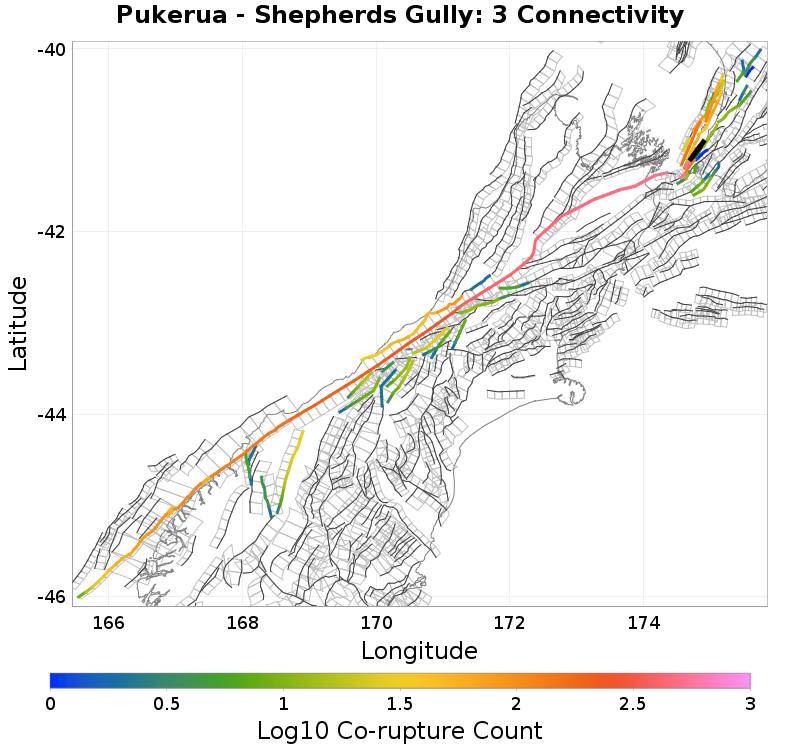

Connectivity
 |  |
|---|
Nearby Sections
Pukerua - Shepherds Gully: 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 553 |
| Co-rupture Rate | 1.12132526E-4 |
Shepherds Gully - Mana, 3.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 55 |
| Co-rupture Rate | 2.8401368E-5 |
Ohariu, 3.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 153 |
| Co-rupture Rate | 3.8295675E-6 |
Otaheke South, 4.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 60 |
| Co-rupture Rate | 2.8401368E-5 |
Moonshine, 5.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Whitemans Valley, 6.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pukerua - Shepherds Gully: 1, 7.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 517 |
| Co-rupture Rate | 1.1726575E-4 |
Okupe 1, 7.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 205 |
| Co-rupture Rate | 4.6154913E-5 |
Gibbs, 7.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington Hutt Valley: 3, 8.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington Hutt Valley: 4, 8.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Aotea - Evans Bay, 10.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Akatarawa, 10.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Fisherman 1, 13.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 28 |
| Co-rupture Rate | 1.5985384E-5 |
Wharekauhau, 13.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 10 |
| Co-rupture Rate | 0.0 |
Otaki Forks: 1, 14.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington Hutt Valley: 2, 14.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
