Taonui Details
| Property | Value |
|---|---|
| Rupture Count | 336 |
| Ruptures Above Sect Min Mag | 335 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [6.95, 8.29] |
| Length Range | [13, 408] km |
| Total Rate | 3.1190695E-5 /yr |
| Multi-Fault Rate | 3.1190695E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 51 |
Table Of Contents

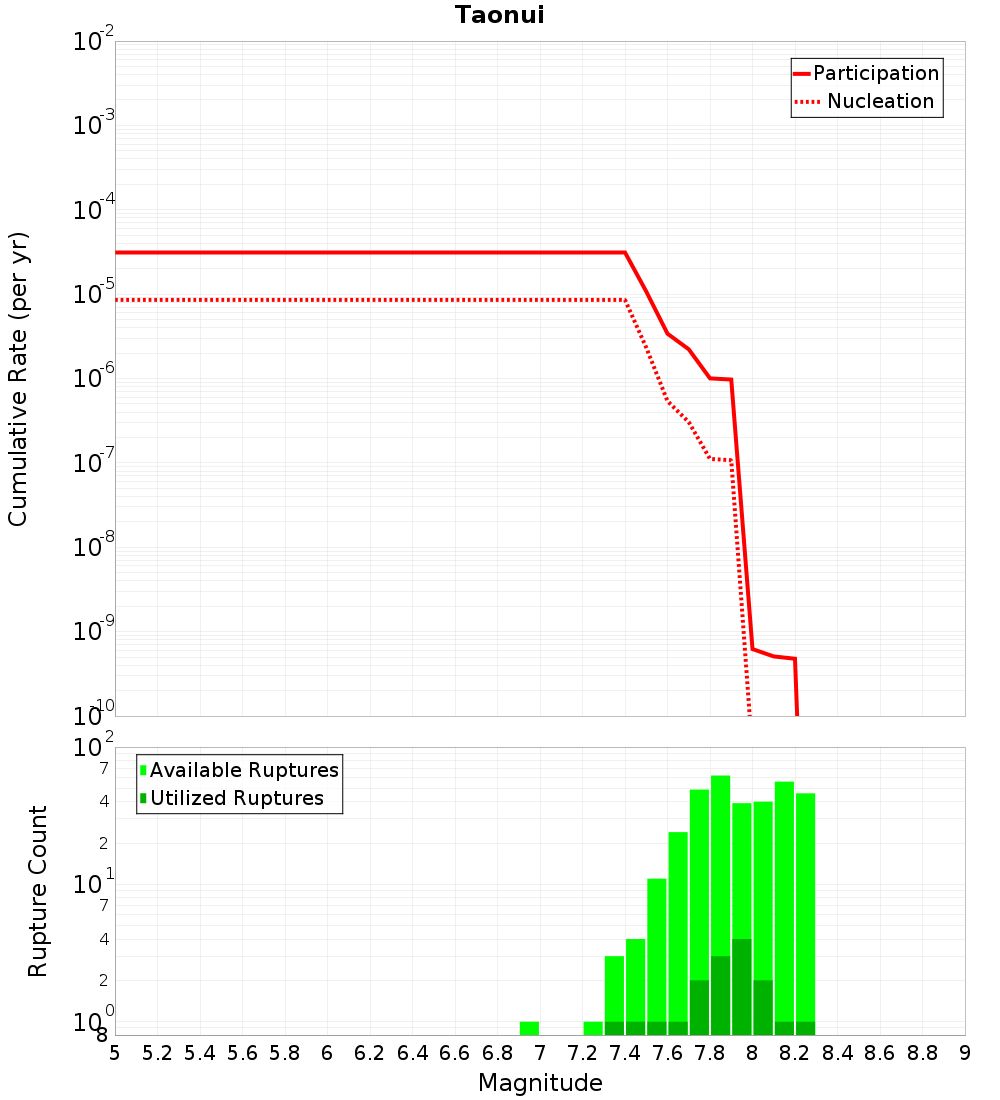

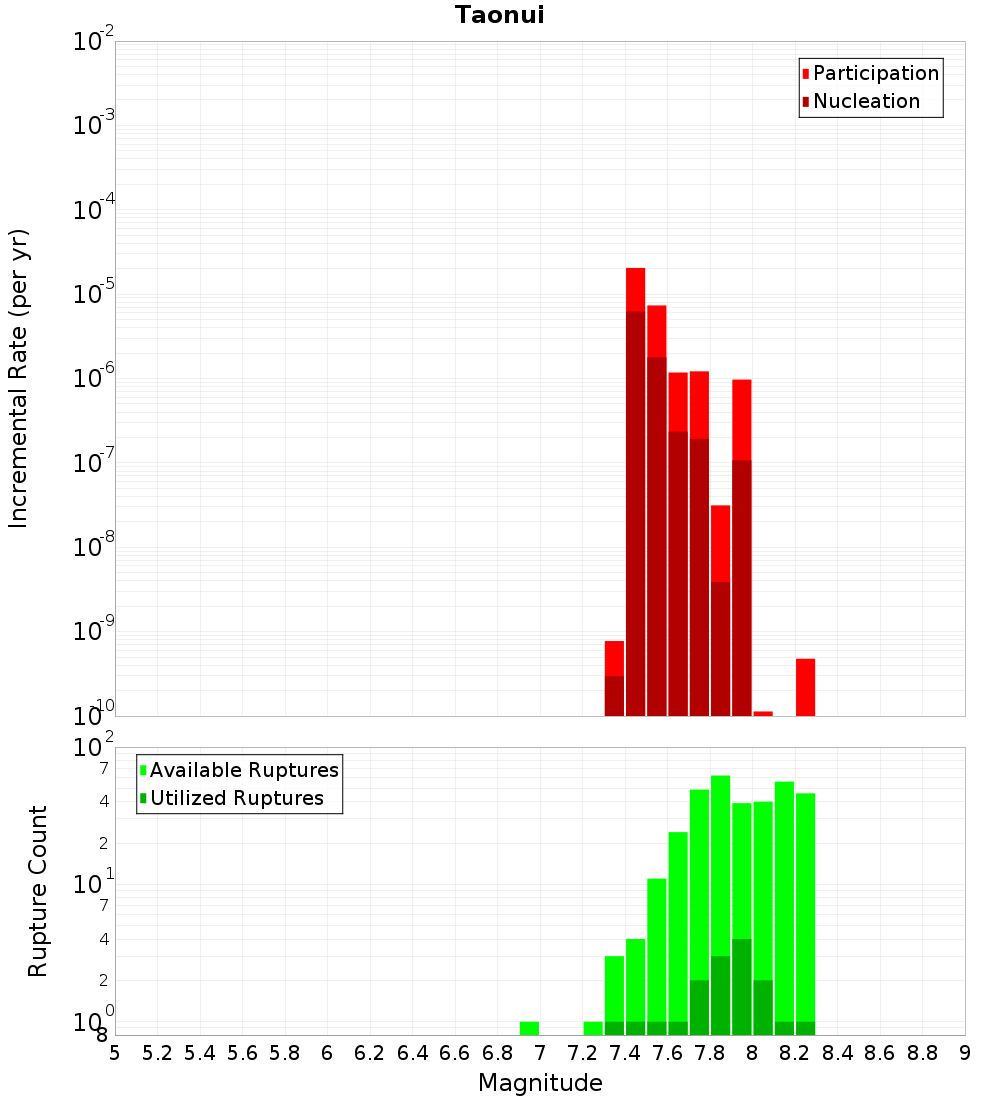

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

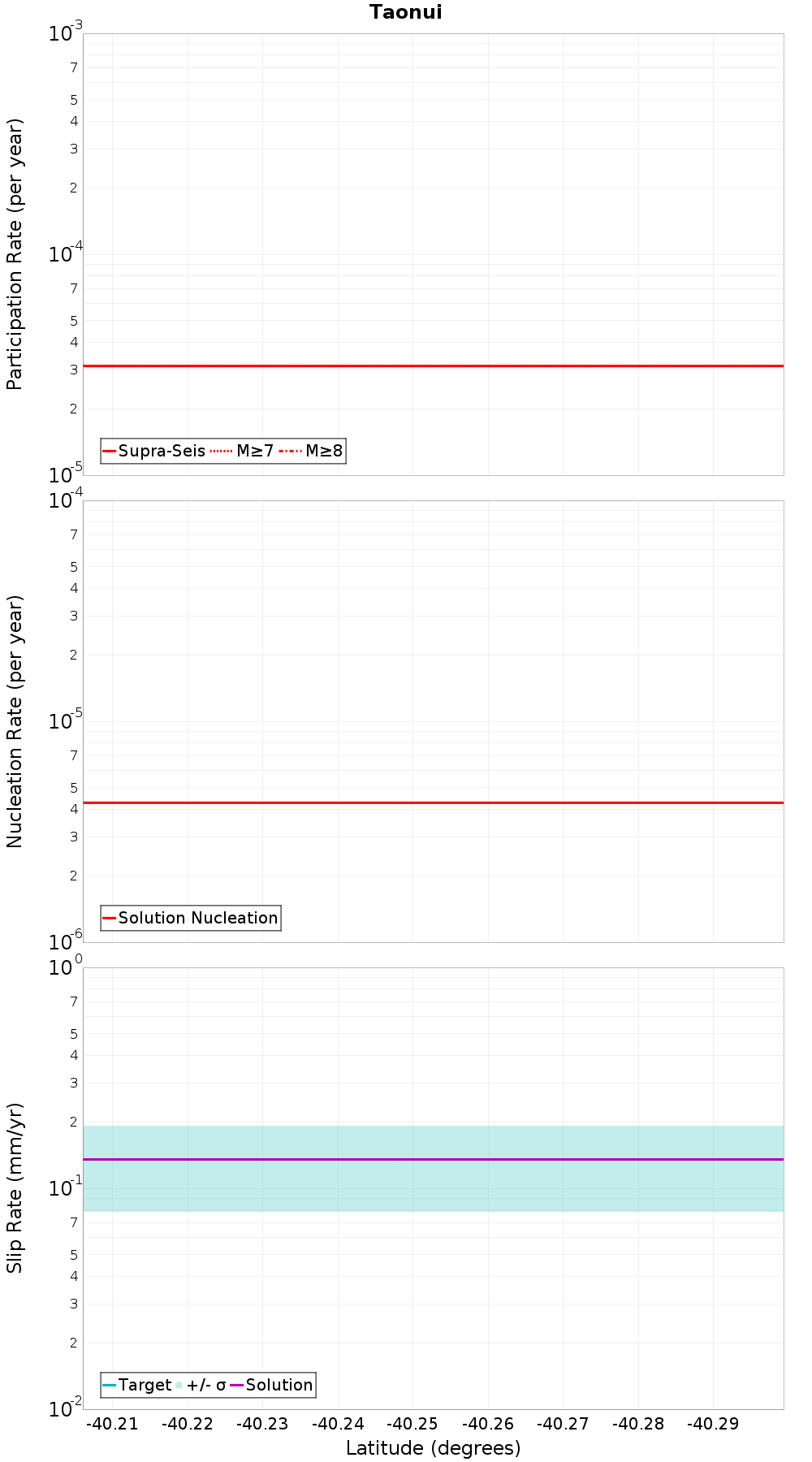

Along-Strike Values

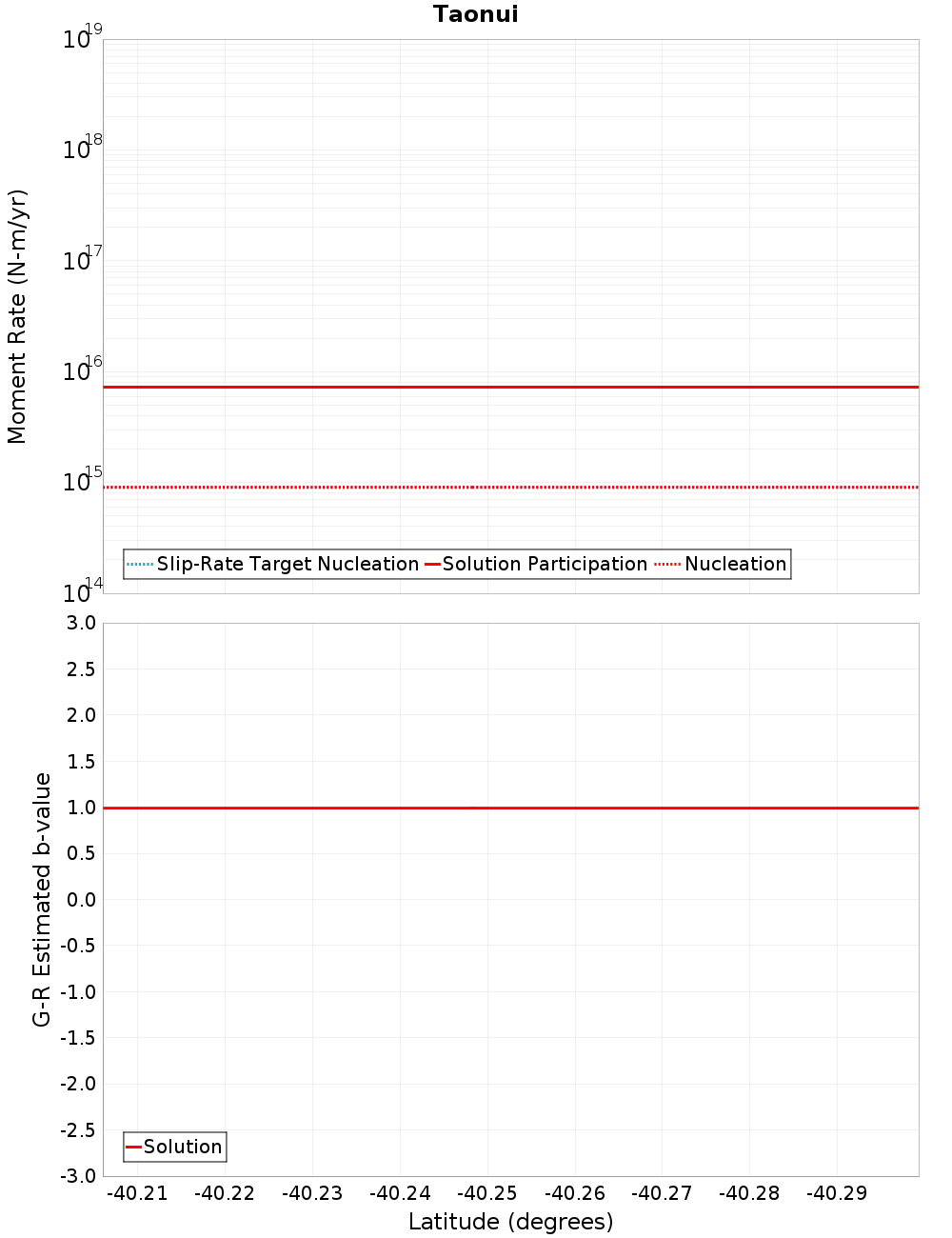

Moment-Rates and b-Values

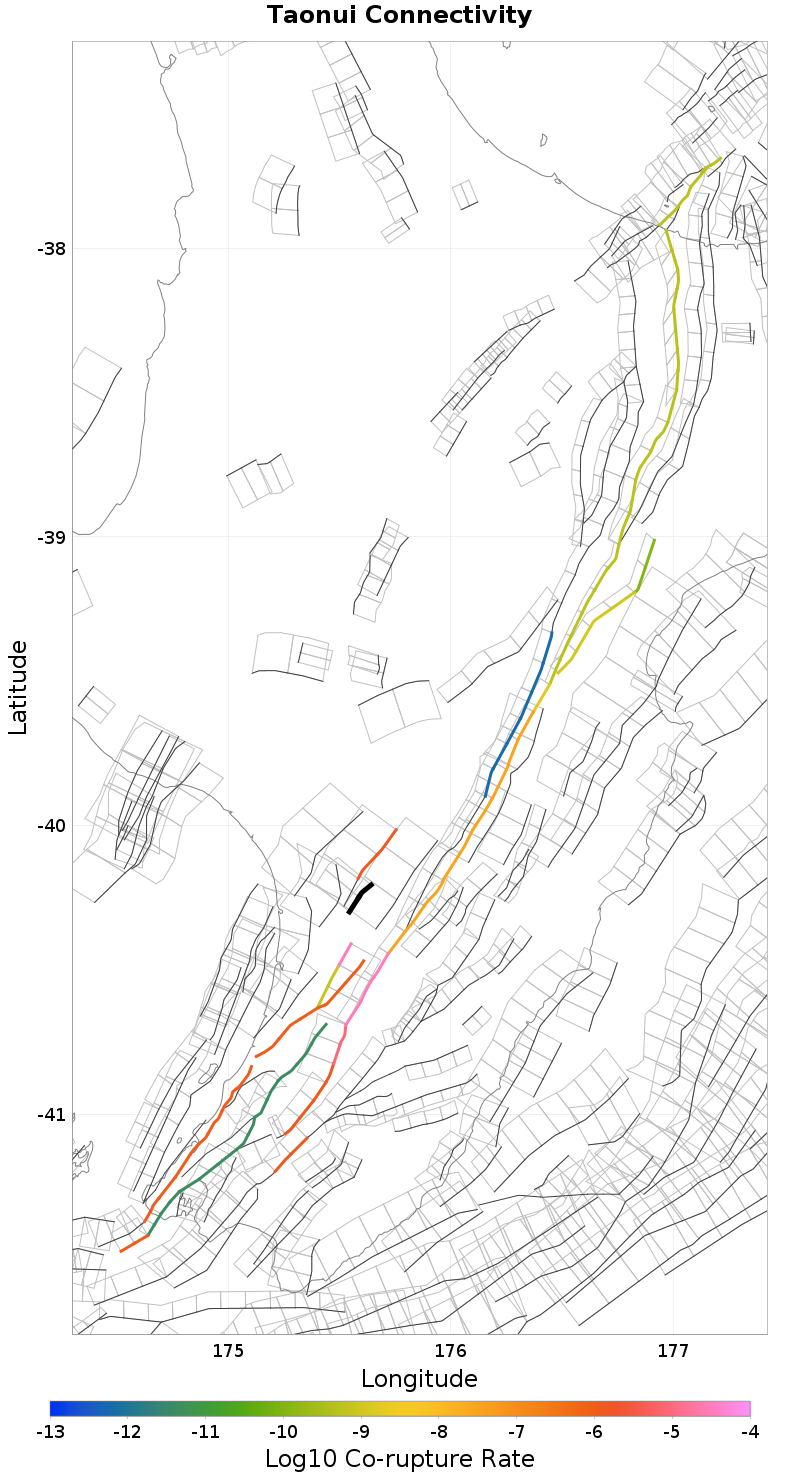

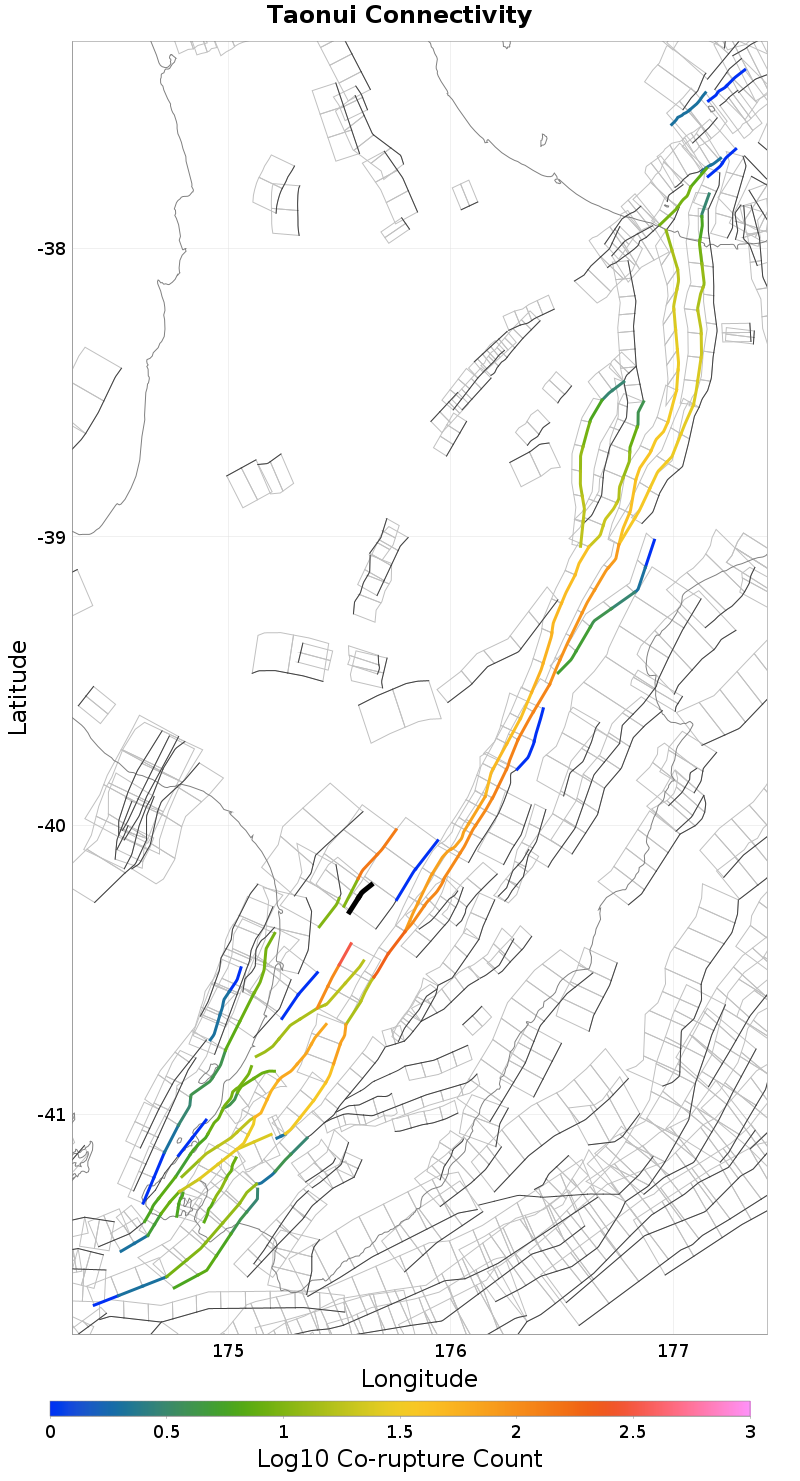

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Rauoterangi, 2.62 km away |
| Mt Stewart, 4.99 km away |
| Pohangina, 9.68 km away |
| Tokomaru, 12.27 km away |
| Himatangi, 13.31 km away |
| Mascarin, 13.31 km away |
Rauoterangi, 2.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 143 |
| Co-rupture Rate | 1.1775467E-6 |
Mt Stewart, 4.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 10 |
| Co-rupture Rate | 0.0 |
Pohangina, 9.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Tokomaru, 12.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 324 |
| Co-rupture Rate | 3.1190695E-5 |
Himatangi, 13.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mascarin, 13.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
