Tutaki Details

Property	Value
Rupture Count	14,714
Ruptures Above Sect Min Mag	14,712
Ruptures w/ Nonzero Rates	148
Magnitude Range	[7.17, 8.70]
Length Range	[24, 982] km
Total Rate	5.8358157E-5 /yr
Multi-Fault Rate	5.8358157E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	89

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

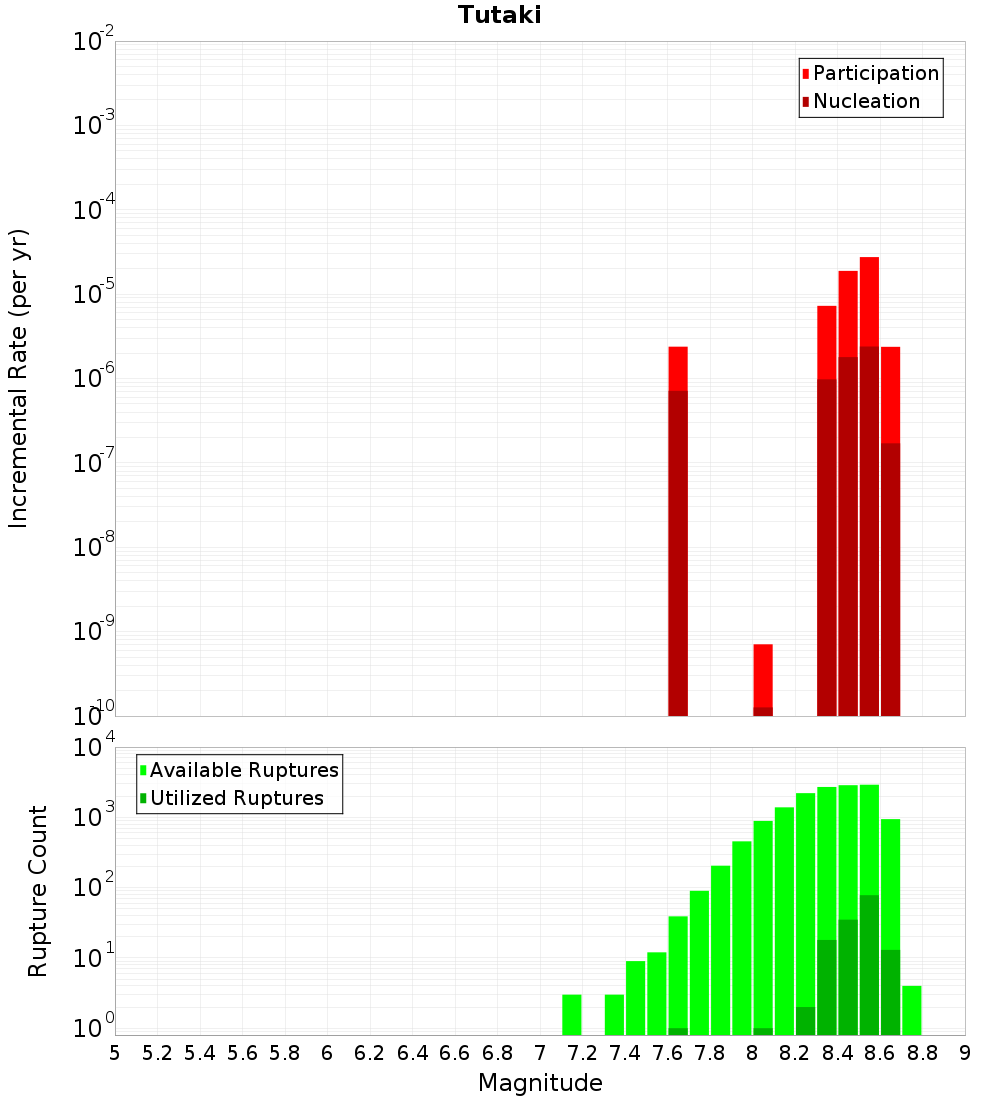

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

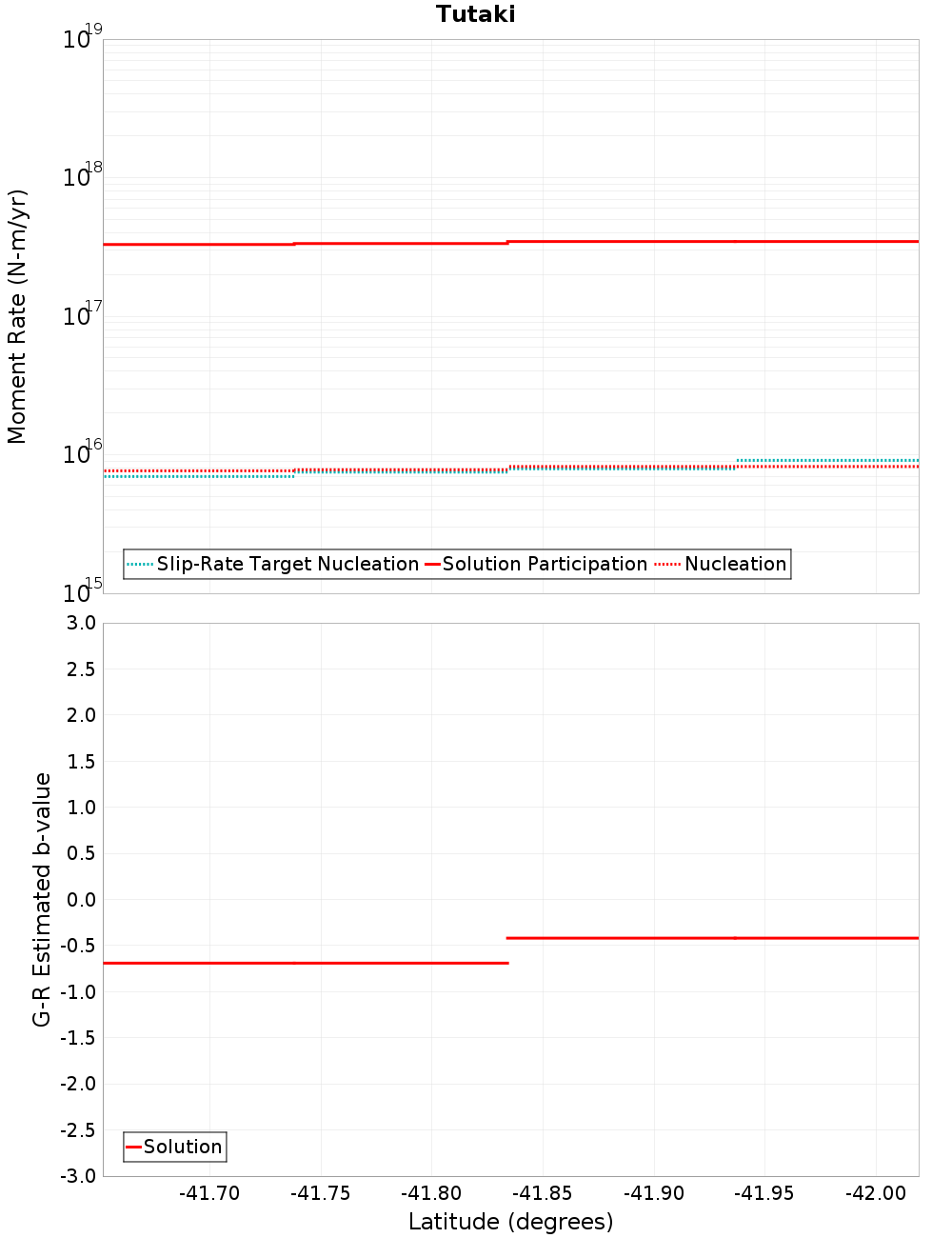

Moment-Rates and b-Values

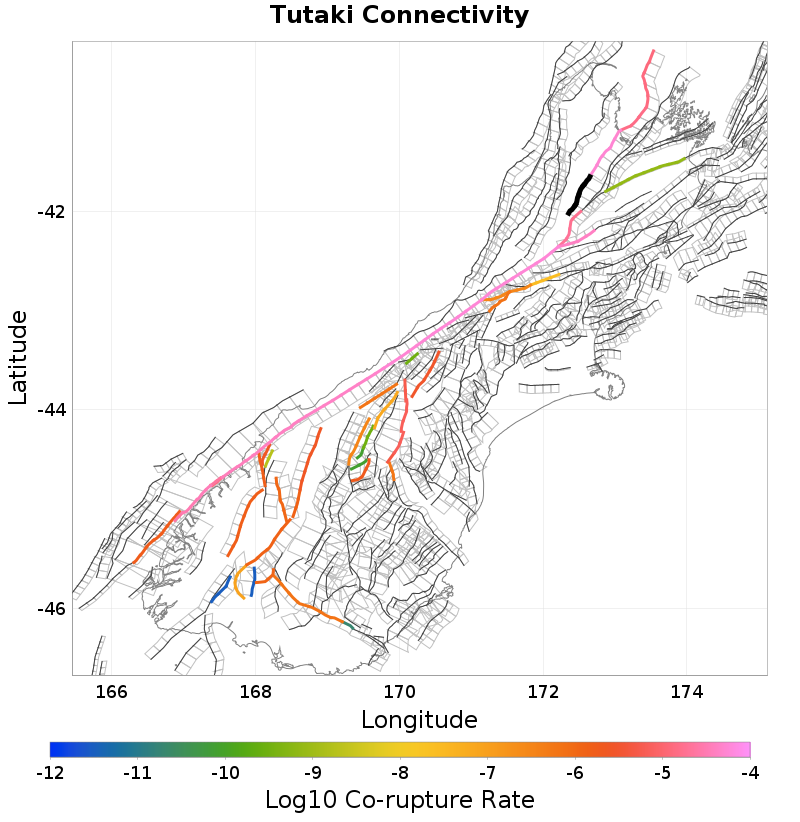

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0.15 km away
Flaxmore - Waimea - Tahunanui, 2.51 km away
Ruby Bay - Moutere, 3.45 km away
Wairau, 7.32 km away
Awatere: Southwest, 9.39 km away
Whangamoa, 14.85 km away

Alpine: Springs Junction to Tophouse, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	true
Co-rupture Count	8,505
Co-rupture Rate	1.9510646E-5

Flaxmore - Waimea - Tahunanui, 2.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	true
Co-rupture Count	270
Co-rupture Rate	0.0

Ruby Bay - Moutere, 3.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	true
Co-rupture Count	11,243
Co-rupture Rate	5.2811945E-5

Wairau, 7.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	true
Co-rupture Count	341
Co-rupture Rate	7.0757167E-10

Awatere: Southwest, 9.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	true
Co-rupture Count	6,194
Co-rupture Rate	4.1231506E-5

Whangamoa, 14.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDMuMGdpZEV4
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	0.0
