Harper Details

Property	Value
Rupture Count	1,481
Ruptures Above Sect Min Mag	1,463
Ruptures w/ Nonzero Rates	65
Magnitude Range	[6.50, 7.91]
Length Range	[15, 286] km
Total Rate	3.0175937E-4 /yr
Multi-Fault Rate	3.0175937E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	48

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

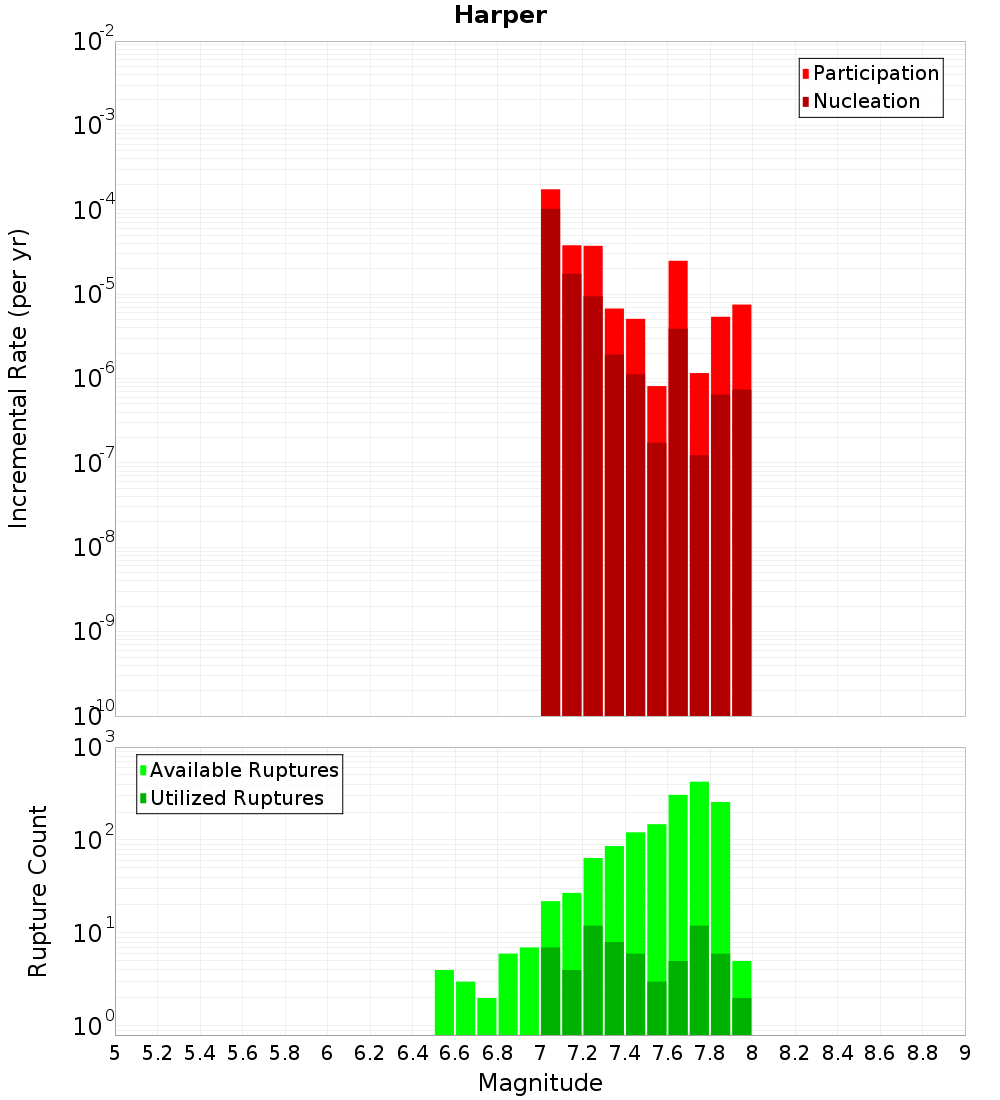

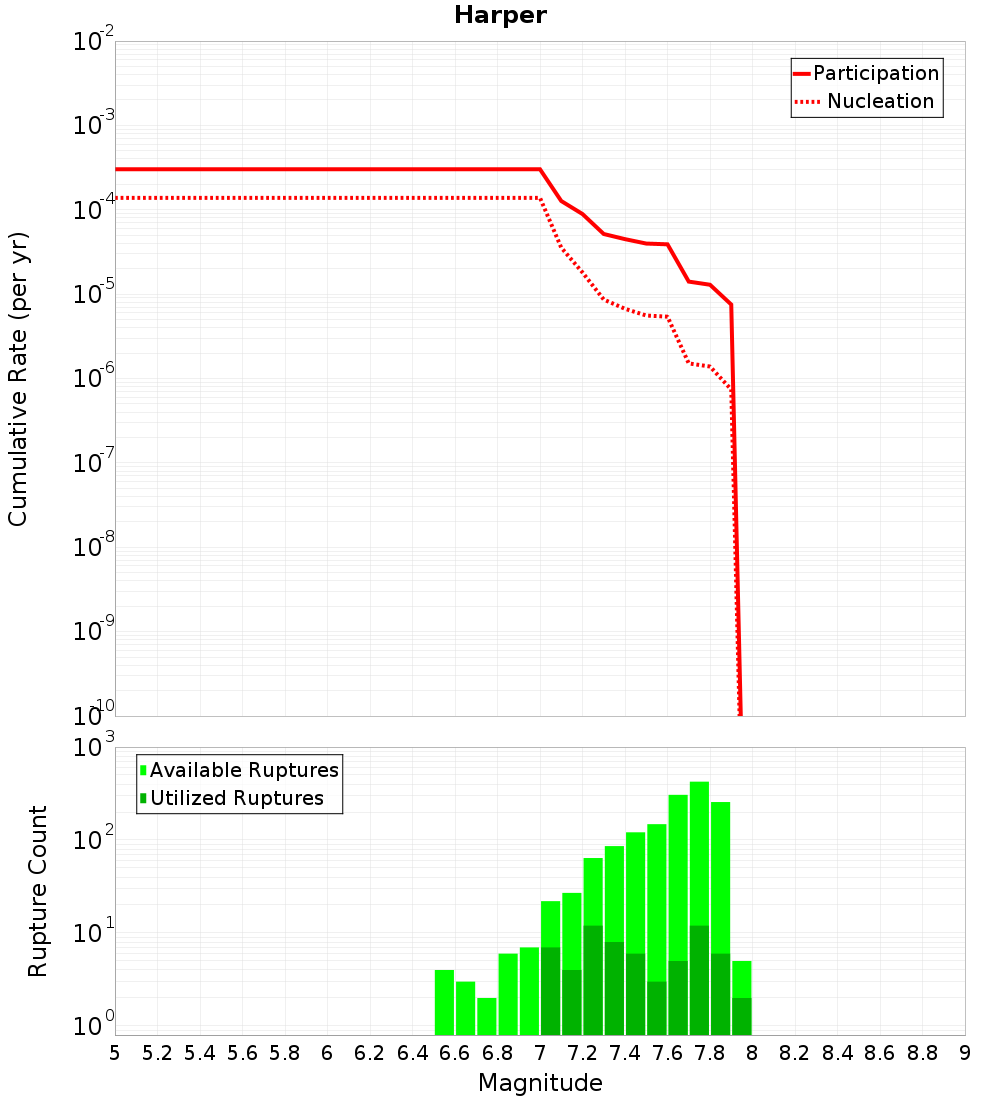

Magnitude-Frequency Distribution

Incremental	Cumulative

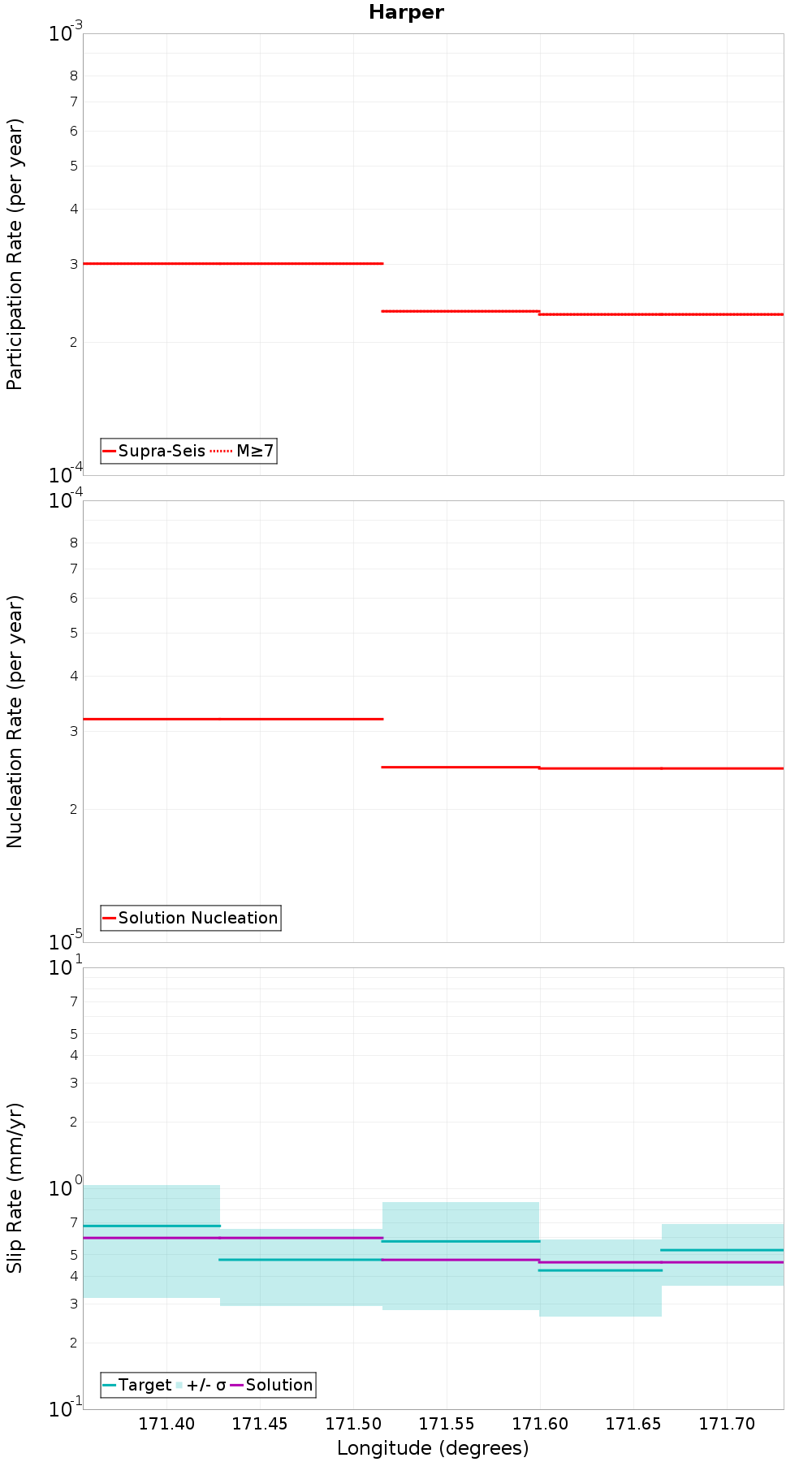

Along-Strike Values

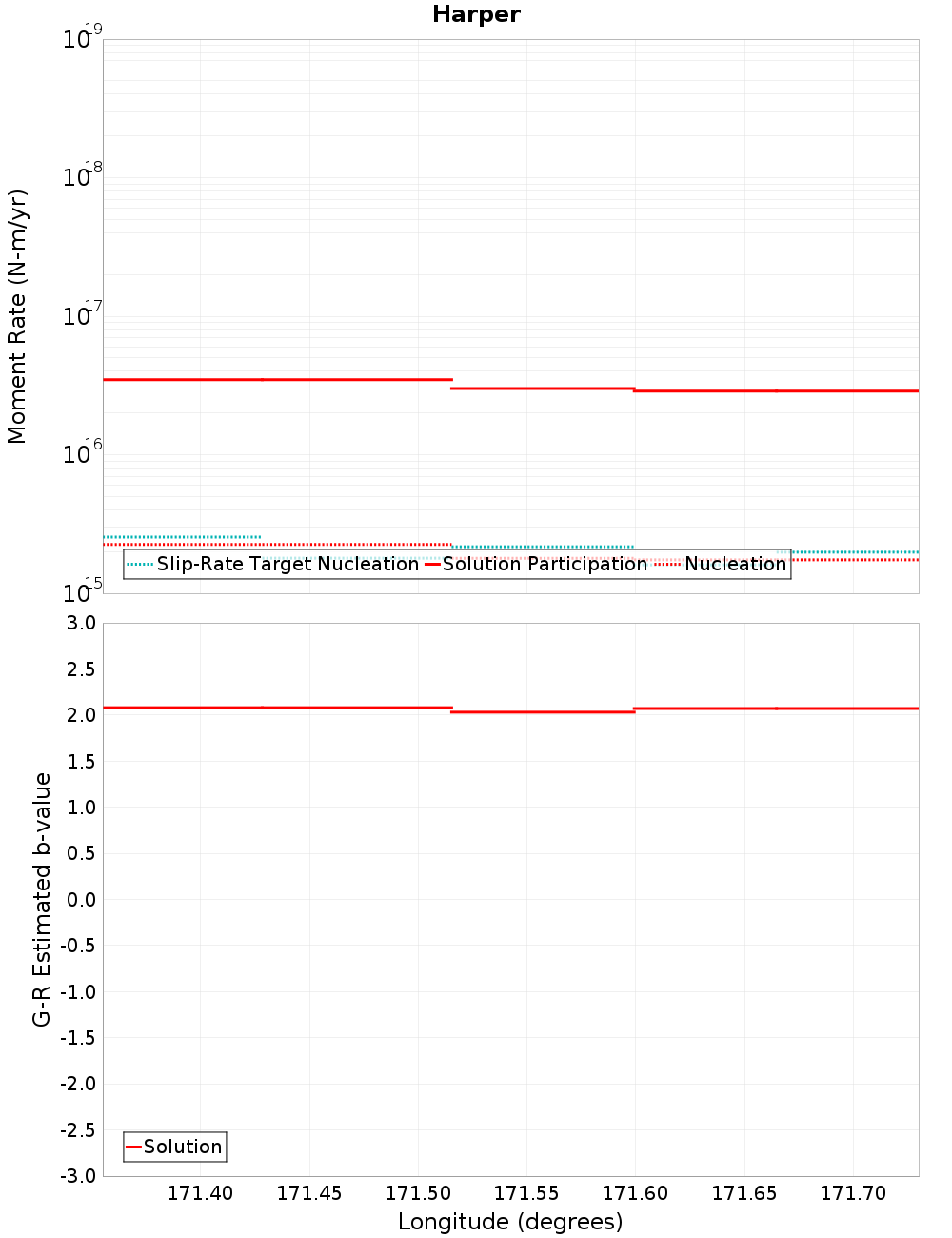

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Cheeseman, 0.16 km away
Sailor, 0.17 km away
Hutt Peel, 0.48 km away
Redcliffe, 2.34 km away
Double Hill, 5.39 km away
Porters Pass, 5.55 km away
Bruce, 6.21 km away
Mt White, 6.24 km away
North Branch, 6.8 km away
Big Ben, 8.03 km away
Torlesse, 10.94 km away
Poulter, 14 km away
Esk South, 14.2 km away
Mistake - Rolleston, 14.63 km away

Cheeseman, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMDJlTW1D
Connected?	true
Directly Connected?	true
Co-rupture Count	268
Co-rupture Rate	6.683937E-5

Sailor, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMDJlTW1D
Connected?	true
Directly Connected?	true
Co-rupture Count	419
Co-rupture Rate	3.8064907E-5

Hutt Peel, 0.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMDJlTW1D
Connected?	true
Directly Connected?	true
Co-rupture Count	698
Co-rupture Rate	2.6974983E-5

Redcliffe, 2.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMDJlTW1D
Connected?	true
Directly Connected?	true
Co-rupture Count	268
Co-rupture Rate	5.7505462E-5

Double Hill, 5.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMDJlTW1D
Connected?	true
Directly Connected?	true
Co-rupture Count	472
Co-rupture Rate	8.838682E-5

Porters Pass, 5.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMDJlTW1D
Connected?	true
Directly Connected?	true
Co-rupture Count	63
Co-rupture Rate	0.0

Bruce, 6.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMDJlTW1D
Connected?	true
Directly Connected?	true
Co-rupture Count	94
Co-rupture Rate	5.0730414E-10

Mt White, 6.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMDJlTW1D
Connected?	true
Directly Connected?	false
Co-rupture Count	408
Co-rupture Rate	1.5470756E-5

North Branch, 6.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMDJlTW1D
Connected?	true
Directly Connected?	true
Co-rupture Count	232
Co-rupture Rate	1.550989E-4

Big Ben, 8.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMDJlTW1D
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Torlesse, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMDJlTW1D
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Poulter, 14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMDJlTW1D
Connected?	true
Directly Connected?	false
Co-rupture Count	30
Co-rupture Rate	5.0730414E-10

Esk South, 14.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMDJlTW1D
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mistake - Rolleston, 14.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMDJlTW1D
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
