Alpine: Jacksons to Kaniere Details

Property	Value
Rupture Count	318,093
Ruptures Above Sect Min Mag	318,070
Ruptures w/ Nonzero Rates	2,691
Magnitude Range	[6.82, 8.51]
Length Range	[22, 1,132] km
Total Rate	0.005090775 /yr
Multi-Fault Rate	0.005090775 /yr (100.00%)
Directly-Connected Faults	29
All Co-Rupturing Faults	265

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

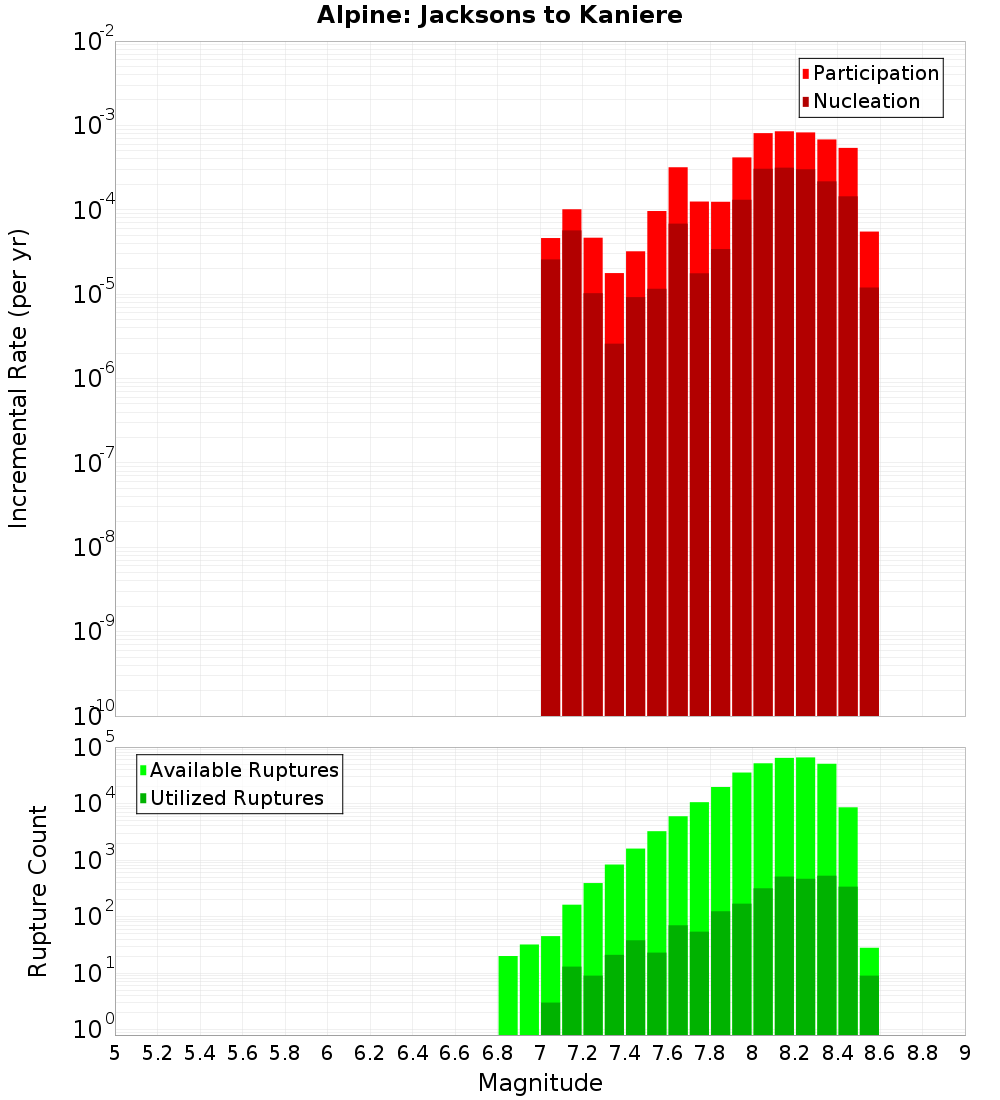

Magnitude-Frequency Distribution

Incremental	Cumulative

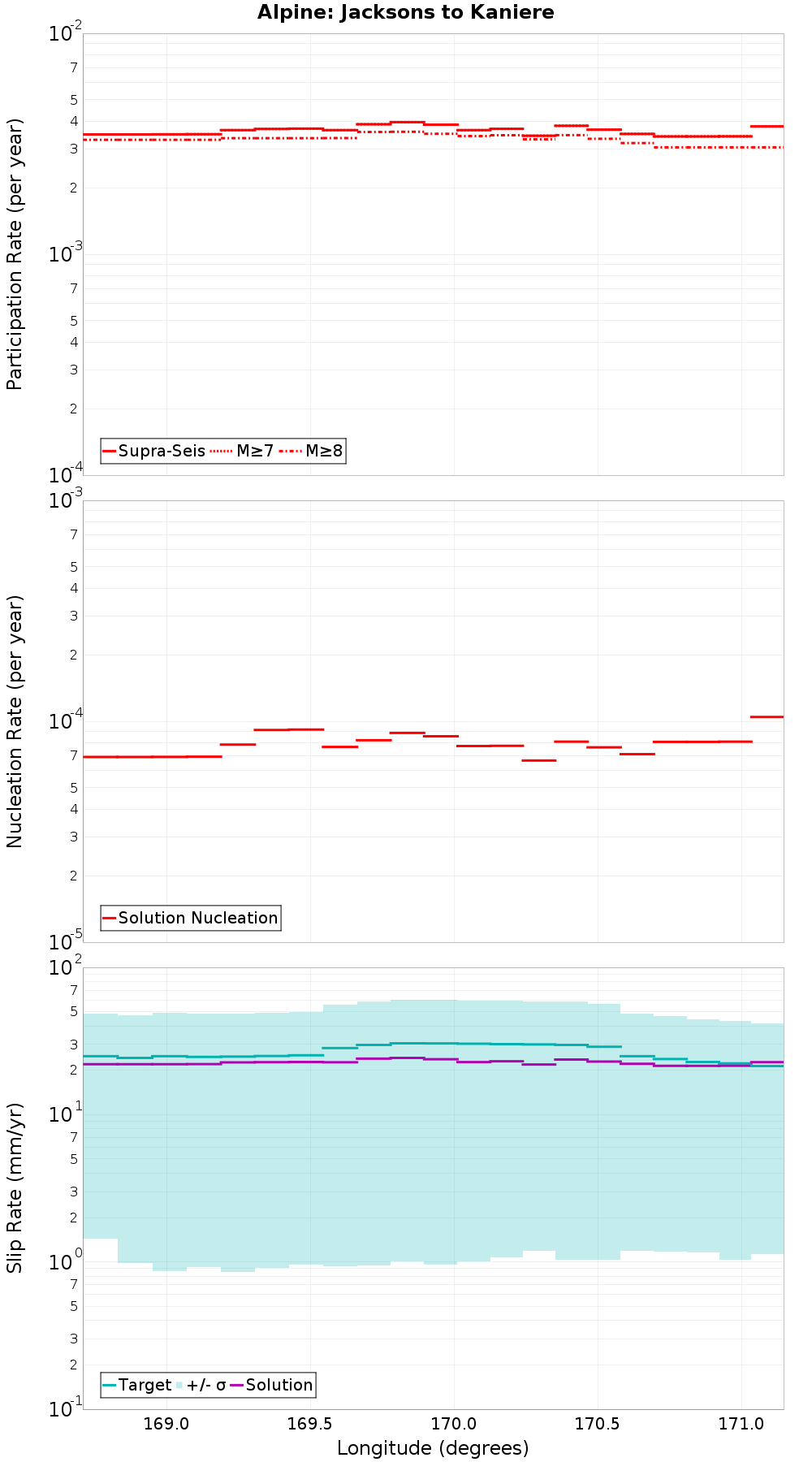

Along-Strike Values

Moment-Rates and b-Values

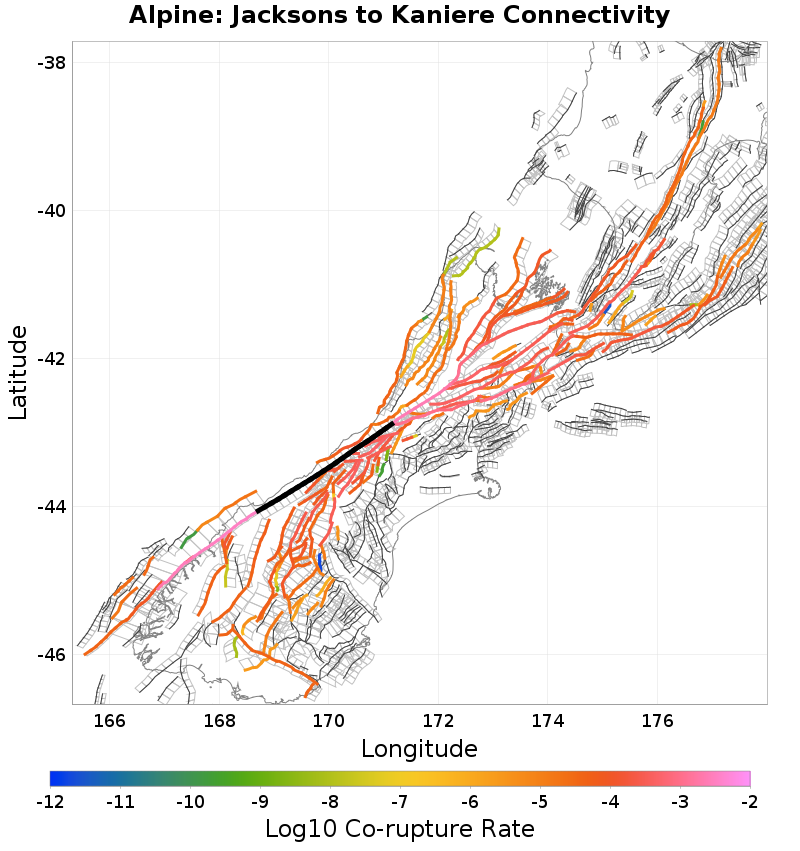

Connectivity

Nearby Sections

Fault Section	Fault Section	Fault Section
Alpine: George to Jacksons, 0 km away	Black Blob - Haast Ridge, 0.33 km away	Jollie Range, 3.19 km away
Kelly, 0 km away	Browning Pass, 0.34 km away	Landsborough 2, 4.68 km away
Alpine: Kaniere to Springs Junction, 0 km away	Mt Roon, 0.34 km away	Hopkins, 5.86 km away
Lord Range, 0.08 km away	Veil Stream, 0.45 km away	Jagged, 6.5 km away
Waitaha, 0.08 km away	Great Groove, 0.58 km away	Two Thumb Stream, 7.31 km away
McKerrow - Douglas Duplex, 0.1 km away	Hohonu South, 0.74 km away	Barn, 8.94 km away
Karangarua, 0.14 km away	Observation, 0.84 km away	Potts Range, 9.02 km away
Gunn Glacier, 0.15 km away	Mungo, 1 km away	Barrier Range, 9.14 km away
Liebig North, 0.21 km away	Moonlight North, 1.47 km away	Bruce, 11.03 km away
Mathias, 0.21 km away	Mistake - Rolleston, 1.54 km away	Macaulay 2, 12.21 km away
Murchison 1 - Ice Lake, 0.28 km away	Huxley, 1.78 km away	Ostler North, 14.01 km away
Mt Adams, 0.3 km away	Straight Creek, 2.64 km away	Hunter Valley, 14.34 km away

Alpine: George to Jacksons, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	115,597
Co-rupture Rate	0.0033937835

Kelly, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	165,080
Co-rupture Rate	0.0011248868

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	122,197
Co-rupture Rate	0.0027248529

Lord Range, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	18,224
Co-rupture Rate	5.474807E-4

Waitaha, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	3,790
Co-rupture Rate	3.3874065E-4

McKerrow - Douglas Duplex, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	9,304
Co-rupture Rate	4.9351696E-5

Karangarua, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	5,365
Co-rupture Rate	1.18278374E-4

Gunn Glacier, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	19,528
Co-rupture Rate	3.6624144E-4

Liebig North, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	13,451
Co-rupture Rate	3.9866357E-4

Mathias, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	10,773
Co-rupture Rate	2.3353608E-4

Murchison 1 - Ice Lake, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	19,444
Co-rupture Rate	3.517732E-4

Mt Adams, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	16,083
Co-rupture Rate	2.725105E-4

Black Blob - Haast Ridge, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	8,682
Co-rupture Rate	5.2303145E-5

Browning Pass, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	29,497
Co-rupture Rate	6.9597336E-5

Mt Roon, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,068
Co-rupture Rate	1.05623585E-4

Veil Stream, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	8,084
Co-rupture Rate	2.356591E-4

Great Groove, 0.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	4,606
Co-rupture Rate	2.9448798E-5

Hohonu South, 0.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	35,067
Co-rupture Rate	2.3273633E-4

Observation, 0.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	17,376
Co-rupture Rate	3.1508208E-4

Mungo, 1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	6,245
Co-rupture Rate	4.7111925E-4

Moonlight North, 1.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	41,463
Co-rupture Rate	5.5152104E-5

Mistake - Rolleston, 1.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	5,172
Co-rupture Rate	3.1018465E-6

Huxley, 1.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	5,113
Co-rupture Rate	9.760346E-5

Straight Creek, 2.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	5,691
Co-rupture Rate	1.7666984E-4

Jollie Range, 3.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	3,736
Co-rupture Rate	1.8917717E-4

Landsborough 2, 4.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	10,304
Co-rupture Rate	9.762954E-5

Hopkins, 5.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	36,877
Co-rupture Rate	2.9530018E-4

Jagged, 6.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	false
Co-rupture Count	1,373
Co-rupture Rate	2.0342263E-9

Two Thumb Stream, 7.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	false
Co-rupture Count	2,169
Co-rupture Rate	5.4547454E-5

Barn, 8.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	false
Co-rupture Count	387
Co-rupture Rate	1.7804676E-5

Potts Range, 9.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	false
Co-rupture Count	1,283
Co-rupture Rate	5.6386685E-5

Barrier Range, 9.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	false
Co-rupture Count	7,752
Co-rupture Rate	3.3540407E-5

Bruce, 11.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	false
Co-rupture Count	1,428
Co-rupture Rate	1.4053199E-4

Macaulay 2, 12.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	false
Co-rupture Count	1,400
Co-rupture Rate	1.4787405E-4

Ostler North, 14.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	9,931
Co-rupture Rate	3.1639697E-4

Hunter Valley, 14.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	11,153
Co-rupture Rate	2.5753488E-4
