Alpine: Kaniere to Springs Junction Details

PropertyValue
Rupture Count164,117
Ruptures Above Sect Min Mag164,099
Ruptures w/ Nonzero Rates1,411
Magnitude Range[6.76, 8.51]
Length Range[21, 1,132] km
Total Rate0.0039729746 /yr
Multi-Fault Rate0.003972942 /yr (100.00%)
Directly-Connected Faults13
All Co-Rupturing Faults235

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

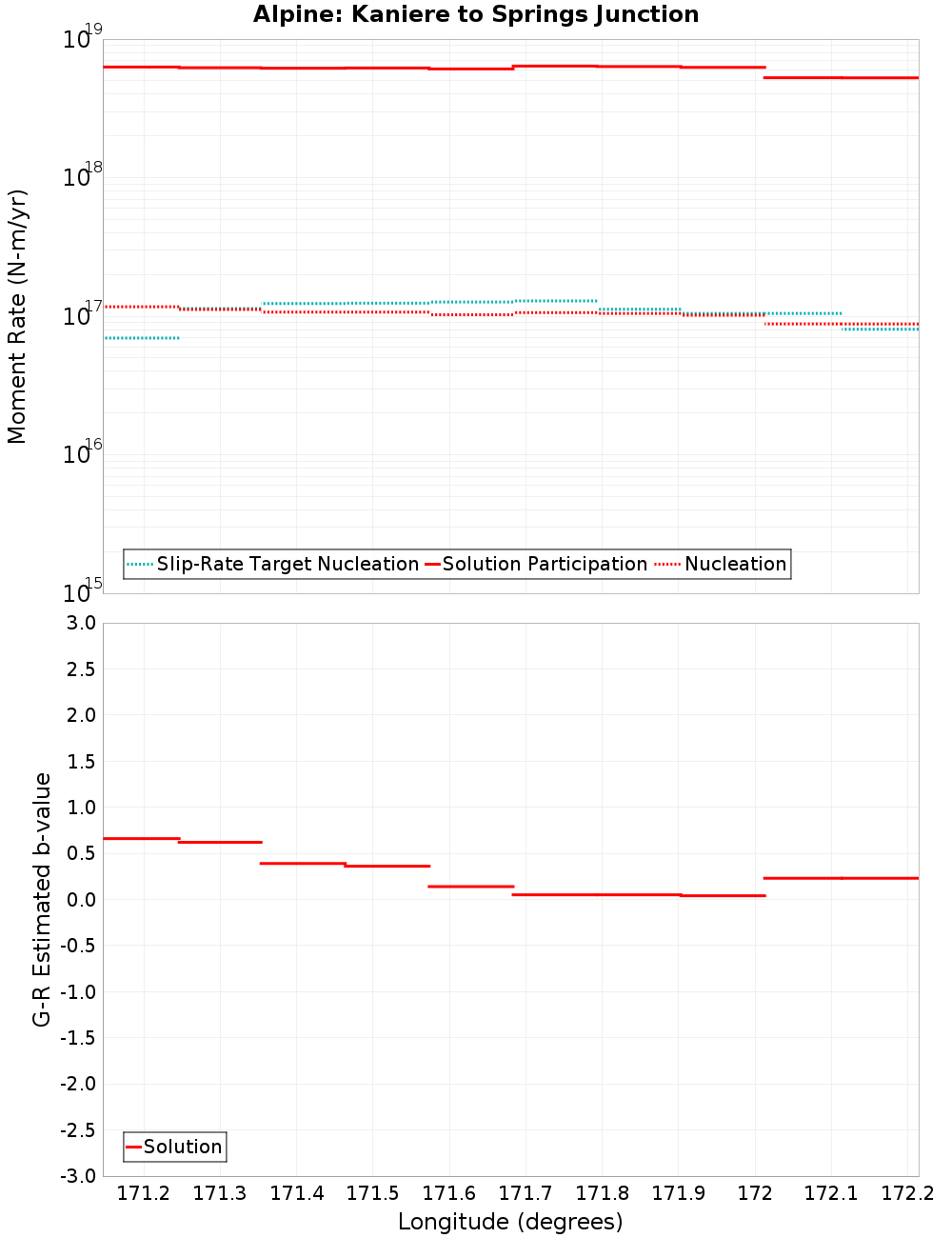

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Alpine: Springs Junction to Tophouse, 0 km awayFowlers, 0.24 km away
Alpine: Jacksons to Kaniere, 0 km awayHohonu North, 0.26 km away
Kelly, 0 km awayHope: Hope River, 2.94 km away
Awatere: Southwest, 0 km awayMistake - Rolleston, 3.4 km away
Hohonu South, 0.04 km awayKakapo, 6.32 km away
Browning Pass, 0.16 km awayMathias, 10.78 km away
Hohonu, 0.18 km awayWhite Creek - buried, 12.02 km away
Hope: Hurunui, 0.19 km awayMungo, 13.41 km away
Clarence: Southwest, 0.21 km awayEsk North, 14.61 km away
Hope: Taramakau, 0.23 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count92,332
Co-rupture Rate0.0016634149

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count122,197
Co-rupture Rate0.0027248529

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count49,005
Co-rupture Rate4.992765E-4

Awatere: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count39,330
Co-rupture Rate4.8900355E-4

Hohonu South, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count22,109
Co-rupture Rate1.7263965E-5

Browning Pass, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count30,482
Co-rupture Rate7.351514E-5

Hohonu, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count6,462
Co-rupture Rate2.180354E-5

Hope: Hurunui, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count16,403
Co-rupture Rate1.8554024E-4

Clarence: Southwest, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count6,910
Co-rupture Rate4.039173E-4

Hope: Taramakau, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?false
Co-rupture Count2,986
Co-rupture Rate2.0432966E-4

Fowlers, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count5,430
Co-rupture Rate2.2902222E-4

Hohonu North, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count11,519
Co-rupture Rate1.9026775E-5

Hope: Hope River, 2.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count16,293
Co-rupture Rate1.5159544E-4

Mistake - Rolleston, 3.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count9,206
Co-rupture Rate0.0010188068

Kakapo, 6.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?false
Co-rupture Count1,215
Co-rupture Rate3.3847984E-5

Mathias, 10.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?false
Co-rupture Count2,910
Co-rupture Rate5.7608286E-5

White Creek - buried, 12.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?false
Co-rupture Count5,130
Co-rupture Rate1.9026744E-5

Mungo, 13.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?false
Co-rupture Count880
Co-rupture Rate2.2510278E-4

Esk North, 14.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0
