Fowlers Details

Property	Value
Rupture Count	12,234
Ruptures Above Sect Min Mag	12,227
Ruptures w/ Nonzero Rates	297
Magnitude Range	[6.79, 8.40]
Length Range	[21, 805] km
Total Rate	7.4939814E-4 /yr
Multi-Fault Rate	7.4939814E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	224

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

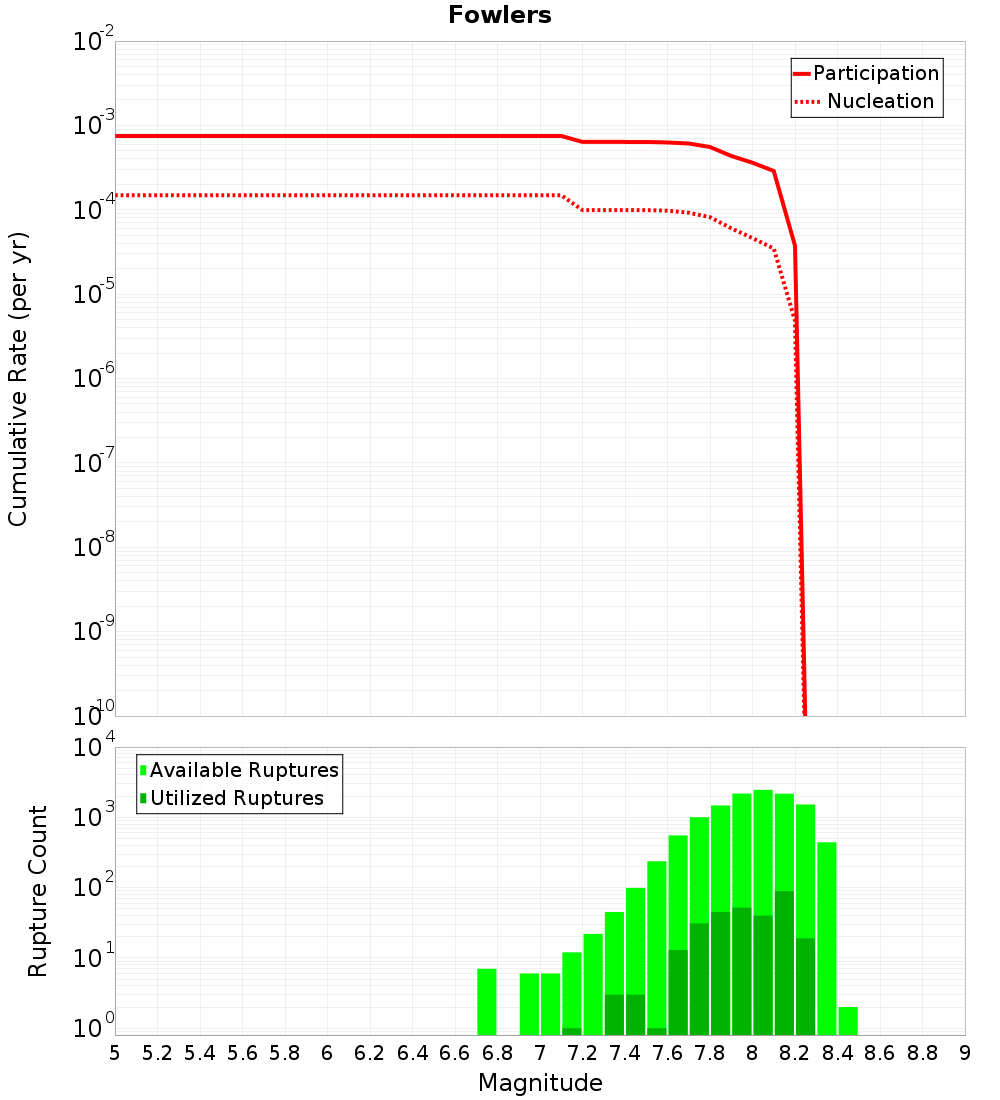

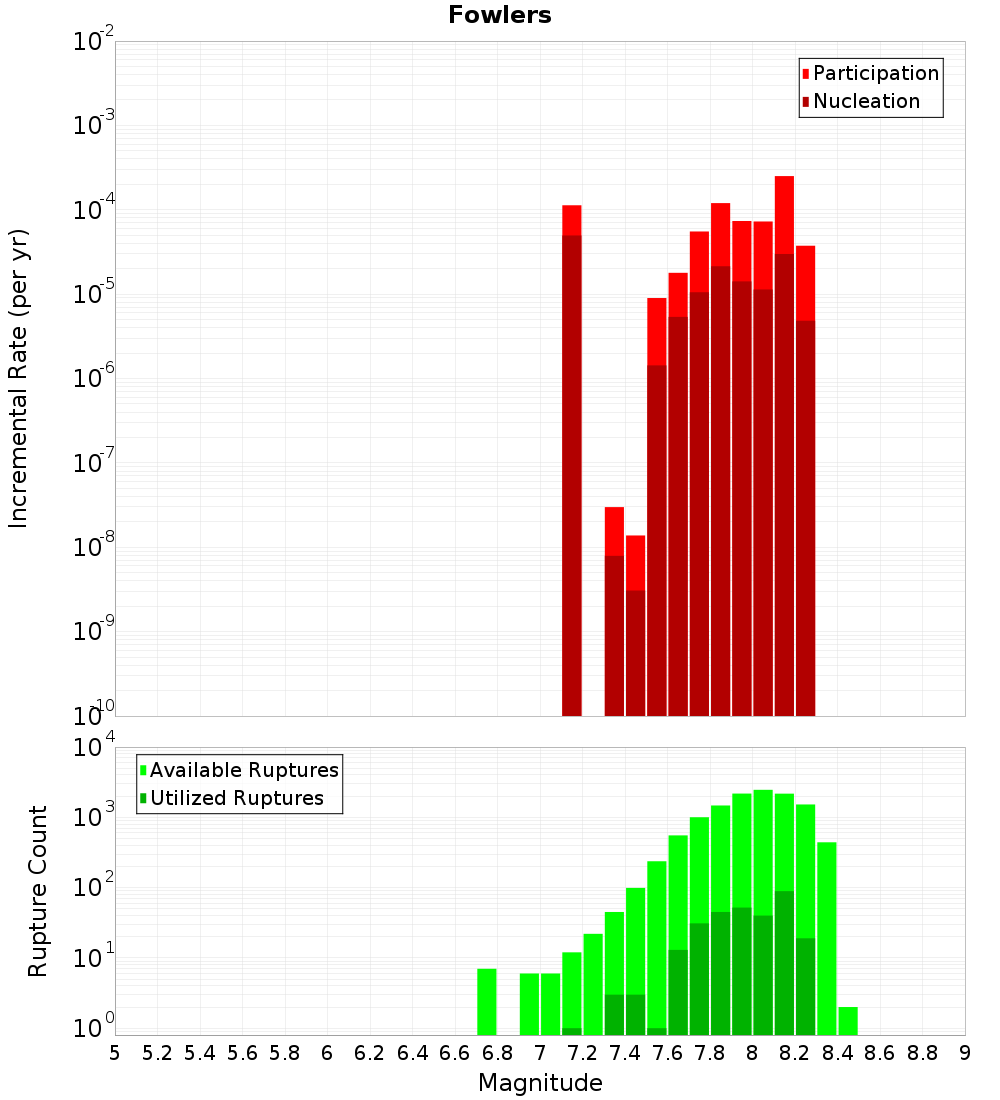

Magnitude-Frequency Distribution

Incremental	Cumulative

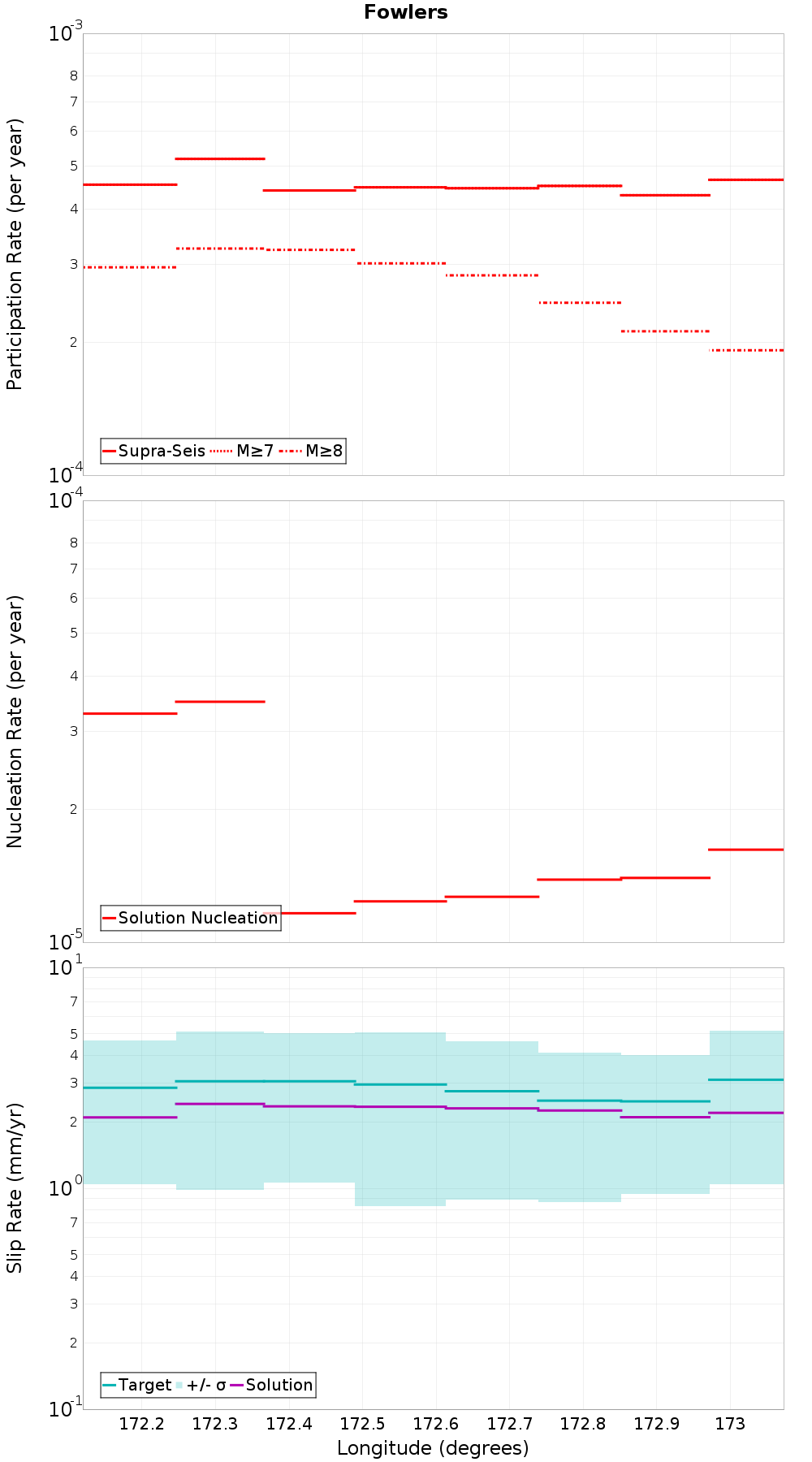

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Clarence: Central, 0.07 km away
Alpine: Springs Junction to Tophouse, 0.21 km away
Barefell, 0.22 km away
Alpine: Kaniere to Springs Junction, 0.24 km away
Elliott, 0.4 km away
Clarence: Southwest, 2.09 km away
Awatere: Southwest, 4.56 km away
Dillon, 6.66 km away
Acheron, 7.42 km away
Shingle Peak, 12.89 km away
Awatere: Northeast 1, 14.06 km away

Clarence: Central, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	3,453
Co-rupture Rate	6.825355E-5

Alpine: Springs Junction to Tophouse, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	312
Co-rupture Rate	1.1305222E-4

Barefell, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,687
Co-rupture Rate	4.061387E-4

Alpine: Kaniere to Springs Junction, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	5,464
Co-rupture Rate	2.2902222E-4

Elliott, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,063
Co-rupture Rate	1.1642909E-6

Clarence: Southwest, 2.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,428
Co-rupture Rate	9.171936E-5

Awatere: Southwest, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	659
Co-rupture Rate	4.4782603E-8

Dillon, 6.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

Acheron, 7.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0

Shingle Peak, 12.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	false
Co-rupture Count	53
Co-rupture Rate	8.957587E-12

Awatere: Northeast 1, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	false
Co-rupture Count	2,718
Co-rupture Rate	3.9751074E-4
