Hope: Seaward Details

PropertyValue
Rupture Count89,318
Ruptures Above Sect Min Mag89,297
Ruptures w/ Nonzero Rates542
Magnitude Range[6.52, 8.46]
Length Range[16, 1,076] km
Total Rate9.5975766E-4 /yr
Multi-Fault Rate9.5975766E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults263

Table Of Contents

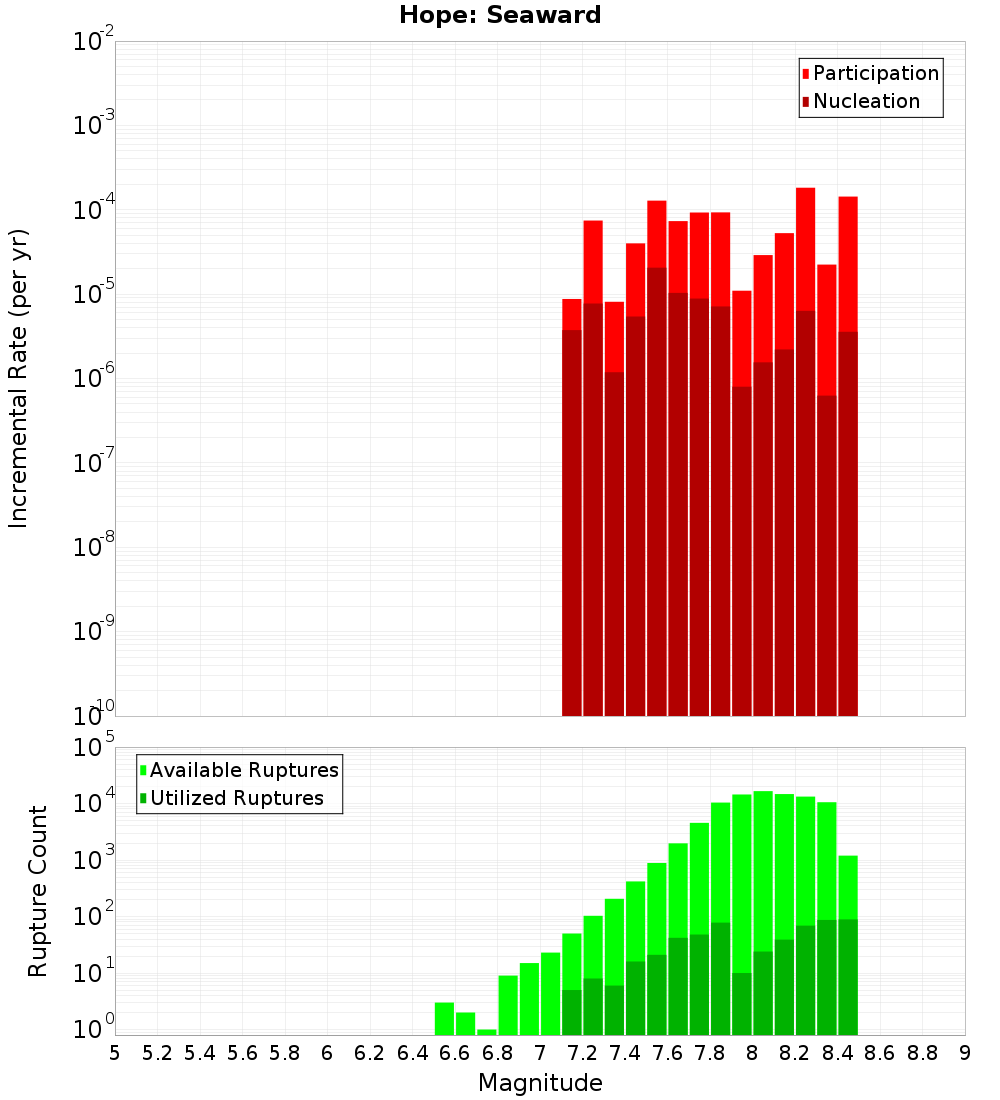

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

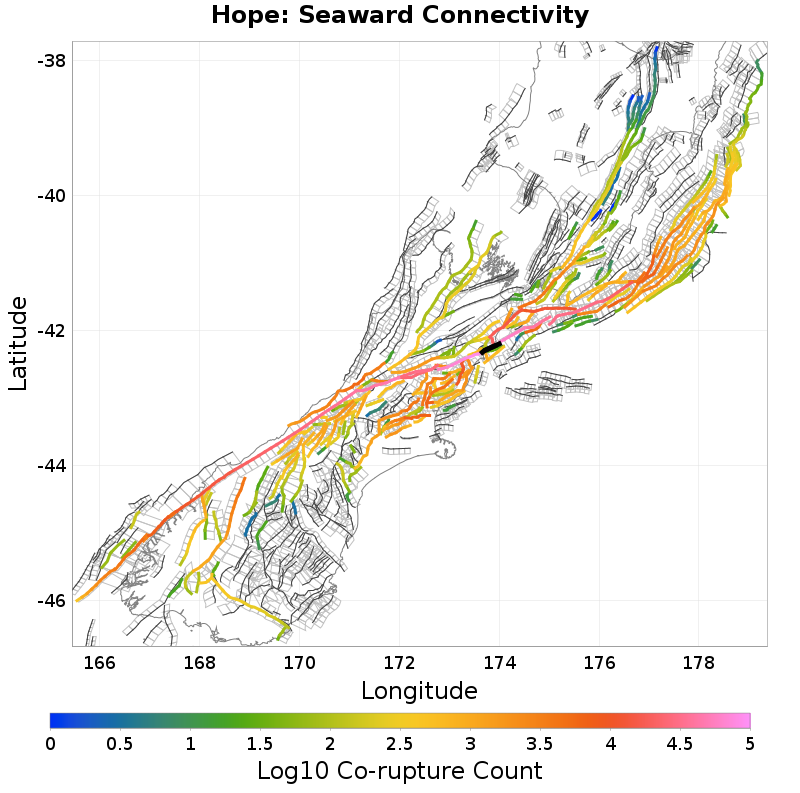

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Conway, 0 km away
Jordan, 0 km away
Papatea, 0.03 km away
Offshore Splay Thrust, 0.12 km away
Upper Kowhai - Manakau, 0.41 km away
Kaikoura - Mangamaunu, 1.03 km away
Kowhai, 1.7 km away
Hope: Te Rapa, 3.47 km away
Kaikoura 2, 4.74 km away
Upper Slope, 10.39 km away
Fidget, 13.67 km away

Hope: Conway, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count85,073
Co-rupture Rate8.889827E-4

Jordan, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?false
Co-rupture Count129
Co-rupture Rate0.0

Papatea, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count19,775
Co-rupture Rate7.762633E-5

Offshore Splay Thrust, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count618
Co-rupture Rate0.0

Upper Kowhai - Manakau, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaikoura - Mangamaunu, 1.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate4.848708E-5

Kowhai, 1.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count693
Co-rupture Rate1.4611442E-7

Hope: Te Rapa, 3.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count60,726
Co-rupture Rate6.6931057E-4

Kaikoura 2, 4.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?true
Co-rupture Count965
Co-rupture Rate1.2801064E-4

Upper Slope, 10.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?false
Co-rupture Count5,489
Co-rupture Rate5.5769004E-5

Fidget, 13.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?true
Directly Connected?false
Co-rupture Count396
Co-rupture Rate0.0
