Mid Dome Details

Property	Value
Rupture Count	3,061
Ruptures Above Sect Min Mag	3,060
Ruptures w/ Nonzero Rates	49
Magnitude Range	[6.98, 8.43]
Length Range	[23, 800] km
Total Rate	1.288482E-4 /yr
Multi-Fault Rate	1.288482E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	65

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

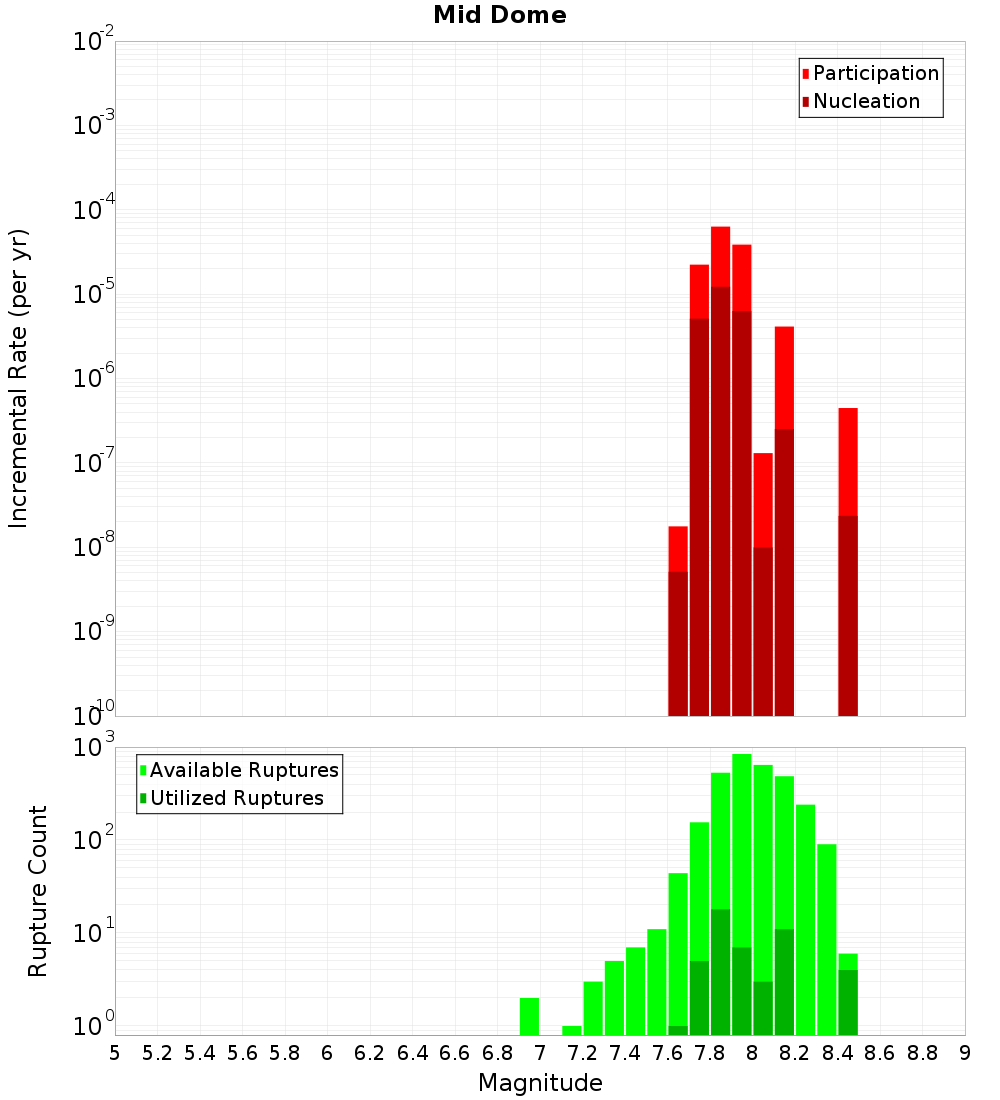

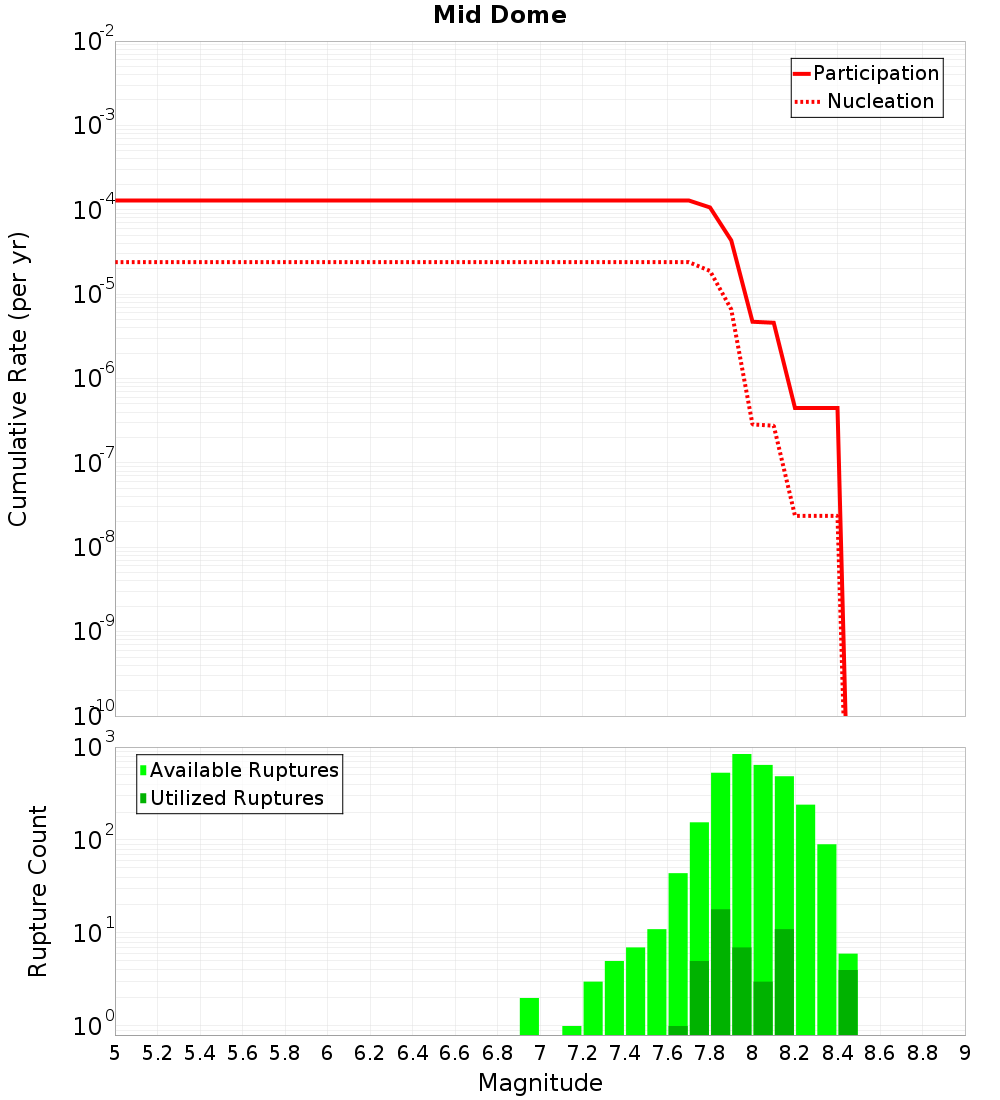

Magnitude-Frequency Distribution

Incremental	Cumulative

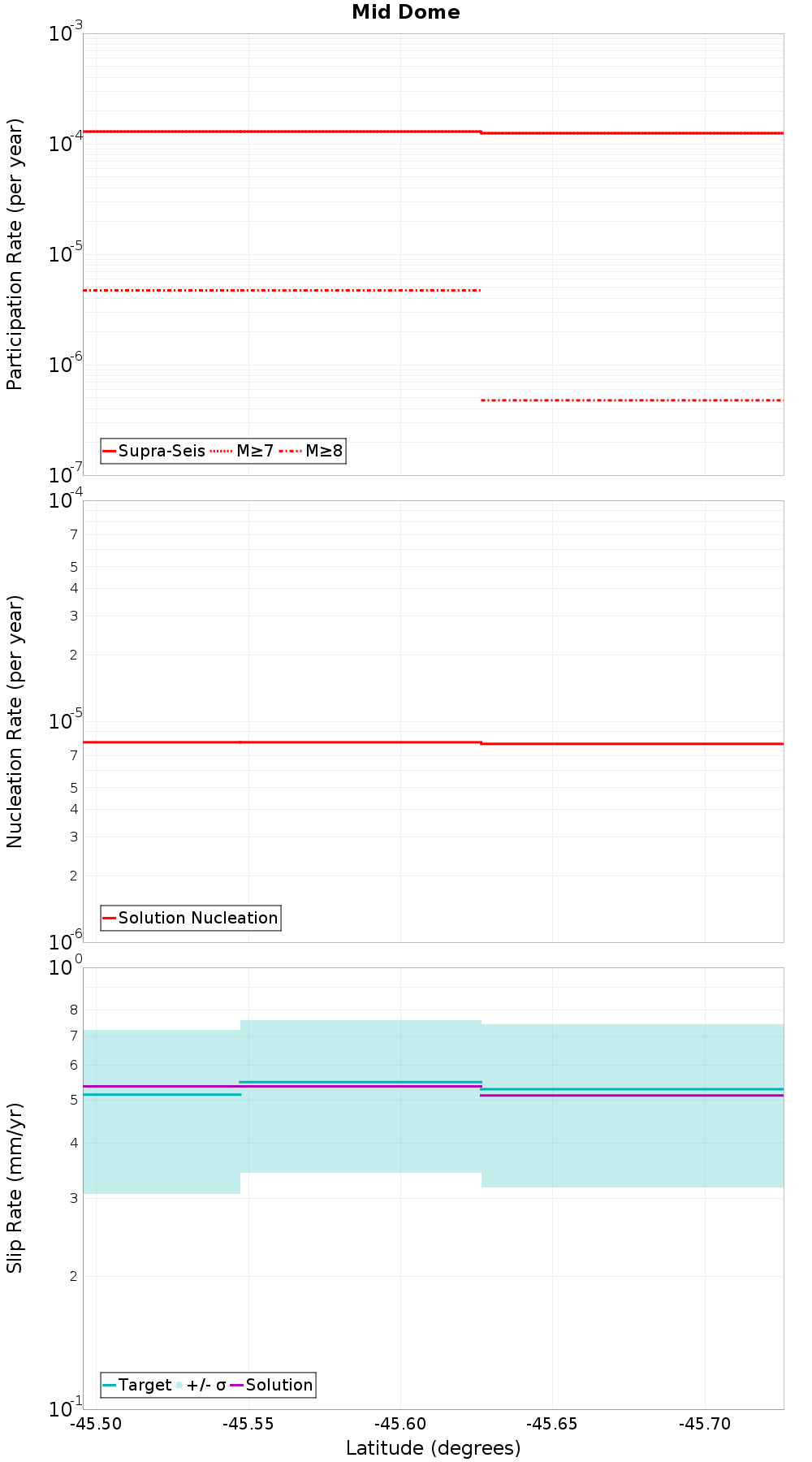

Along-Strike Values

Moment-Rates and b-Values

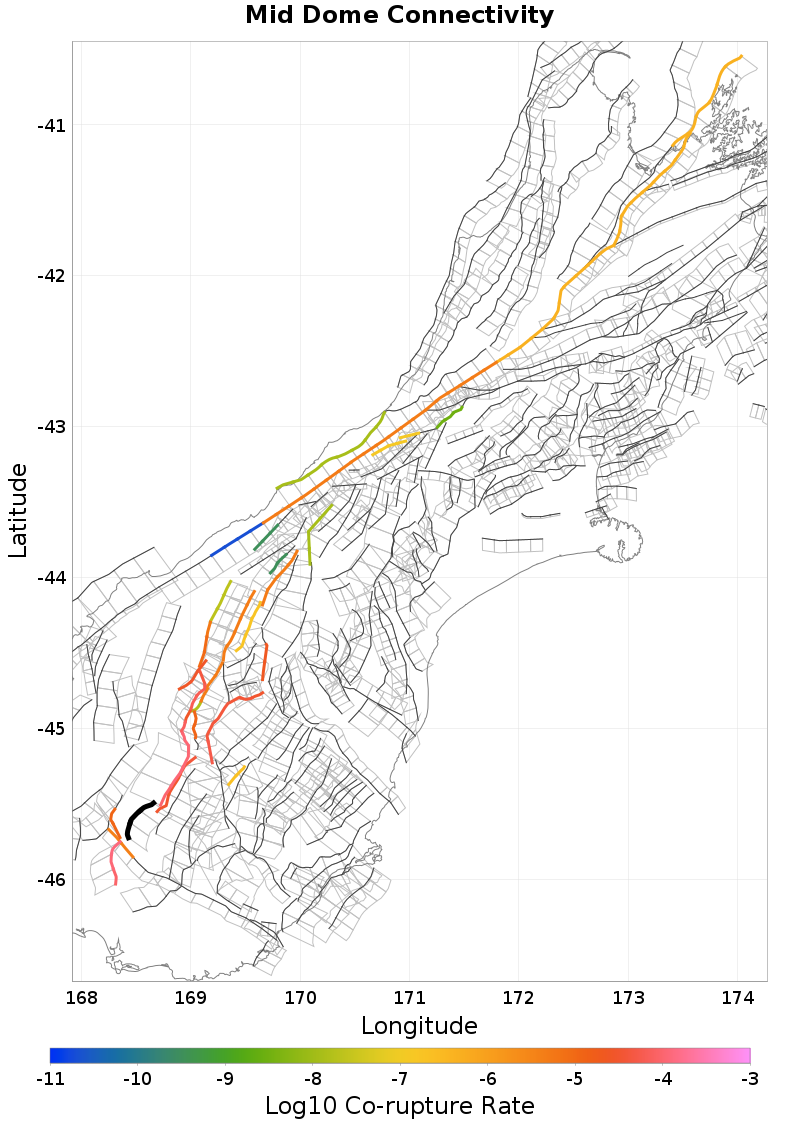

Connectivity

Nearby Sections

Fault Section
Nevis, 1.03 km away
Roaring Lion, 5.34 km away
Acton, 5.6 km away
Hokonui, 6.47 km away
White Hill, 6.67 km away
Garvie, 11.17 km away
Waikaka, 12.75 km away
Old Man, 13.89 km away
Mossburn, 14.2 km away

Nevis, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,147
Co-rupture Rate	1.14591356E-4

Roaring Lion, 5.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,400
Co-rupture Rate	3.86041E-5

Acton, 5.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	false
Co-rupture Count	11
Co-rupture Rate	1.1694717E-5

Hokonui, 6.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	358
Co-rupture Rate	3.961451E-6

White Hill, 6.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	true
Directly Connected?	true
Co-rupture Count	565
Co-rupture Rate	1.241492E-4

Garvie, 11.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waikaka, 12.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Old Man, 13.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mossburn, 14.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDYuMFhONXY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
