Farewell Details
| Property | Value |
|---|---|
| Rupture Count | 2,586 |
| Ruptures Above Sect Min Mag | 2,580 |
| Ruptures w/ Nonzero Rates | 73 |
| Magnitude Range | [6.86, 8.50] |
| Length Range | [19, 700] km |
| Total Rate | 1.17834505E-4 /yr |
| Multi-Fault Rate | 1.1783021E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 36 |
Table Of Contents

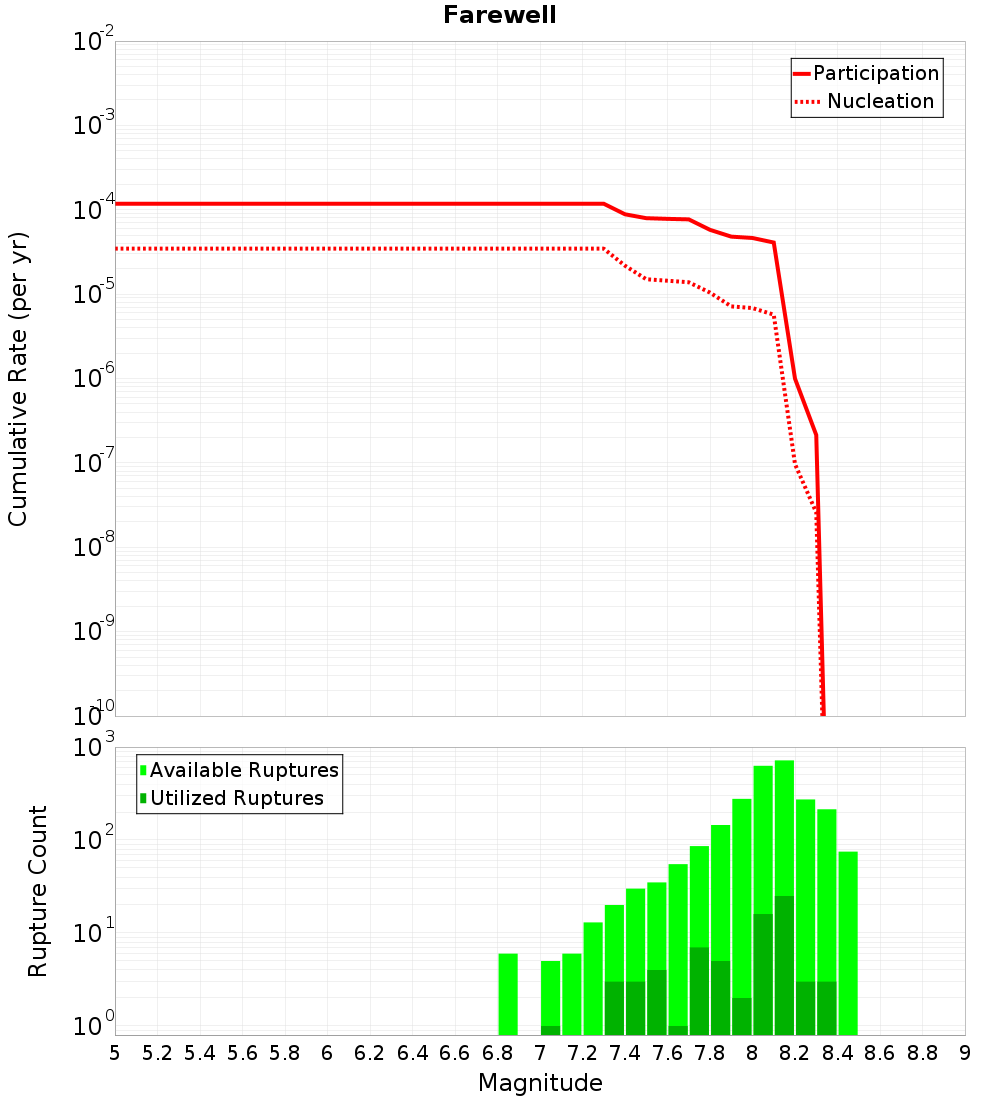

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

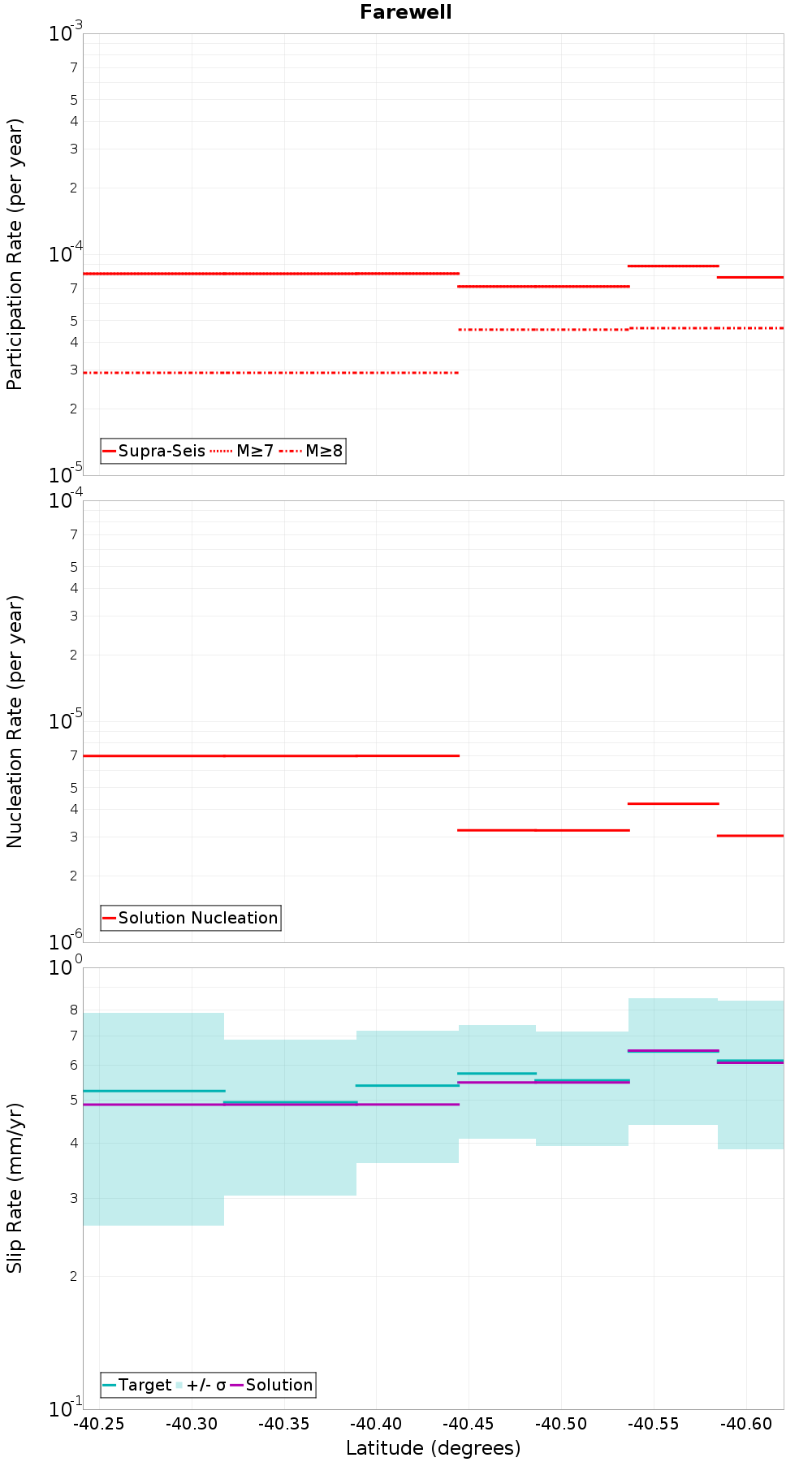

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Wakamarama Offshore, 0.22 km away |
| Kahurangi, 0.32 km away |
| Wakamarama, 0.36 km away |
| Kongahau, 4.12 km away |
Wakamarama Offshore, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,015 |
| Co-rupture Rate | 6.1934916E-5 |
Kahurangi, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 639 |
| Co-rupture Rate | 6.8194764E-5 |
Wakamarama, 0.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 143 |
| Co-rupture Rate | 2.6773507E-5 |
Kongahau, 4.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,845 |
| Co-rupture Rate | 1.0357808E-5 |
