Hohonu South Details

Property	Value
Rupture Count	136,157
Ruptures Above Sect Min Mag	136,149
Ruptures w/ Nonzero Rates	519
Magnitude Range	[7.11, 8.65]
Length Range	[25, 934] km
Total Rate	4.4650026E-4 /yr
Multi-Fault Rate	3.5098832E-4 /yr (78.61%)
Directly-Connected Faults	22
All Co-Rupturing Faults	304

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

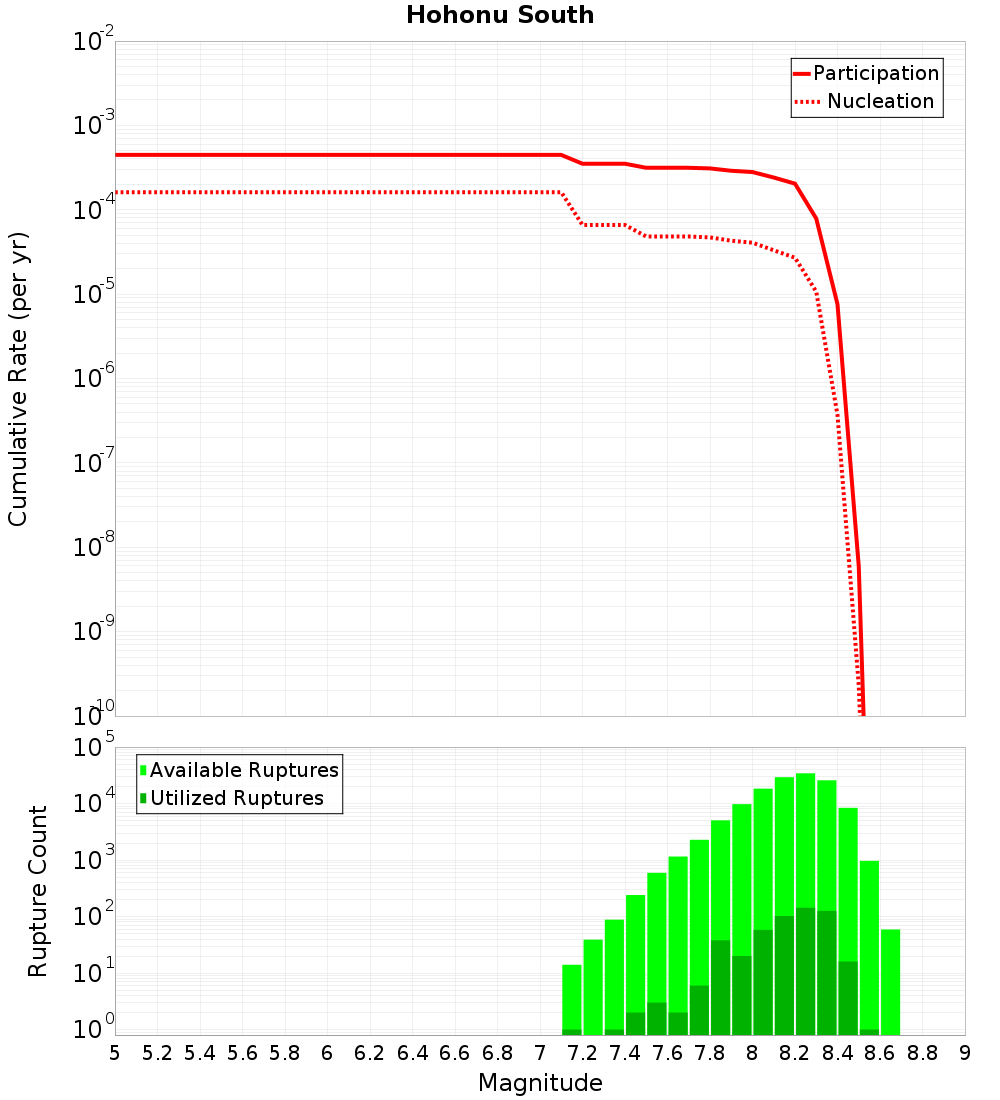

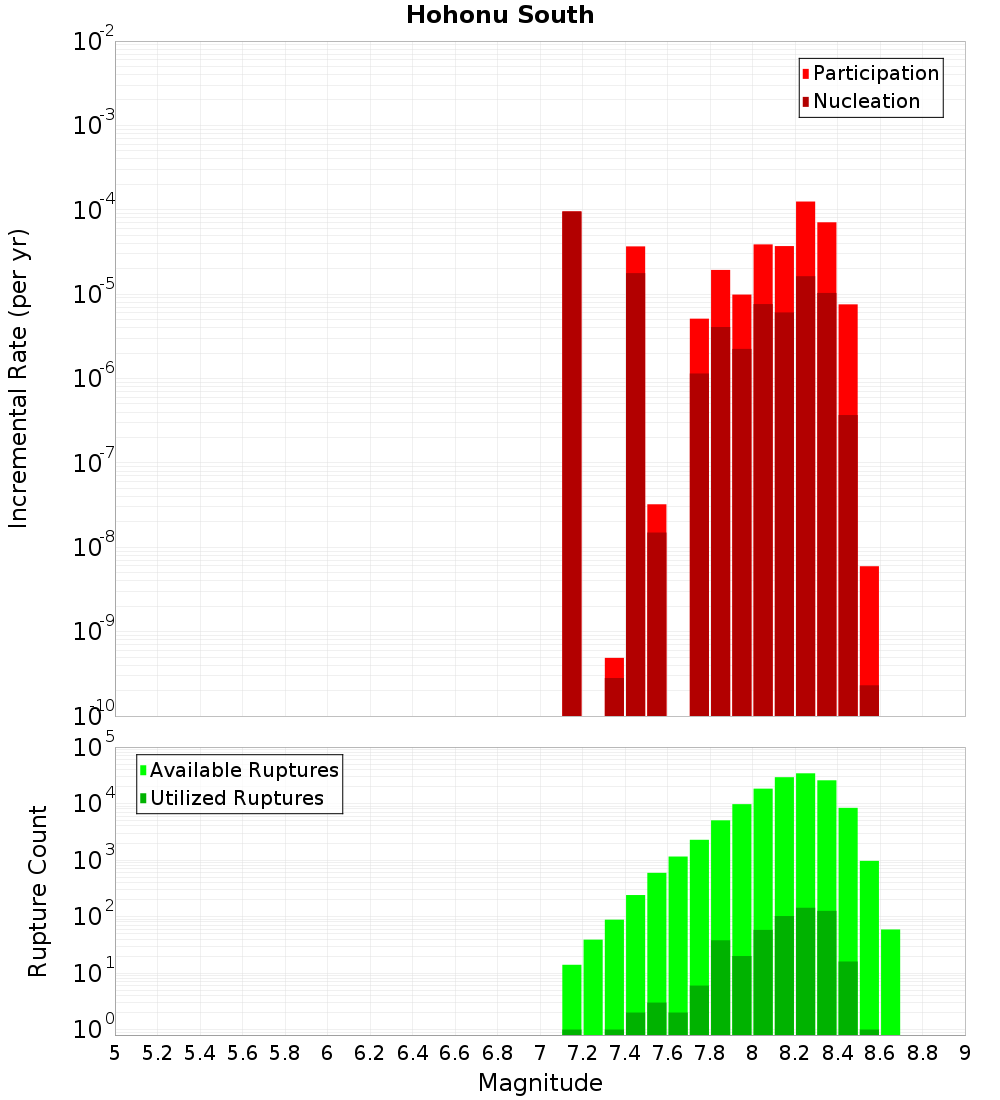

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Hohonu, 0 km away	Mistake - Rolleston, 2.4 km away
Alpine: Kaniere to Springs Junction, 0.04 km away	Karangarua, 2.41 km away
Mt Adams, 0.11 km away	McKerrow - Douglas Duplex, 2.56 km away
Murchison 1 - Ice Lake, 0.15 km away	Mt Roon, 4.79 km away
Lord Range, 0.25 km away	Hope: Taramakau, 6.54 km away
Black Blob - Haast Ridge, 0.28 km away	Mungo, 7.08 km away
Kelly, 0.29 km away	Jollie Range, 7.2 km away
Browning Pass, 0.29 km away	Maimai: Brunner Anticline, 7.36 km away
Gunn Glacier, 0.37 km away	Two Thumb Stream, 10.18 km away
Waitaha, 0.4 km away	Straight Creek, 10.89 km away
Alpine: Jacksons to Kaniere, 0.74 km away	Potts Range, 11.39 km away
Mathias, 0.76 km away	Hohonu North, 14.35 km away
Liebig North, 1.16 km away	Cape Foulwind 1, 14.46 km away
Observation, 1.39 km away	Jagged, 14.95 km away
Veil Stream, 1.86 km away

Hohonu, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	50,596
Co-rupture Rate	8.679097E-7

Alpine: Kaniere to Springs Junction, 0.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	20,546
Co-rupture Rate	4.84884E-6

Mt Adams, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	17,698
Co-rupture Rate	1.522072E-4

Murchison 1 - Ice Lake, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	22,363
Co-rupture Rate	1.1893362E-5

Lord Range, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	28,713
Co-rupture Rate	4.174137E-5

Black Blob - Haast Ridge, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	12,759
Co-rupture Rate	3.0353793E-5

Kelly, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	25,591
Co-rupture Rate	4.6699552E-7

Browning Pass, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	529
Co-rupture Rate	0.0

Gunn Glacier, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	8,795
Co-rupture Rate	4.3687196E-5

Waitaha, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	4,415
Co-rupture Rate	1.0531616E-4

Alpine: Jacksons to Kaniere, 0.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	34,191
Co-rupture Rate	2.2877795E-4

Mathias, 0.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	4,454
Co-rupture Rate	1.0429927E-10

Liebig North, 1.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	6,386
Co-rupture Rate	9.321387E-6

Observation, 1.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	5,615
Co-rupture Rate	8.6468344E-7

Veil Stream, 1.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	6,930
Co-rupture Rate	2.6925136E-5

Mistake - Rolleston, 2.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	5,903
Co-rupture Rate	8.679097E-7

Karangarua, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	18,495
Co-rupture Rate	1.5960346E-5

McKerrow - Douglas Duplex, 2.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	23,079
Co-rupture Rate	2.7383023E-5

Mt Roon, 4.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	641
Co-rupture Rate	0.0

Hope: Taramakau, 6.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	16,791
Co-rupture Rate	7.31364E-6

Mungo, 7.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	false
Co-rupture Count	1,496
Co-rupture Rate	6.851536E-6

Jollie Range, 7.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	2,921
Co-rupture Rate	6.019238E-6

Maimai: Brunner Anticline, 7.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Two Thumb Stream, 10.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	false
Co-rupture Count	2,333
Co-rupture Rate	2.1891812E-5

Straight Creek, 10.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	false
Co-rupture Count	7,161
Co-rupture Rate	1.4756228E-7

Potts Range, 11.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	false
Co-rupture Count	2,497
Co-rupture Rate	2.3380935E-6

Hohonu North, 14.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	false
Co-rupture Count	48,469
Co-rupture Rate	5.8446005E-7

Cape Foulwind 1, 14.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	7,934
Co-rupture Rate	2.9693976E-5

Jagged, 14.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	false
Co-rupture Count	1,730
Co-rupture Rate	3.3454413E-9
