Kotare - Moutuhora Details

PropertyValue
Rupture Count42
Ruptures Above Sect Min Mag39
Ruptures w/ Nonzero Rates15
Magnitude Range[7.05, 7.94]
Length Range[22, 178] km
Total Rate5.998773E-4 /yr
Multi-Fault Rate4.110551E-4 /yr (68.52%)
Directly-Connected Faults5
All Co-Rupturing Faults11

Table Of Contents

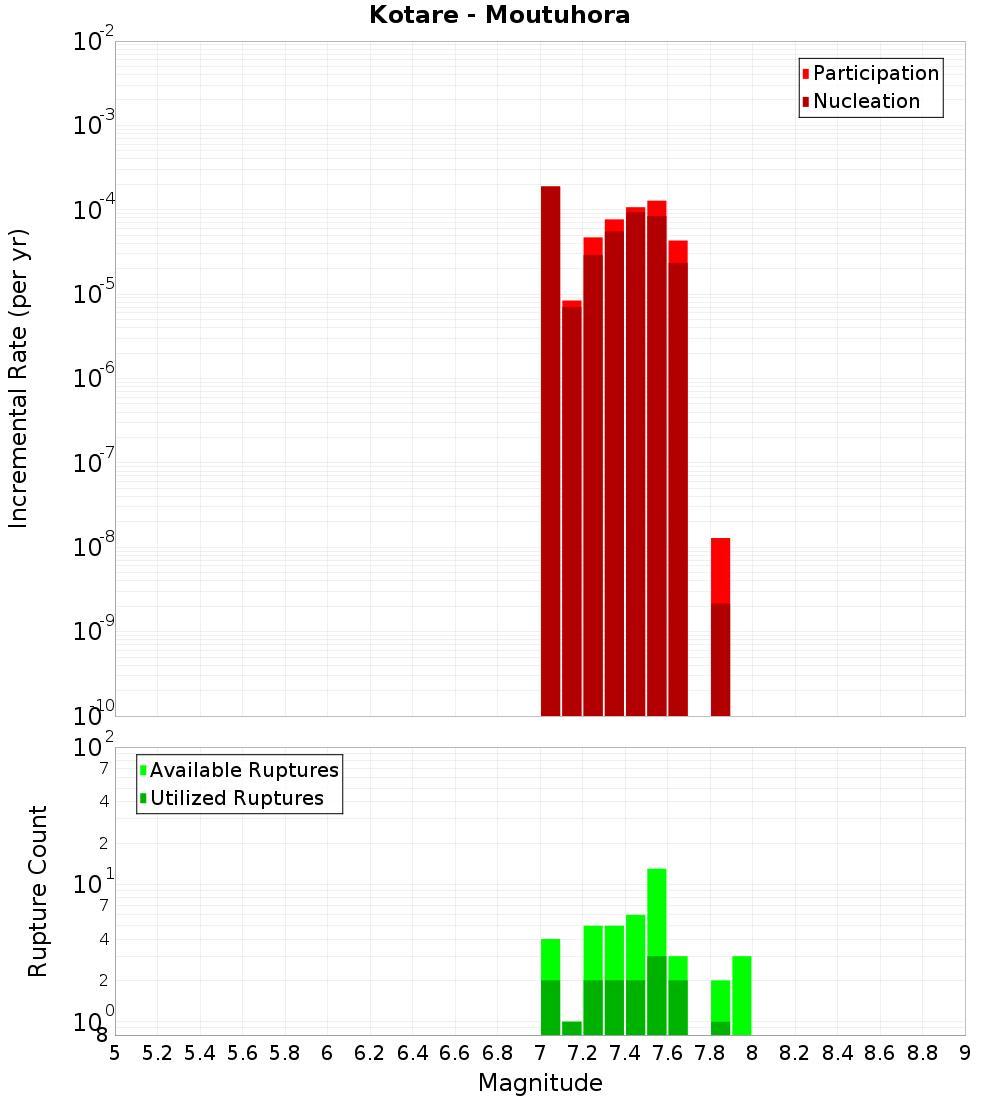

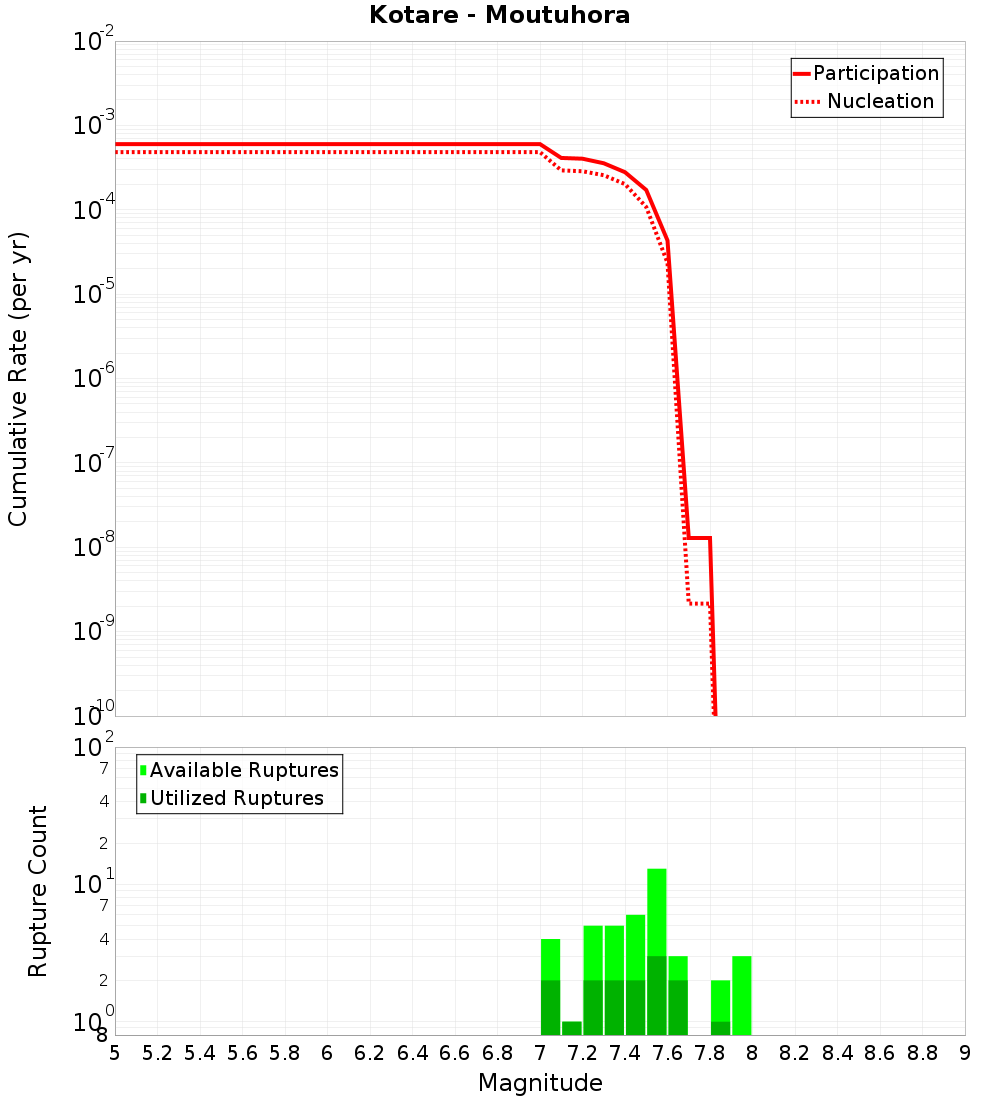

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

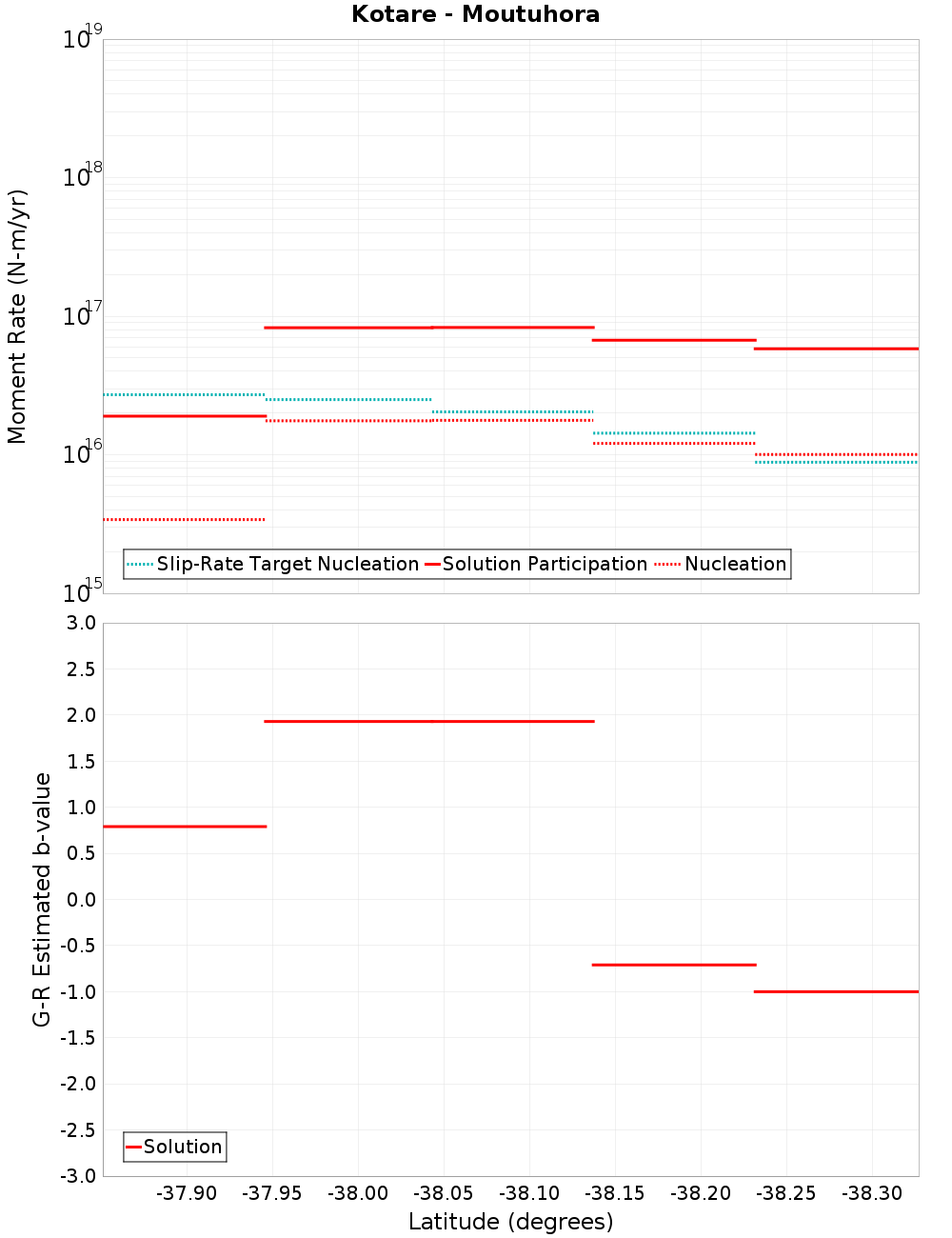

Moment-Rates and b-Values

(top)

Along-strike plot

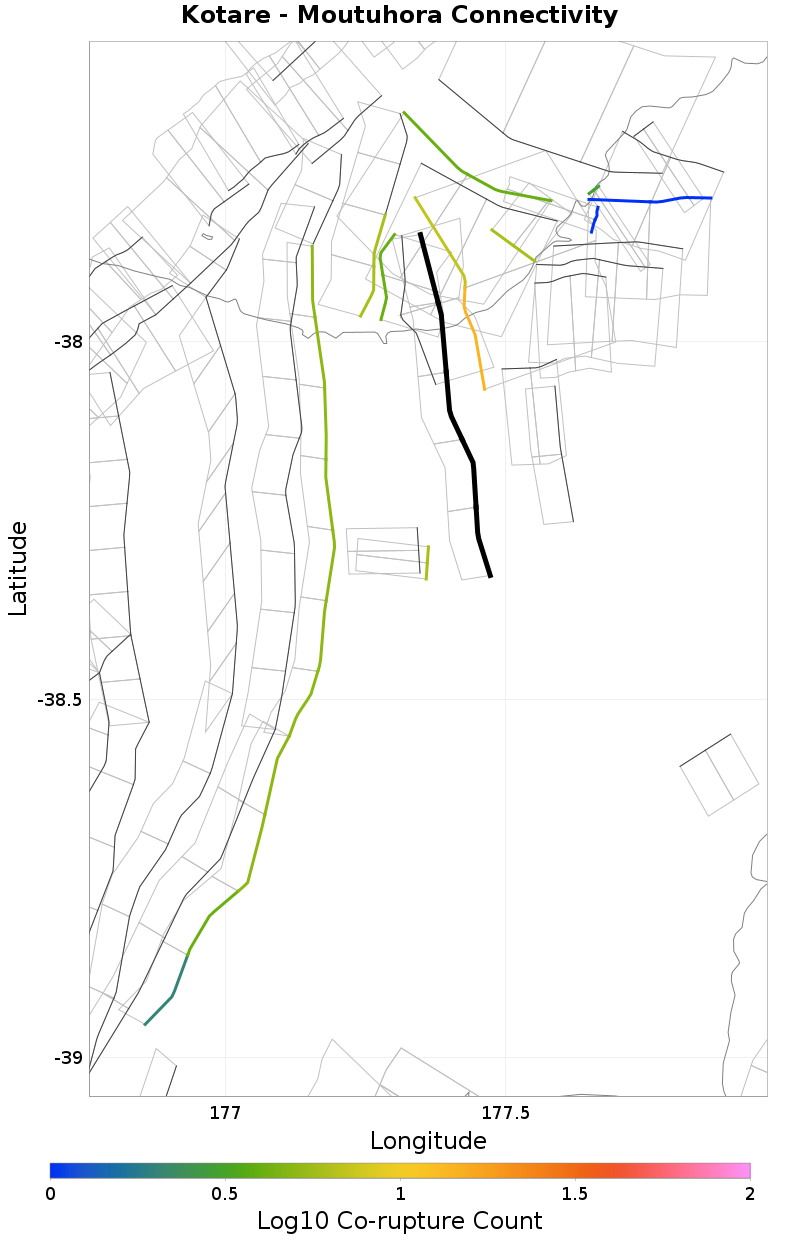

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Opotiki 2, 0.08 km away
Ohae 2, 0.13 km away
Ohae 1, 0.18 km away
Tirohanga, 0.36 km away
Opape 1, 2.38 km away
Opotiki 3, 6.08 km away
Raukumara 9, 7.8 km away
Raukumara 16, 8.71 km away
Wairata, 9.2 km away
Ohae 3, 10.99 km away
Motu, 13.58 km away
Waimanawa - Waikaremoana, 14.49 km away

Opotiki 2, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate2.2703303E-4

Ohae 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate4.2093423E-5

Tirohanga, 0.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 2.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate1.9965677E-5

Opotiki 3, 6.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate2.1674321E-5

Raukumara 9, 7.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate2.3007936E-4

Raukumara 16, 8.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairata, 9.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 3, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Motu, 13.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimanawa - Waikaremoana, 14.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
