Waitotara 8 & 9 Details

Property	Value
Rupture Count	9
Ruptures Above Sect Min Mag	8
Ruptures w/ Nonzero Rates	7
Magnitude Range	[7.35, 7.85]
Length Range	[33, 103] km
Total Rate	1.5772518E-4 /yr
Multi-Fault Rate	1.5677807E-4 /yr (99.40%)
Directly-Connected Faults	2
All Co-Rupturing Faults	3

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

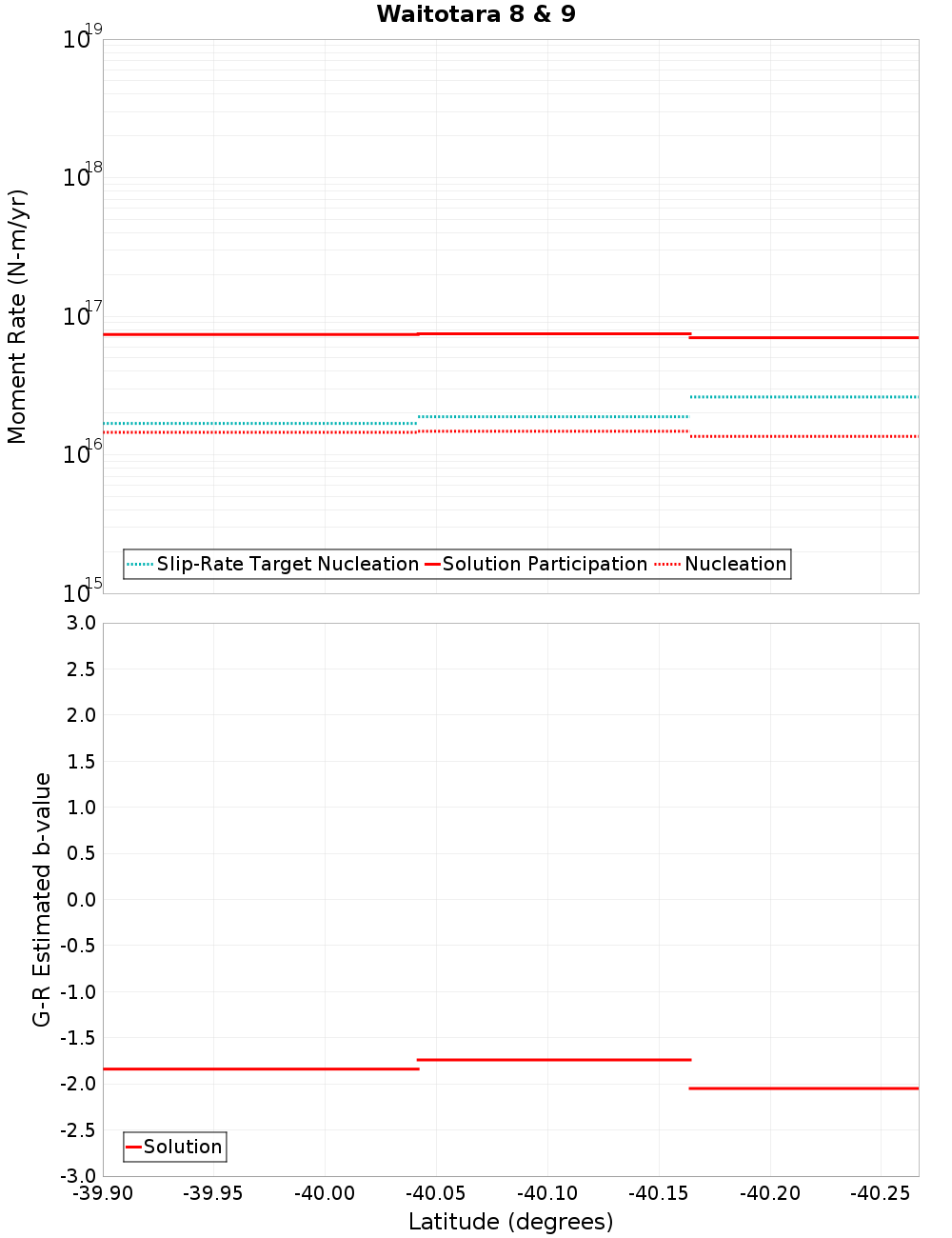

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waverley - Okaia 1, 0.09 km away
Okaia 5, 0.1 km away
Moumahaki - Okaia 4, 0.18 km away
Okaia 3, 0.18 km away
Nukumuru - Waitotara 1-6, 0.51 km away
Waitotara 10 & 11, 0.72 km away
Ridge Road - Okaia 2, 2.24 km away

Waverley - Okaia 1, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Okaia 5, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	2.4827195E-5

Moumahaki - Okaia 4, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Okaia 3, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Nukumuru - Waitotara 1-6, 0.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitotara 10 & 11, 0.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ridge Road - Okaia 2, 2.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNDguMFREa01w
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	1.3195087E-4
