Awanui 1 Details
| Property | Value |
|---|---|
| Rupture Count | 798 |
| Ruptures Above Sect Min Mag | 778 |
| Ruptures w/ Nonzero Rates | 43 |
| Magnitude Range | [6.49, 8.02] |
| Length Range | [15, 314] km |
| Total Rate | 8.0482766E-4 /yr |
| Multi-Fault Rate | 8.0482766E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 10 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

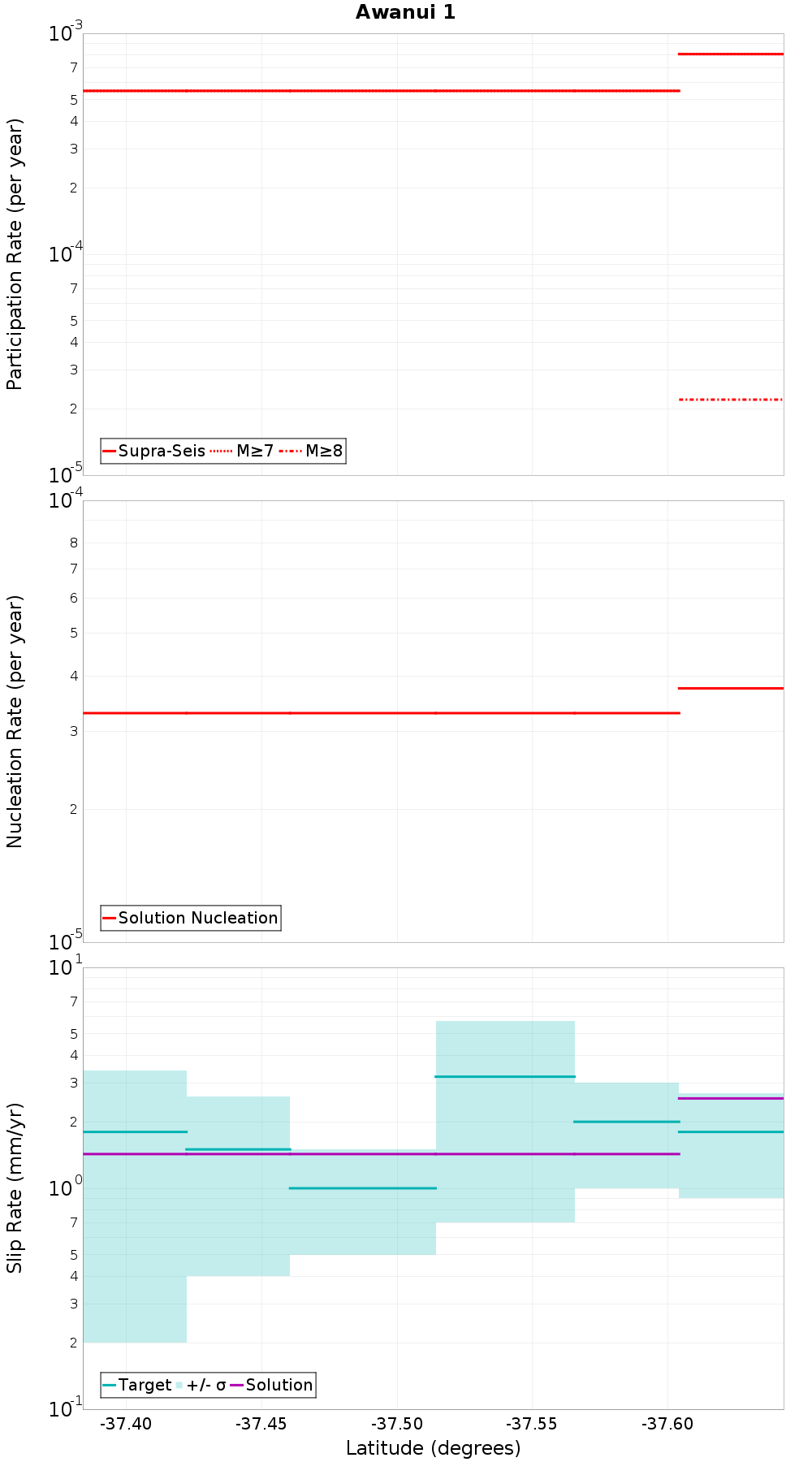

Along-Strike Values

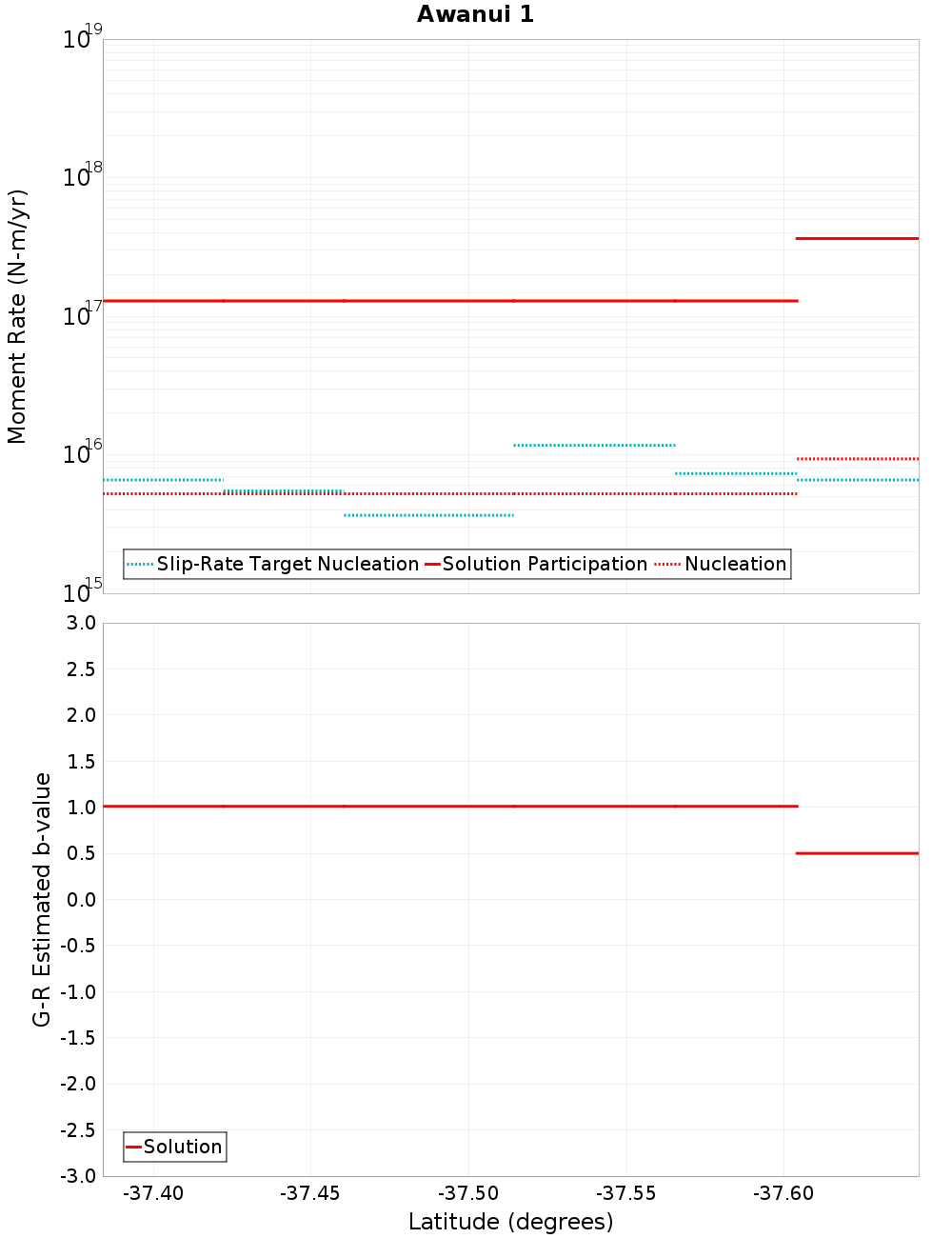

Moment-Rates and b-Values

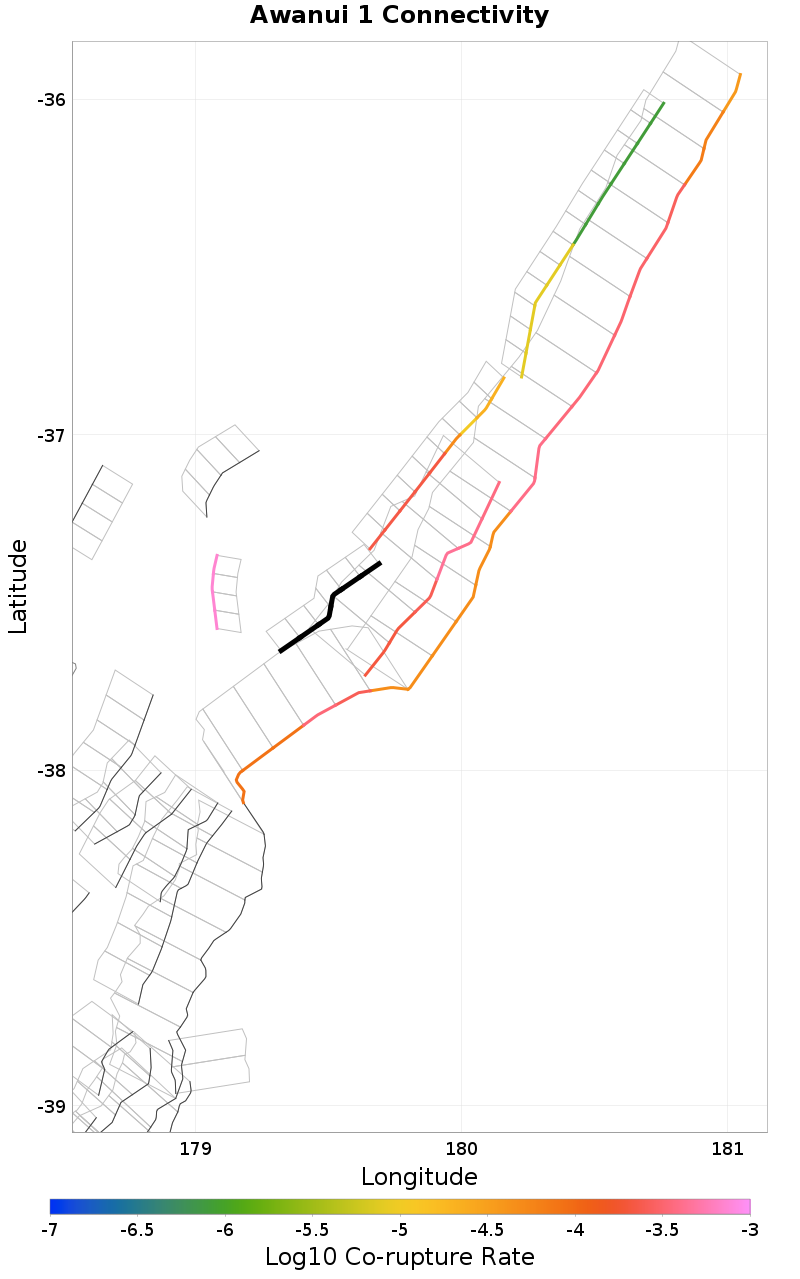

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kermadec Trench slope1, 3.21 km away |
| Awanui 2, 4.86 km away |
| Ruatoria, 7.21 km away |
| East Cape Ridge 1, 8.3 km away |
| Kermadec Trench, 13.5 km away |
Kermadec Trench slope1, 3.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 278 |
| Co-rupture Rate | 4.4015952E-4 |
Awanui 2, 4.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 363 |
| Co-rupture Rate | 2.3392537E-4 |
Ruatoria, 7.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 484 |
| Co-rupture Rate | 3.3897217E-4 |
East Cape Ridge 1, 8.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 256 |
| Co-rupture Rate | 7.216517E-4 |
Kermadec Trench, 13.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 297 |
| Co-rupture Rate | 3.864045E-4 |
