Dryburgh Details

Property	Value
Rupture Count	527
Ruptures Above Sect Min Mag	526
Ruptures w/ Nonzero Rates	30
Magnitude Range	[6.70, 7.99]
Length Range	[19, 319] km
Total Rate	1.6690636E-4 /yr
Multi-Fault Rate	1.6690636E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	32

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

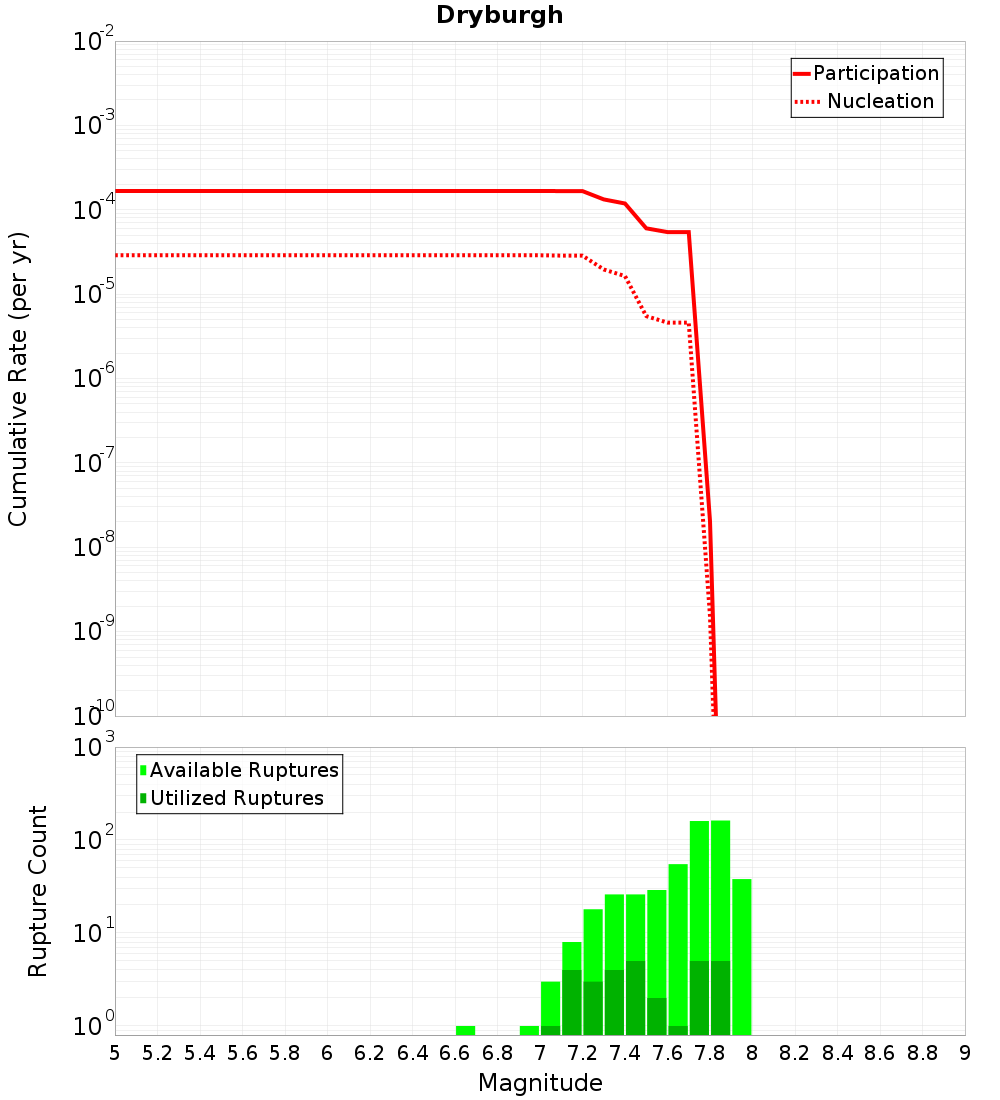

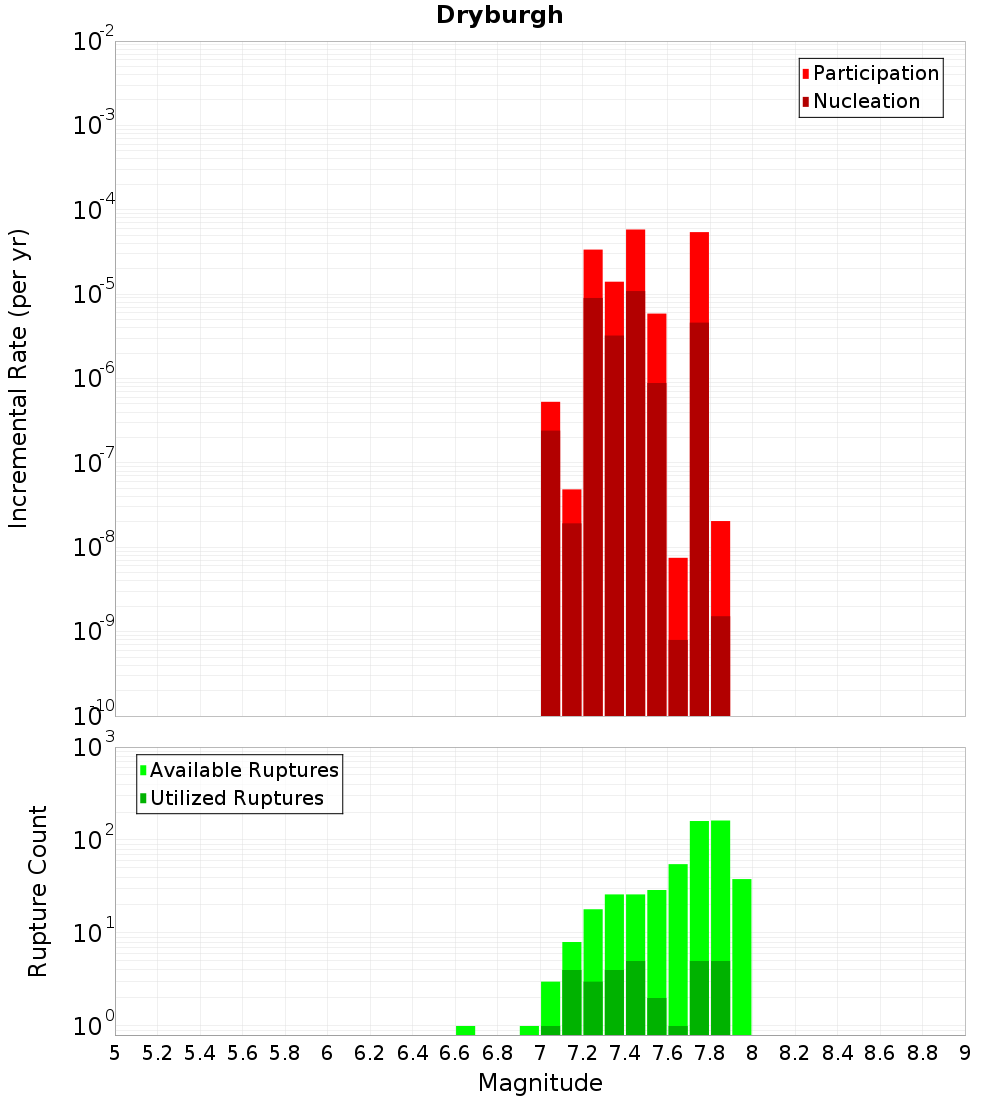

Magnitude-Frequency Distribution

Incremental	Cumulative

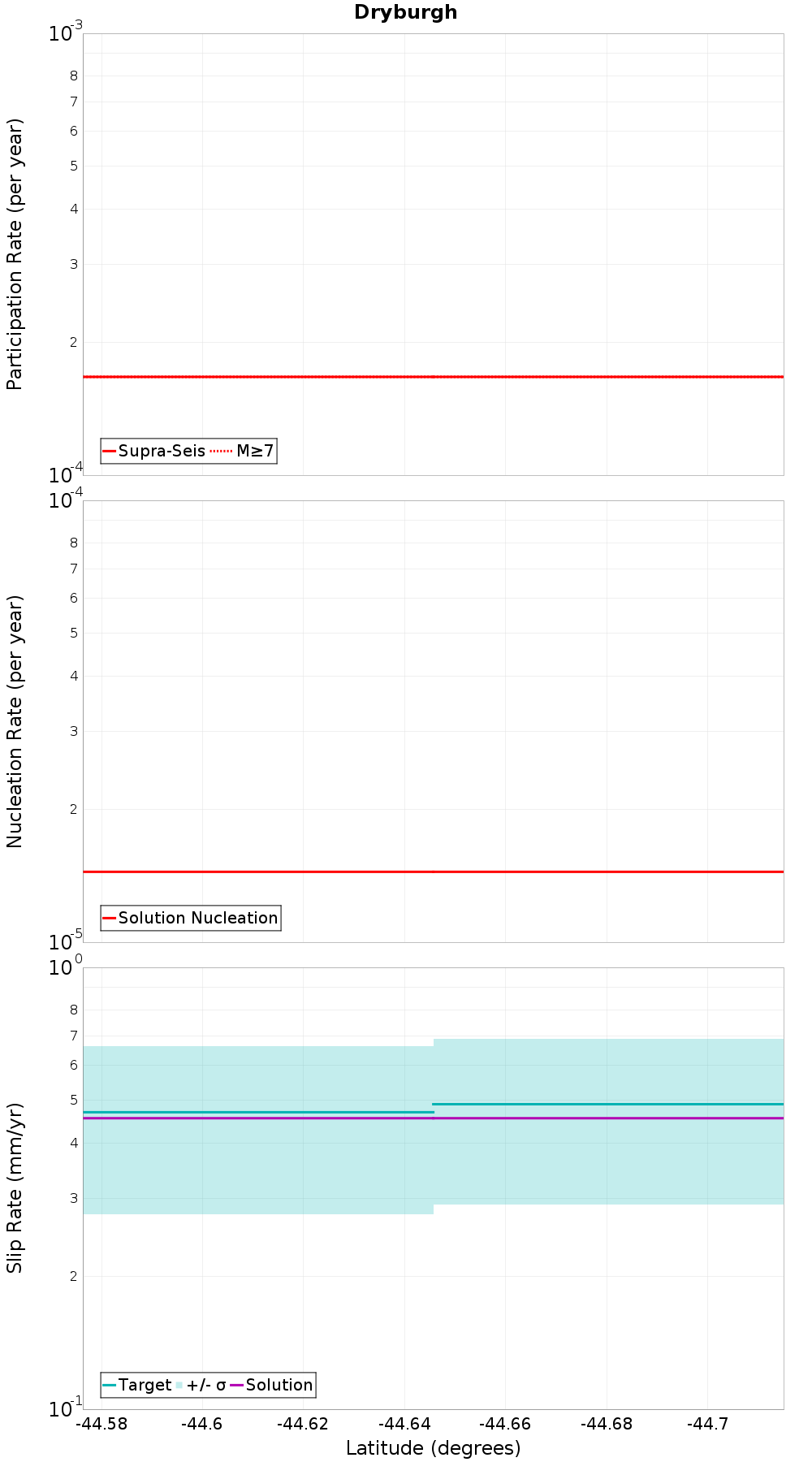

Along-Strike Values

Moment-Rates and b-Values

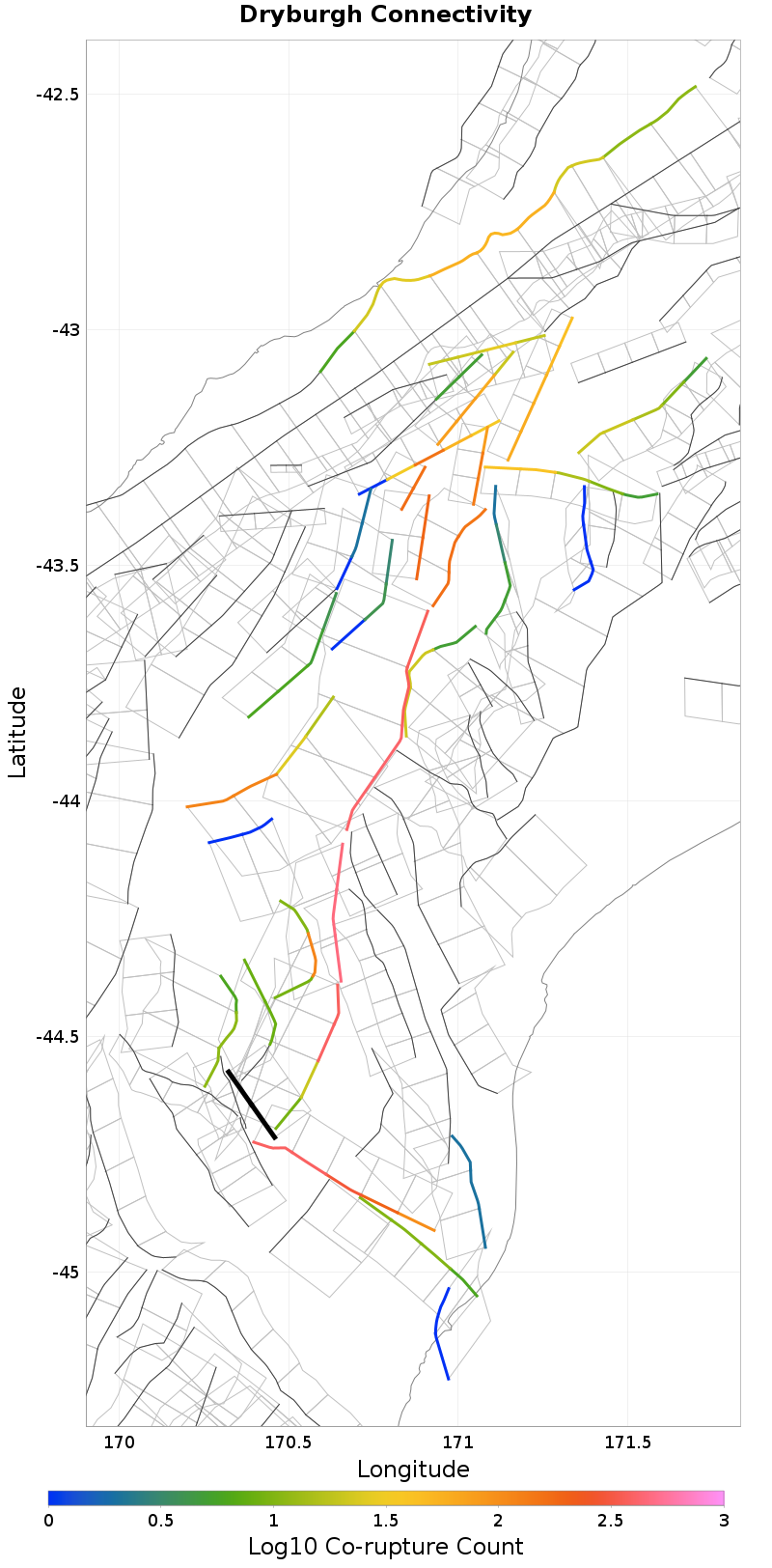

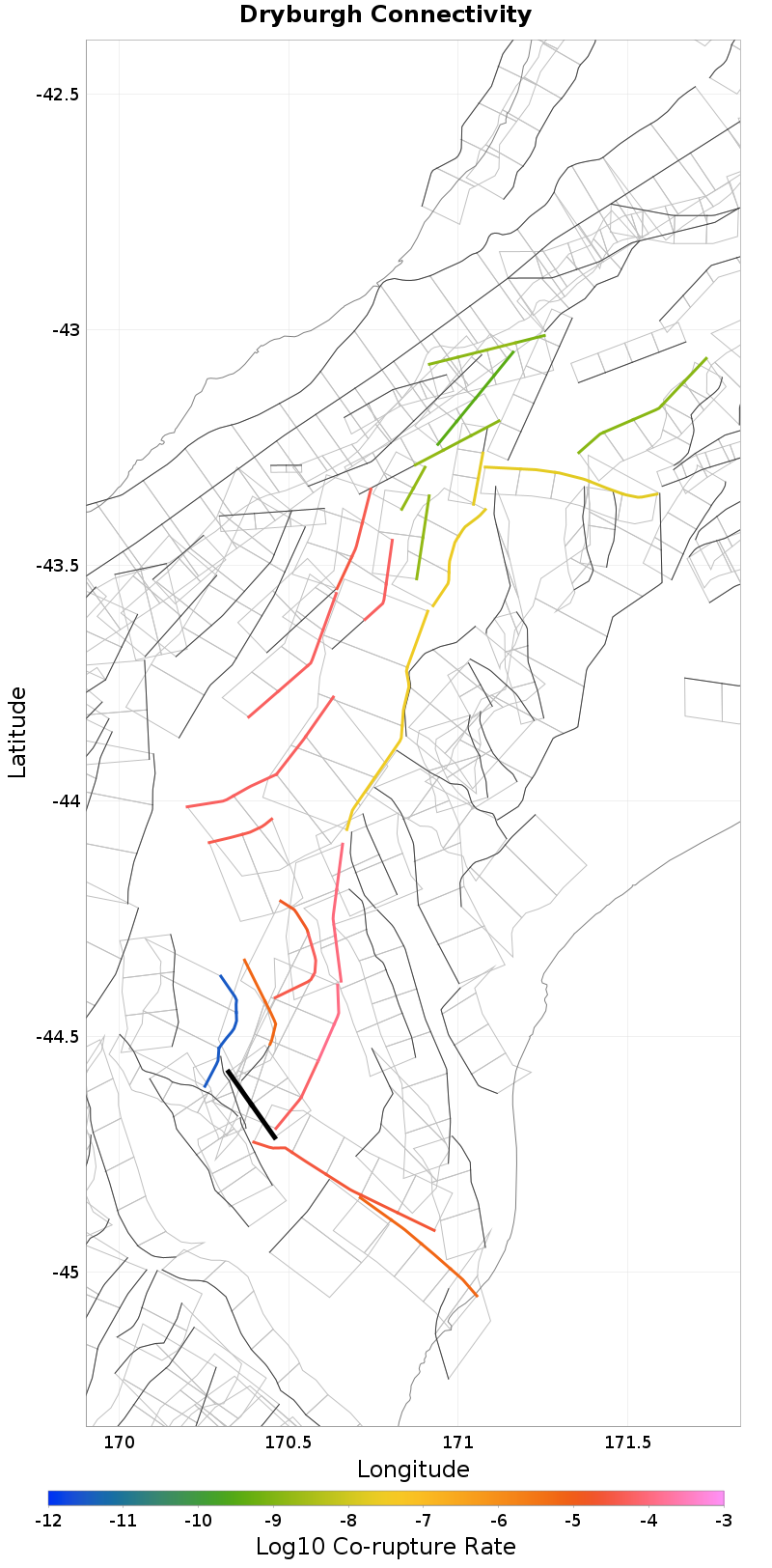

Connectivity

Nearby Sections

Fault Section
Kirkliston, 0.22 km away
Grampian, 0.23 km away
Stonewall, 0.28 km away
Mt Sutton, 0.33 km away
Waitangi, 1.08 km away
Gibson, 3.37 km away
Awahokomo, 3.91 km away
Fern Gully, 4.21 km away
Dalgety, 12.9 km away
Middle Range, 14.1 km away
Falstone, 14.51 km away

Kirkliston, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	392
Co-rupture Rate	1.6063171E-4

Grampian, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	118
Co-rupture Rate	5.2073898E-5

Stonewall, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	384
Co-rupture Rate	2.8468112E-5

Mt Sutton, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	6.2744743E-6

Waitangi, 1.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Gibson, 3.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	11
Co-rupture Rate	3.1438127E-12

Awahokomo, 3.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fern Gully, 4.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dalgety, 12.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	false
Co-rupture Count	464
Co-rupture Rate	9.480066E-5

Middle Range, 14.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Falstone, 14.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
