F16 - Central Details

Property	Value
Rupture Count	27,464
Ruptures Above Sect Min Mag	27,463
Ruptures w/ Nonzero Rates	211
Magnitude Range	[6.96, 8.33]
Length Range	[26, 701] km
Total Rate	8.7055203E-4 /yr
Multi-Fault Rate	8.7055203E-4 /yr (100.00%)
Directly-Connected Faults	11
All Co-Rupturing Faults	64

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

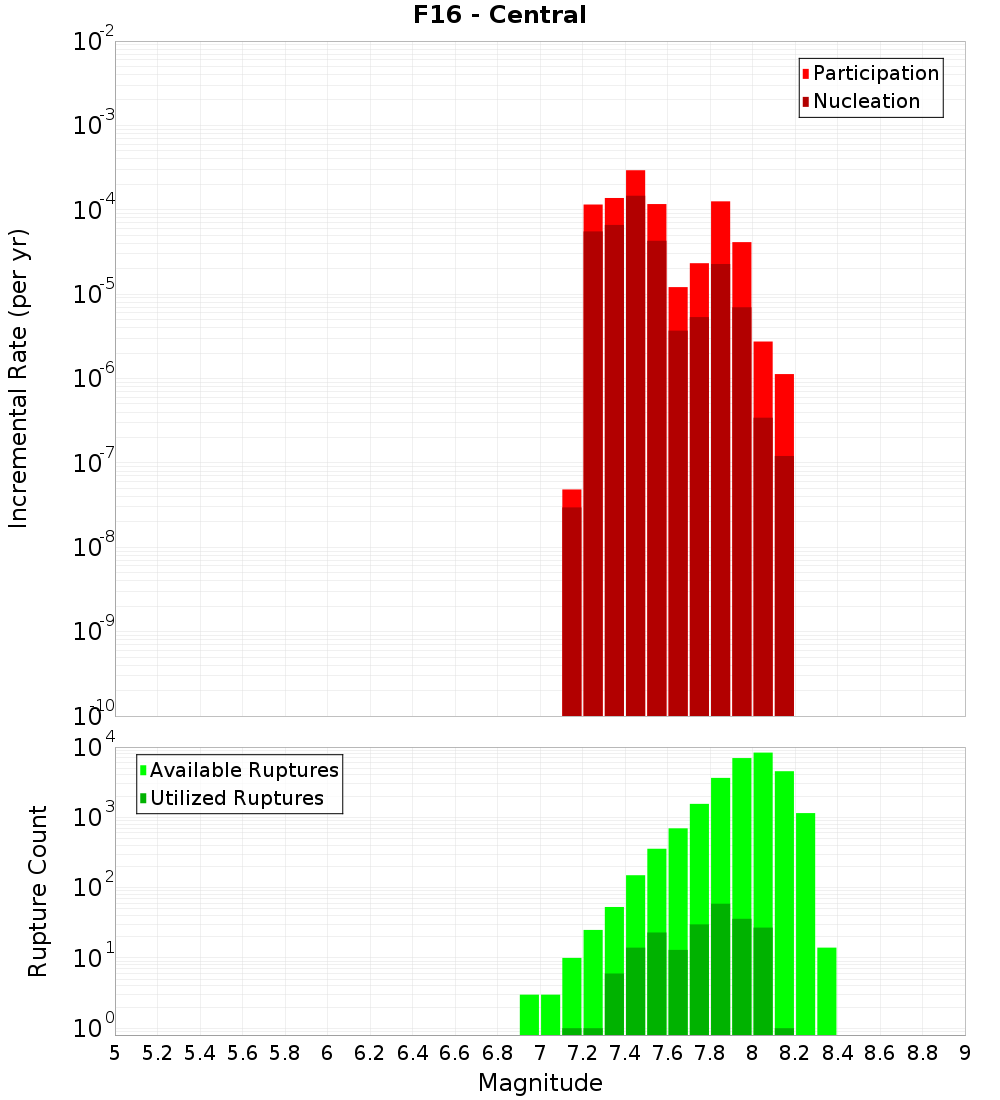

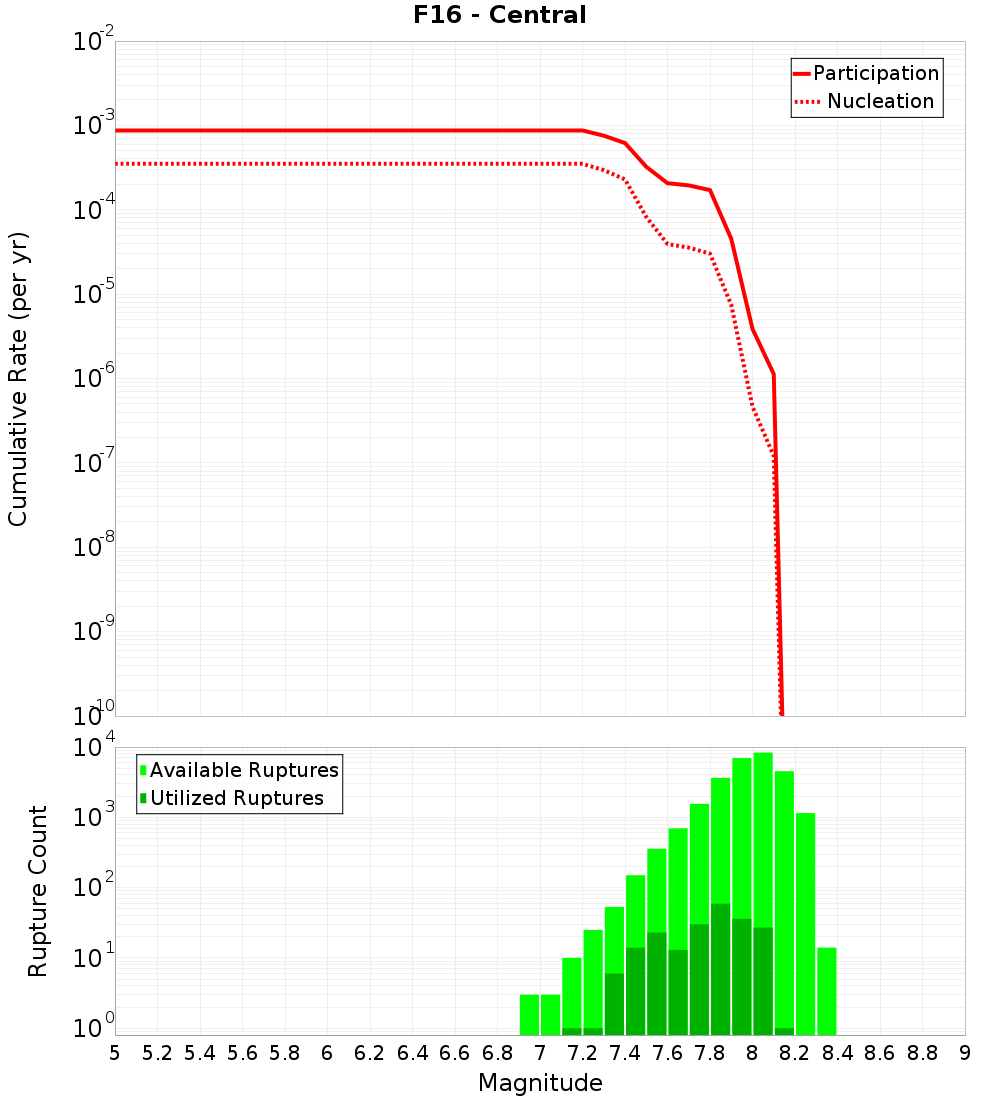

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
BKSmt-North, 0.11 km away
BKSmt-West, 0.19 km away
Aorangi Ridge, 0.8 km away
Bennett Knoll, 1.07 km away
F16 - South, 1.46 km away
Akitio Ridge, 2.28 km away
F17 - Central, 3.82 km away
F14 - North, 4.34 km away
F17 - South, 5.88 km away
Aorangi Trough, 5.98 km away
Akitio Trough West, 8.18 km away
F16 - North, 10.71 km away
Porangahau Northeast, 14.86 km away

BKSmt-North, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	7,843
Co-rupture Rate	2.634318E-4

BKSmt-West, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	3,044
Co-rupture Rate	1.5068047E-4

Aorangi Ridge, 0.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	12,501
Co-rupture Rate	6.9897086E-4

Bennett Knoll, 1.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	238
Co-rupture Rate	1.02676895E-5

F16 - South, 1.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	5,019
Co-rupture Rate	1.5320959E-4

Akitio Ridge, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	20,476
Co-rupture Rate	5.0515493E-5

F17 - Central, 3.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	4,061
Co-rupture Rate	2.1867166E-4

F14 - North, 4.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	8,943
Co-rupture Rate	1.09729175E-4

F17 - South, 5.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	7,111
Co-rupture Rate	1.5169509E-4

Aorangi Trough, 5.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	7,360
Co-rupture Rate	7.288272E-5

Akitio Trough West, 8.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	1,747
Co-rupture Rate	8.224511E-6

F16 - North, 10.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	false
Co-rupture Count	1,434
Co-rupture Rate	2.3435055E-4

Porangahau Northeast, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
