Hump Ridge Details
| Property | Value |
|---|---|
| Rupture Count | 206 |
| Ruptures Above Sect Min Mag | 199 |
| Ruptures w/ Nonzero Rates | 29 |
| Magnitude Range | [6.83, 8.09] |
| Length Range | [22, 373] km |
| Total Rate | 8.4714766E-4 /yr |
| Multi-Fault Rate | 6.776036E-4 /yr (79.99%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 8 |
Table Of Contents

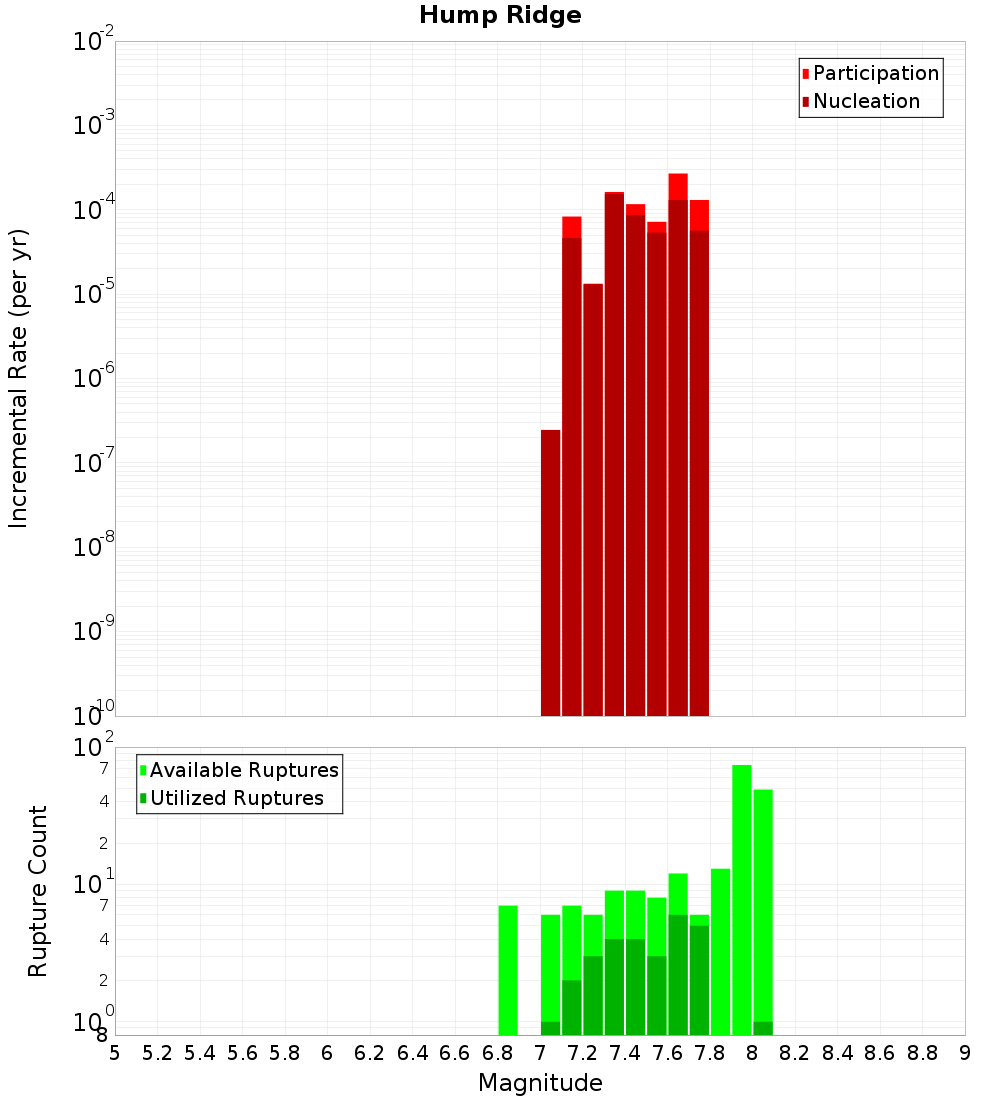

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

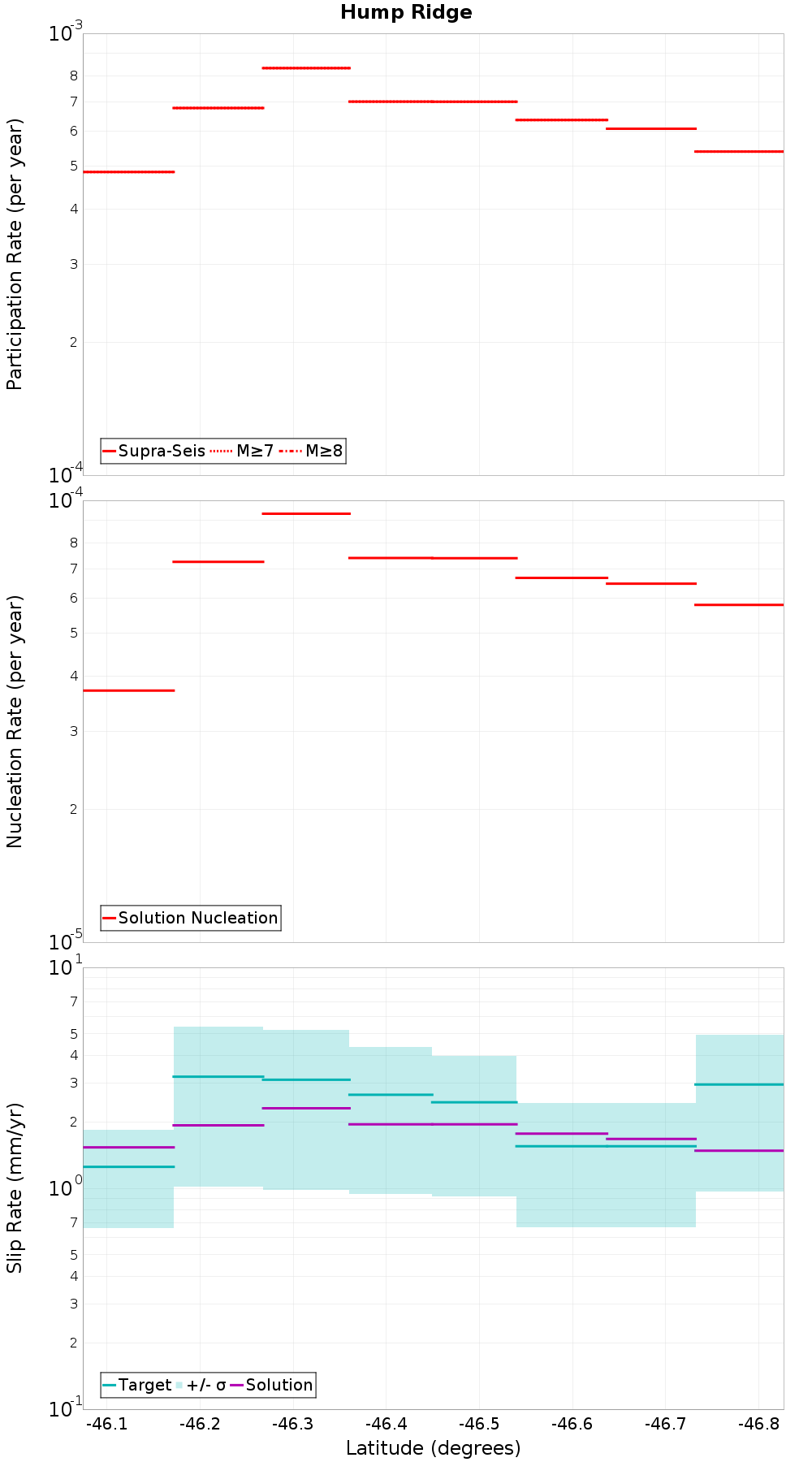

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: South, 3.03 km away |
| Hauroko: North, 3.59 km away |
| Solander, 5.34 km away |
| Monowai, 10.25 km away |
Hauroko: South, 3.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 171 |
| Co-rupture Rate | 4.7590552E-4 |
Hauroko: North, 3.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 154 |
| Co-rupture Rate | 2.567138E-4 |
Solander, 5.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 26 |
| Co-rupture Rate | 2.7841036E-4 |
Monowai, 10.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 47 |
| Co-rupture Rate | 1.800014E-4 |
