Matata Details

Property	Value
Rupture Count	10,089
Ruptures Above Sect Min Mag	10,076
Ruptures w/ Nonzero Rates	364
Magnitude Range	[6.45, 8.26]
Length Range	[14, 672] km
Total Rate	4.6637625E-4 /yr
Multi-Fault Rate	4.6637625E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	71

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

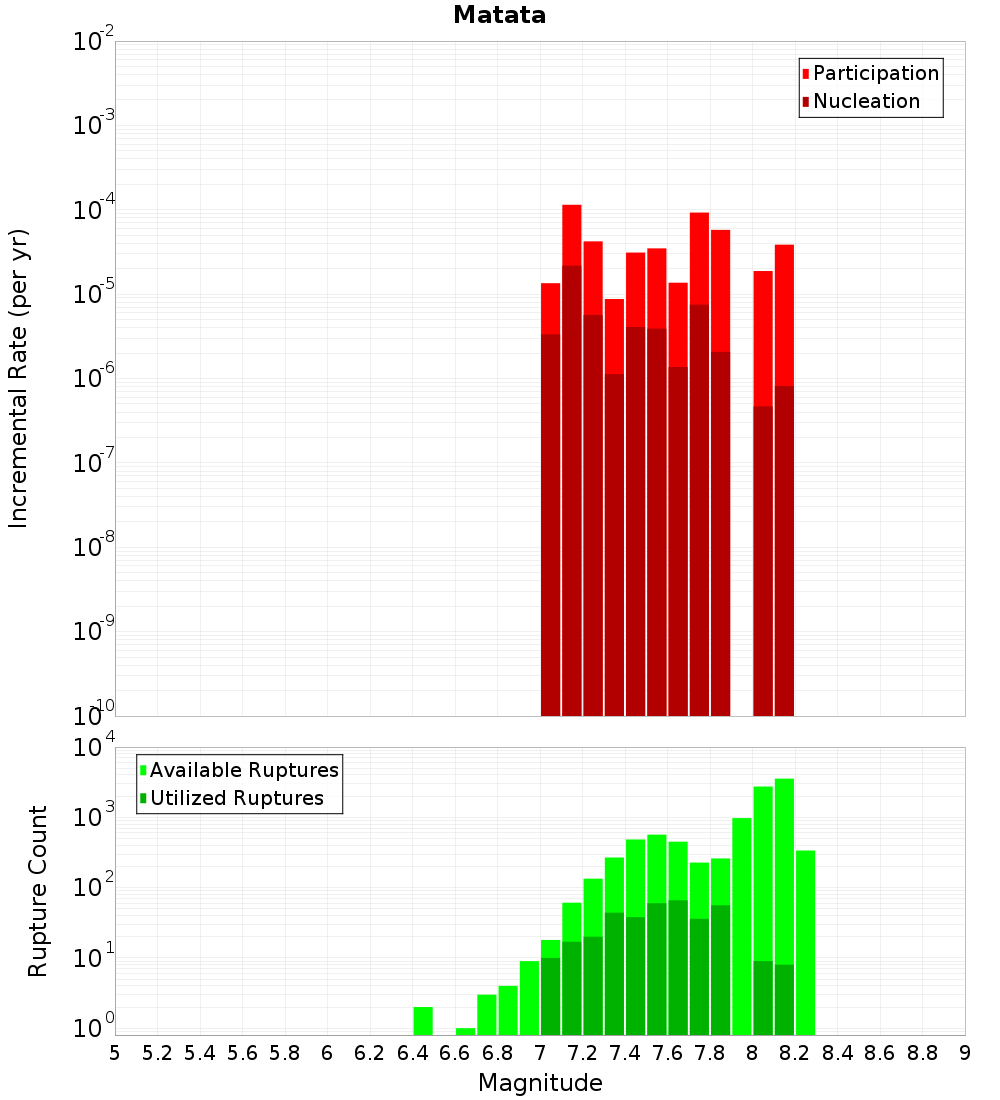

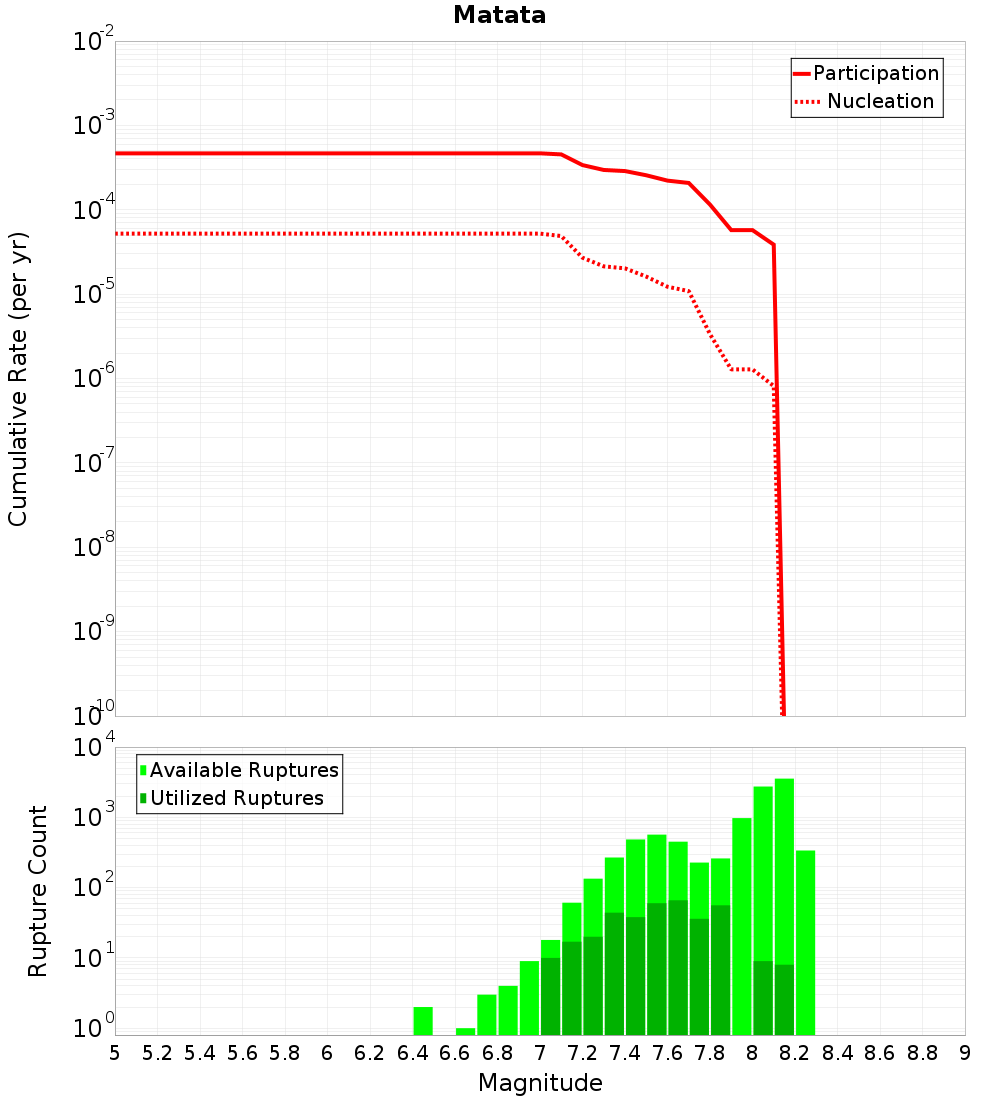

Magnitude-Frequency Distribution

Incremental	Cumulative

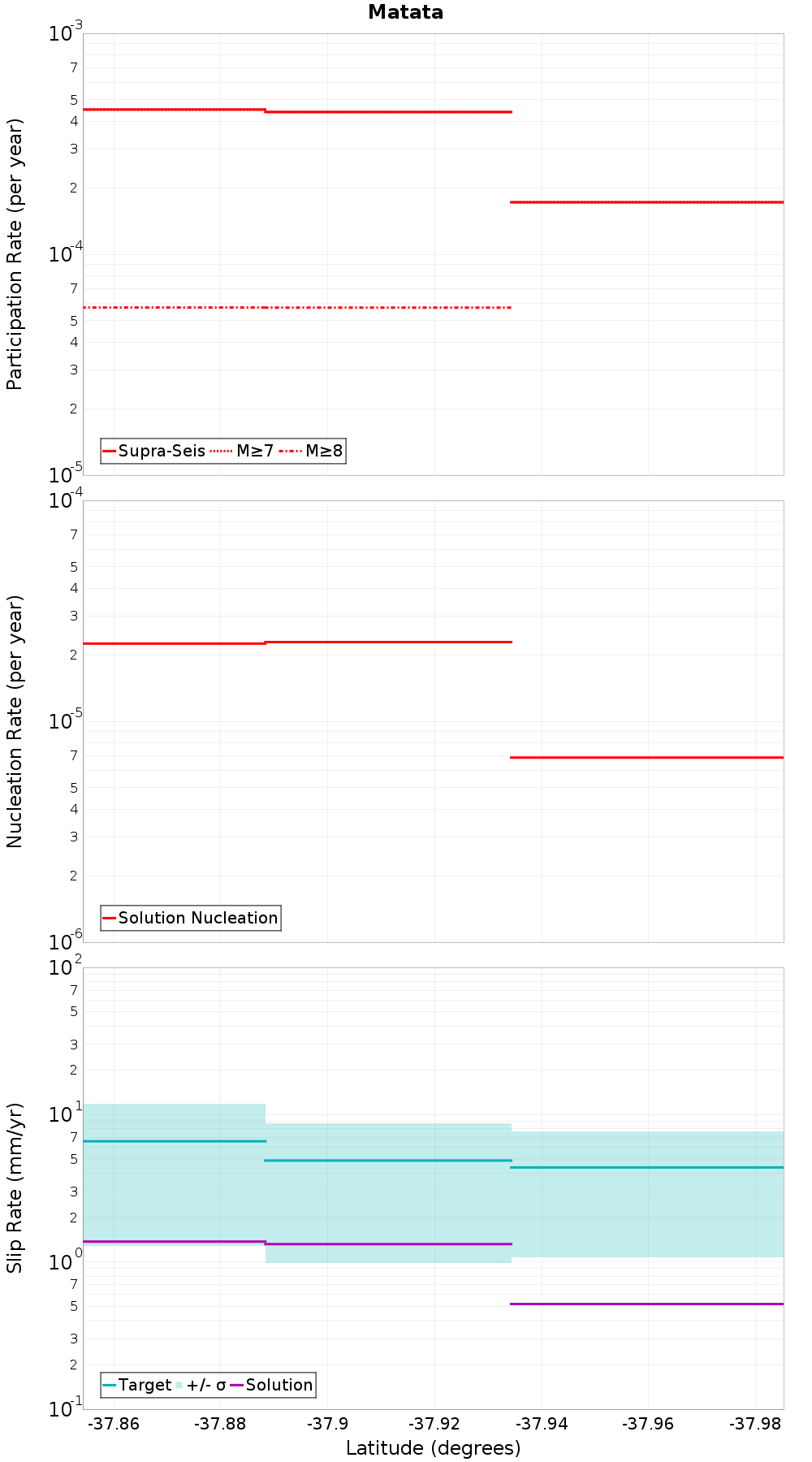

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0.14 km away
White Island 1, 0.22 km away
Edgecumbe 1987, 0.29 km away
Keepa, 0.66 km away
Braemar, 0.98 km away
Waiohau: North, 2.18 km away
Otakiri, 4.49 km away
Whakatane: North, 7.27 km away
Rangitaiki 1, 9.11 km away
Waimana: North, 14.41 km away

Edgecumbe Coastal, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	972
Co-rupture Rate	7.86581E-5

White Island 1, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	7,567
Co-rupture Rate	3.7313416E-4

Edgecumbe 1987, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	false
Co-rupture Count	829
Co-rupture Rate	1.9694724E-7

Keepa, 0.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	5,016
Co-rupture Rate	1.0879271E-4

Braemar, 0.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	1,222
Co-rupture Rate	2.770255E-4

Waiohau: North, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	true
Co-rupture Count	6,062
Co-rupture Rate	1.43014E-4

Otakiri, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	false
Co-rupture Count	1,628
Co-rupture Rate	4.002105E-5

Whakatane: North, 7.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	0.0

Rangitaiki 1, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	false
Co-rupture Count	1,845
Co-rupture Rate	1.1439258E-4

Waimana: North, 14.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?	true
Directly Connected?	false
Co-rupture Count	6,834
Co-rupture Rate	1.2817037E-4
