Pylap Details

PropertyValue
Rupture Count2,919
Ruptures Above Sect Min Mag2,918
Ruptures w/ Nonzero Rates42
Magnitude Range[6.90, 8.27]
Length Range[24, 534] km
Total Rate1.2618586E-4 /yr
Multi-Fault Rate1.2618586E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults55

Table Of Contents

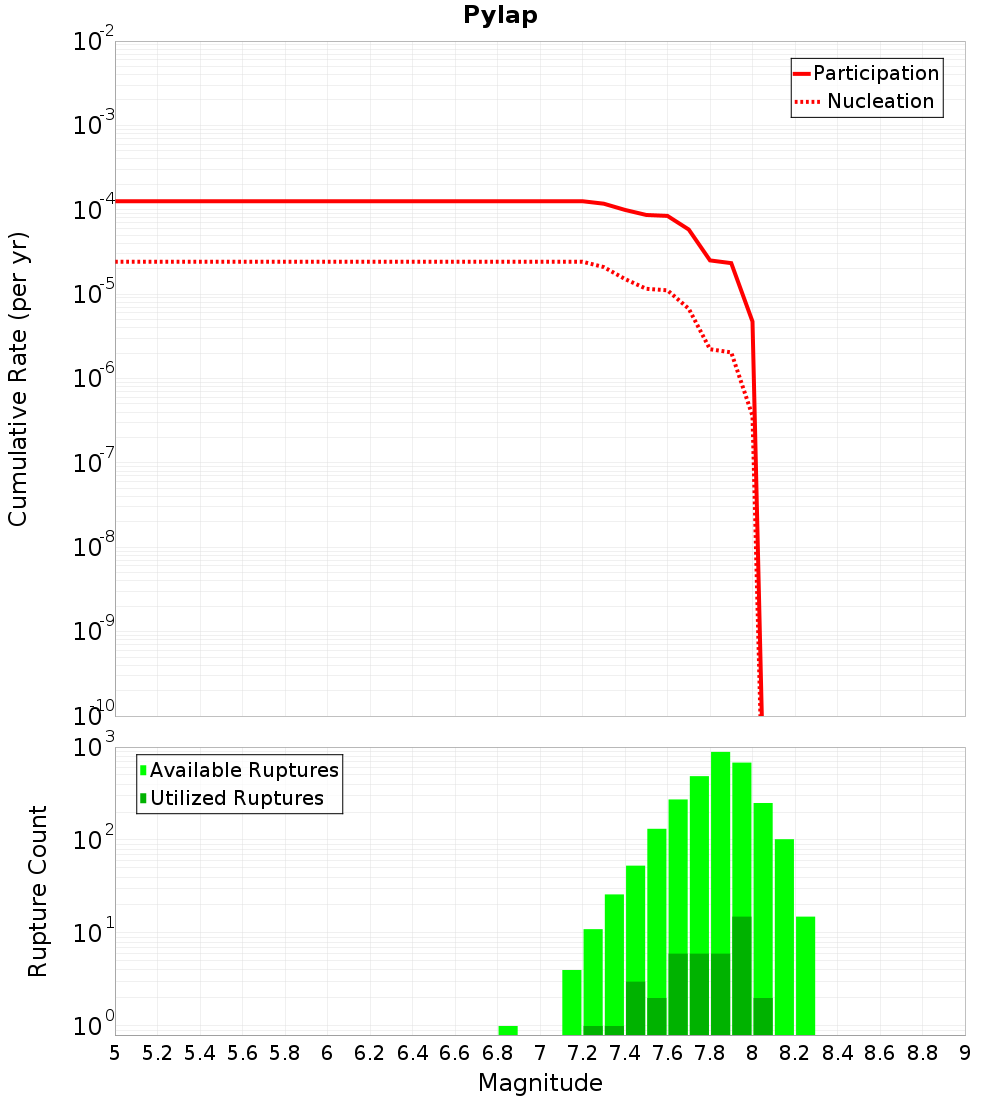

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

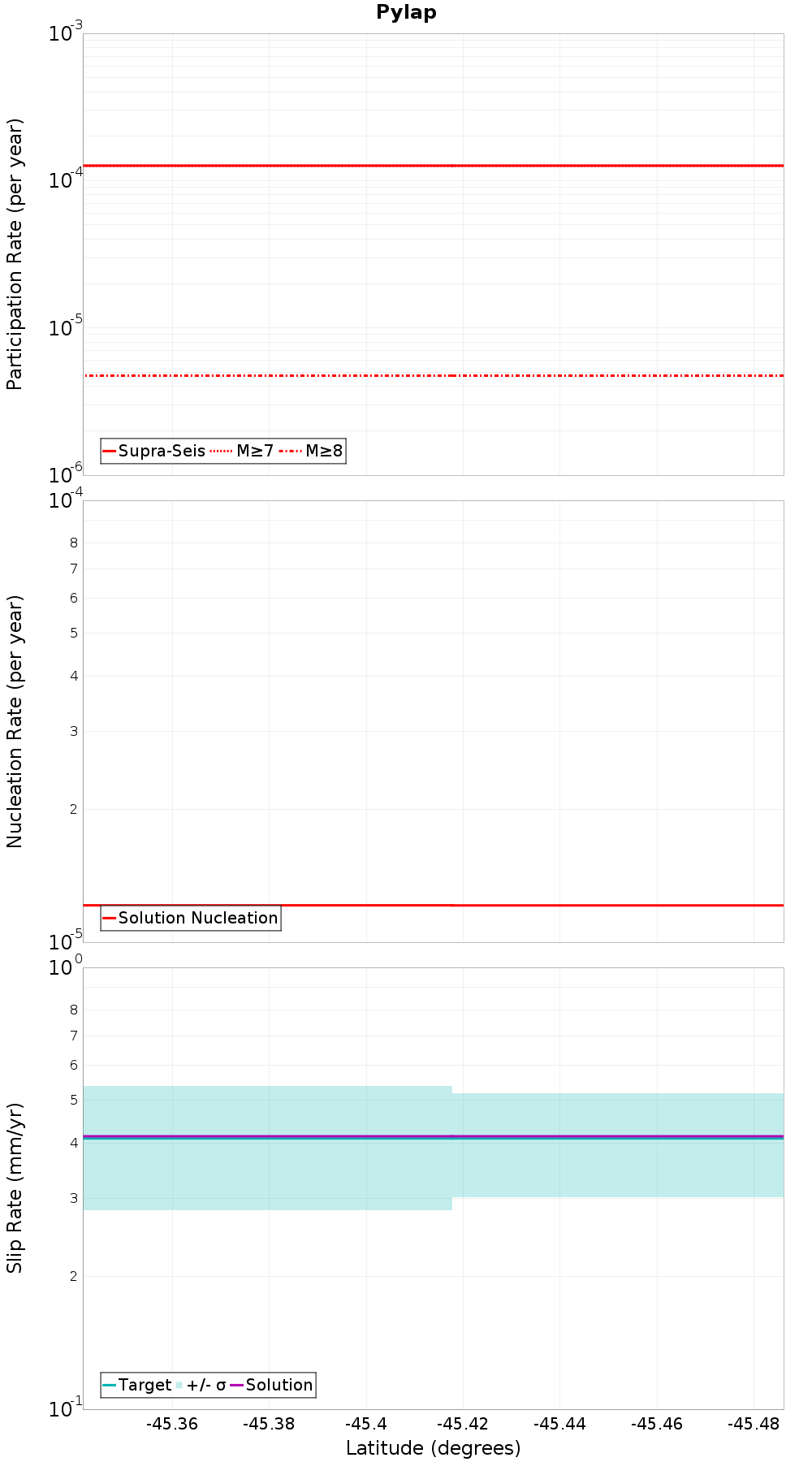

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hyde North, 0.37 km awayMurphys Creek, 6.4 km away
Beaumont River, 0.39 km awayLong Valley, 6.52 km away
Horse Flat, 0.46 km awayNichols Rock, 6.9 km away
Gimmerburn, 2.27 km awayLake Onslow, 7.26 km away
Billys Ridge, 2.54 km awayDunback Hill, 9.77 km away
Waipiata, 3.22 km awayLittle Valley, 11.65 km away
Hyde South - The Twins, 3.96 km awayFlat Stream - Glenpark, 12.37 km away
Logan Burn, 4.71 km awayRanfurly, 12.92 km away

Hyde North, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?true
Directly Connected?true
Co-rupture Count181
Co-rupture Rate2.3838169E-5

Beaumont River, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?true
Directly Connected?true
Co-rupture Count2,314
Co-rupture Rate7.3073345E-5

Horse Flat, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?true
Directly Connected?true
Co-rupture Count188
Co-rupture Rate4.5949953E-5

Gimmerburn, 2.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?true
Directly Connected?true
Co-rupture Count2,068
Co-rupture Rate2.344075E-5

Billys Ridge, 2.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?true
Directly Connected?true
Co-rupture Count145
Co-rupture Rate2.666824E-5

Waipiata, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?true
Directly Connected?true
Co-rupture Count352
Co-rupture Rate5.3541007E-5

Hyde South - The Twins, 3.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?true
Directly Connected?true
Co-rupture Count273
Co-rupture Rate5.397561E-5

Logan Burn, 4.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?true
Directly Connected?true
Co-rupture Count460
Co-rupture Rate1.10791E-9

Murphys Creek, 6.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0

Long Valley, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?true
Directly Connected?false
Co-rupture Count180
Co-rupture Rate2.3439628E-5

Nichols Rock, 6.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lake Onslow, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunback Hill, 9.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Little Valley, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?true
Directly Connected?false
Co-rupture Count242
Co-rupture Rate0.0

Flat Stream - Glenpark, 12.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ranfurly, 12.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTEuMFN1bXZl
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate2.9422166E-5
