Mt Adams Details

Property	Value
Rupture Count	24,538
Ruptures Above Sect Min Mag	24,534
Ruptures w/ Nonzero Rates	155
Magnitude Range	[6.34, 8.47]
Length Range	[7, 712] km
Total Rate	6.1843364E-4 /yr
Multi-Fault Rate	6.1843364E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	181

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

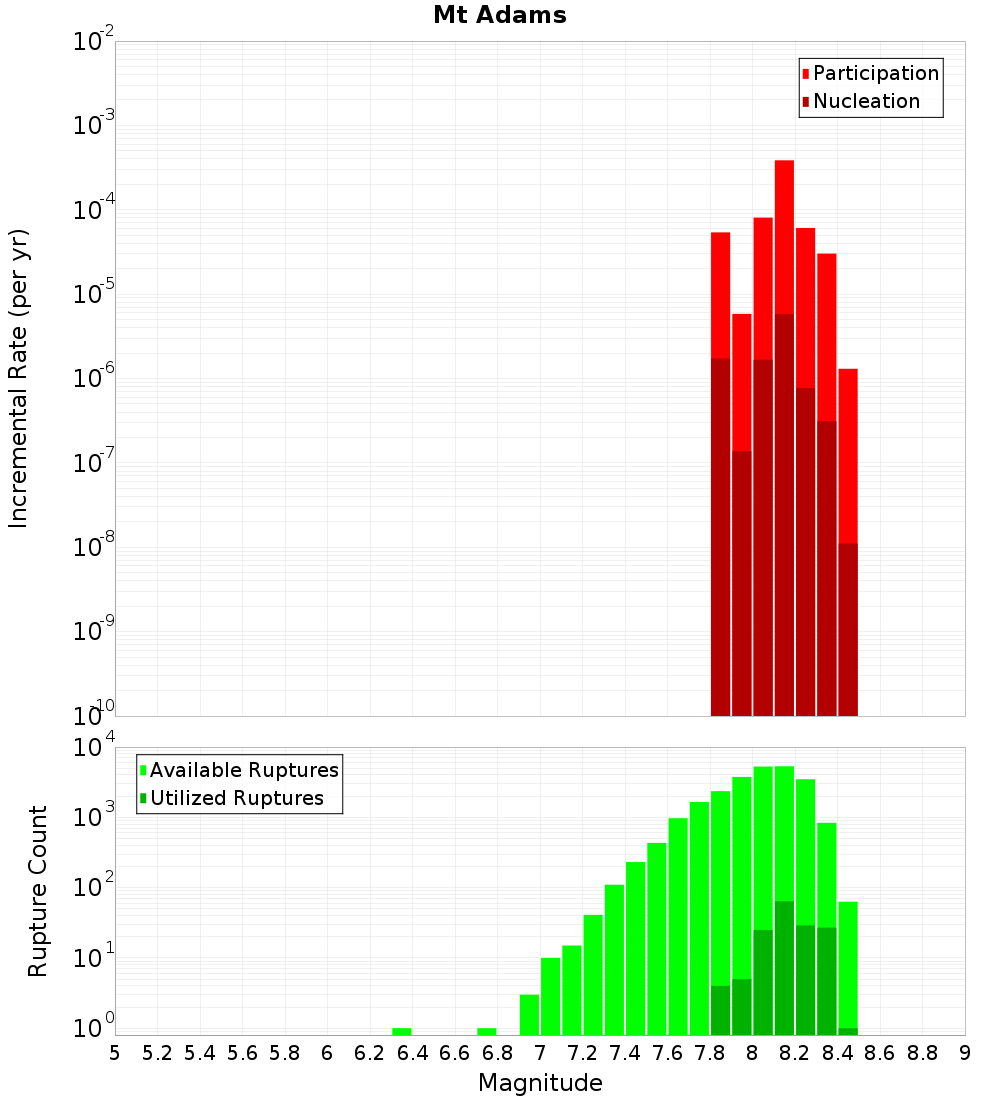

Magnitude-Frequency Distribution

Incremental	Cumulative

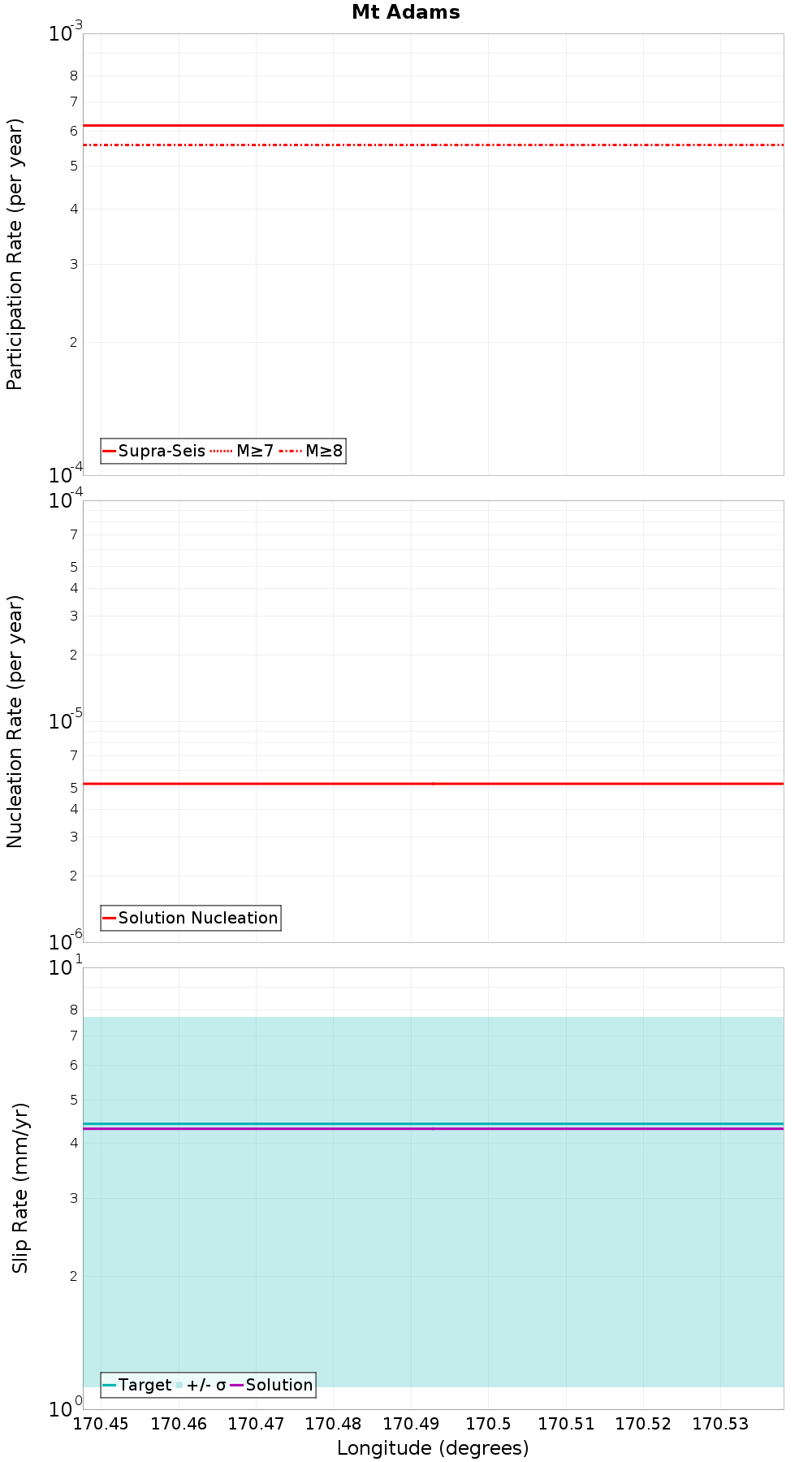

Along-Strike Values

Moment-Rates and b-Values

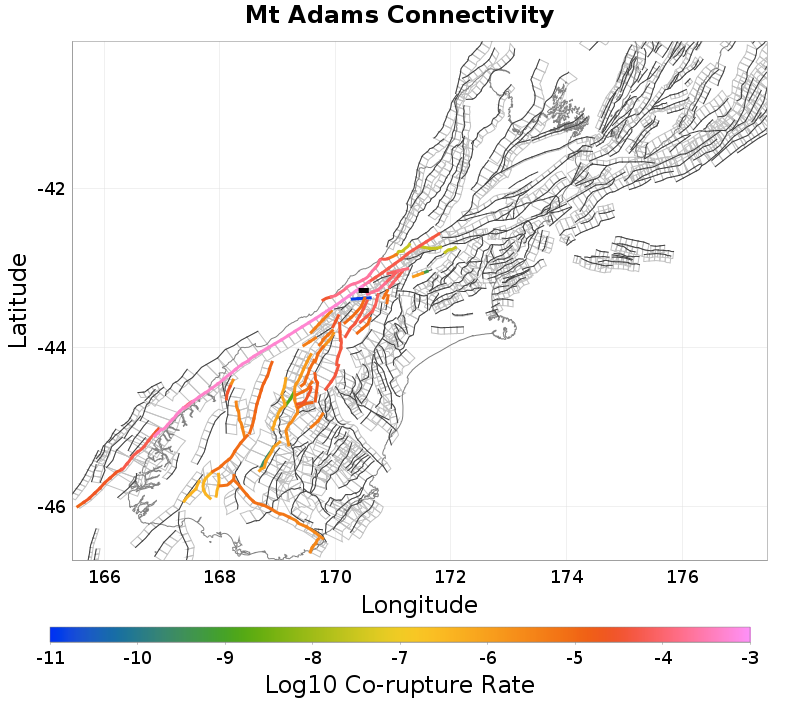

Connectivity

Nearby Sections

Fault Section
Hohonu South, 0.11 km away
Lord Range, 0.29 km away
Alpine: Jacksons to Kaniere, 0.3 km away
Murchison 1 - Ice Lake, 4.56 km away
Veil Stream, 5.84 km away
Liebig North, 7.09 km away
Observation, 10.26 km away
Gunn Glacier, 10.52 km away
Two Thumb Stream, 12.98 km away
Waitaha, 14.73 km away

Hohonu South, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMFo3R3Fw
Connected?	true
Directly Connected?	true
Co-rupture Count	19,878
Co-rupture Rate	3.681589E-4

Lord Range, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMFo3R3Fw
Connected?	true
Directly Connected?	true
Co-rupture Count	9,673
Co-rupture Rate	1.8776351E-4

Alpine: Jacksons to Kaniere, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMFo3R3Fw
Connected?	true
Directly Connected?	true
Co-rupture Count	16,083
Co-rupture Rate	6.1843364E-4

Murchison 1 - Ice Lake, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMFo3R3Fw
Connected?	true
Directly Connected?	true
Co-rupture Count	6,748
Co-rupture Rate	8.999392E-6

Veil Stream, 5.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMFo3R3Fw
Connected?	true
Directly Connected?	true
Co-rupture Count	1,526
Co-rupture Rate	6.692764E-5

Liebig North, 7.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMFo3R3Fw
Connected?	true
Directly Connected?	false
Co-rupture Count	1,352
Co-rupture Rate	4.315091E-5

Observation, 10.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMFo3R3Fw
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	0.0

Gunn Glacier, 10.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMFo3R3Fw
Connected?	true
Directly Connected?	false
Co-rupture Count	199
Co-rupture Rate	1.3108942E-11

Two Thumb Stream, 12.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMFo3R3Fw
Connected?	true
Directly Connected?	false
Co-rupture Count	147
Co-rupture Rate	0.0

Waitaha, 14.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMFo3R3Fw
Connected?	true
Directly Connected?	false
Co-rupture Count	576
Co-rupture Rate	0.0
