Mungo Details

Property	Value
Rupture Count	10,923
Ruptures Above Sect Min Mag	10,917
Ruptures w/ Nonzero Rates	237
Magnitude Range	[6.68, 8.49]
Length Range	[14, 620] km
Total Rate	3.9492943E-4 /yr
Multi-Fault Rate	3.9492943E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	205

Table Of Contents

Magnitude-Frequency Distribution

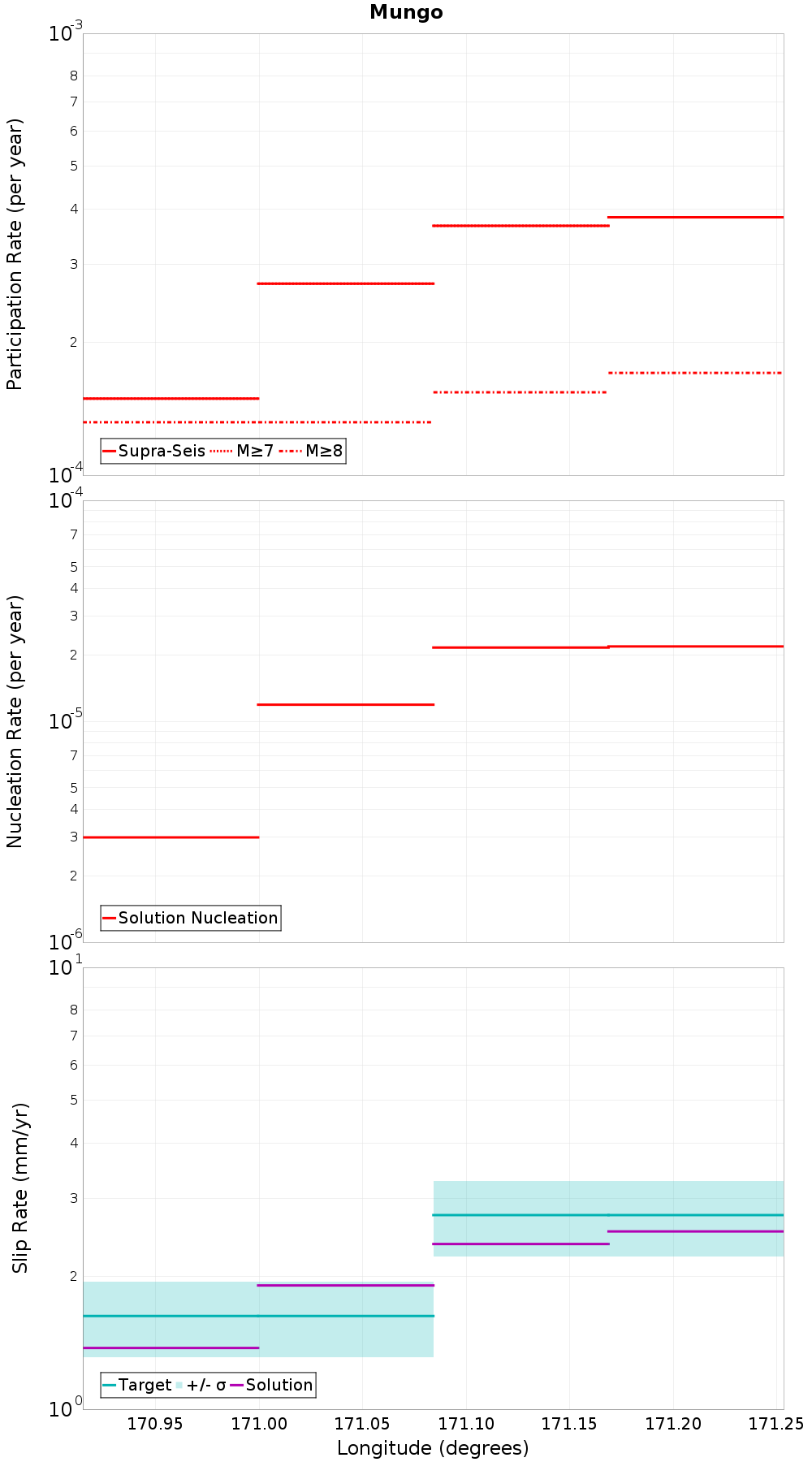

Along-Strike Values
- Moment-Rates and b-Values

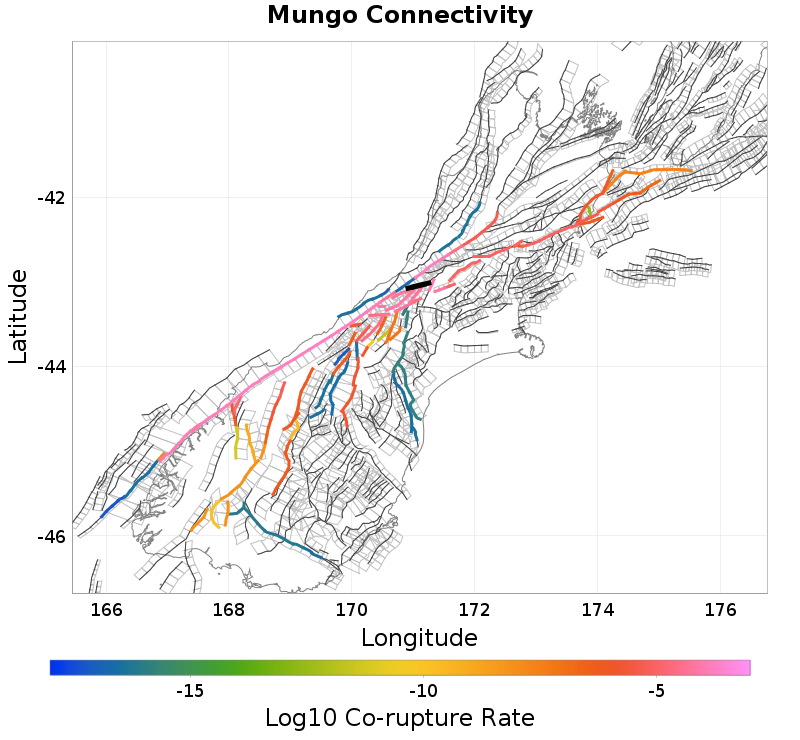

Connectivity
- Nearby Sections

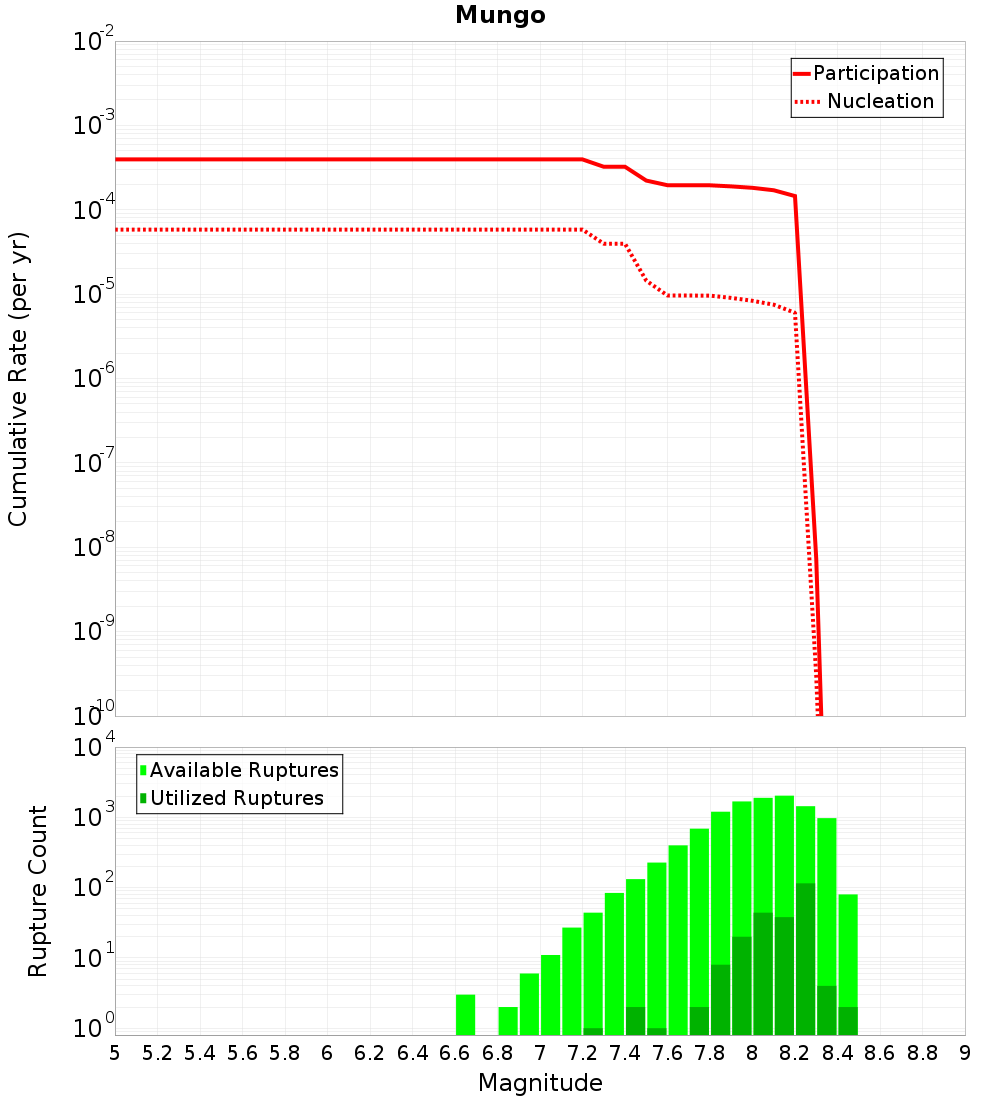

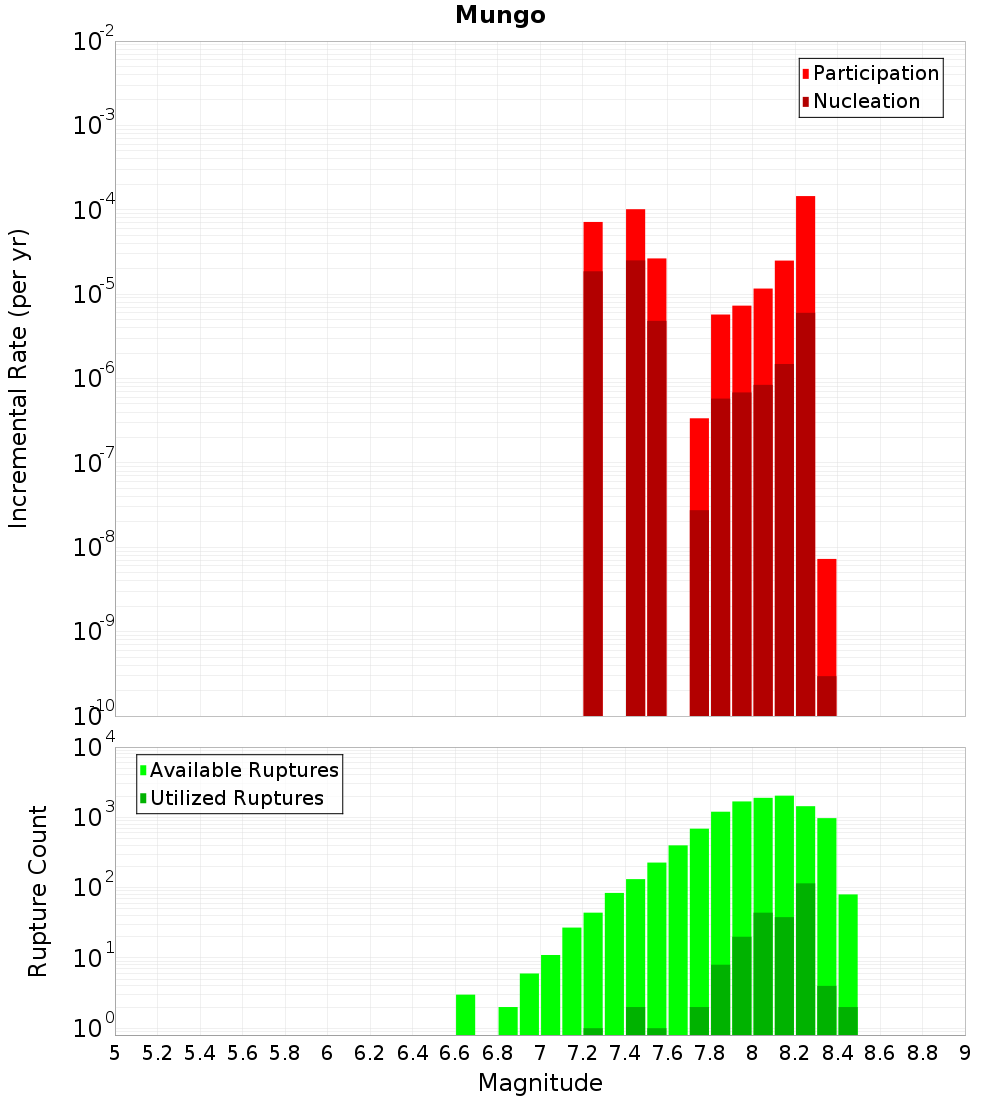

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waitaha, 0.07 km away
Mathias, 0.1 km away
Lord Range, 0.15 km away
Mistake - Rolleston, 0.42 km away
Browning Pass, 0.92 km away
Alpine: Jacksons to Kaniere, 1 km away
Observation, 1.74 km away
Bruce, 4.45 km away
Hohonu South, 7.08 km away
Jagged, 7.15 km away
Alpine: Kaniere to Springs Junction, 13.41 km away
Kelly, 13.58 km away

Waitaha, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	1,743
Co-rupture Rate	5.1103398E-5

Mathias, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	3,660
Co-rupture Rate	6.075109E-5

Lord Range, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	2,197
Co-rupture Rate	8.2068116E-5

Mistake - Rolleston, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	184
Co-rupture Rate	8.2701736E-5

Browning Pass, 0.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	161
Co-rupture Rate	0.0

Alpine: Jacksons to Kaniere, 1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	6,245
Co-rupture Rate	3.0160238E-4

Observation, 1.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	4,427
Co-rupture Rate	5.3430143E-5

Bruce, 4.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	3,221
Co-rupture Rate	6.806106E-5

Hohonu South, 7.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	1,496
Co-rupture Rate	3.4805437E-17

Jagged, 7.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	231
Co-rupture Rate	0.0

Alpine: Kaniere to Springs Junction, 13.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	880
Co-rupture Rate	2.0489946E-4

Kelly, 13.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	1,201
Co-rupture Rate	0.0
