Murchison 1 - Ice Lake Details

Property	Value
Rupture Count	43,221
Ruptures Above Sect Min Mag	43,219
Ruptures w/ Nonzero Rates	138
Magnitude Range	[7.06, 8.56]
Length Range	[22, 768] km
Total Rate	9.902679E-5 /yr
Multi-Fault Rate	9.902679E-5 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	220

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

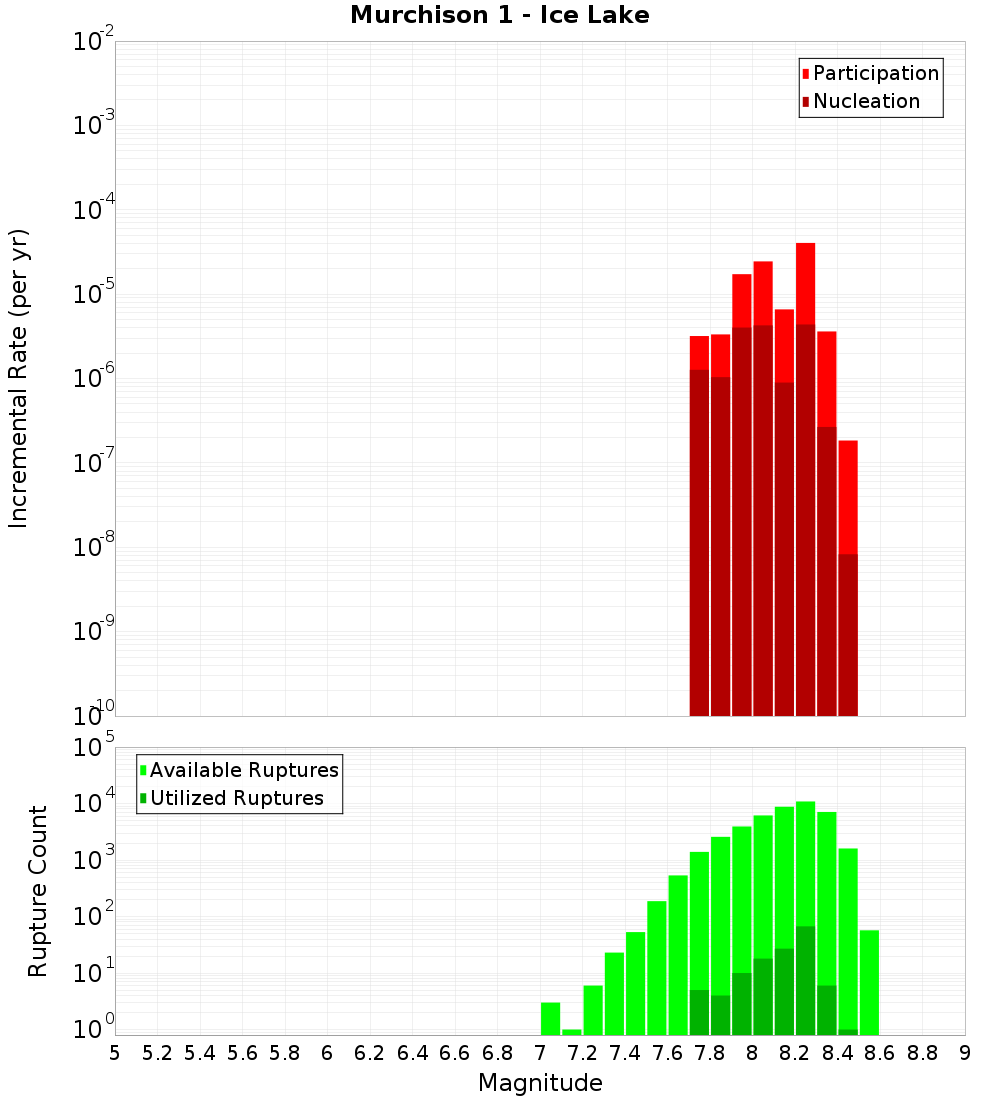

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

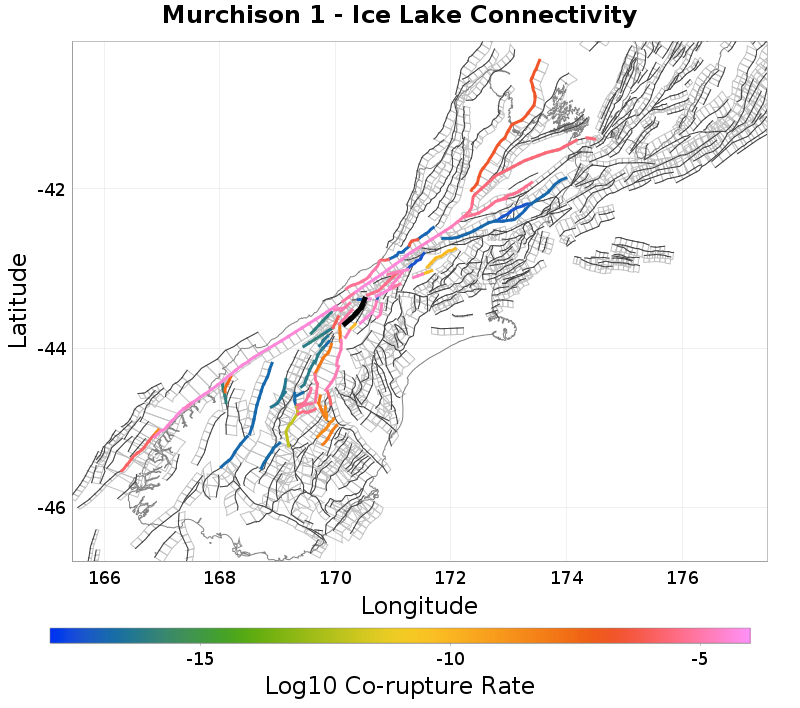

Connectivity

Nearby Sections

Fault Section
Hohonu South, 0.15 km away
Straight Creek, 0.23 km away
Alpine: Jacksons to Kaniere, 0.28 km away
Gunn Glacier, 0.3 km away
Mt Roon, 0.46 km away
Black Blob - Haast Ridge, 2.29 km away
Liebig North, 3.29 km away
Mt Adams, 4.56 km away
Karangarua, 5.3 km away
Great Groove, 6.66 km away
Lord Range, 6.99 km away
McKerrow - Douglas Duplex, 9.71 km away
Macaulay 2, 12.38 km away
Landsborough 2, 13.81 km away
Veil Stream, 14.64 km away

Hohonu South, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	22,906
Co-rupture Rate	1.1679042E-5

Straight Creek, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	12,324
Co-rupture Rate	1.5862237E-5

Alpine: Jacksons to Kaniere, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	19,444
Co-rupture Rate	7.99022E-5

Gunn Glacier, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	15,479
Co-rupture Rate	4.347574E-5

Mt Roon, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	1,147
Co-rupture Rate	8.0512045E-6

Black Blob - Haast Ridge, 2.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	14,217
Co-rupture Rate	8.679245E-6

Liebig North, 3.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	1,436
Co-rupture Rate	1.5016655E-5

Mt Adams, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	6,748
Co-rupture Rate	0.0

Karangarua, 5.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	1,709
Co-rupture Rate	9.077435E-17

Great Groove, 6.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	12,254
Co-rupture Rate	1.0854513E-8

Lord Range, 6.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	10,376
Co-rupture Rate	4.6921596E-6

McKerrow - Douglas Duplex, 9.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	10,052
Co-rupture Rate	8.4564266E-7

Macaulay 2, 12.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	769
Co-rupture Rate	3.7144902E-5

Landsborough 2, 13.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	6,623
Co-rupture Rate	1.0634681E-16

Veil Stream, 14.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	502
Co-rupture Rate	1.632525E-5
