Murphys Creek Details

PropertyValue
Rupture Count151
Ruptures Above Sect Min Mag150
Ruptures w/ Nonzero Rates20
Magnitude Range[7.09, 8.15]
Length Range[22, 226] km
Total Rate9.769619E-5 /yr
Multi-Fault Rate5.6063924E-5 /yr (57.39%)
Directly-Connected Faults5
All Co-Rupturing Faults20

Table Of Contents

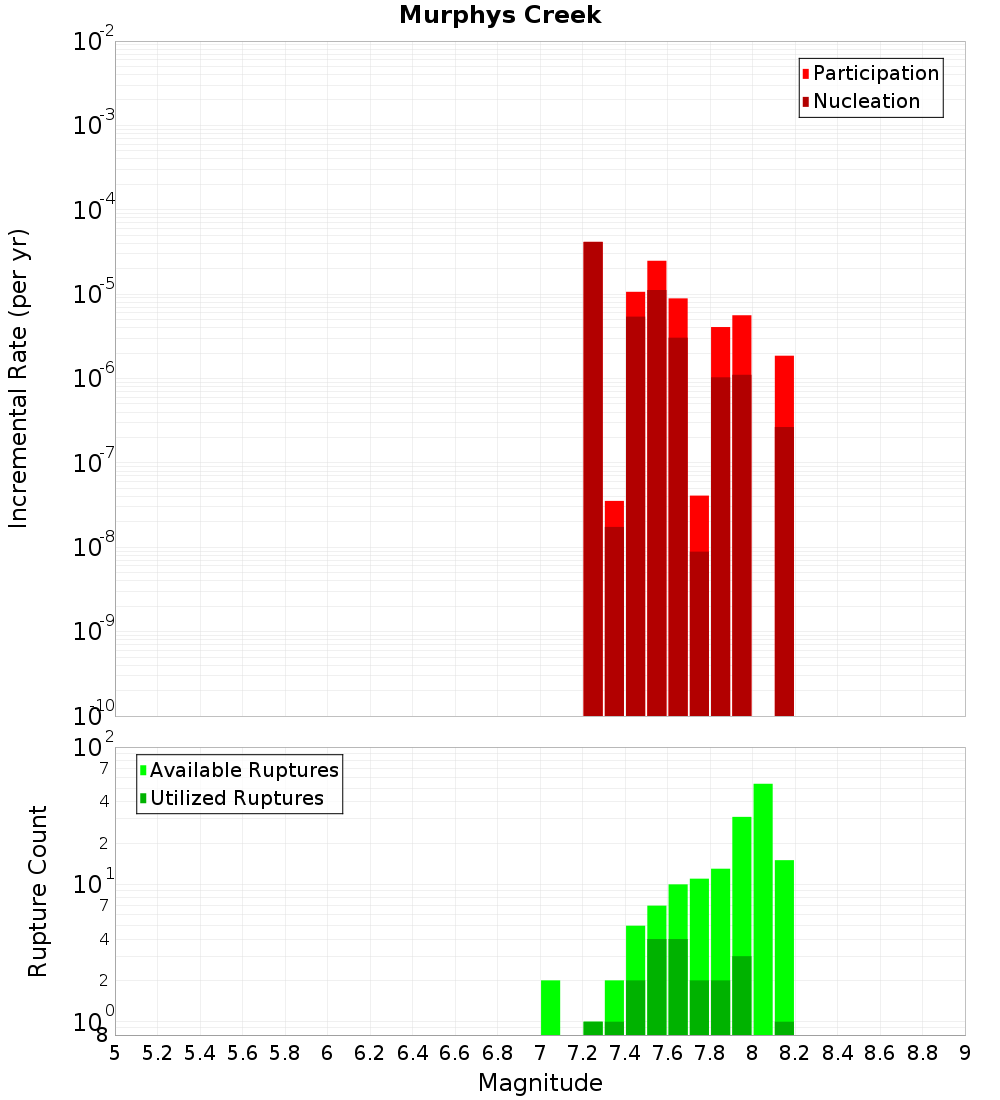

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

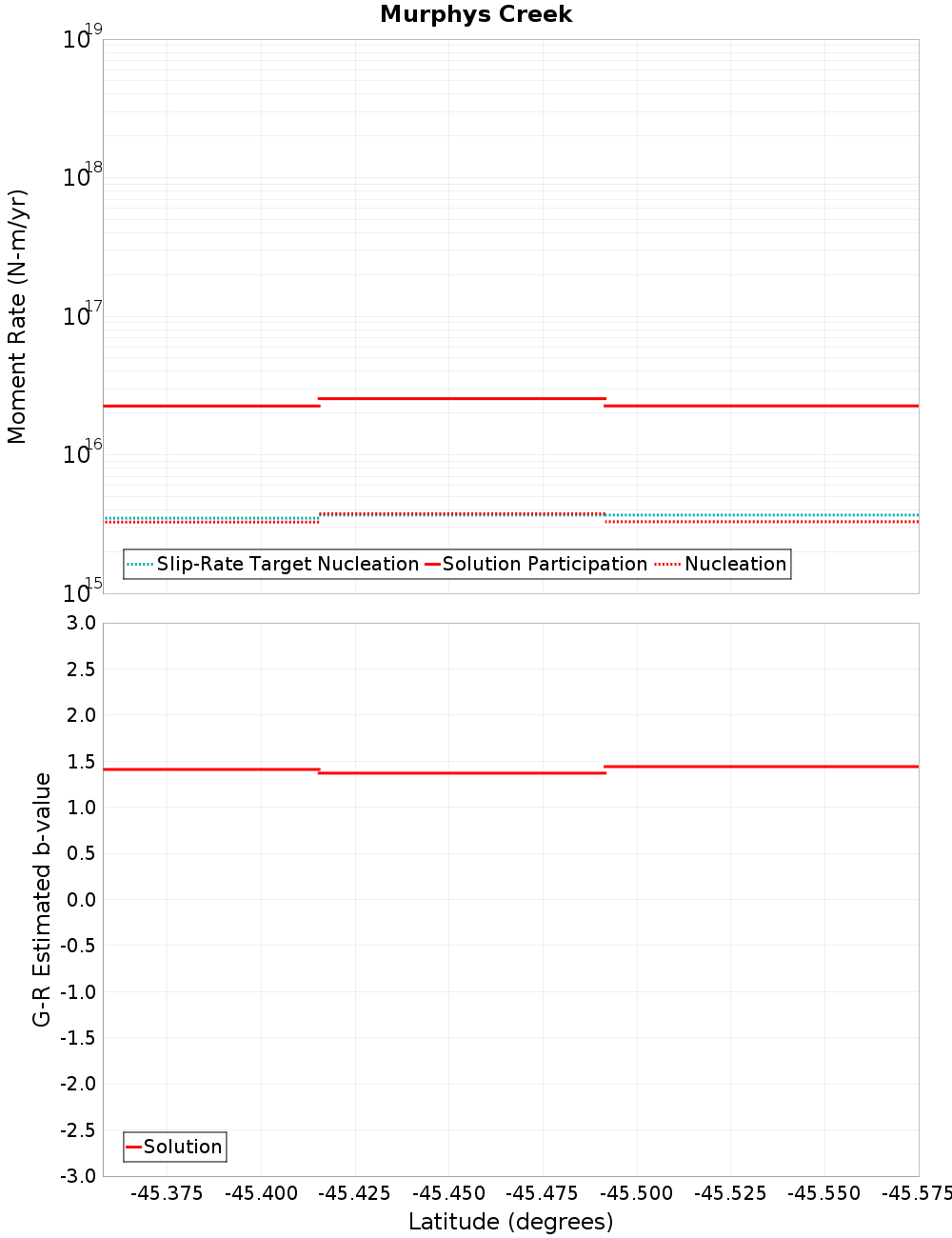

Moment-Rates and b-Values

(top)

Along-strike plot

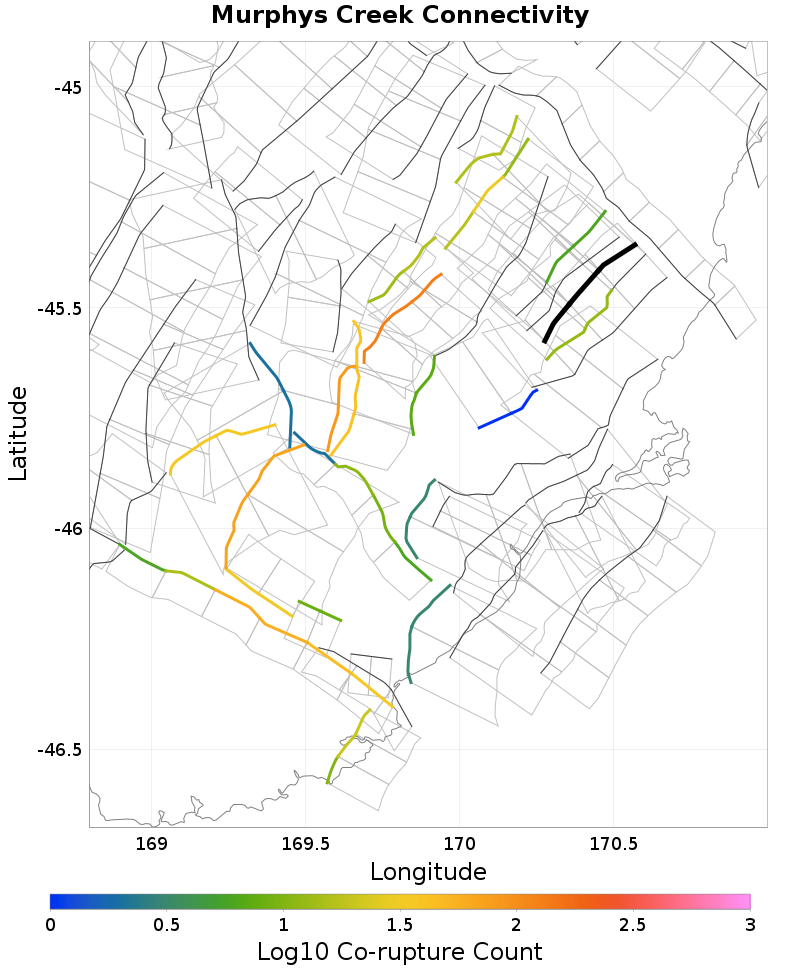

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waipiata, 0.19 km away
Ranfurly, 0.34 km away
Billys Ridge, 2.04 km away
Dunback Hill, 2.53 km away
Waihemo, 3.71 km away
Logan Burn, 5 km away
Horse Flat, 5.19 km away
Pylap, 6.4 km away
Flat Stream - Glenpark, 7.25 km away
Nichols Rock, 7.57 km away
Hyde North, 12.43 km away

Waipiata, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate1.0545076E-5

Ranfurly, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate8.974918E-6

Billys Ridge, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunback Hill, 2.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate1.1441034E-5

Waihemo, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Logan Burn, 5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?true
Directly Connected?true
Co-rupture Count129
Co-rupture Rate2.8857494E-5

Horse Flat, 5.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate3.5720632E-6

Pylap, 6.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0

Flat Stream - Glenpark, 7.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 7.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.1441034E-5

Hyde North, 12.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
