Ostler South Details

Property	Value
Rupture Count	11,593
Ruptures Above Sect Min Mag	11,592
Ruptures w/ Nonzero Rates	224
Magnitude Range	[7.23, 8.60]
Length Range	[25, 752] km
Total Rate	1.8948353E-4 /yr
Multi-Fault Rate	1.8948353E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	135

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

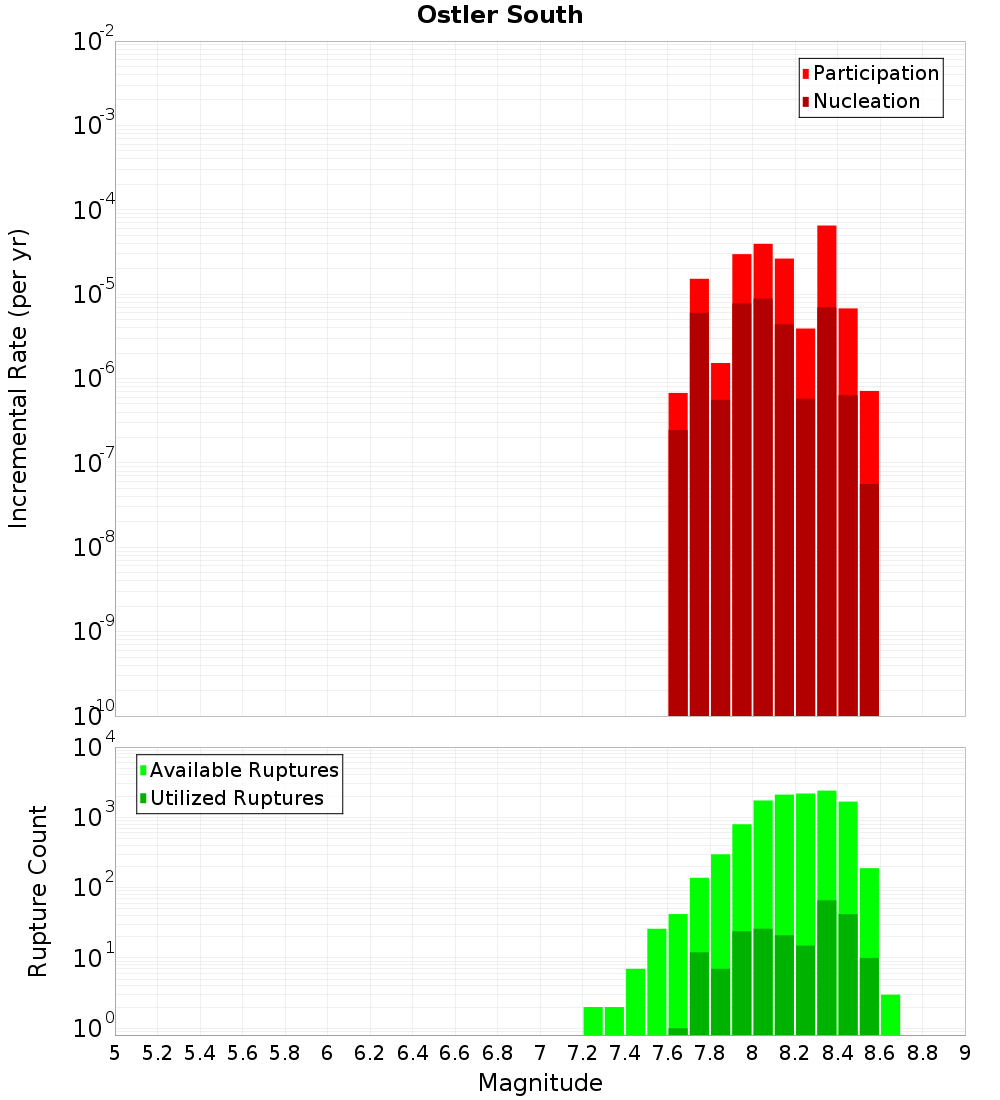

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Ostler North, 1.9 km away
Hawkdun, 2.35 km away
Dromedary, 4.67 km away
Omarama Saddle, 7.29 km away
Lindis River, 7.96 km away
Falstone, 8.06 km away
Fern Gully, 8.7 km away
Blue Lake, 9.39 km away
Timaru Creek, 9.73 km away
Barrier Range, 12.2 km away

Ostler North, 1.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	11,133
Co-rupture Rate	1.8859404E-4

Hawkdun, 2.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	1,885
Co-rupture Rate	9.580855E-6

Dromedary, 4.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	2,949
Co-rupture Rate	2.611695E-5

Omarama Saddle, 7.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	107
Co-rupture Rate	3.0708036E-6

Lindis River, 7.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	3,986
Co-rupture Rate	4.695709E-5

Falstone, 8.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	74
Co-rupture Rate	1.740065E-5

Fern Gully, 8.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	43
Co-rupture Rate	9.984817E-6

Blue Lake, 9.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Timaru Creek, 9.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	4.089203E-6

Barrier Range, 12.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	49
Co-rupture Rate	0.0
