Waitahuna 1 Details

Property	Value
Rupture Count	115
Ruptures Above Sect Min Mag	115
Ruptures w/ Nonzero Rates	19
Magnitude Range	[7.21, 8.16]
Length Range	[23, 234] km
Total Rate	5.3032578E-5 /yr
Multi-Fault Rate	5.3032578E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	29

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

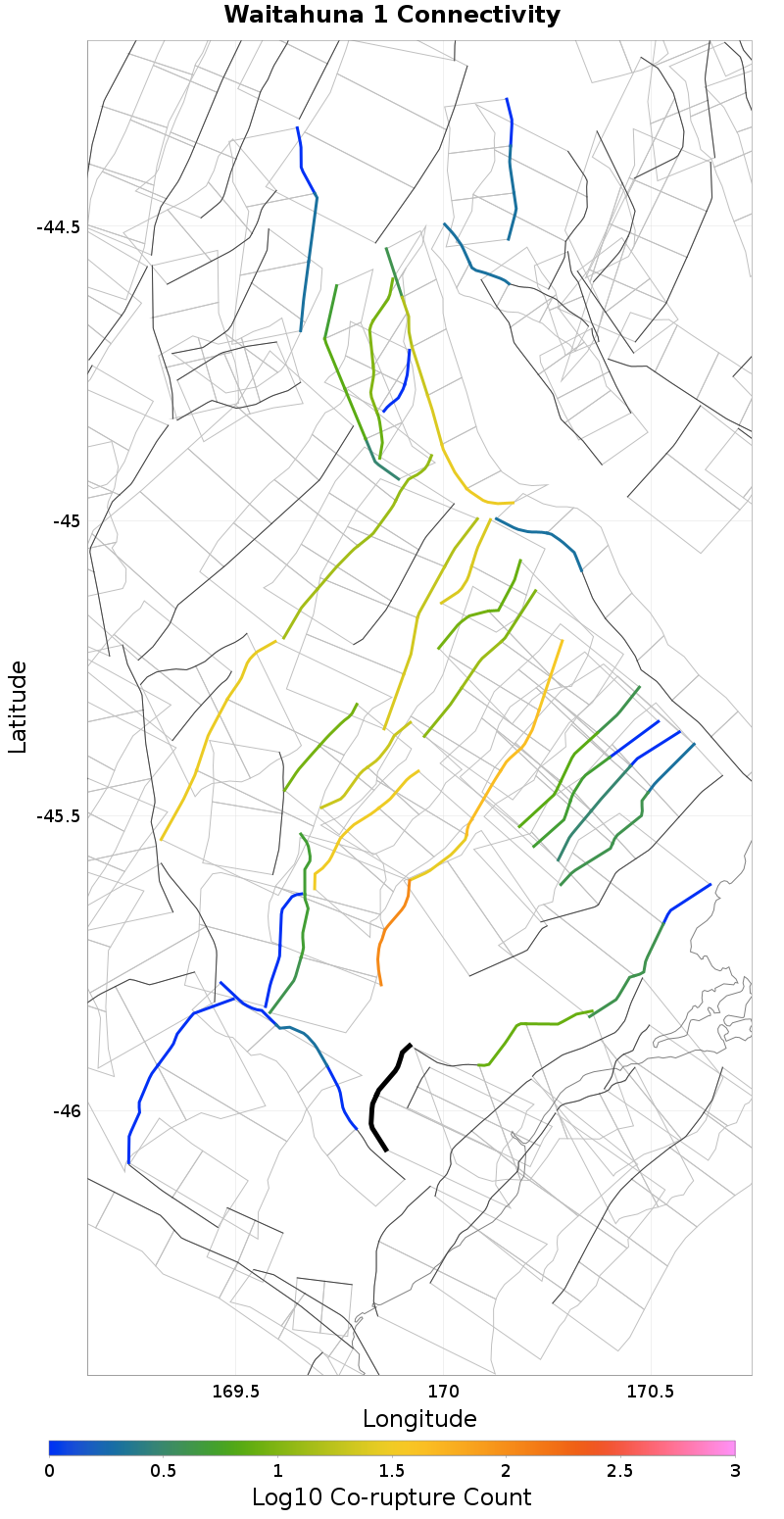

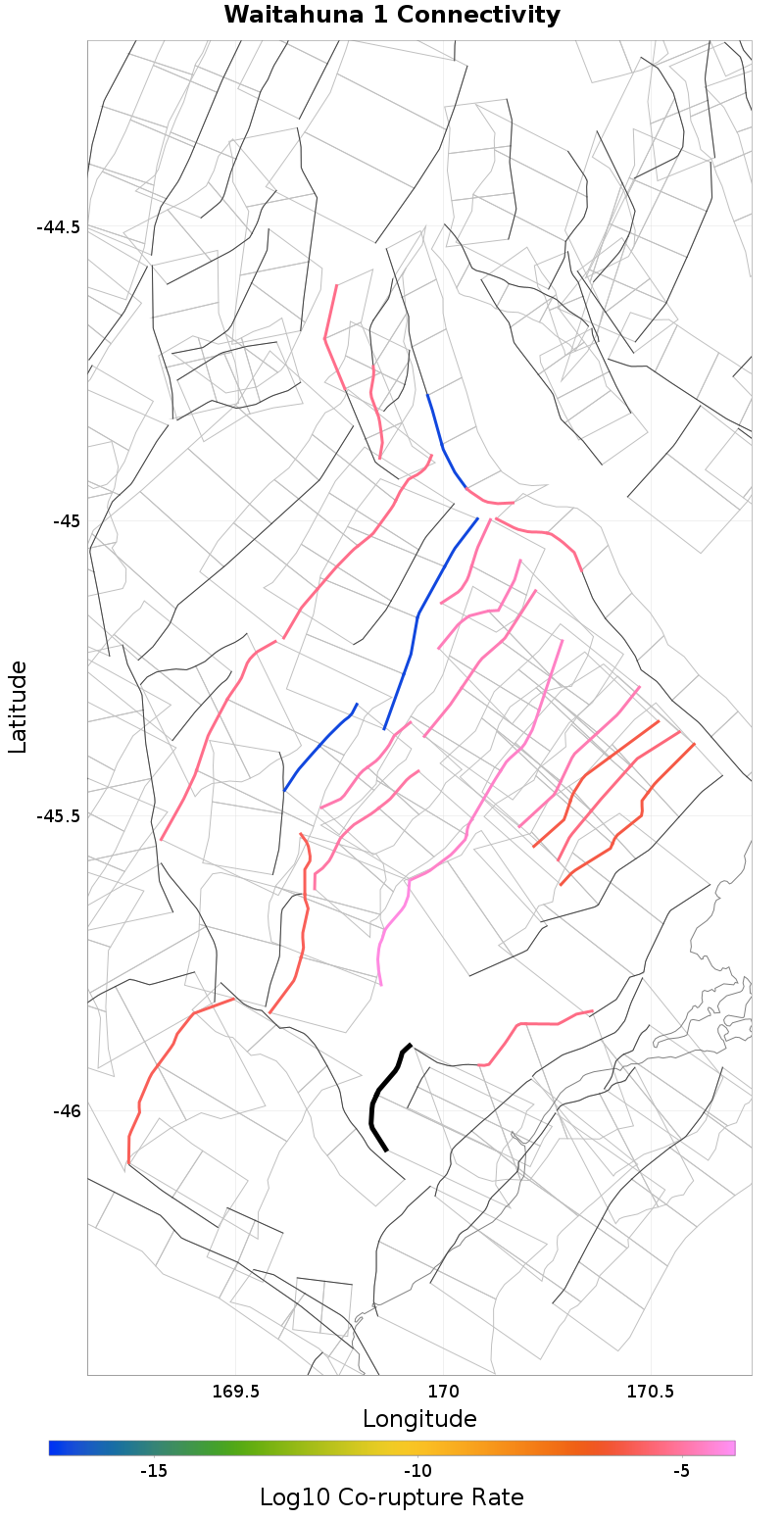

Connectivity
- Nearby Sections

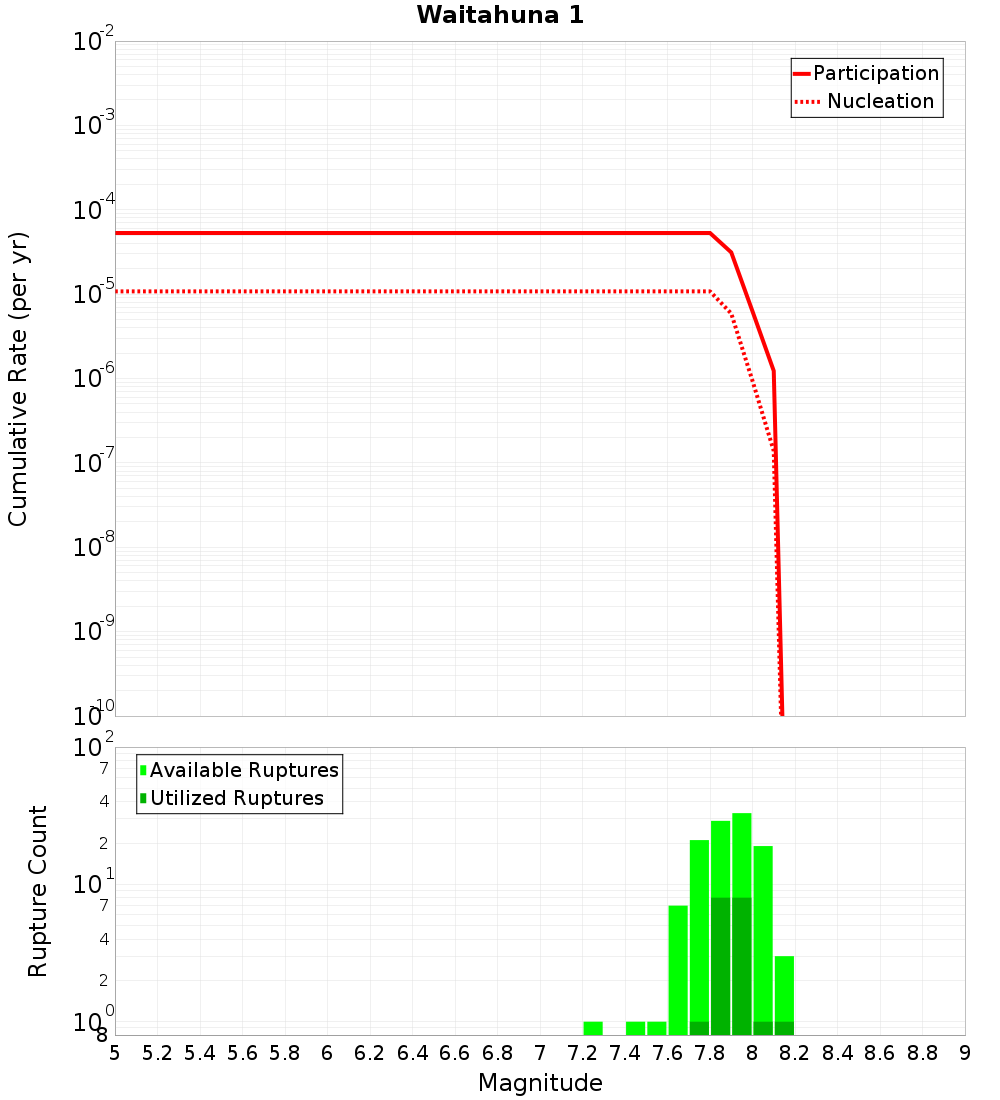

Magnitude-Frequency Distribution

Incremental	Cumulative

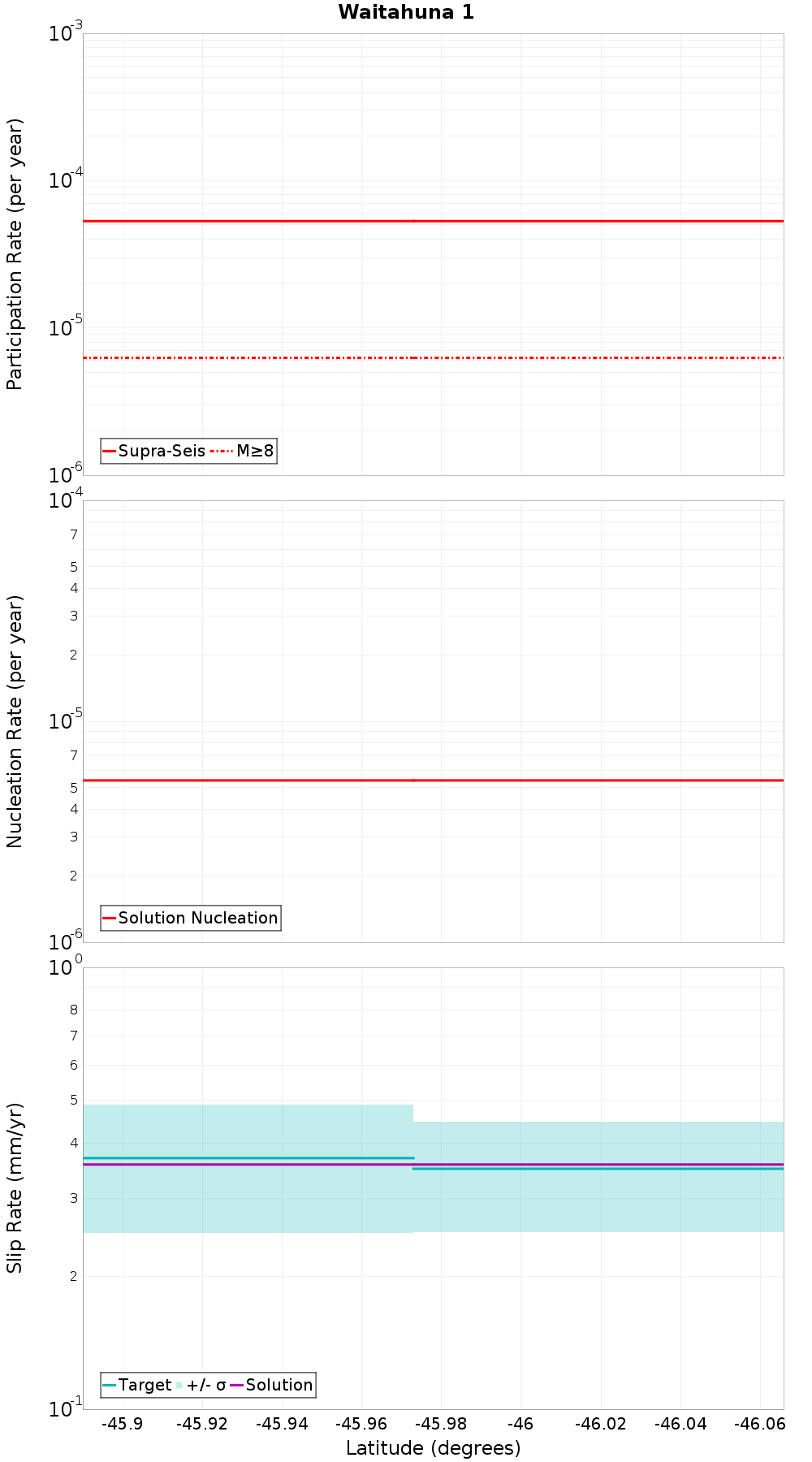

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Maungatua - North Taieri, 0.14 km away
Tuapeka, 1.92 km away
Waitahuna 2, 3.53 km away
Titri Central, 7.53 km away
Titri South, 7.89 km away
Hyde South - The Twins, 12.65 km away

Maungatua - North Taieri, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	4.3418427E-6

Tuapeka, 1.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Waitahuna 2, 3.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Titri Central, 7.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Titri South, 7.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hyde South - The Twins, 12.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?	true
Directly Connected?	true
Co-rupture Count	109
Co-rupture Rate	5.3032578E-5
