Waitangi Details

PropertyValue
Rupture Count47
Ruptures Above Sect Min Mag46
Ruptures w/ Nonzero Rates20
Magnitude Range[6.86, 7.67]
Length Range[18, 104] km
Total Rate5.972233E-5 /yr
Multi-Fault Rate5.972233E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults7

Table Of Contents

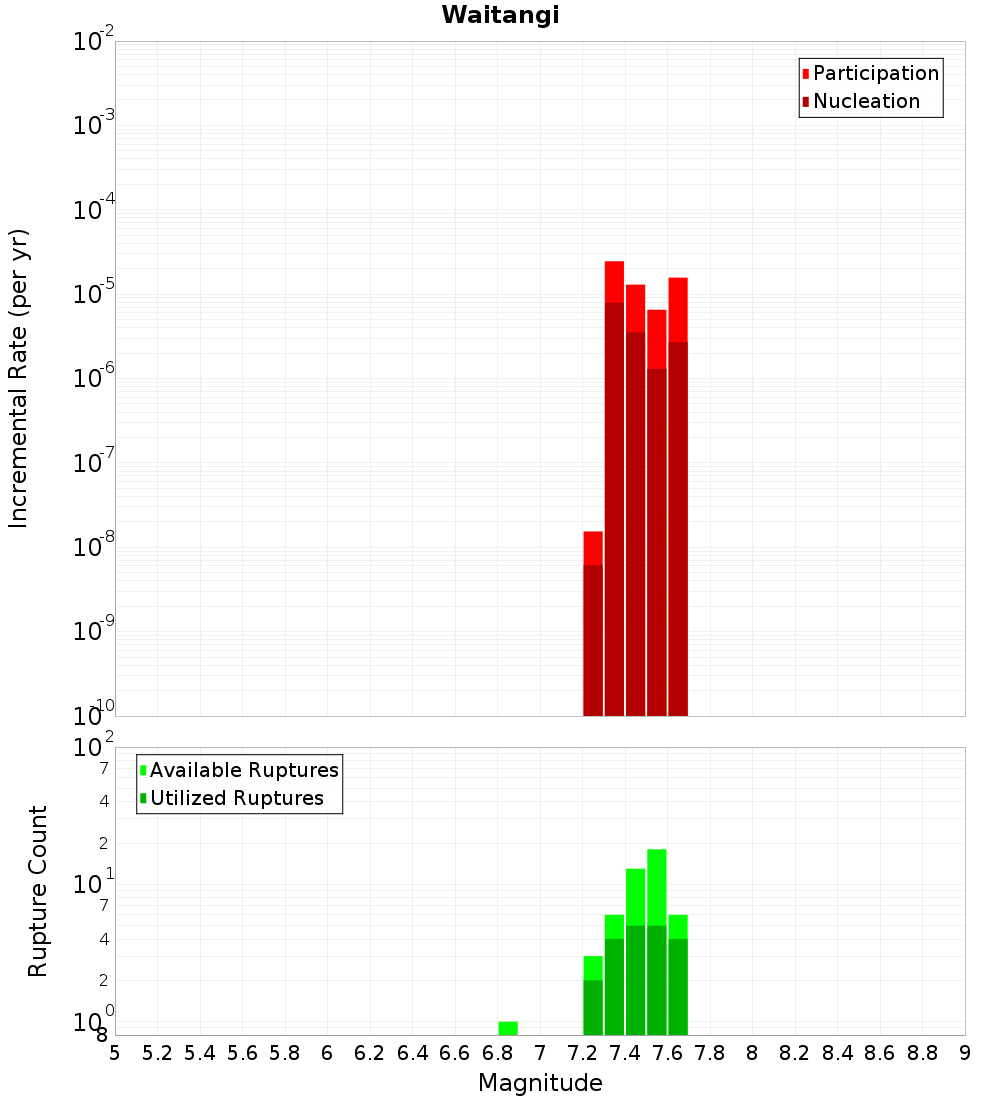

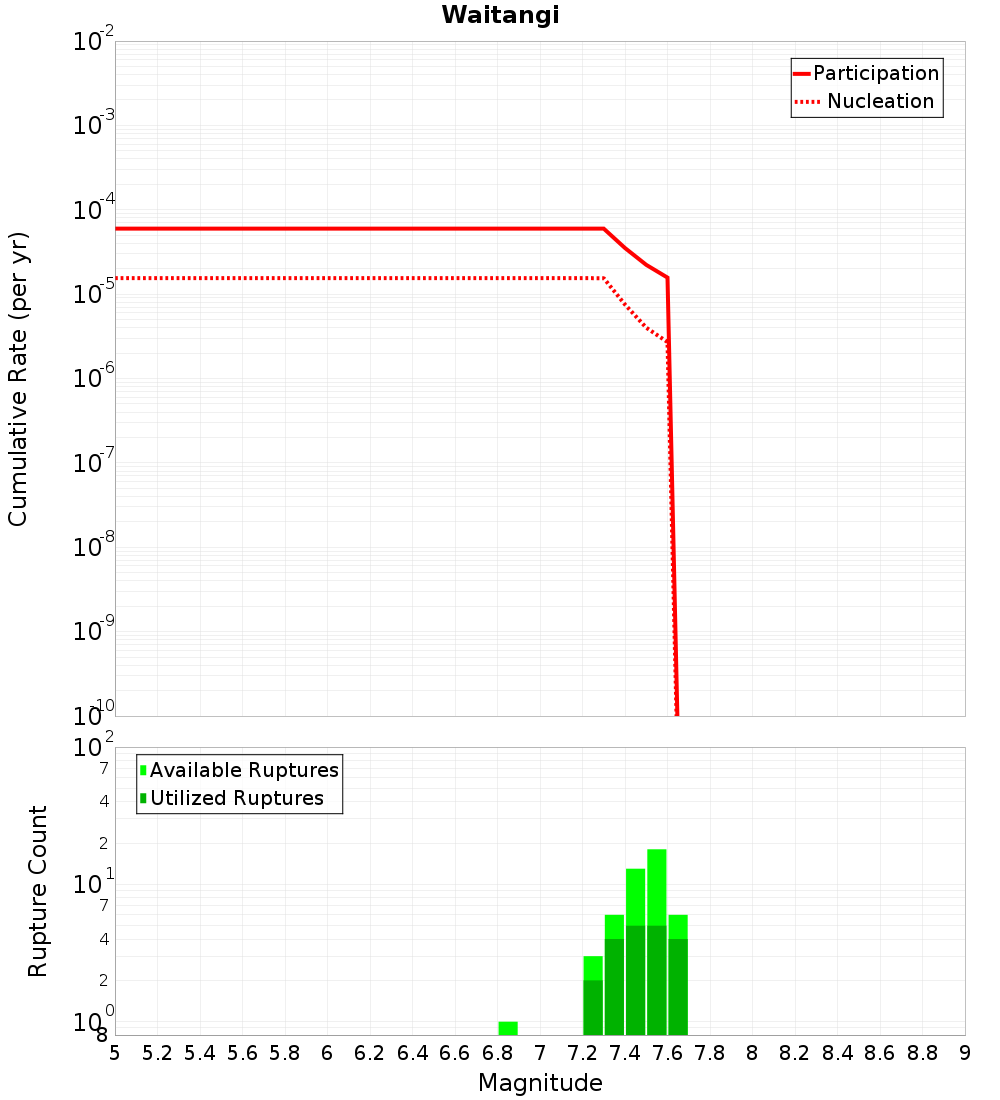

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

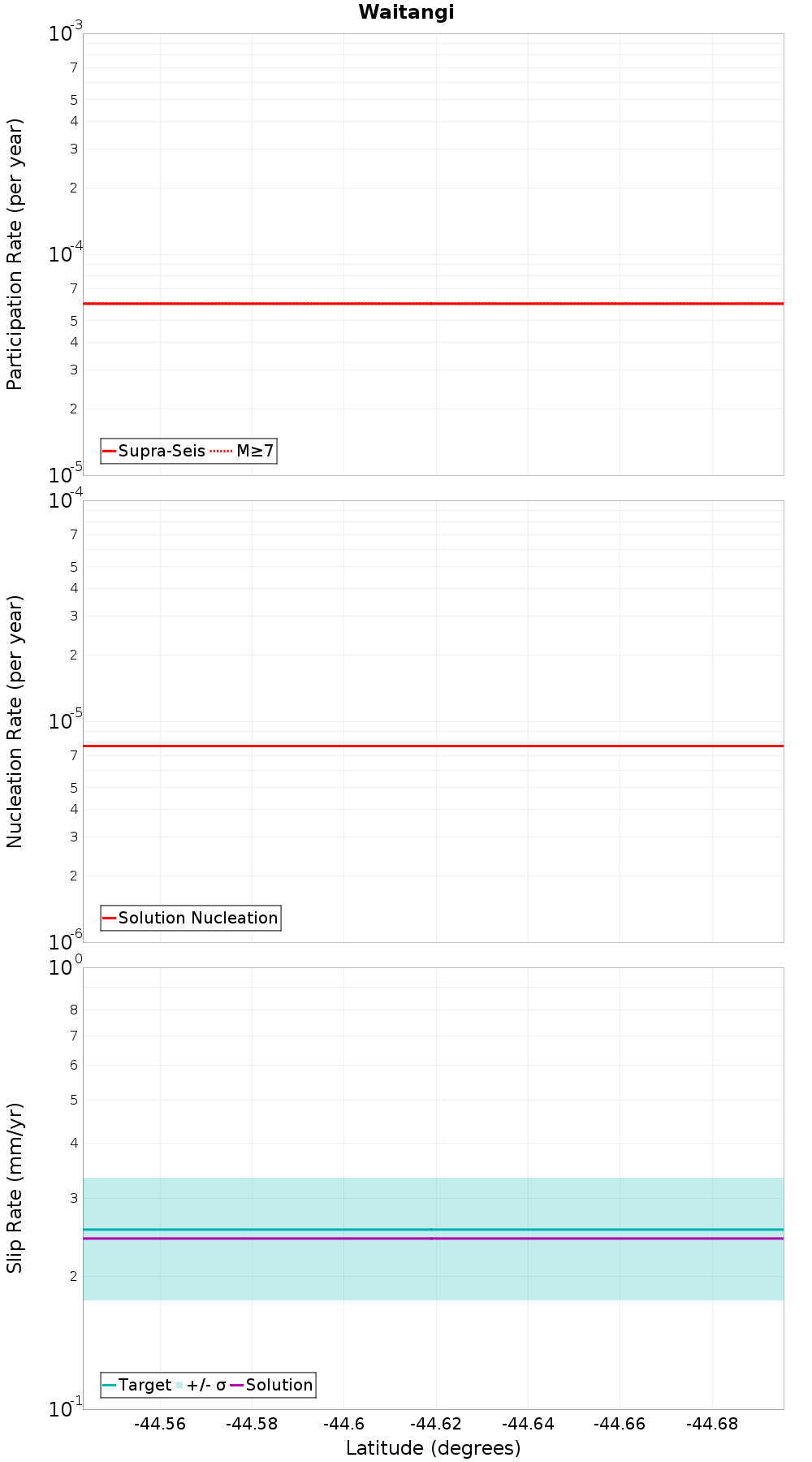

Along-Strike Values

(top)

Along-strike plot

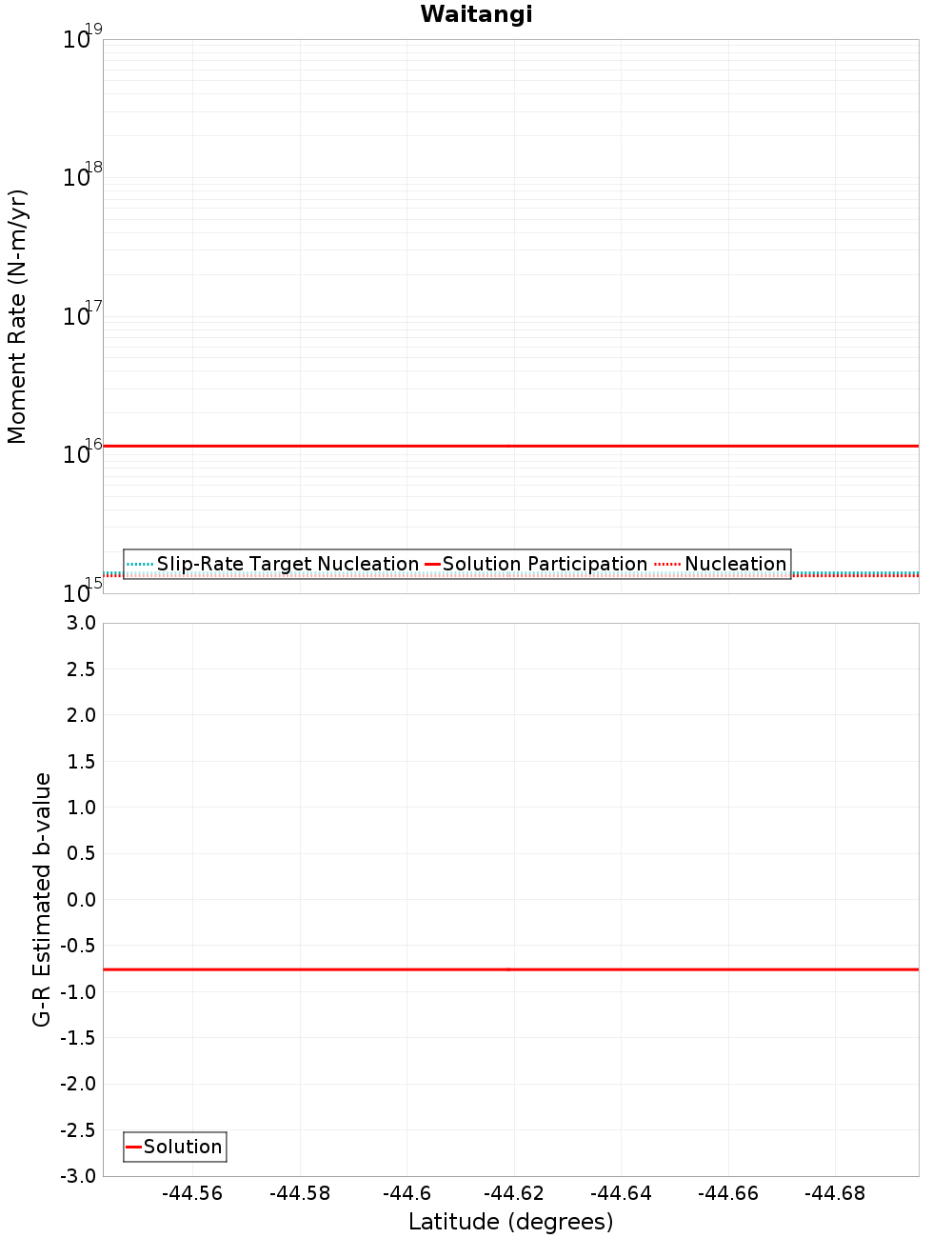

Moment-Rates and b-Values

(top)

Along-strike plot

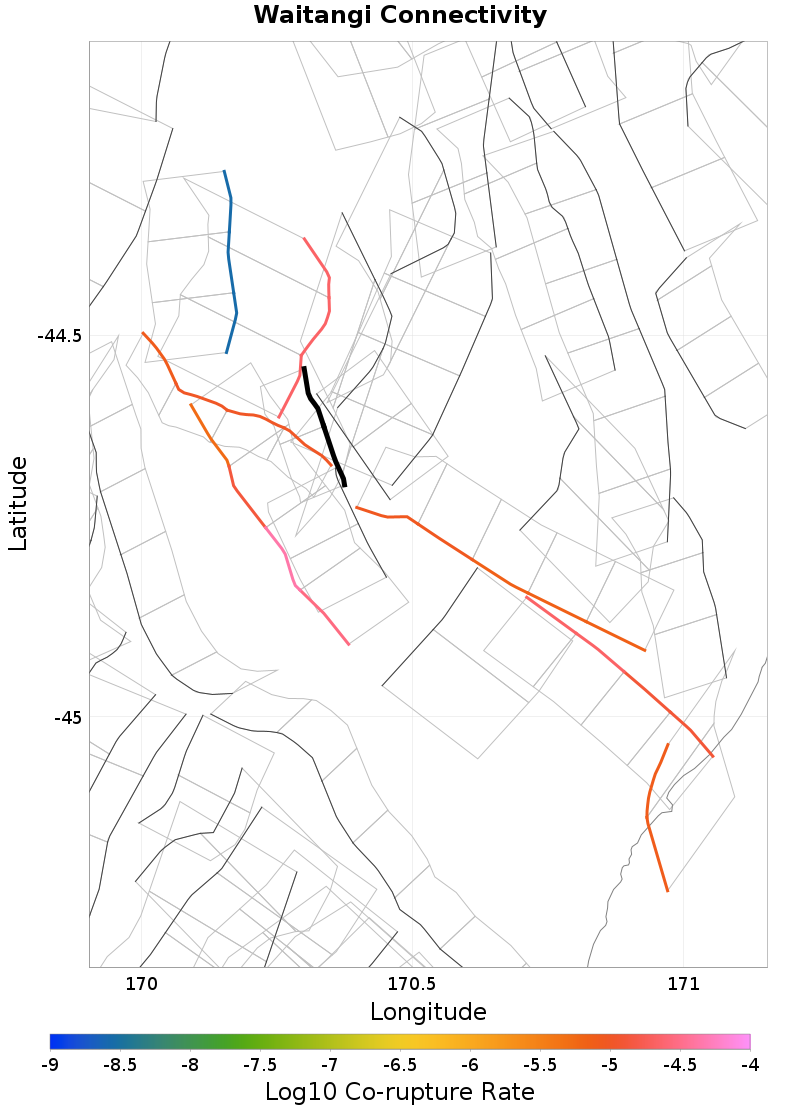

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Fern Gully, 0.28 km away
Mt Sutton, 0.3 km away
Middle Range, 0.35 km away
Awahokomo, 0.42 km away
Gibson, 0.56 km away
Dryburgh, 1.08 km away
Kirkliston, 1.61 km away
Stonewall, 3.51 km away
Grampian, 8.68 km away
Falstone, 11.14 km away

Fern Gully, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate1.0044898E-5

Mt Sutton, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Middle Range, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate4.3985903E-5

Awahokomo, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gibson, 0.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate2.1610196E-5

Dryburgh, 1.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 1.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 3.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate8.945617E-6

Grampian, 8.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Falstone, 11.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNTguMGh1OFpp
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate2.7546603E-9
