Cheeseman Details

PropertyValue
Rupture Count515
Ruptures Above Sect Min Mag505
Ruptures w/ Nonzero Rates24
Magnitude Range[6.48, 7.93]
Length Range[13, 234] km
Total Rate1.15562536E-4 /yr
Multi-Fault Rate1.15562536E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults27

Table Of Contents

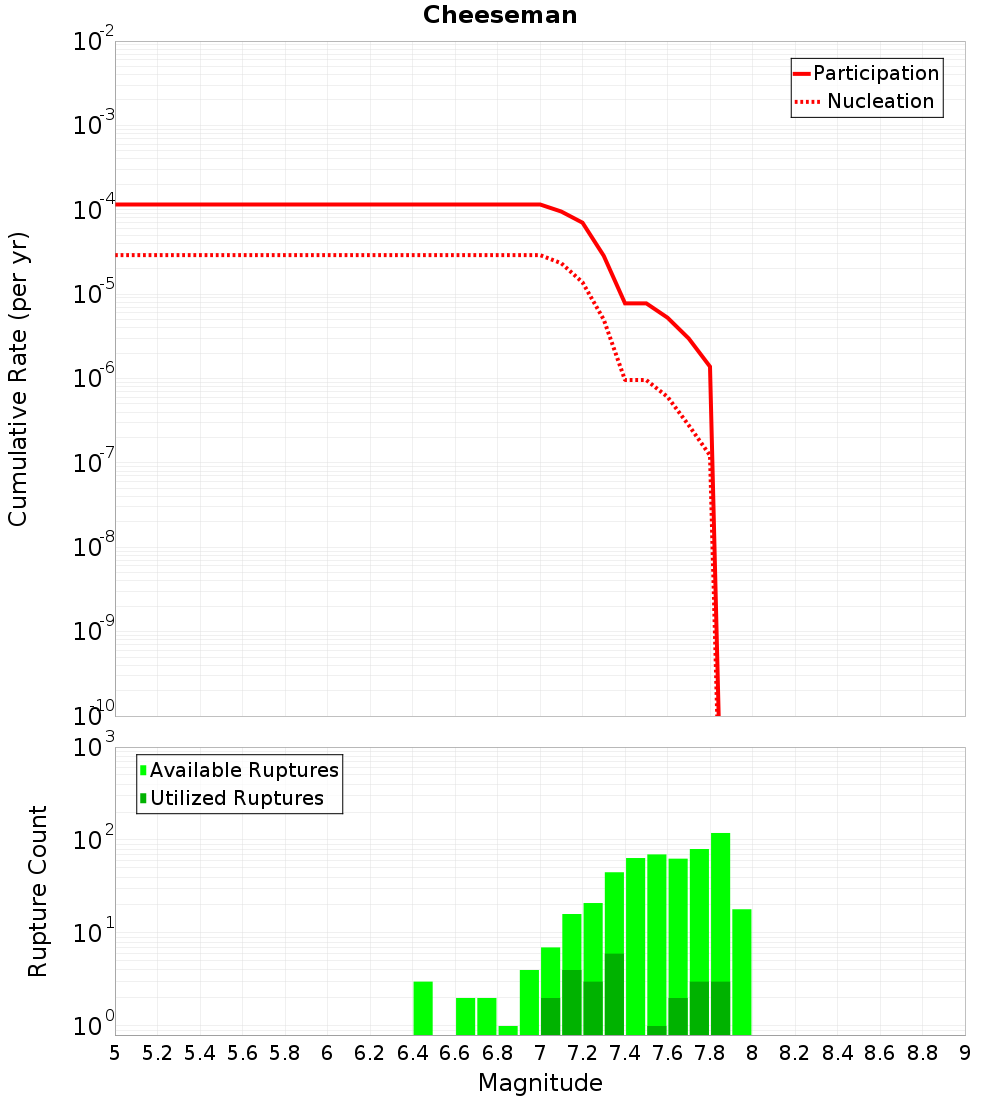

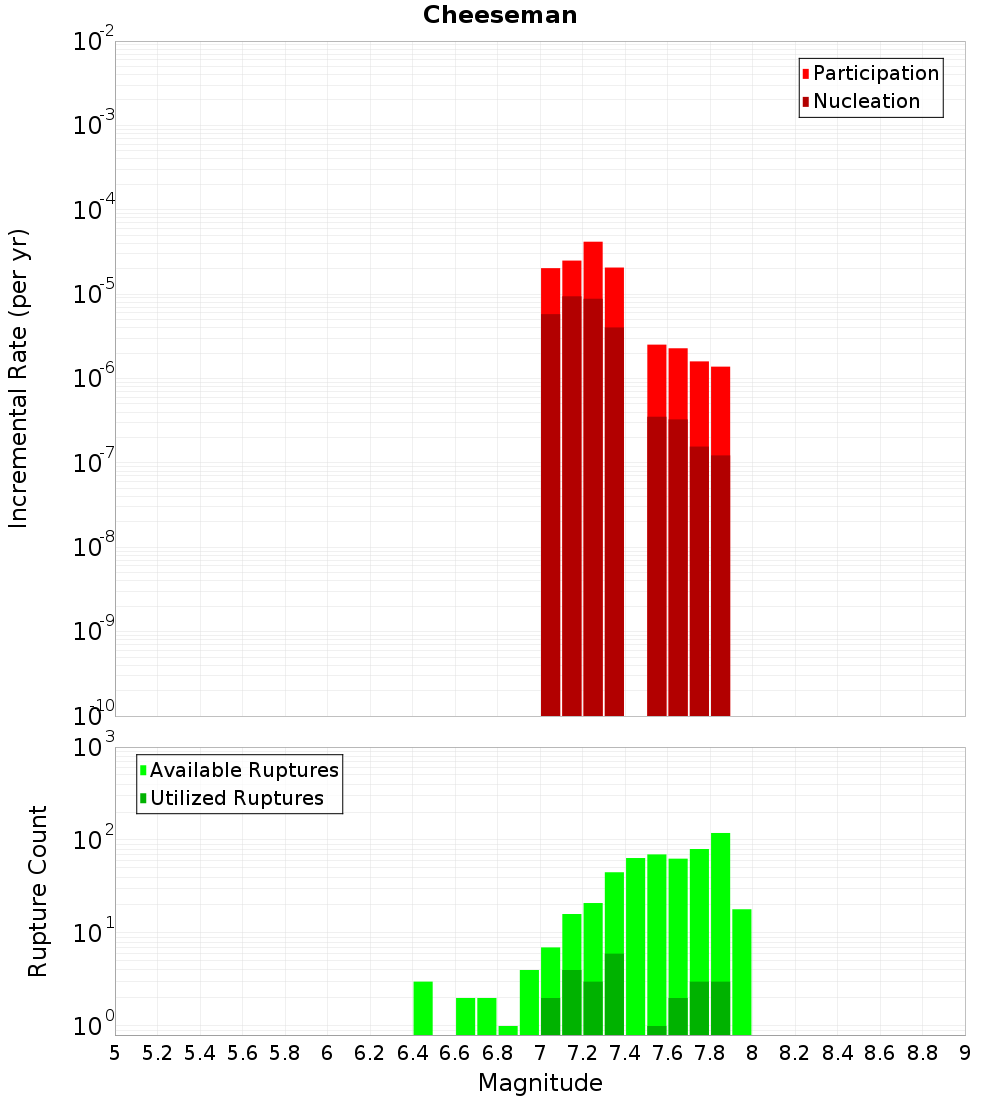

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

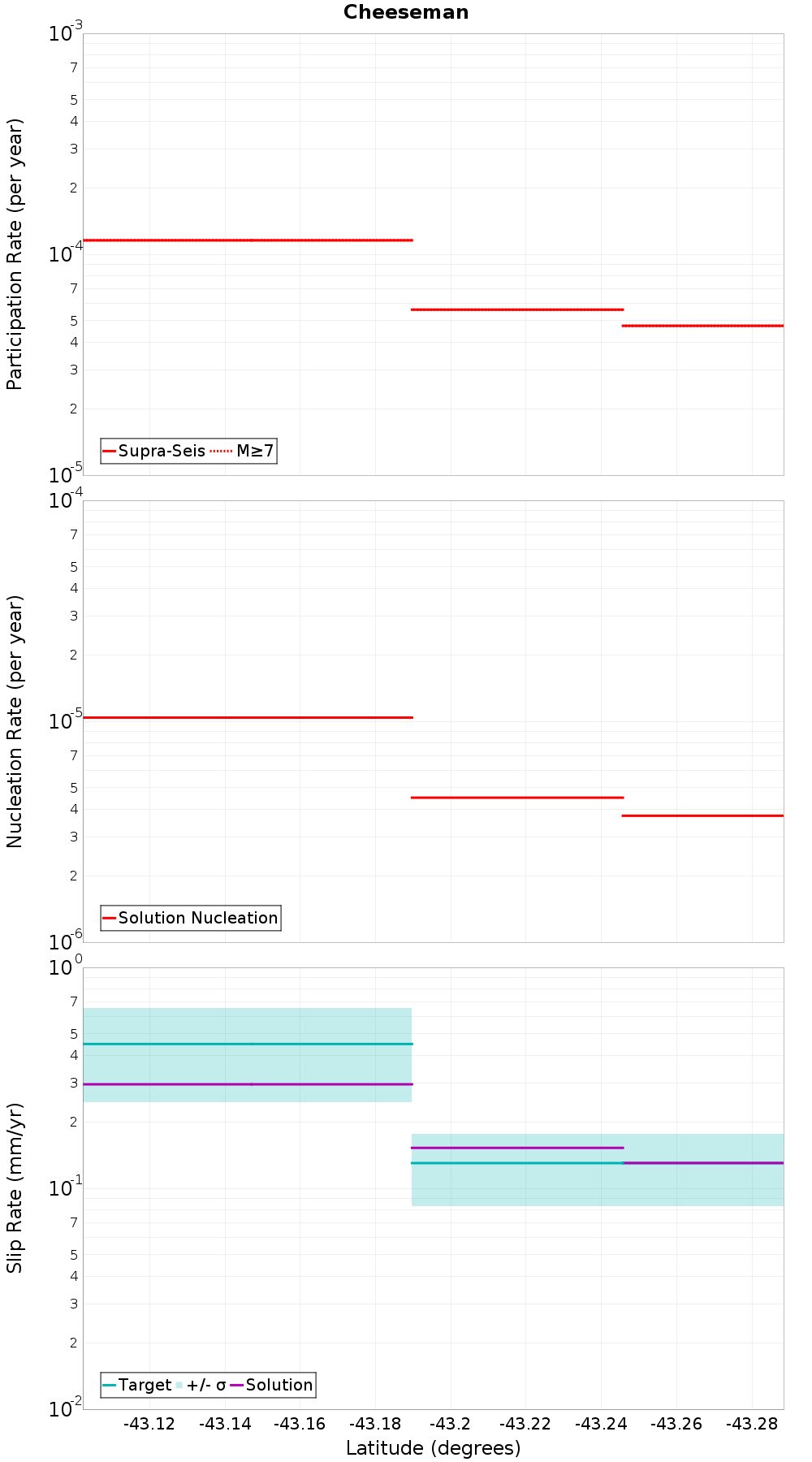

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

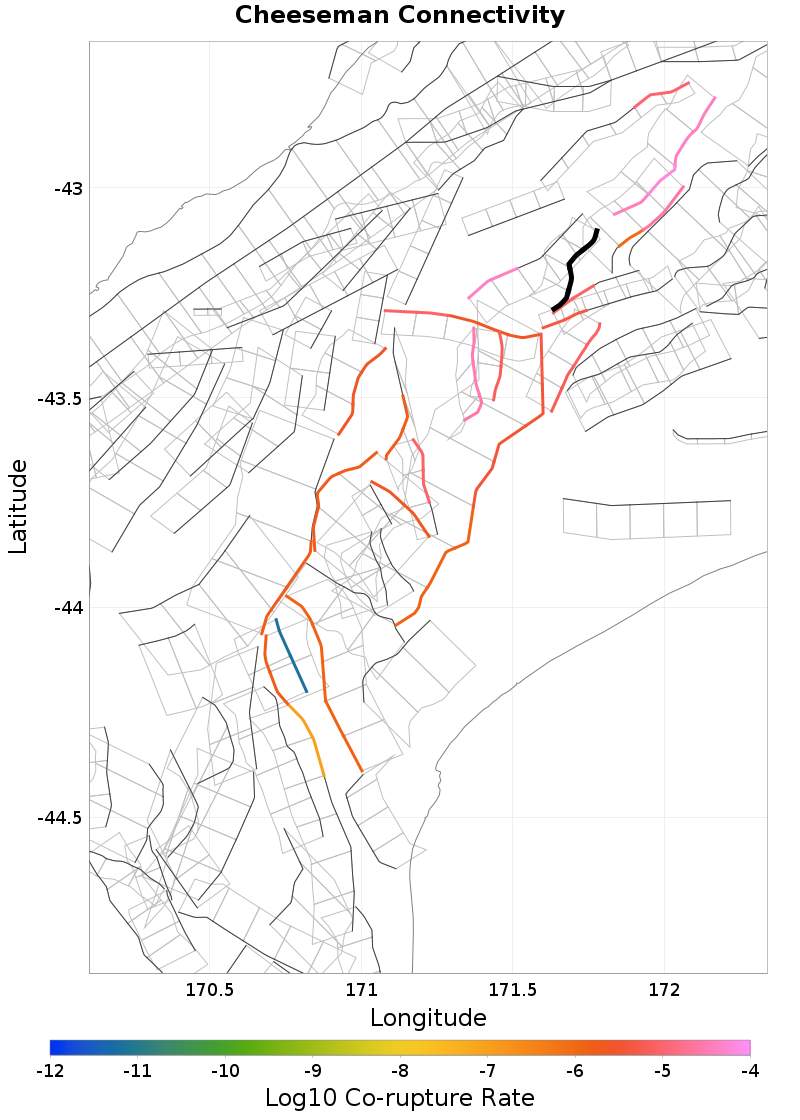

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Harper, 0.16 km away
Torlesse, 0.67 km away
Porters Pass, 3.57 km away
Sailor, 4.47 km away
Mt White, 6.43 km away
Hutt Peel, 7.5 km away
Double Hill, 7.96 km away
Bruce, 9.38 km away
Big Ben, 9.74 km away
Esk South, 10.29 km away
Poulter, 10.48 km away

Harper, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6
Connected?true
Directly Connected?true
Co-rupture Count268
Co-rupture Rate4.2708634E-5

Torlesse, 0.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6
Connected?true
Directly Connected?true
Co-rupture Count58
Co-rupture Rate8.6881455E-6

Porters Pass, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6
Connected?true
Directly Connected?true
Co-rupture Count162
Co-rupture Rate4.703182E-6

Sailor, 4.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6
Connected?true
Directly Connected?true
Co-rupture Count160
Co-rupture Rate2.3797127E-5

Mt White, 6.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6
Connected?true
Directly Connected?true
Co-rupture Count313
Co-rupture Rate5.9458533E-5

Hutt Peel, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6
Connected?true
Directly Connected?false
Co-rupture Count333
Co-rupture Rate4.703182E-6

Double Hill, 7.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate8.822593E-6

Bruce, 9.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Big Ben, 9.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6
Connected?true
Directly Connected?false
Co-rupture Count52
Co-rupture Rate8.6881455E-6

Esk South, 10.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poulter, 10.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate9.982128E-6
