Waitaki Details
| Property | Value |
|---|---|
| Rupture Count | 327 |
| Ruptures Above Sect Min Mag | 322 |
| Ruptures w/ Nonzero Rates | 29 |
| Magnitude Range | [6.75, 8.01] |
| Length Range | [18, 263] km |
| Total Rate | 9.806567E-5 /yr |
| Multi-Fault Rate | 9.806567E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 31 |
Table Of Contents

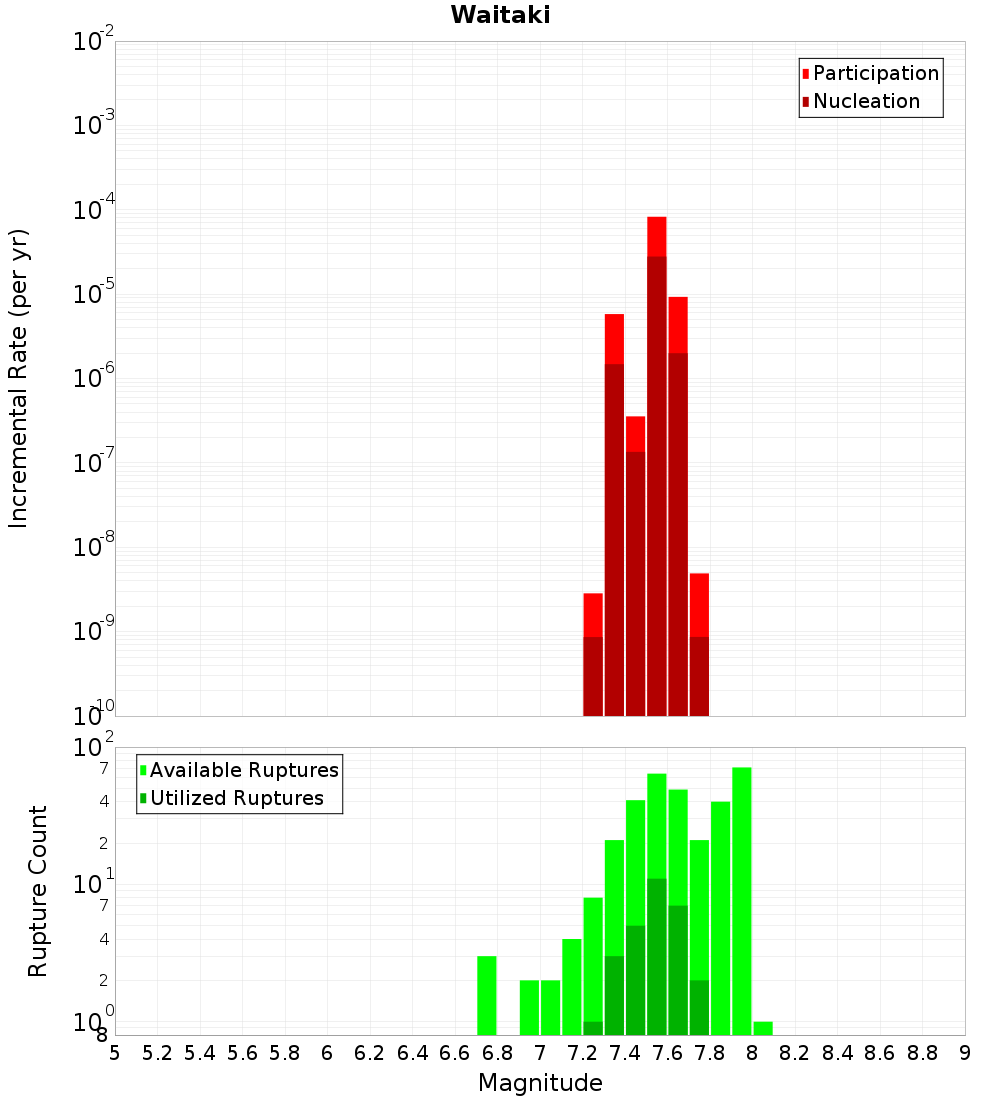

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

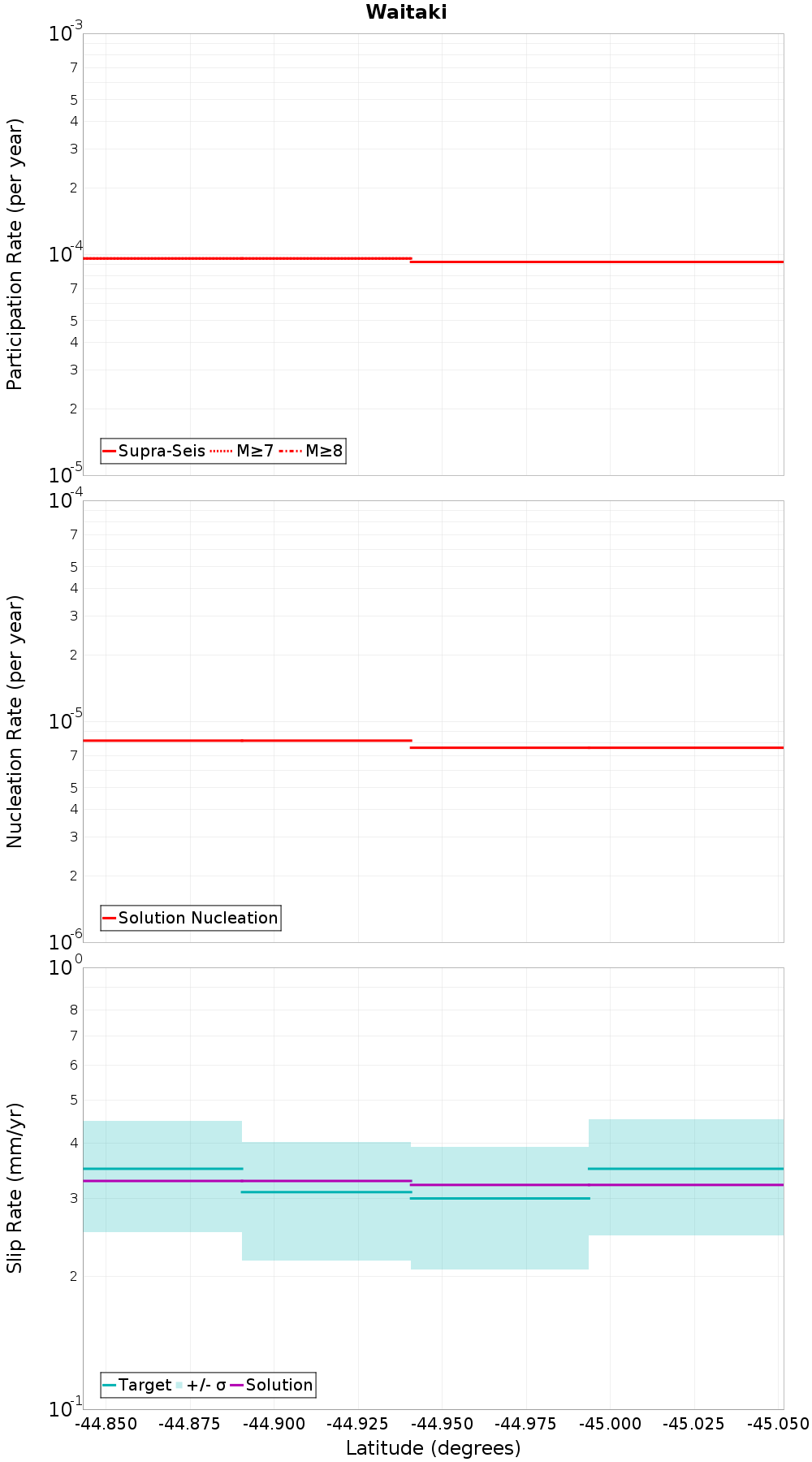

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Awamoa, 0.09 km away |
| Black Hill, 0.11 km away |
| Stonewall, 0.64 km away |
| Campbell Hills, 8.2 km away |
| Waimate, 8.21 km away |
| Middle Range, 13.04 km away |
Awamoa, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16 |
| Co-rupture Rate | 5.9905942E-5 |
Black Hill, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Stonewall, 0.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 68 |
| Co-rupture Rate | 5.1639513E-6 |
Campbell Hills, 8.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Waimate, 8.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 48 |
| Co-rupture Rate | 2.4186966E-6 |
Middle Range, 13.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjAuMFR1cnR6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 219 |
| Co-rupture Rate | 9.388138E-5 |
