Alpine: Nancy Details

PropertyValue
Rupture Count38,231
Ruptures Above Sect Min Mag38,230
Ruptures w/ Nonzero Rates243
Magnitude Range[6.75, 8.67]
Length Range[12, 1,083] km
Total Rate0.0024035908 /yr
Multi-Fault Rate0.0024035908 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults196

Table Of Contents

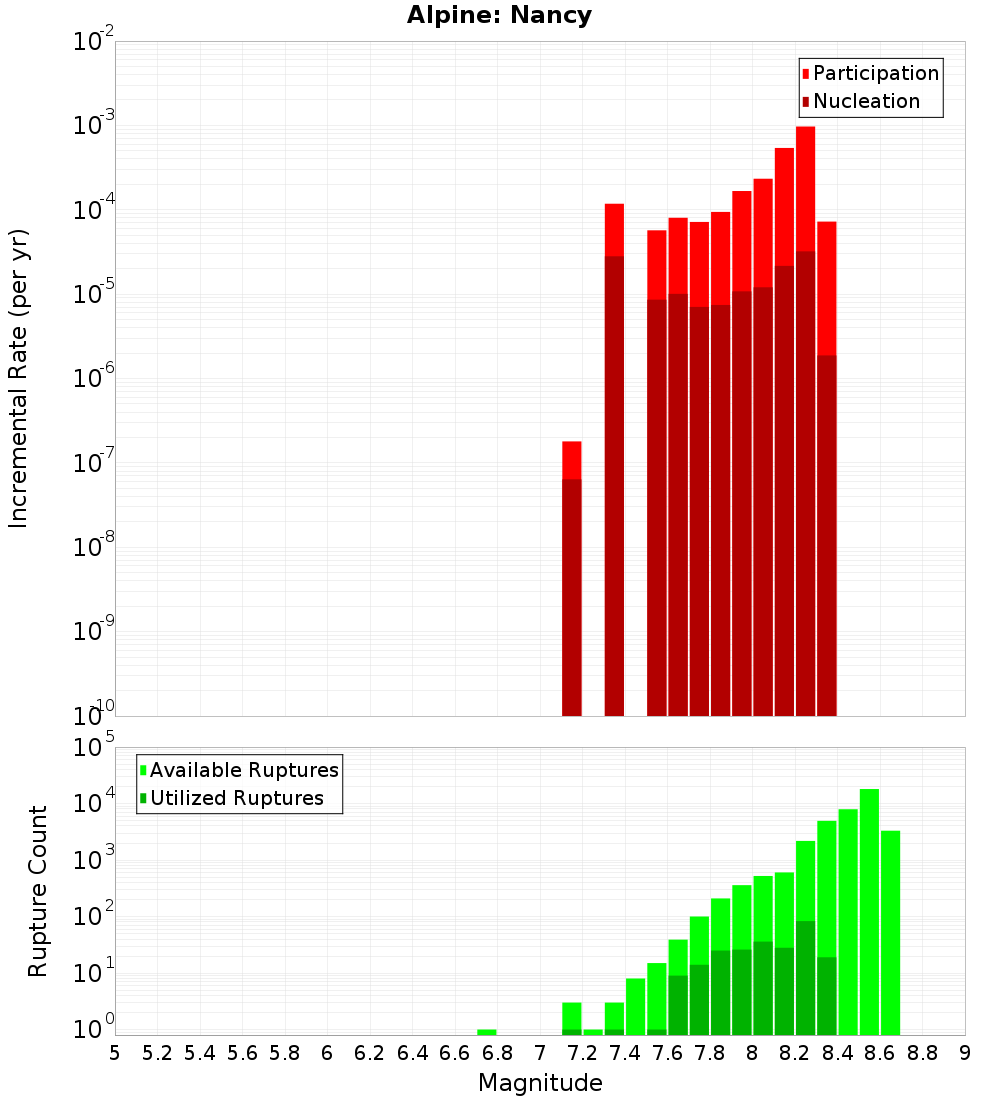

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

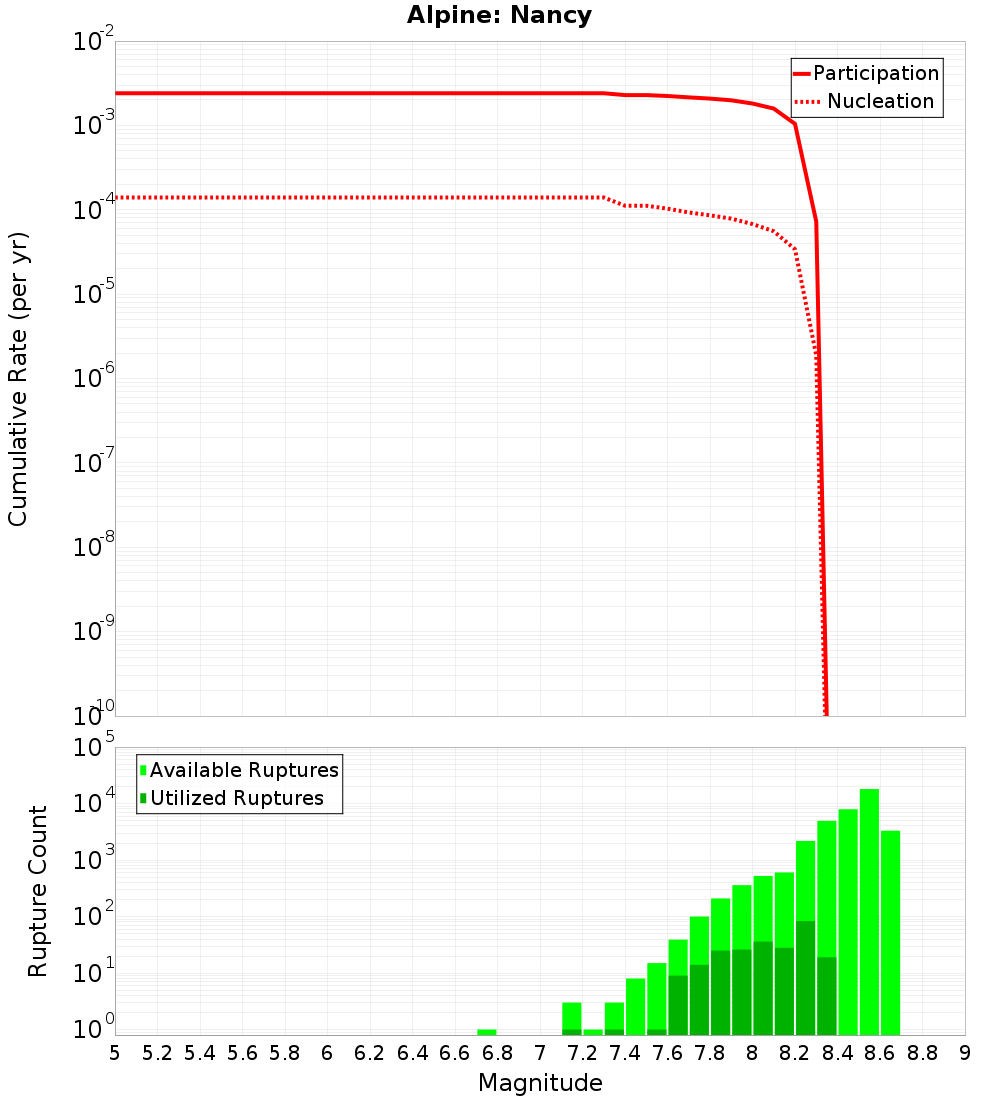

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

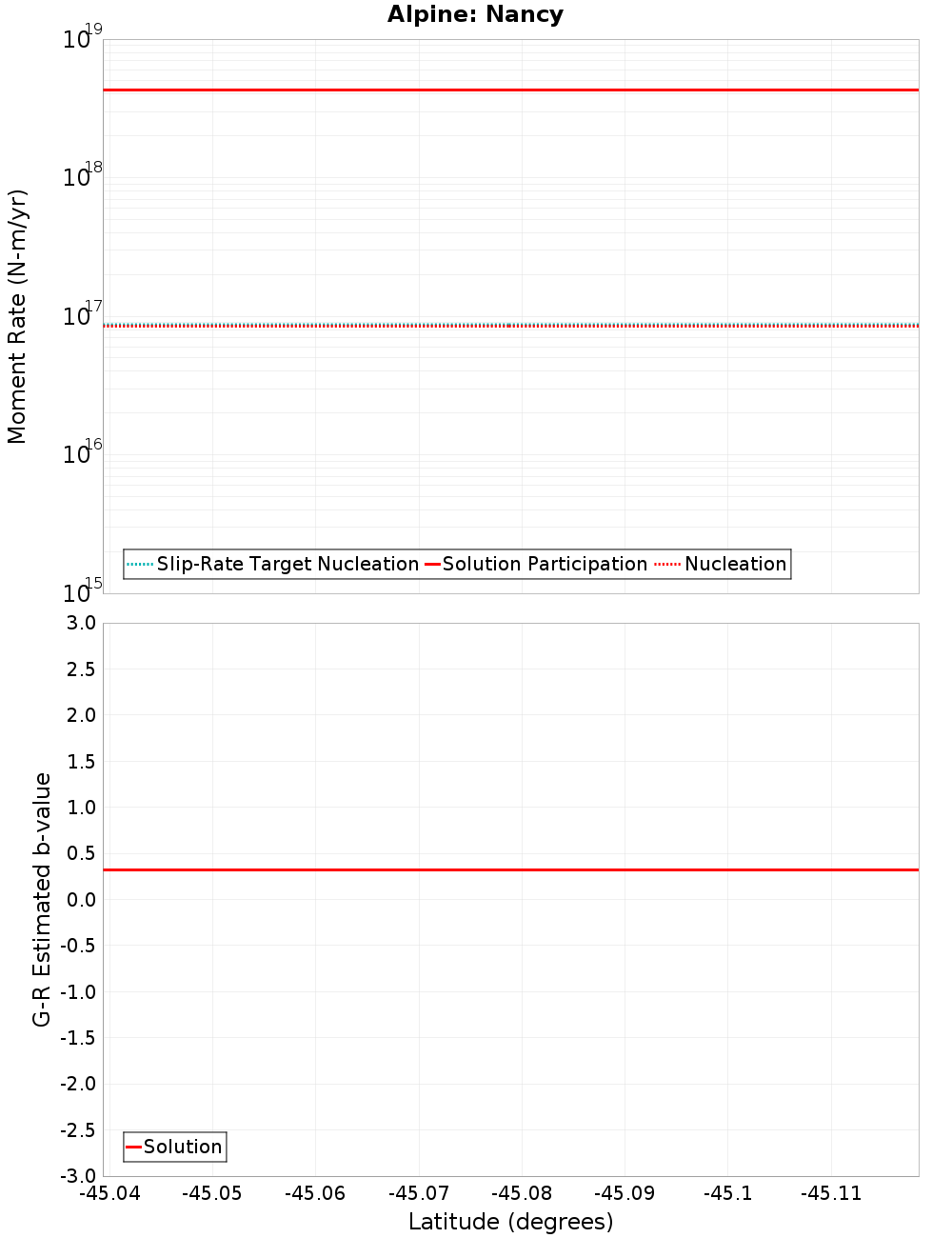

Moment-Rates and b-Values

(top)

Along-strike plot

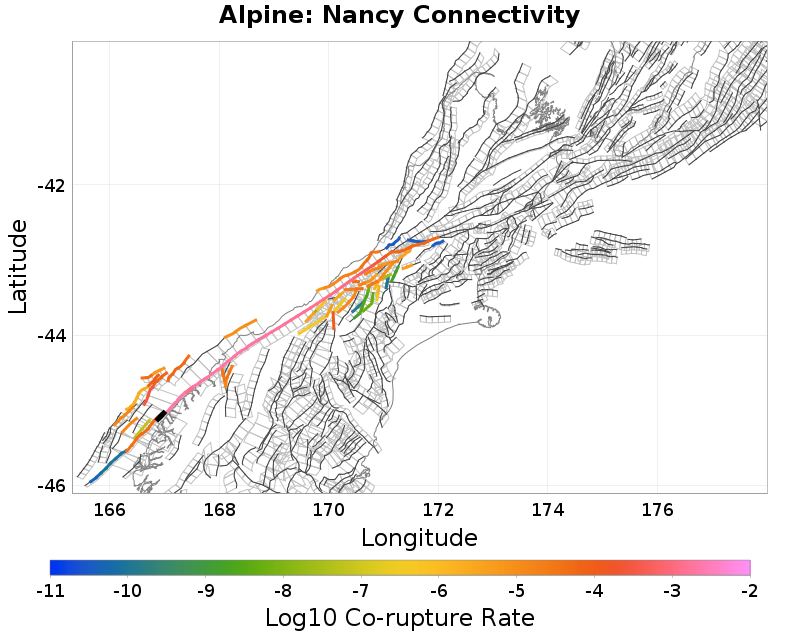

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Caswell, 0 km away
South Wedge 2, 0.05 km away
Central Wedge 4 - South Wedge 411, 0.36 km away
Alpine: Resolution - Charles, 2.58 km away
Alpine: Resolution - Dagg, 2.58 km away
Central Wedge 1 & 2 & 3, 3.29 km away
South Wedge 1, 8.89 km away

Alpine: Caswell, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count37,899
Co-rupture Rate0.0022424283

South Wedge 2, 0.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Central Wedge 4 - South Wedge 411, 0.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Resolution - Charles, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count704
Co-rupture Rate0.0

Alpine: Resolution - Dagg, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count33,707
Co-rupture Rate5.316889E-5

Central Wedge 1 & 2 & 3, 3.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count515
Co-rupture Rate2.6356603E-4

South Wedge 1, 8.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count322
Co-rupture Rate5.992789E-8
