Alpine: Resolution - Five Fingers Details
| Property | Value |
|---|---|
| Rupture Count | 32,172 |
| Ruptures Above Sect Min Mag | 32,165 |
| Ruptures w/ Nonzero Rates | 36 |
| Magnitude Range | [6.94, 8.68] |
| Length Range | [20, 1,083] km |
| Total Rate | 3.4535467E-4 /yr |
| Multi-Fault Rate | 1.9603266E-4 /yr (56.76%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 171 |
Table Of Contents

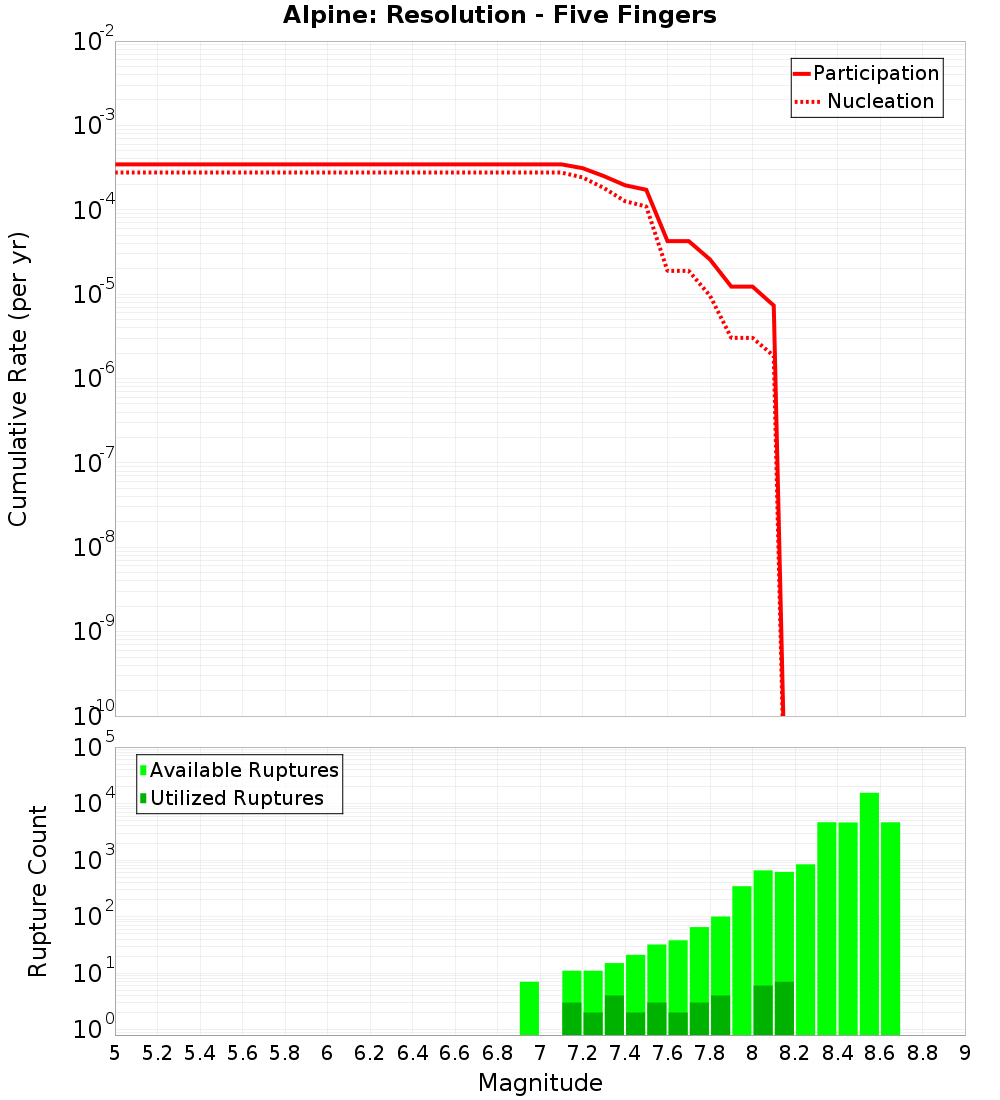

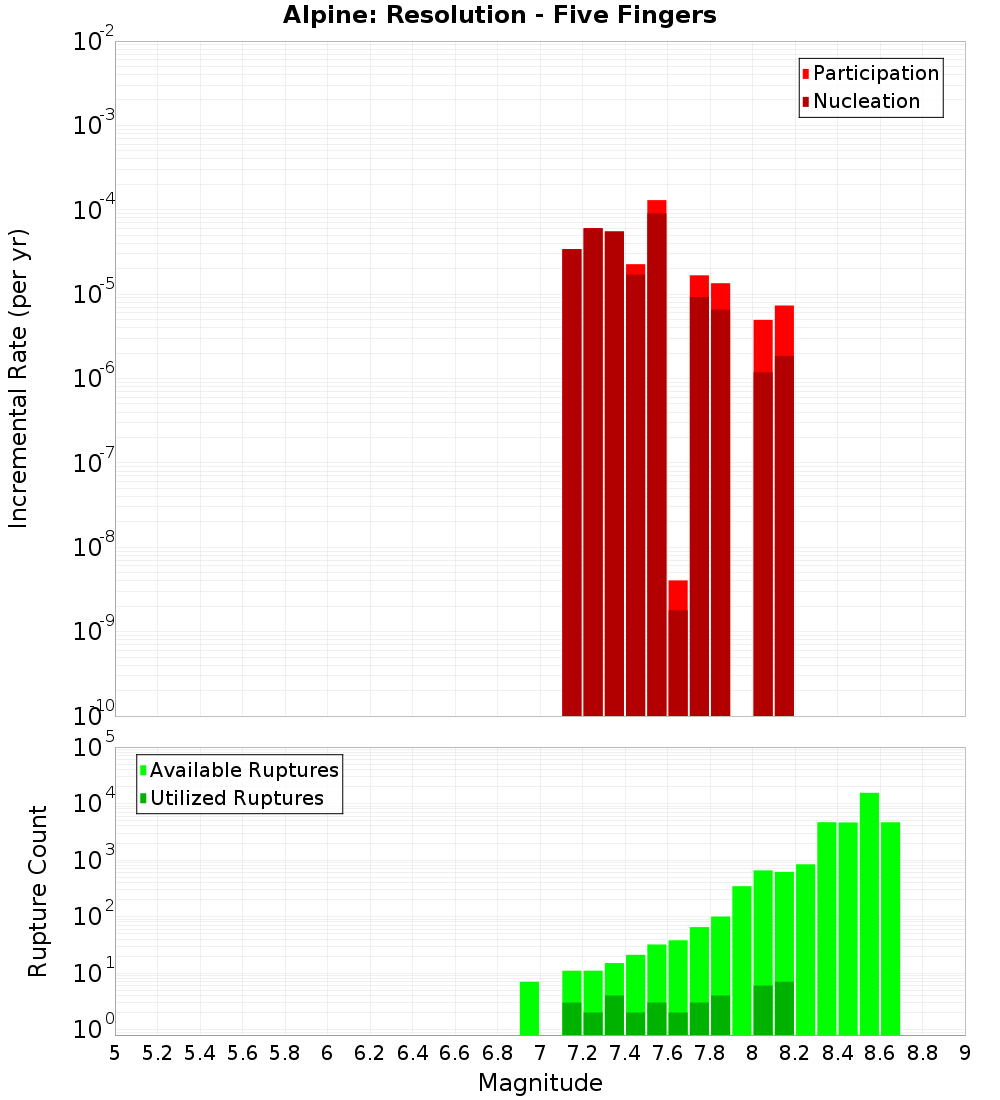

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

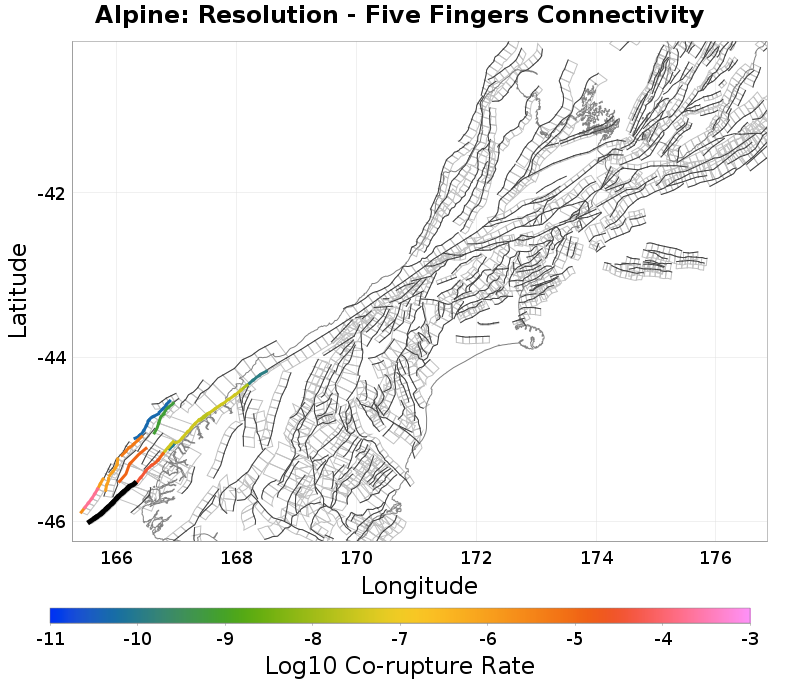

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| South Wedge 5, 0.06 km away |
| South Wedge 3-6-10, 0.07 km away |
| Alpine: Resolution - Dagg, 0.91 km away |
| Caswell 211, 8.74 km away |
| Caswell High 1, 11.71 km away |
South Wedge 5, 0.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
South Wedge 3-6-10, 0.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 455 |
| Co-rupture Rate | 1.2247095E-5 |
Alpine: Resolution - Dagg, 0.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 32,045 |
| Co-rupture Rate | 3.751361E-5 |
Caswell 211, 8.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 444 |
| Co-rupture Rate | 9.693747E-7 |
Caswell High 1, 11.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 573 |
| Co-rupture Rate | 1.901069E-4 |
