Hope: Hope River Details

PropertyValue
Rupture Count105,214
Ruptures Above Sect Min Mag105,211
Ruptures w/ Nonzero Rates245
Magnitude Range[6.97, 8.71]
Length Range[20, 1,083] km
Total Rate0.0018698274 /yr
Multi-Fault Rate0.0016361289 /yr (87.50%)
Directly-Connected Faults7
All Co-Rupturing Faults255

Table Of Contents

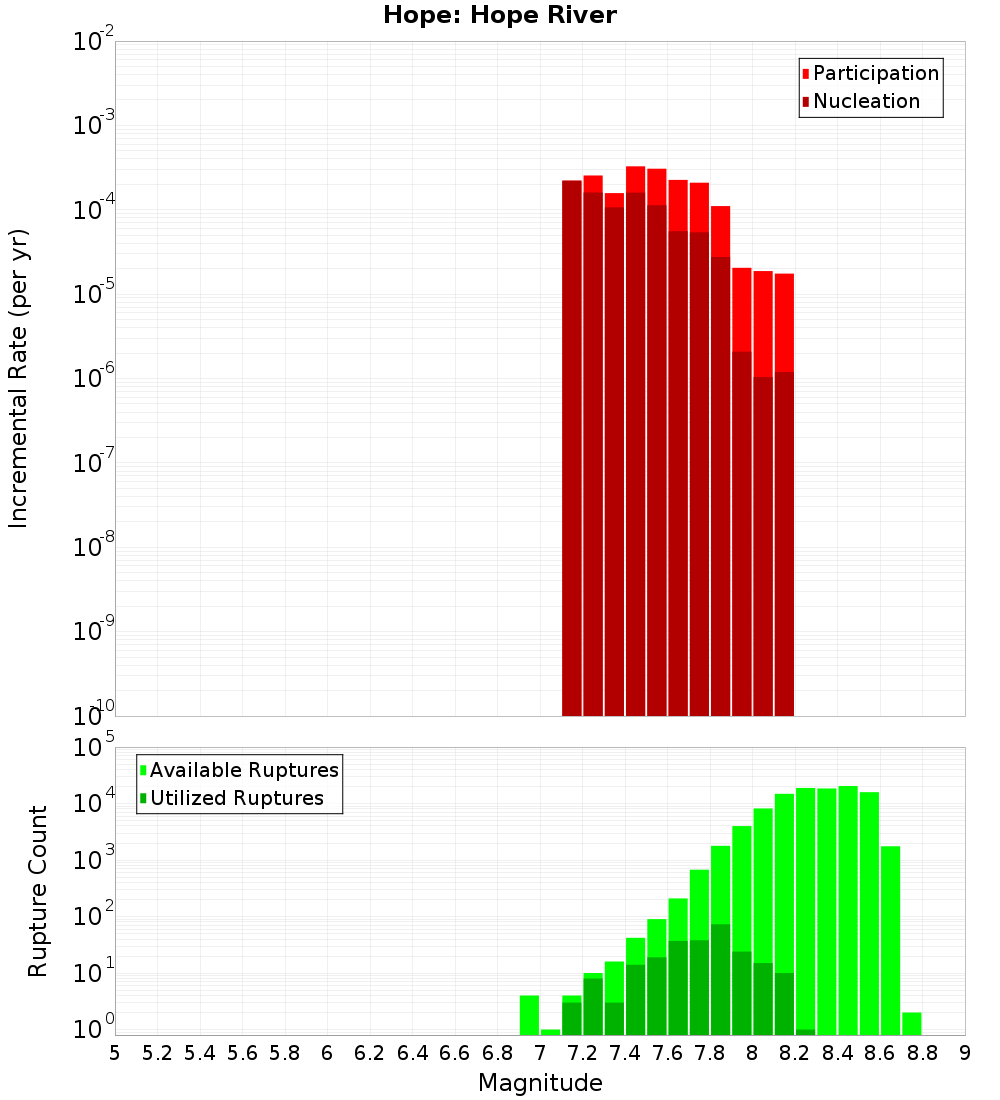

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

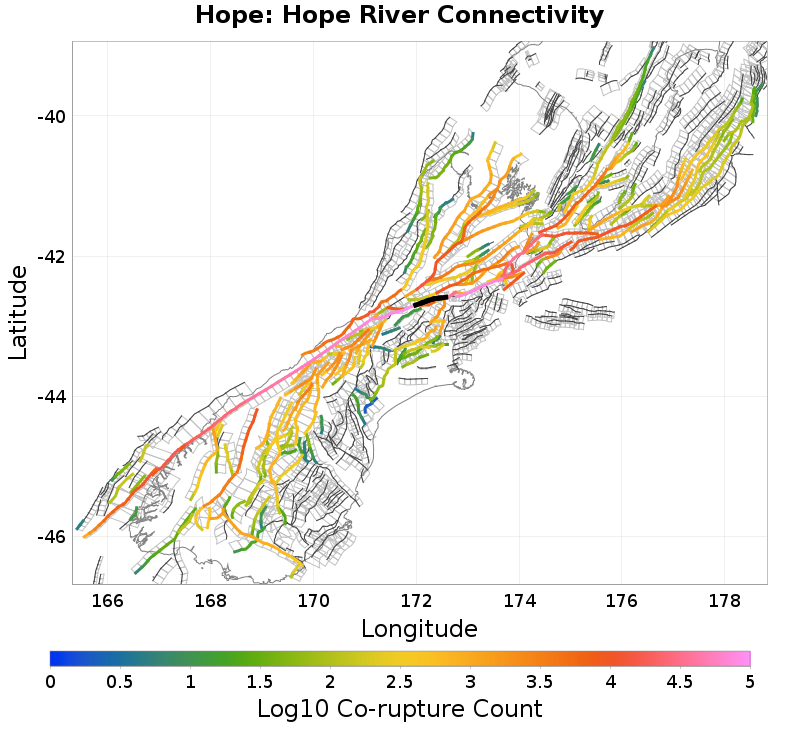

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Kakapo-2-Hamner, 0 km awayHohonu North, 7.48 km away
Kakapo, 0 km awayPoulter, 7.81 km away
Hope: Hurunui, 0 km awayHurunui Peak, 10.8 km away
Esk North, 0.87 km awayMt White, 12.41 km away
Alpine: Kaniere to Springs Junction, 2.94 km awayAlpine: Springs Junction to Tophouse, 13.2 km away
Clarence: Southwest, 5.56 km awayHanmer, 13.39 km away
Hope: Hamner SW, 6.25 km awayHope: Taramakau, 14.38 km away
Hope: Hanmer NW, 6.3 km awayKelly, 14.38 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count45,123
Co-rupture Rate5.568271E-4

Kakapo, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count6,309
Co-rupture Rate6.020296E-5

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count96,435
Co-rupture Rate9.7127515E-4

Esk North, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count1,939
Co-rupture Rate5.1352395E-10

Alpine: Kaniere to Springs Junction, 2.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count16,308
Co-rupture Rate2.5181653E-4

Clarence: Southwest, 5.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count9,098
Co-rupture Rate3.0950392E-5

Hope: Hamner SW, 6.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hanmer NW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count32,995
Co-rupture Rate3.2920513E-4

Hohonu North, 7.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count5,024
Co-rupture Rate5.421563E-6

Poulter, 7.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate1.4364908E-9

Hurunui Peak, 10.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt White, 12.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Springs Junction to Tophouse, 13.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count10,407
Co-rupture Rate7.831483E-5

Hanmer, 13.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count929
Co-rupture Rate6.9078375E-11

Hope: Taramakau, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count9,075
Co-rupture Rate2.0673072E-4

Kelly, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count93,838
Co-rupture Rate6.6790584E-4
