Motu o Kura East Details

PropertyValue
Rupture Count4,525
Ruptures Above Sect Min Mag4,517
Ruptures w/ Nonzero Rates29
Magnitude Range[6.81, 8.41]
Length Range[18, 626] km
Total Rate3.077216E-4 /yr
Multi-Fault Rate3.0615448E-4 /yr (99.49%)
Directly-Connected Faults6
All Co-Rupturing Faults54

Table Of Contents

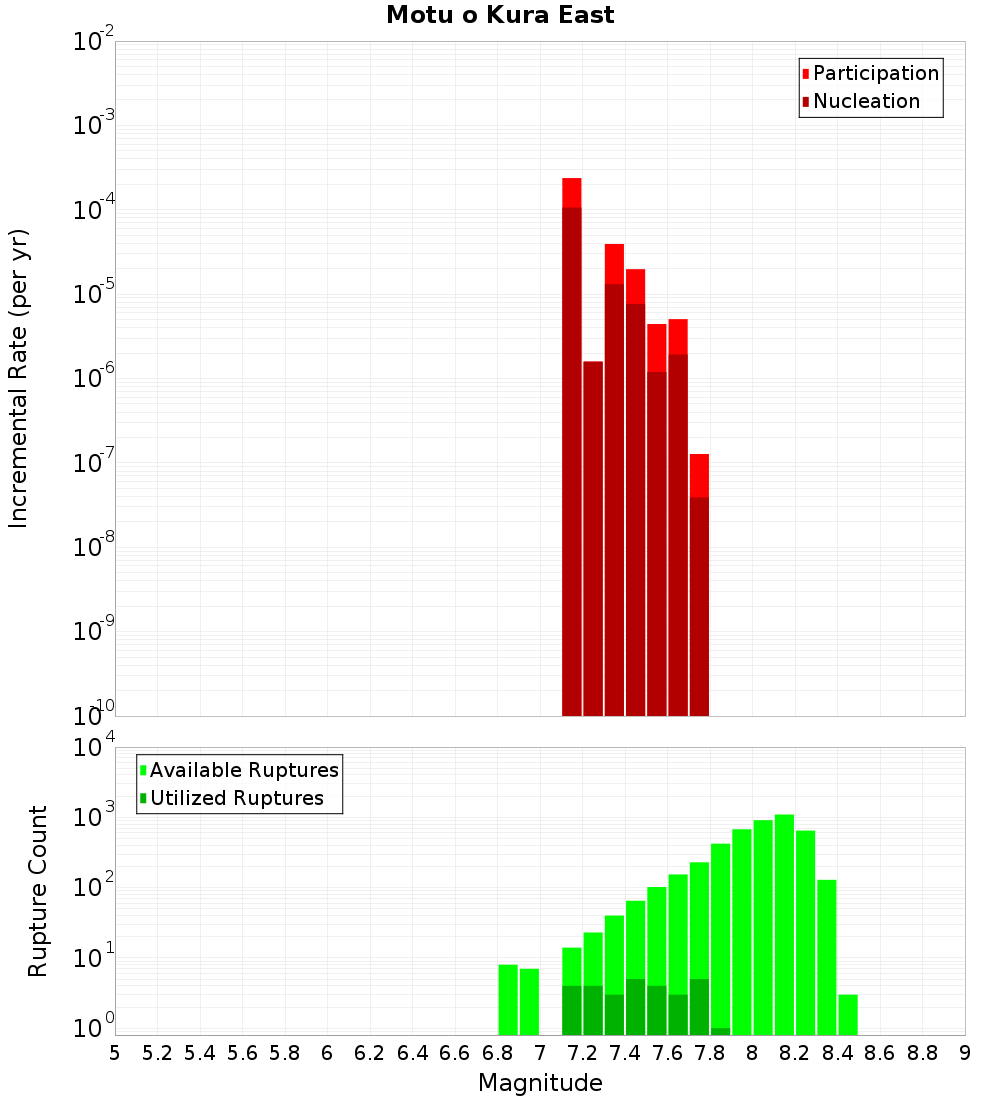

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

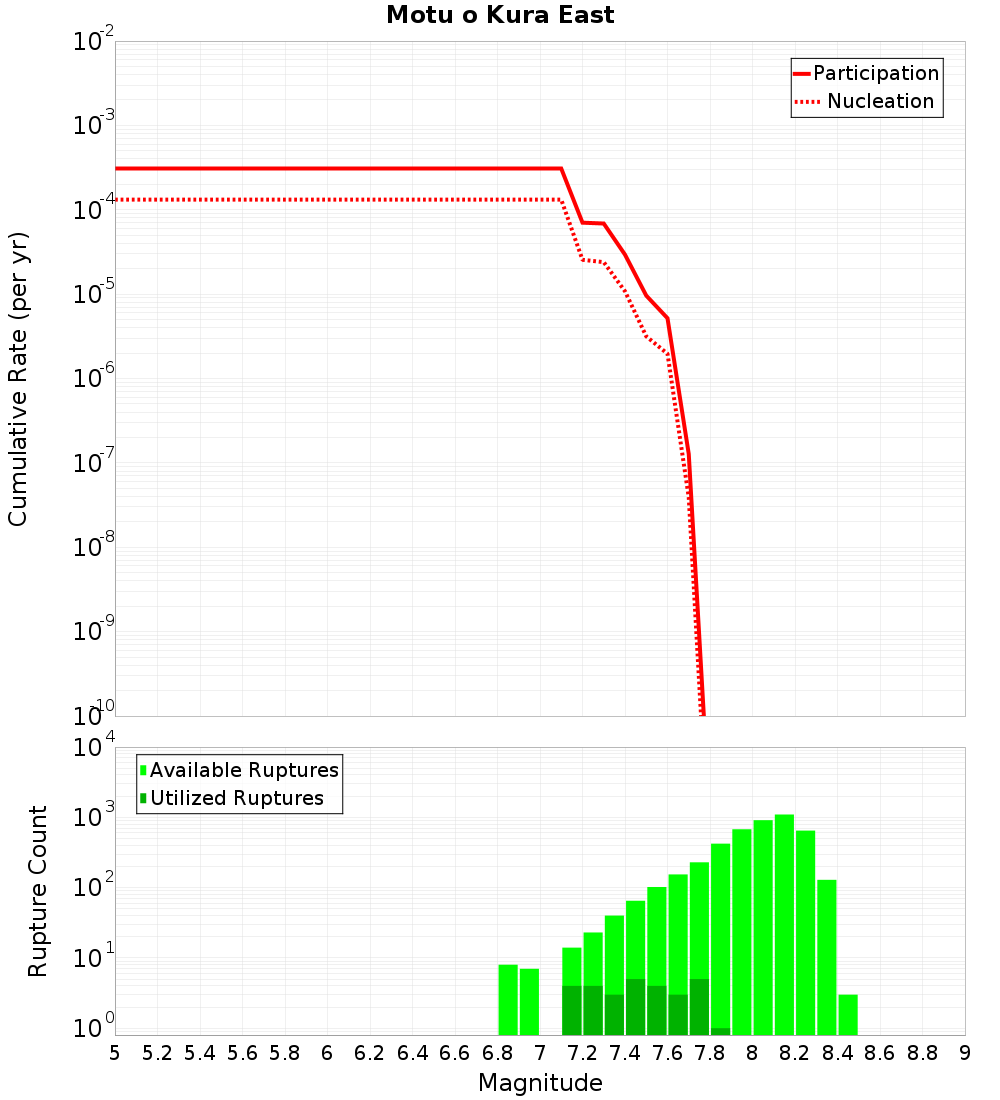

Incremental PlotCumulative Plot

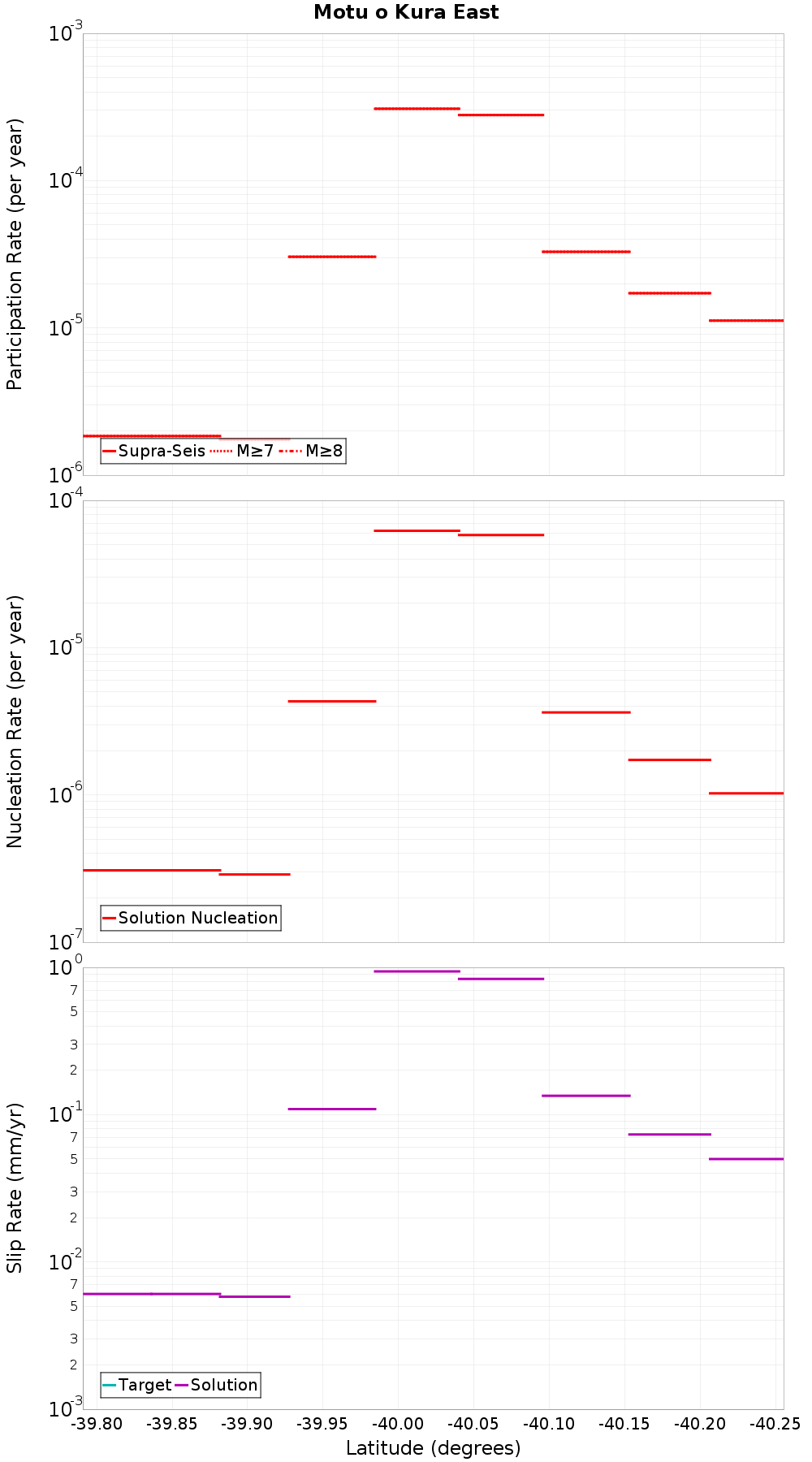

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

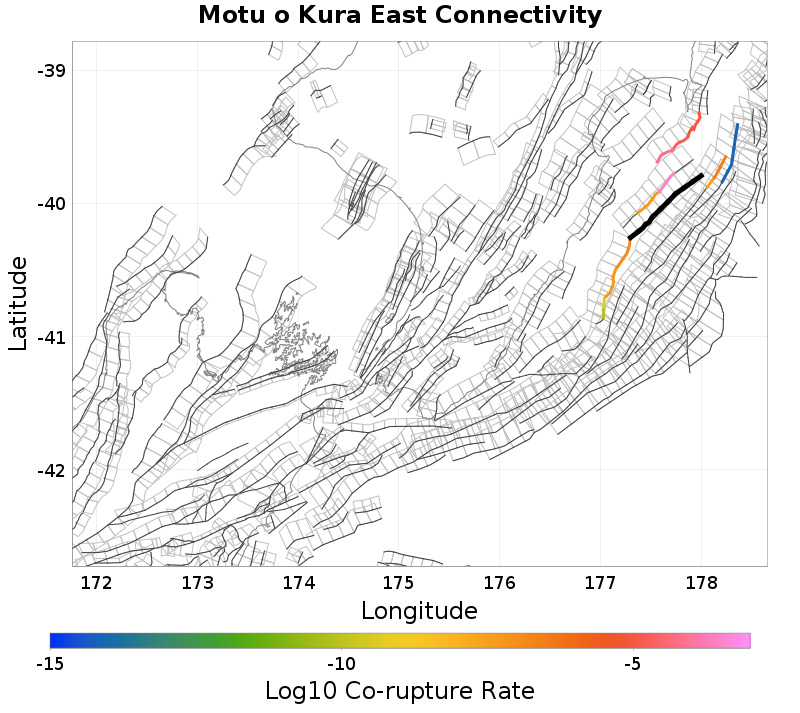

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Madden Banks, 0.5 km away
Omakere Ridge, 6.14 km away
Motu o Kura Ridge, 6.46 km away
Motuokura North, 7.07 km away
Ritchie West 1, 11.34 km away
Omakere South, 12.5 km away
Paoanui Ridge North, 14.85 km away

Madden Banks, 0.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count4,100
Co-rupture Rate1.2904766E-7

Omakere Ridge, 6.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count439
Co-rupture Rate2.7406327E-7

Motu o Kura Ridge, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count109
Co-rupture Rate4.464476E-8

Motuokura North, 7.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count252
Co-rupture Rate3.0583426E-4

Ritchie West 1, 11.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count398
Co-rupture Rate7.314423E-15

Omakere South, 12.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count156
Co-rupture Rate0.0

Paoanui Ridge North, 14.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0
