Veil Stream Details

PropertyValue
Rupture Count15,881
Ruptures Above Sect Min Mag15,879
Ruptures w/ Nonzero Rates162
Magnitude Range[6.87, 8.49]
Length Range[17, 691] km
Total Rate2.1271523E-4 /yr
Multi-Fault Rate2.1271523E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults195

Table Of Contents

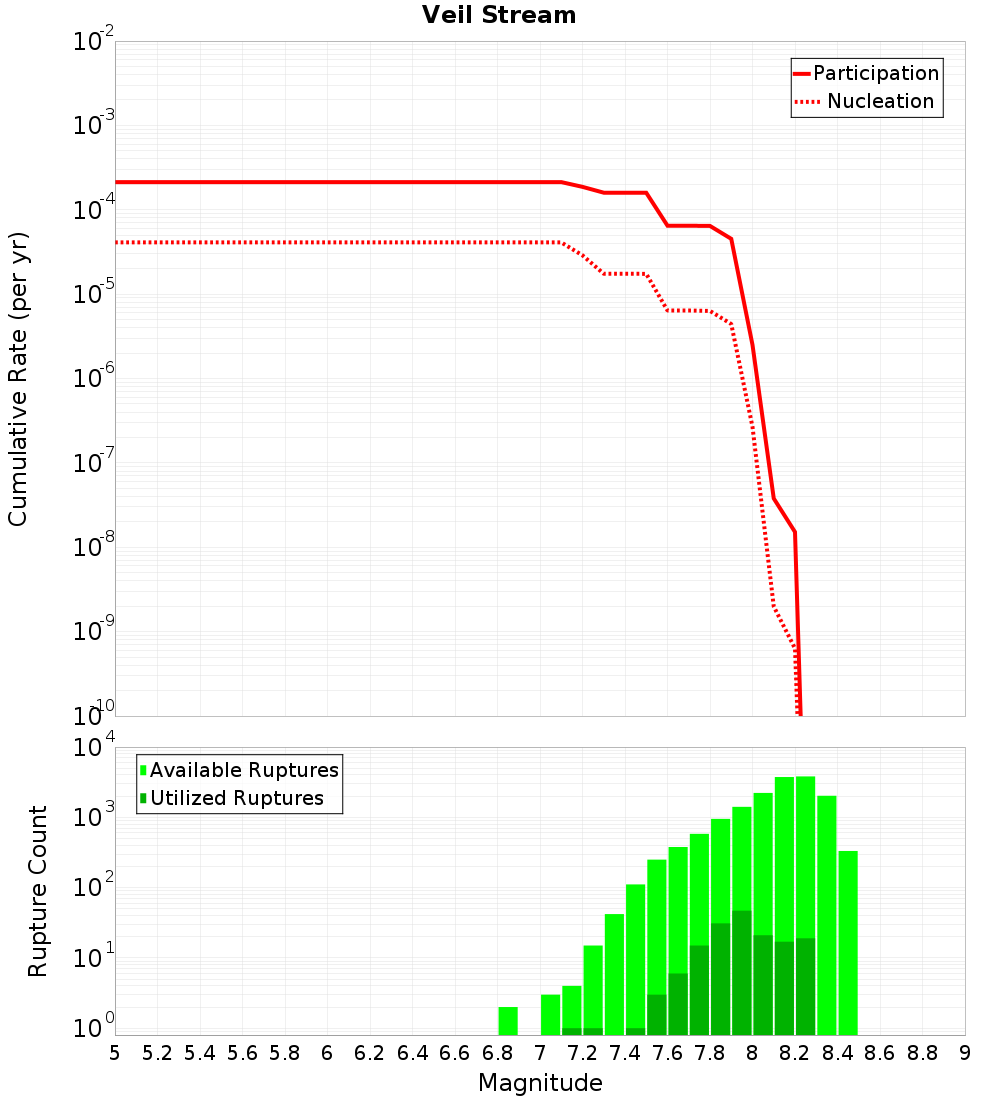

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

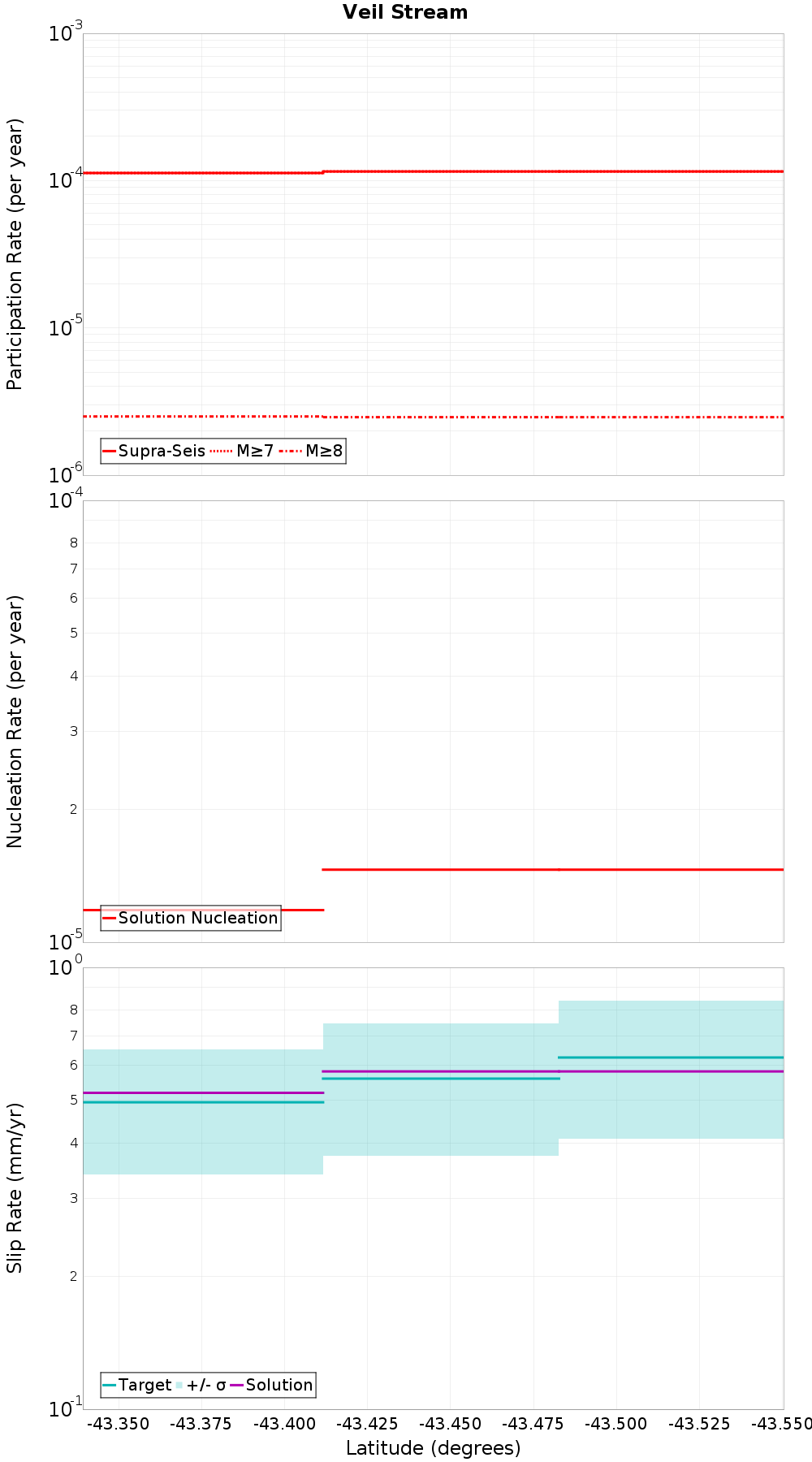

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Gunn Glacier, 0.1 km away
Macaulay 2, 0.15 km away
Observation, 0.27 km away
Alpine: Jacksons to Kaniere, 0.45 km away
Lilybank, 1.08 km away
Hohonu South, 1.86 km away
Two Thumb Stream, 5.35 km away
Lord Range, 5.41 km away
Mt Adams, 5.84 km away
Jollie Range, 7.58 km away
Waitaha, 11.03 km away
Fox Peak, 11.08 km away
Liebig North, 11.19 km away
Potts Range, 12.05 km away
Murchison 1 - Ice Lake, 14.64 km away

Gunn Glacier, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count429
Co-rupture Rate3.109838E-8

Macaulay 2, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count2,523
Co-rupture Rate6.988319E-5

Observation, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count2,657
Co-rupture Rate9.040171E-9

Alpine: Jacksons to Kaniere, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count8,078
Co-rupture Rate4.5522436E-5

Lilybank, 1.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count5,647
Co-rupture Rate4.615512E-5

Hohonu South, 1.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count7,030
Co-rupture Rate1.0068364E-4

Two Thumb Stream, 5.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count5,089
Co-rupture Rate1.0356413E-4

Lord Range, 5.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count3,248
Co-rupture Rate4.9516797E-7

Mt Adams, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?true
Co-rupture Count1,526
Co-rupture Rate2.4304244E-8

Jollie Range, 7.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Waitaha, 11.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0

Fox Peak, 11.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count680
Co-rupture Rate1.3522929E-8

Liebig North, 11.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Potts Range, 12.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Murchison 1 - Ice Lake, 14.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNjUuMDJQZHRS
Connected?true
Directly Connected?false
Co-rupture Count502
Co-rupture Rate3.456316E-5
