Kirkliston Details

Property	Value
Rupture Count	2,444
Ruptures Above Sect Min Mag	2,441
Ruptures w/ Nonzero Rates	32
Magnitude Range	[6.78, 8.04]
Length Range	[19, 334] km
Total Rate	3.3164673E-4 /yr
Multi-Fault Rate	3.3164673E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	38

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

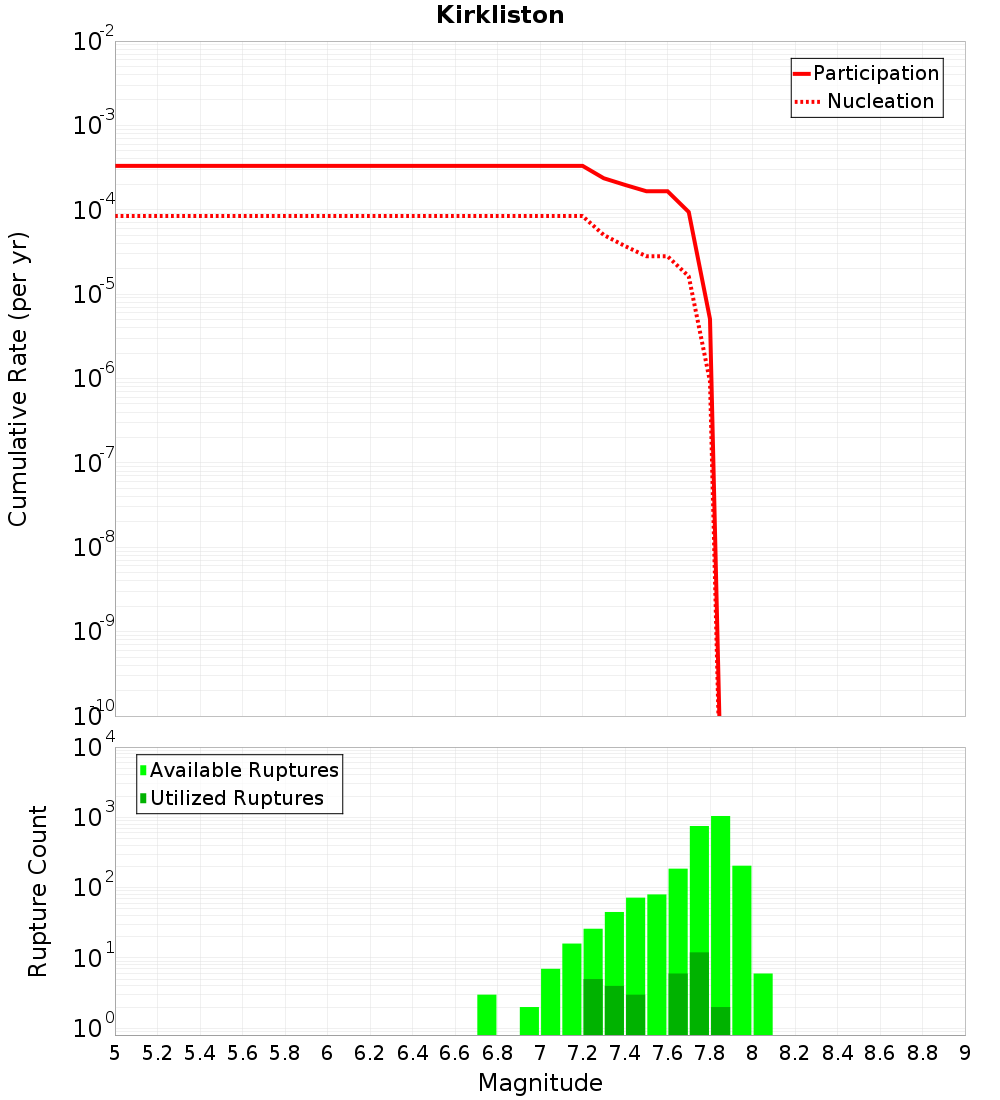

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

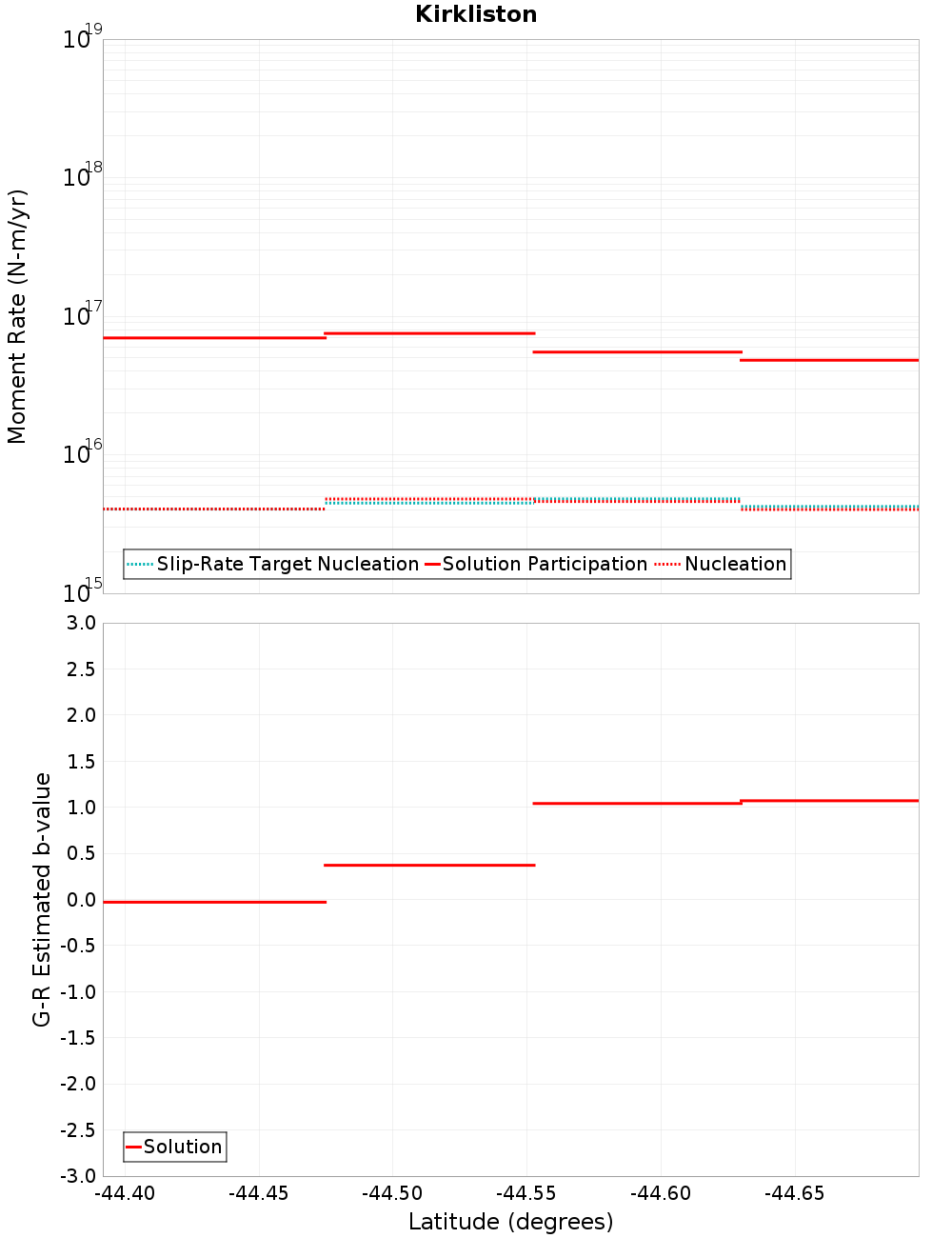

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Mt Sutton, 0.16 km away
Middle Range, 0.16 km away
Dryburgh, 0.22 km away
Grampian, 0.22 km away
Dalgety, 1.05 km away
Waitangi, 1.61 km away
Stonewall, 2.02 km away
Fern Gully, 3.42 km away
Awahokomo, 5.7 km away
Chamberlain, 9.41 km away
Campbell Hills, 10.34 km away
The Wolds, 10.34 km away
Hunters, 14.53 km away
Gibson, 14.89 km away

Mt Sutton, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	true
Co-rupture Count	85
Co-rupture Rate	2.9048353E-5

Middle Range, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	true
Co-rupture Count	485
Co-rupture Rate	5.156466E-6

Dryburgh, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	true
Co-rupture Count	392
Co-rupture Rate	1.2536864E-4

Grampian, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	true
Co-rupture Count	40
Co-rupture Rate	1.1318402E-4

Dalgety, 1.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	true
Co-rupture Count	2,303
Co-rupture Rate	1.6590349E-4

Waitangi, 1.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Stonewall, 2.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	true
Co-rupture Count	1,038
Co-rupture Rate	7.9474325E-5

Fern Gully, 3.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	false
Co-rupture Count	81
Co-rupture Rate	0.0

Awahokomo, 5.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	true
Co-rupture Count	261
Co-rupture Rate	2.1179647E-5

Chamberlain, 9.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Campbell Hills, 10.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

The Wolds, 10.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	0.0

Hunters, 14.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Gibson, 14.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
