Ruatoria Details

Property	Value
Rupture Count	8,198
Ruptures Above Sect Min Mag	8,192
Ruptures w/ Nonzero Rates	33
Magnitude Range	[6.95, 8.46]
Length Range	[25, 855] km
Total Rate	5.419937E-4 /yr
Multi-Fault Rate	5.419937E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	56

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

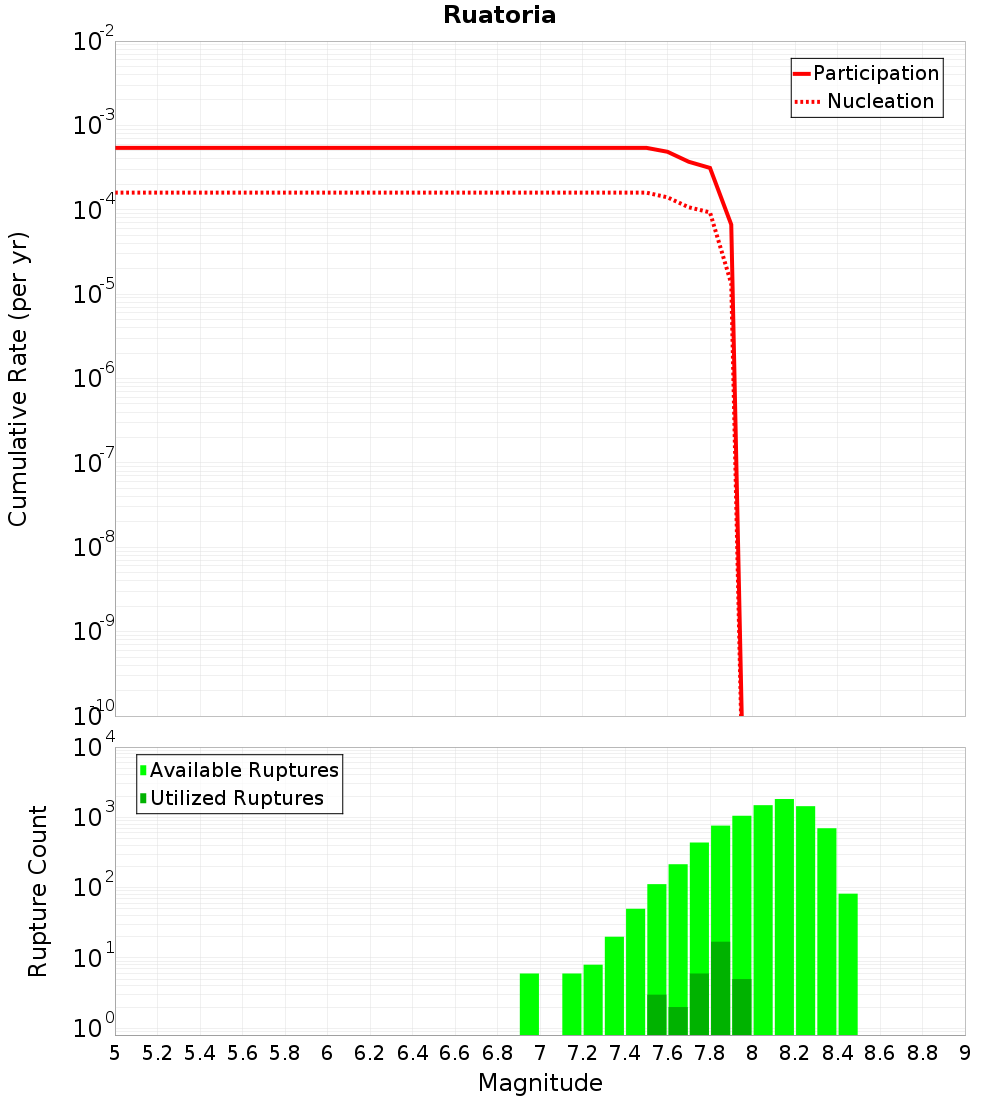

Magnitude-Frequency Distribution

Incremental	Cumulative

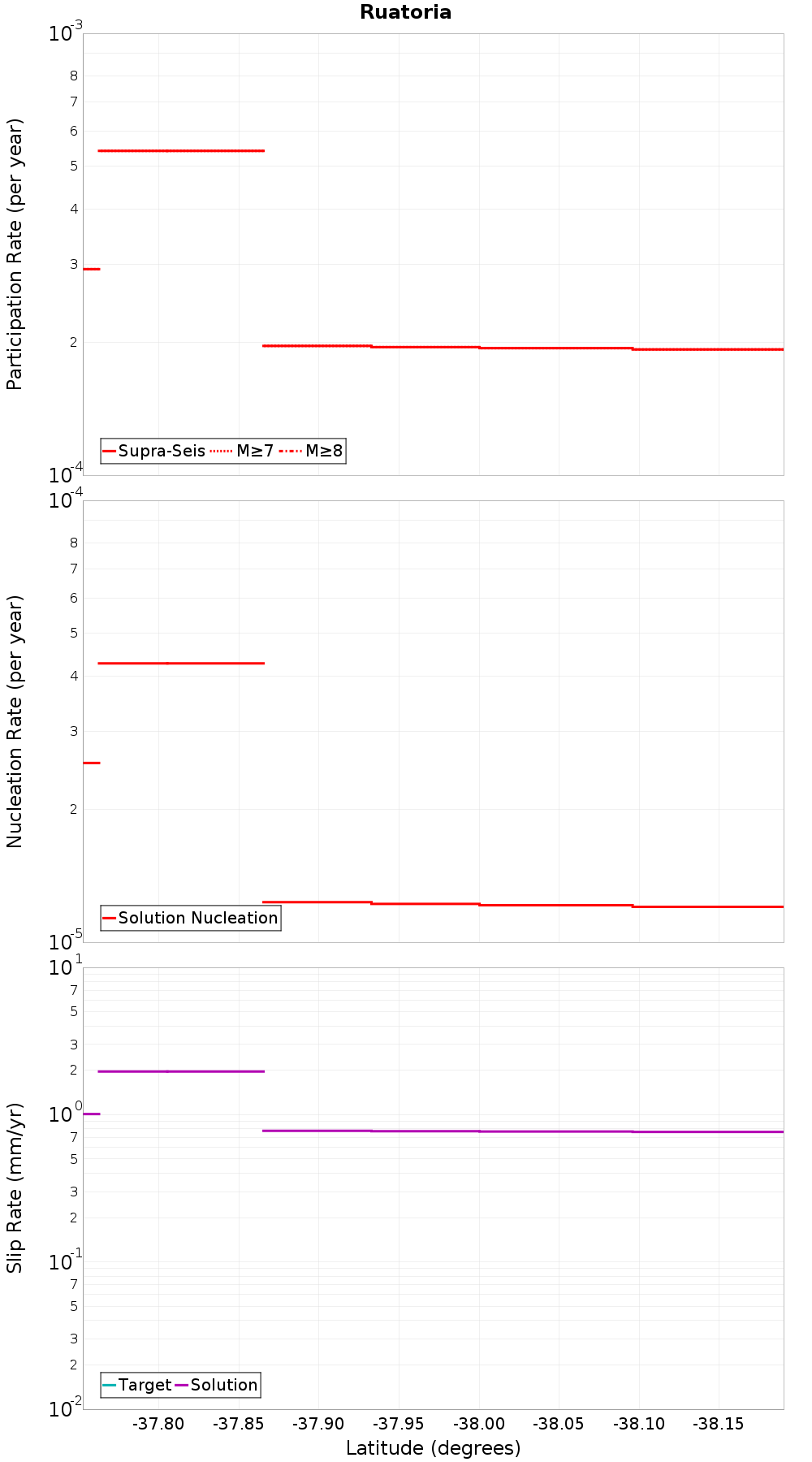

Along-Strike Values

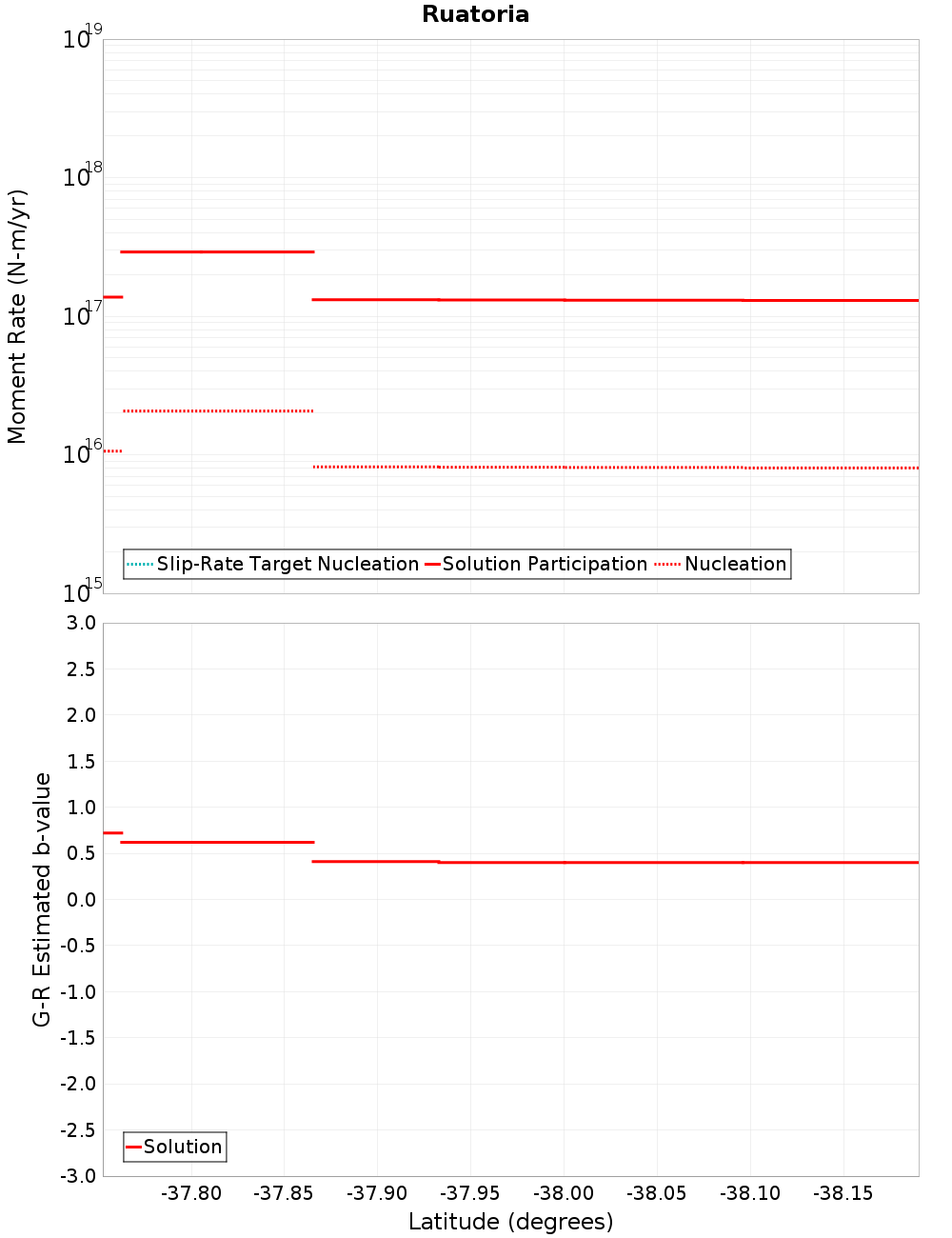

Moment-Rates and b-Values

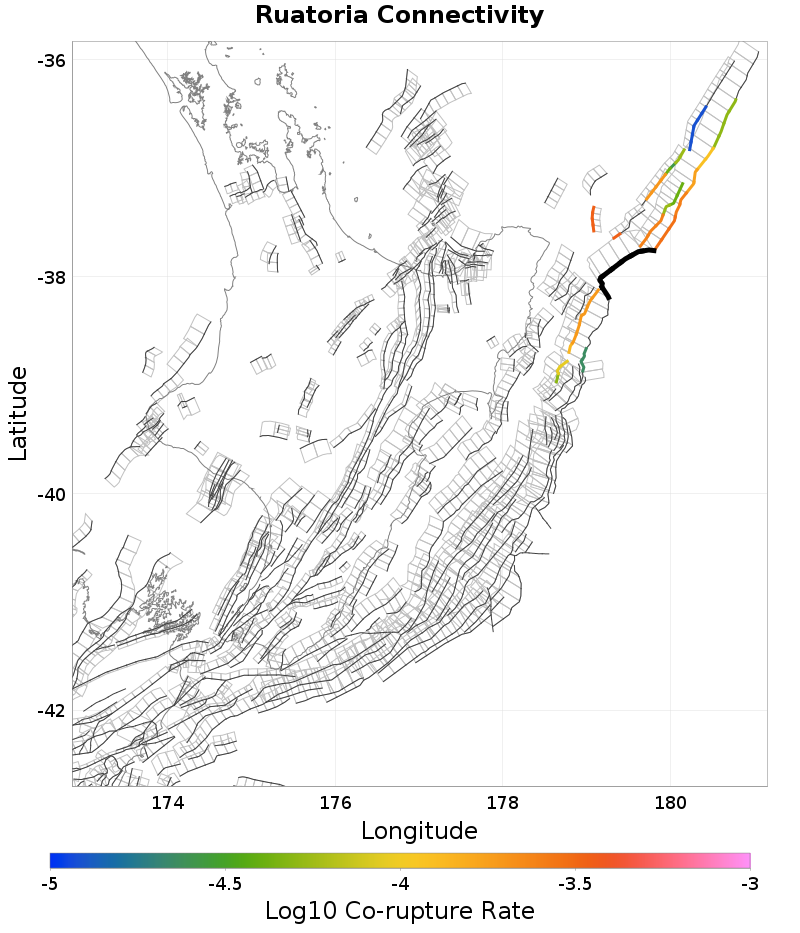

Connectivity

Nearby Sections

Fault Section
Puke Ridge, 0 km away
Kermadec Trench, 0 km away
Kermadec Trench slope1, 1.3 km away
Ruatoria South 1, 4.74 km away
Awanui 1, 7.21 km away
Ruatoria South 2, 7.47 km away
East Cape Ridge 1, 12.79 km away
Ruatoria South 3, 13.67 km away

Puke Ridge, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	true
Co-rupture Count	6,309
Co-rupture Rate	2.2660093E-5

Kermadec Trench, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	true
Co-rupture Count	4,431
Co-rupture Rate	3.1778516E-4

Kermadec Trench slope1, 1.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	true
Co-rupture Count	1,152
Co-rupture Rate	2.4948534E-4

Ruatoria South 1, 4.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	true
Co-rupture Count	3,165
Co-rupture Rate	1.9021878E-4

Awanui 1, 7.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	true
Co-rupture Count	484
Co-rupture Rate	3.458835E-4

Ruatoria South 2, 7.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

East Cape Ridge 1, 12.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	true
Directly Connected?	false
Co-rupture Count	132
Co-rupture Rate	3.458835E-4

Ruatoria South 3, 13.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzIuMHpjM1lj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
