Inangahua Details

PropertyValue
Rupture Count12,867
Ruptures Above Sect Min Mag12,866
Ruptures w/ Nonzero Rates80
Magnitude Range[6.77, 8.47]
Length Range[20, 1,039] km
Total Rate2.542337E-4 /yr
Multi-Fault Rate2.542337E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults67

Table Of Contents

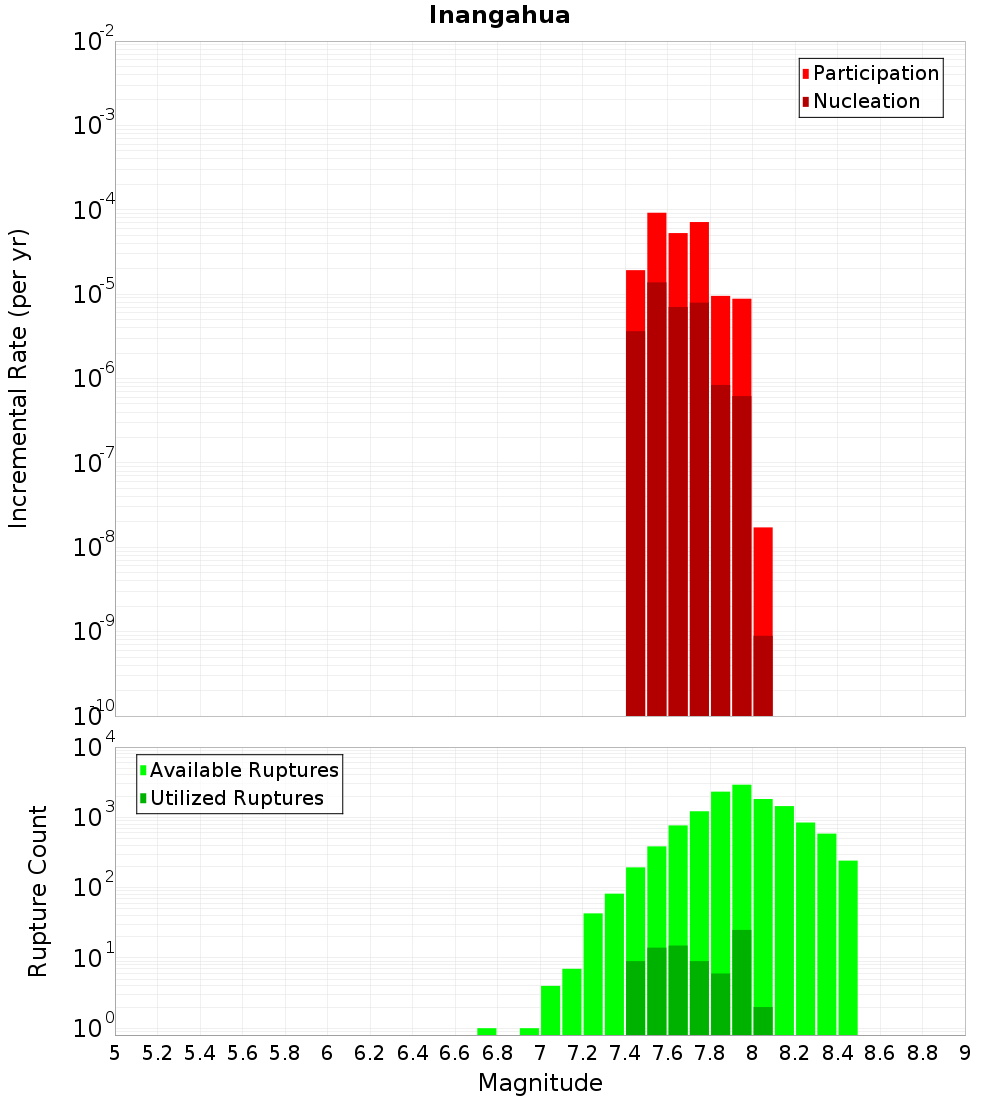

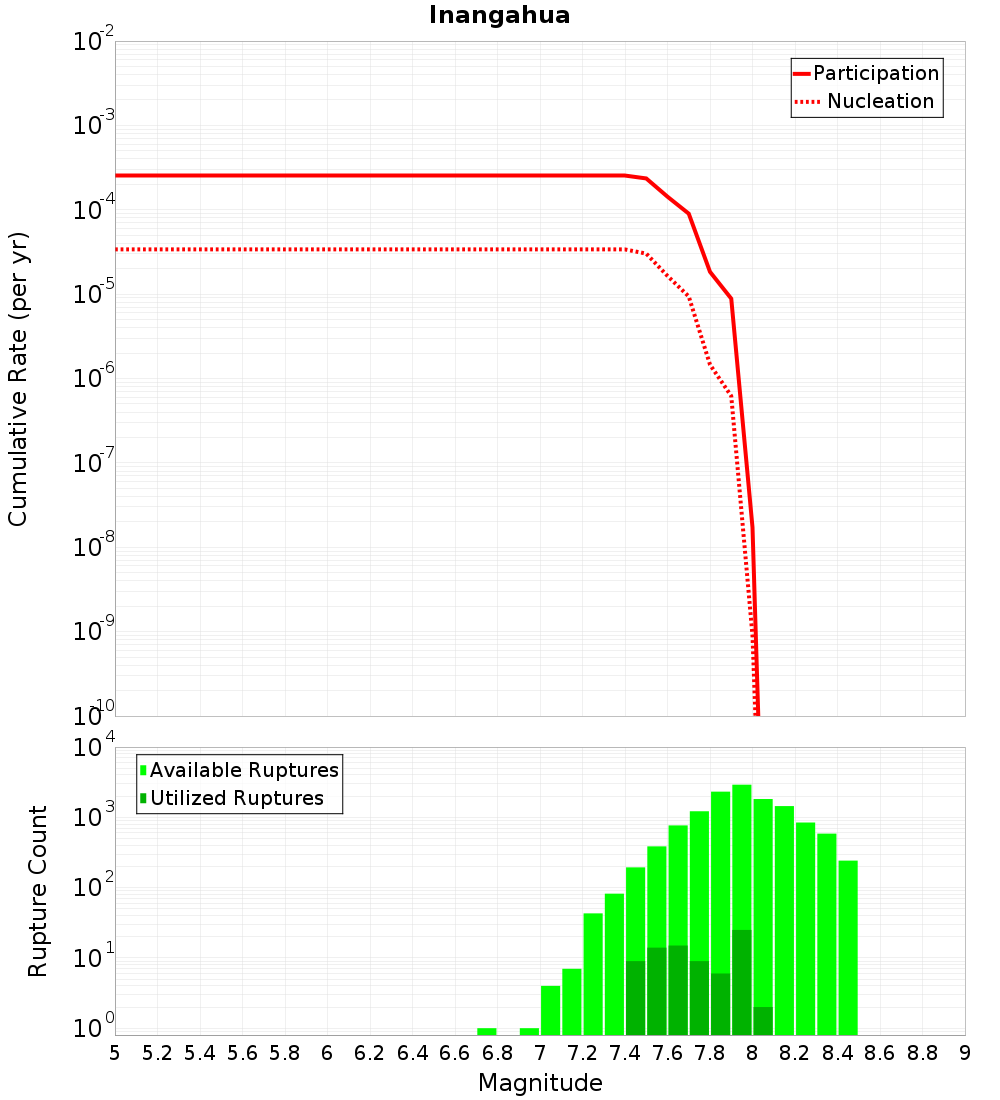

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

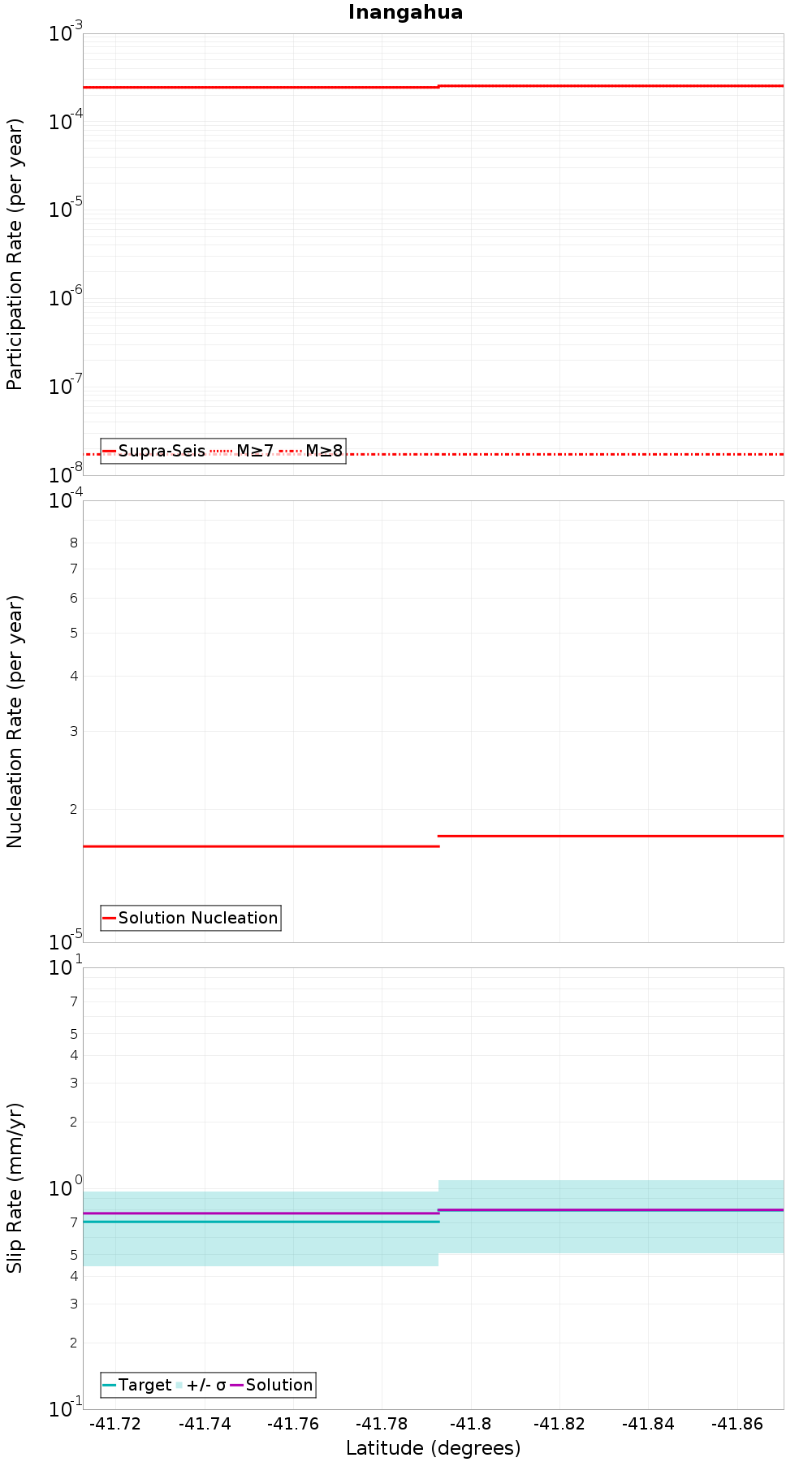

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Maimai: North, 0 km away
Glasgow, 0.13 km away
Kongahau, 0.88 km away
Paparoa West: North, 0.89 km away
Paparoa West, 1.16 km away
Lyell, 5.51 km away
Lyell South, 9 km away
White Creek, 13.07 km away

Maimai: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?true
Co-rupture Count9,621
Co-rupture Rate1.6518183E-4

Glasgow, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?true
Co-rupture Count3,050
Co-rupture Rate1.0448648E-4

Kongahau, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?true
Co-rupture Count10,816
Co-rupture Rate3.1900792E-5

Paparoa West: North, 0.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?false
Co-rupture Count367
Co-rupture Rate1.562331E-5

Paparoa West, 1.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?true
Co-rupture Count4,541
Co-rupture Rate2.0702099E-4

Lyell, 5.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?true
Co-rupture Count669
Co-rupture Rate1.0306128E-5

Lyell South, 9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?false
Co-rupture Count866
Co-rupture Rate7.1342306E-6

White Creek, 13.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?true
Co-rupture Count4,099
Co-rupture Rate1.2379893E-4
