Wellington: Pahiatua Details

PropertyValue
Rupture Count78,674
Ruptures Above Sect Min Mag78,671
Ruptures w/ Nonzero Rates214
Magnitude Range[6.82, 8.51]
Length Range[21, 1,132] km
Total Rate0.001417299 /yr
Multi-Fault Rate0.001417299 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults131

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

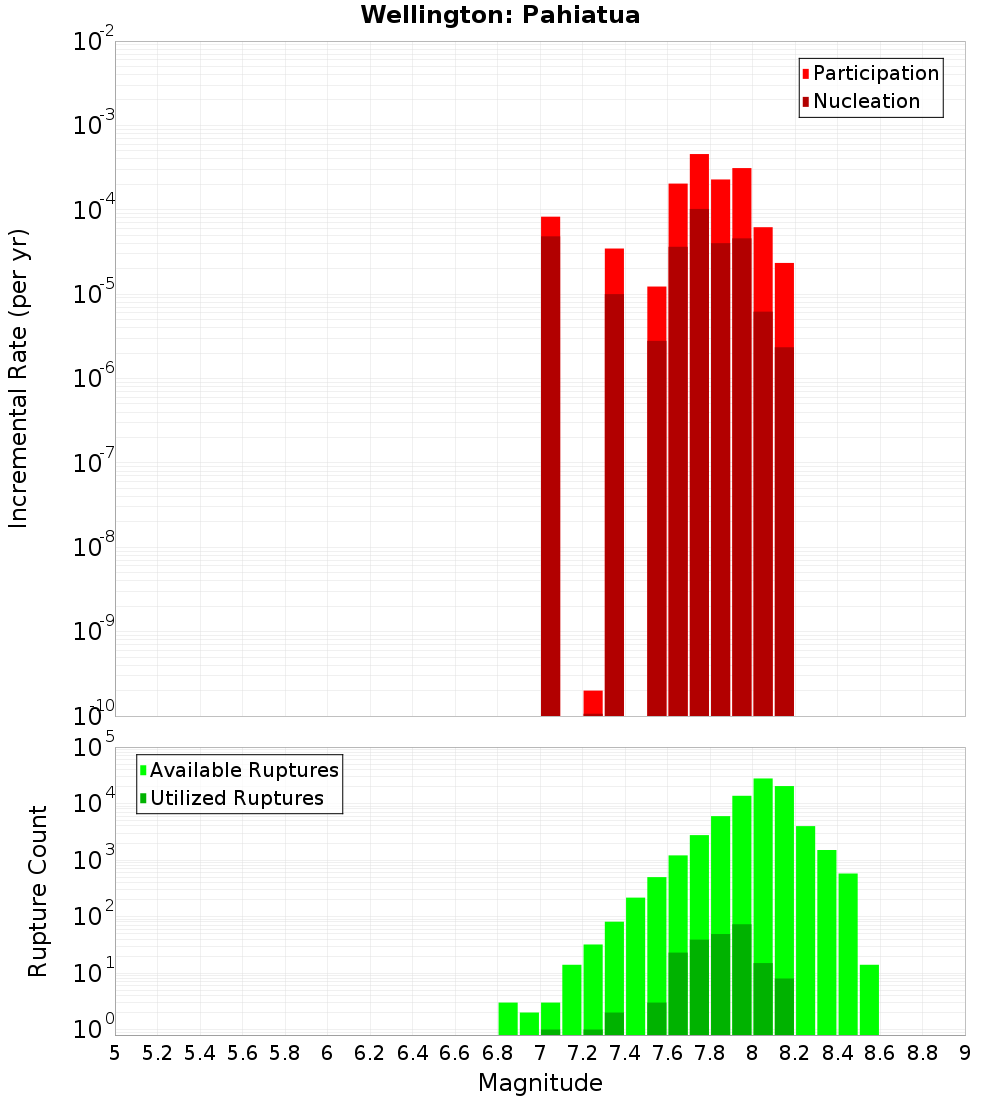

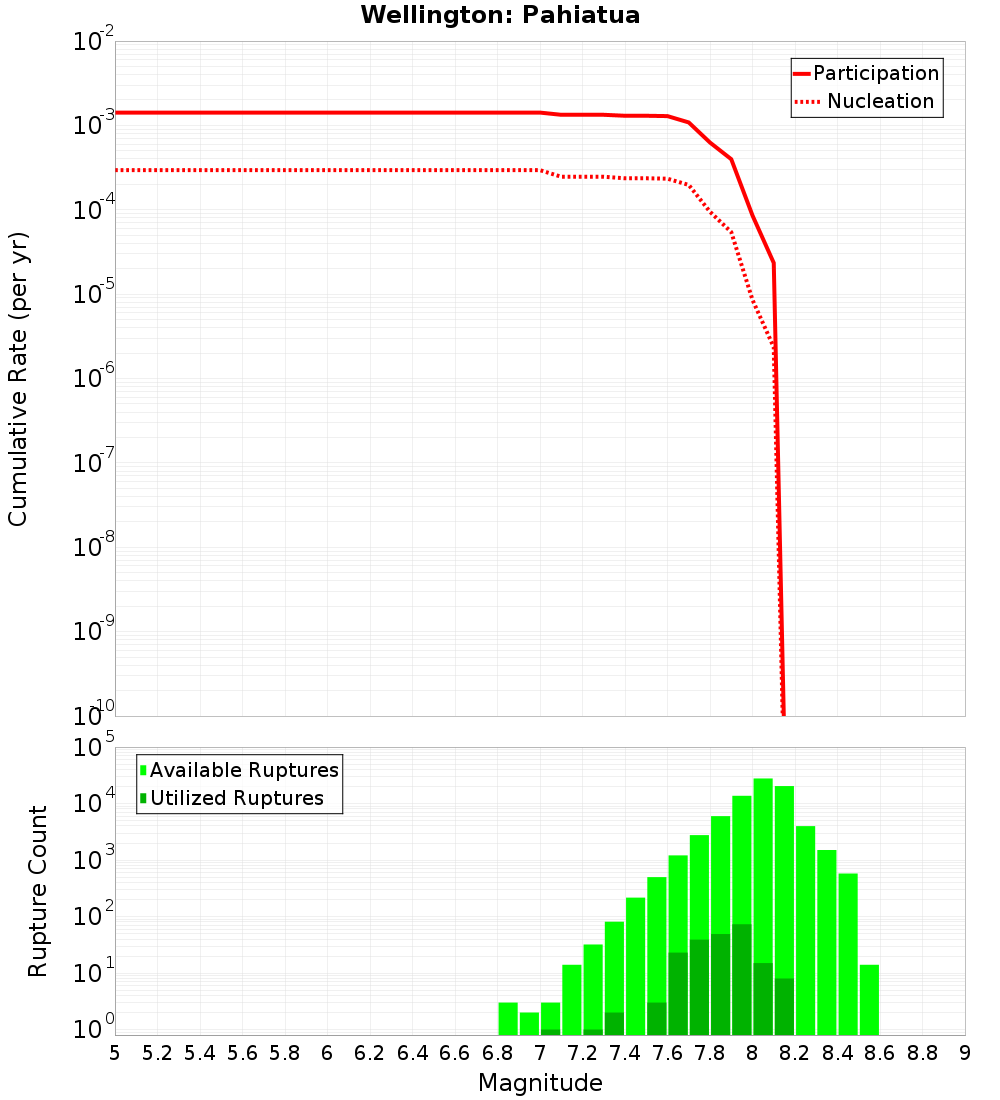

Incremental PlotCumulative Plot

Along-Strike Values

(top)

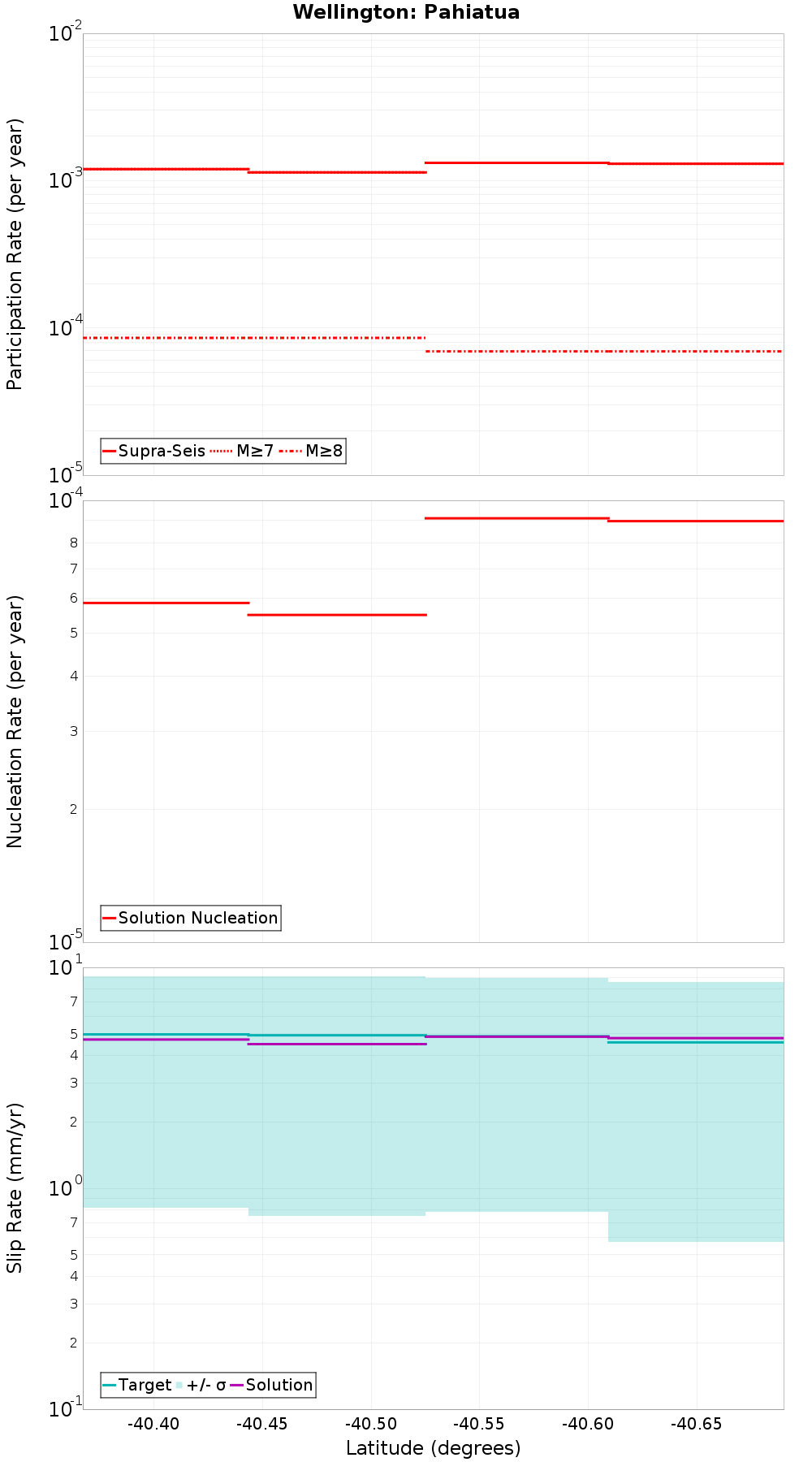

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mohaka: South, 0 km away
Ruahine: South, 0 km away
Wellington: Tararua 3, 0.03 km away
Tokomaru, 0.14 km away
Northern Ohariu, 2.46 km away
Otaki Forks: 2, 4.7 km away
Woodville, 5.05 km away
Pahiatua, 5.57 km away
Pohangina, 9.35 km away
Wairarapa: 3, 13.85 km away

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?true
Co-rupture Count63,899
Co-rupture Rate0.001112249

Ruahine: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?true
Co-rupture Count24,167
Co-rupture Rate2.1585969E-4

Wellington: Tararua 3, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?true
Co-rupture Count45,994
Co-rupture Rate7.695913E-4

Tokomaru, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?true
Co-rupture Count915
Co-rupture Rate4.004166E-5

Northern Ohariu, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?true
Co-rupture Count8,204
Co-rupture Rate7.724493E-6

Otaki Forks: 2, 4.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?true
Co-rupture Count23,350
Co-rupture Rate5.2220013E-4

Woodville, 5.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?true
Co-rupture Count5,945
Co-rupture Rate5.427201E-5

Pahiatua, 5.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?false
Co-rupture Count124
Co-rupture Rate0.0

Pohangina, 9.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?true
Directly Connected?true
Co-rupture Count686
Co-rupture Rate7.074495E-5

Wairarapa: 3, 13.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzYuMERqYVU2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
