Awatere: Northeast 1 Details

Property	Value
Rupture Count	25,299
Ruptures Above Sect Min Mag	25,295
Ruptures w/ Nonzero Rates	199
Magnitude Range	[6.99, 8.68]
Length Range	[22, 1,082] km
Total Rate	0.0010789474 /yr
Multi-Fault Rate	0.001035412 /yr (95.97%)
Directly-Connected Faults	9
All Co-Rupturing Faults	163

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

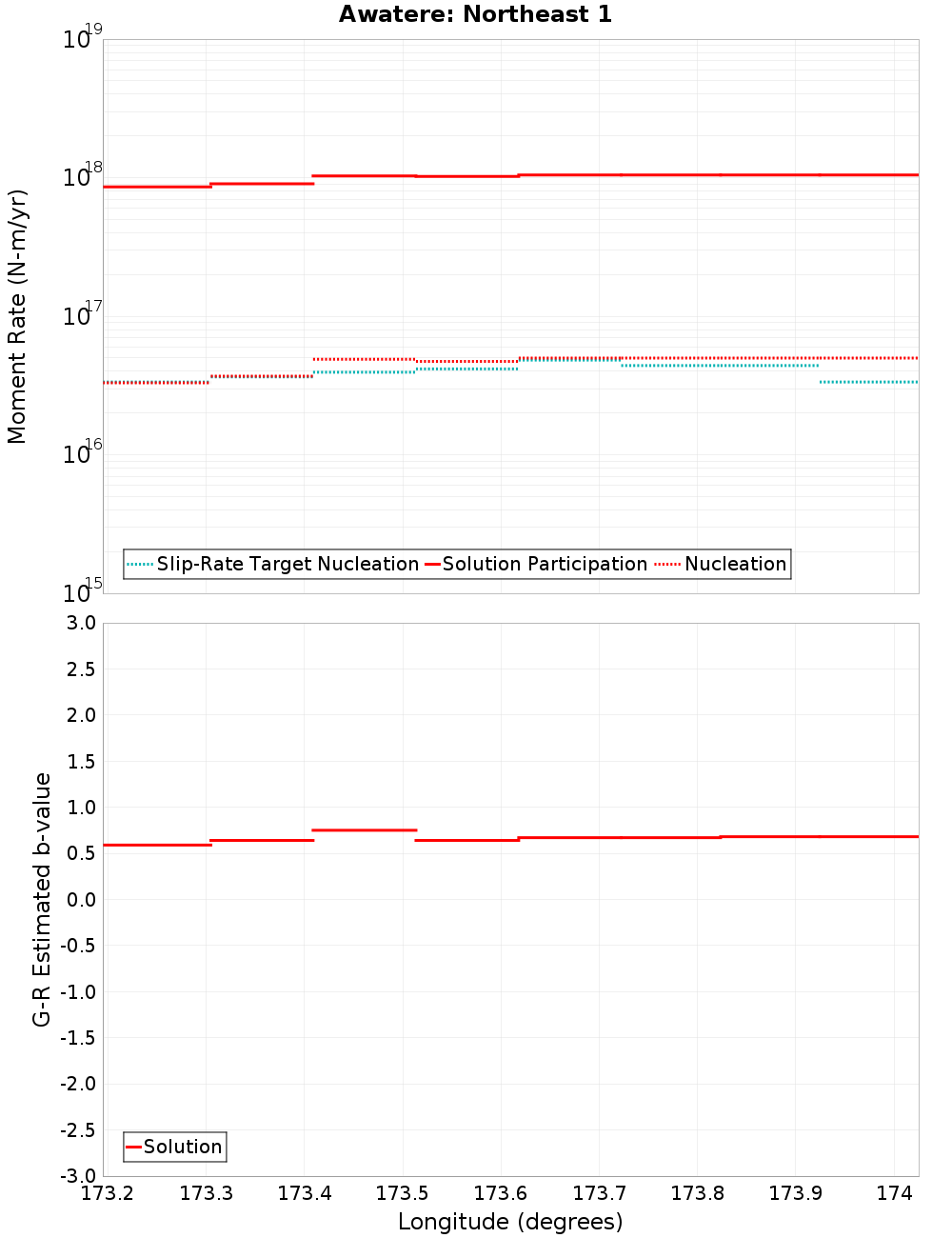

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Barefell, 0 km away
Vernon 1, 0 km away
Awatere: Northeast 2, 0 km away
Awatere: Southwest, 0.1 km away
Shingle Peak, 0.89 km away
Vernon 2, 4.62 km away
Waihopai, 6.52 km away
Elliott, 9.09 km away
Clarence: Northeast, 9.18 km away
Clarence: Central, 10.17 km away
Wairau, 11.05 km away
Jordan, 12.41 km away
Fowlers, 14.06 km away

Barefell, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	2,777
Co-rupture Rate	2.9982548E-4

Vernon 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	393
Co-rupture Rate	2.3862996E-4

Awatere: Northeast 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	13,301
Co-rupture Rate	8.732986E-4

Awatere: Southwest, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	19,264
Co-rupture Rate	1.5004701E-4

Shingle Peak, 0.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	541
Co-rupture Rate	2.0618079E-4

Vernon 2, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	2,790
Co-rupture Rate	4.5233606E-5

Waihopai, 6.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	63
Co-rupture Rate	7.289053E-5

Elliott, 9.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	32
Co-rupture Rate	8.427945E-6

Clarence: Northeast, 9.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	0.0

Clarence: Central, 10.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	false
Co-rupture Count	708
Co-rupture Rate	1.806196E-4

Wairau, 11.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	2,008
Co-rupture Rate	0.0

Jordan, 12.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Fowlers, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	false
Co-rupture Count	2,718
Co-rupture Rate	2.998247E-4
