McKerchar Details
| Property | Value |
|---|---|
| Rupture Count | 3,570 |
| Ruptures Above Sect Min Mag | 3,569 |
| Ruptures w/ Nonzero Rates | 19 |
| Magnitude Range | [7.27, 8.68] |
| Length Range | [29, 964] km |
| Total Rate | 1.5680229E-4 /yr |
| Multi-Fault Rate | 5.482885E-5 /yr (34.97%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 131 |
Table Of Contents

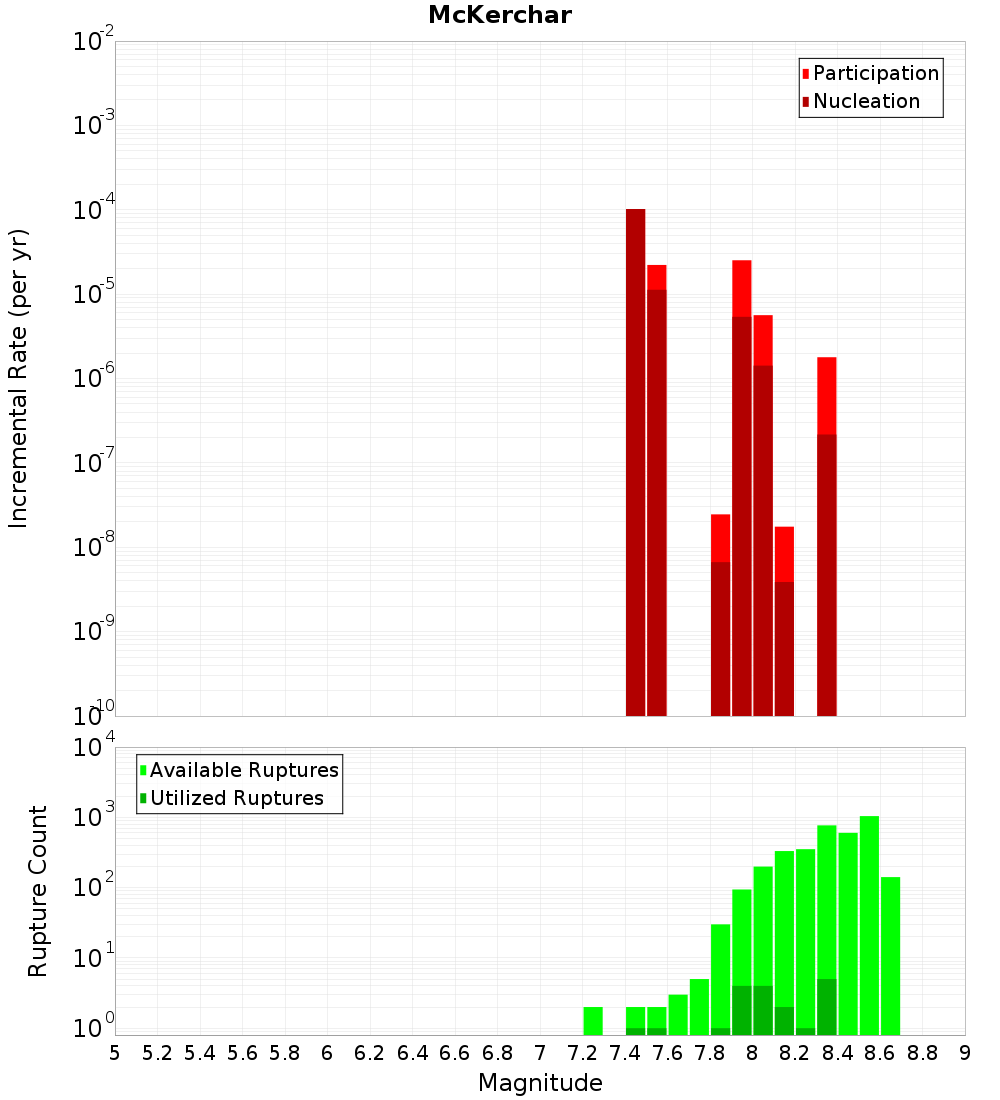

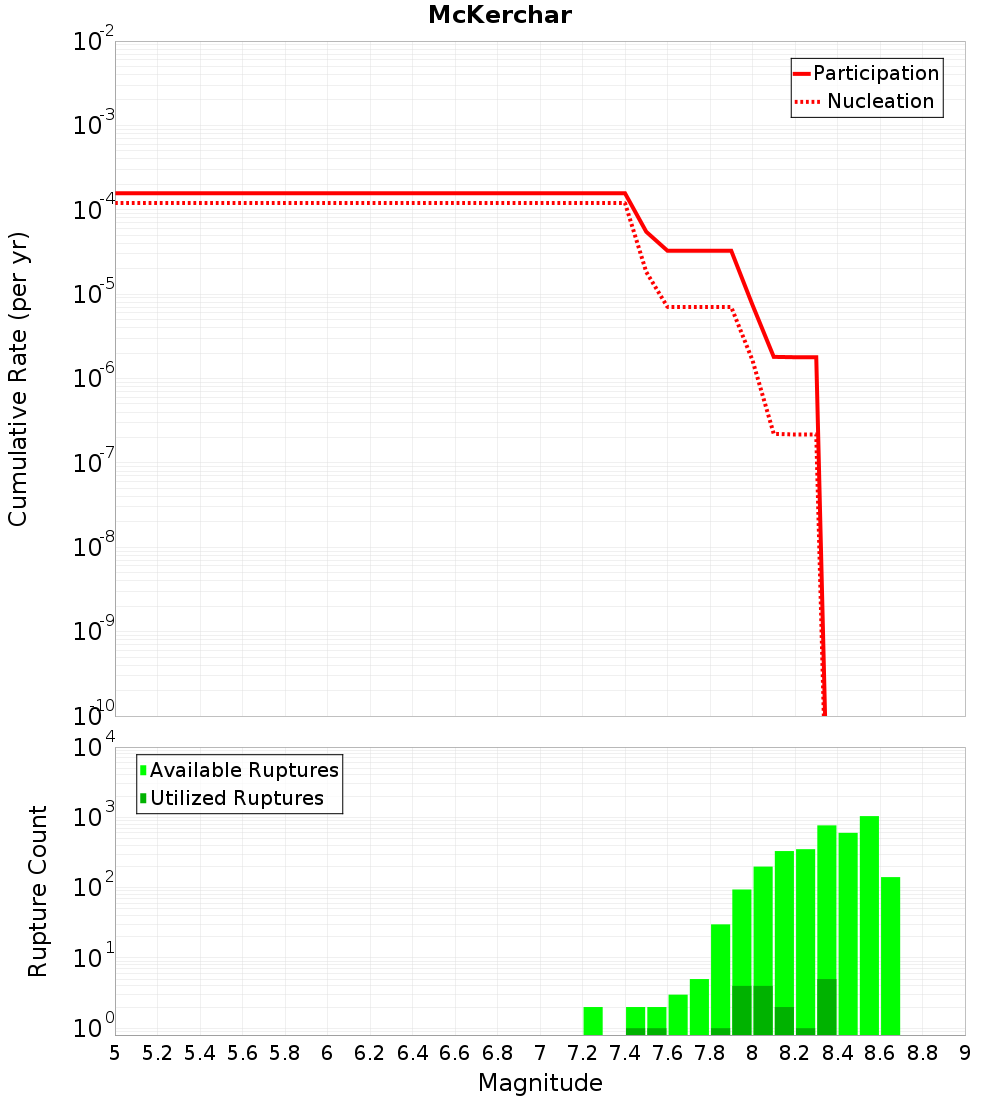

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

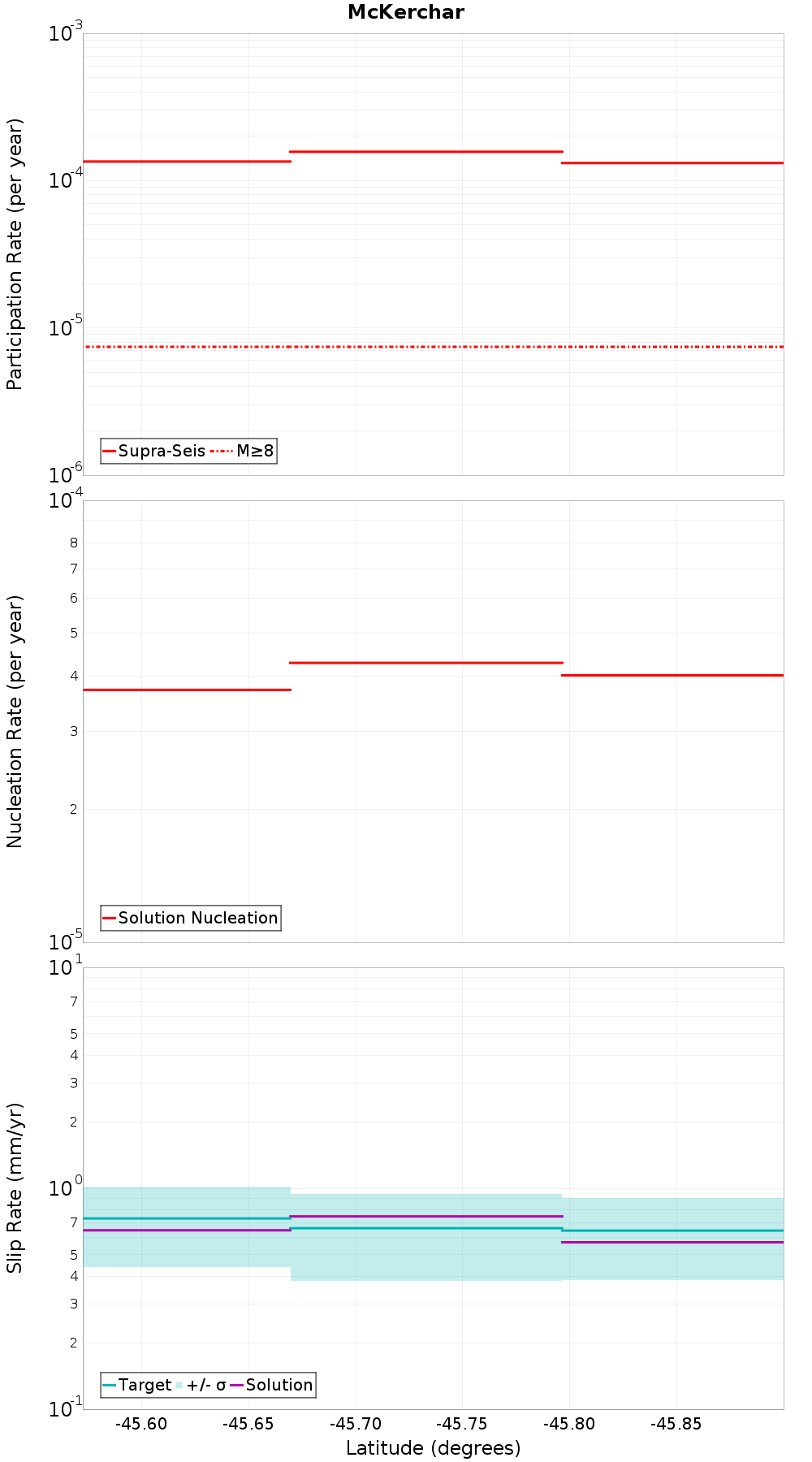

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Monowai, 0.17 km away |
| Tin Hut, 0.24 km away |
| Moonlight South, 1.41 km away |
| Hauroko: North, 5.68 km away |
| Mossburn, 14.52 km away |
Monowai, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 305 |
| Co-rupture Rate | 2.2173524E-5 |
Tin Hut, 0.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Moonlight South, 1.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,592 |
| Co-rupture Rate | 7.4404065E-6 |
Hauroko: North, 5.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 905 |
| Co-rupture Rate | 2.5217676E-5 |
Mossburn, 14.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
