Murchison 1 - Ice Lake Details

Property	Value
Rupture Count	43,221
Ruptures Above Sect Min Mag	43,219
Ruptures w/ Nonzero Rates	99
Magnitude Range	[7.06, 8.56]
Length Range	[22, 768] km
Total Rate	3.8533326E-4 /yr
Multi-Fault Rate	3.8533326E-4 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	220

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

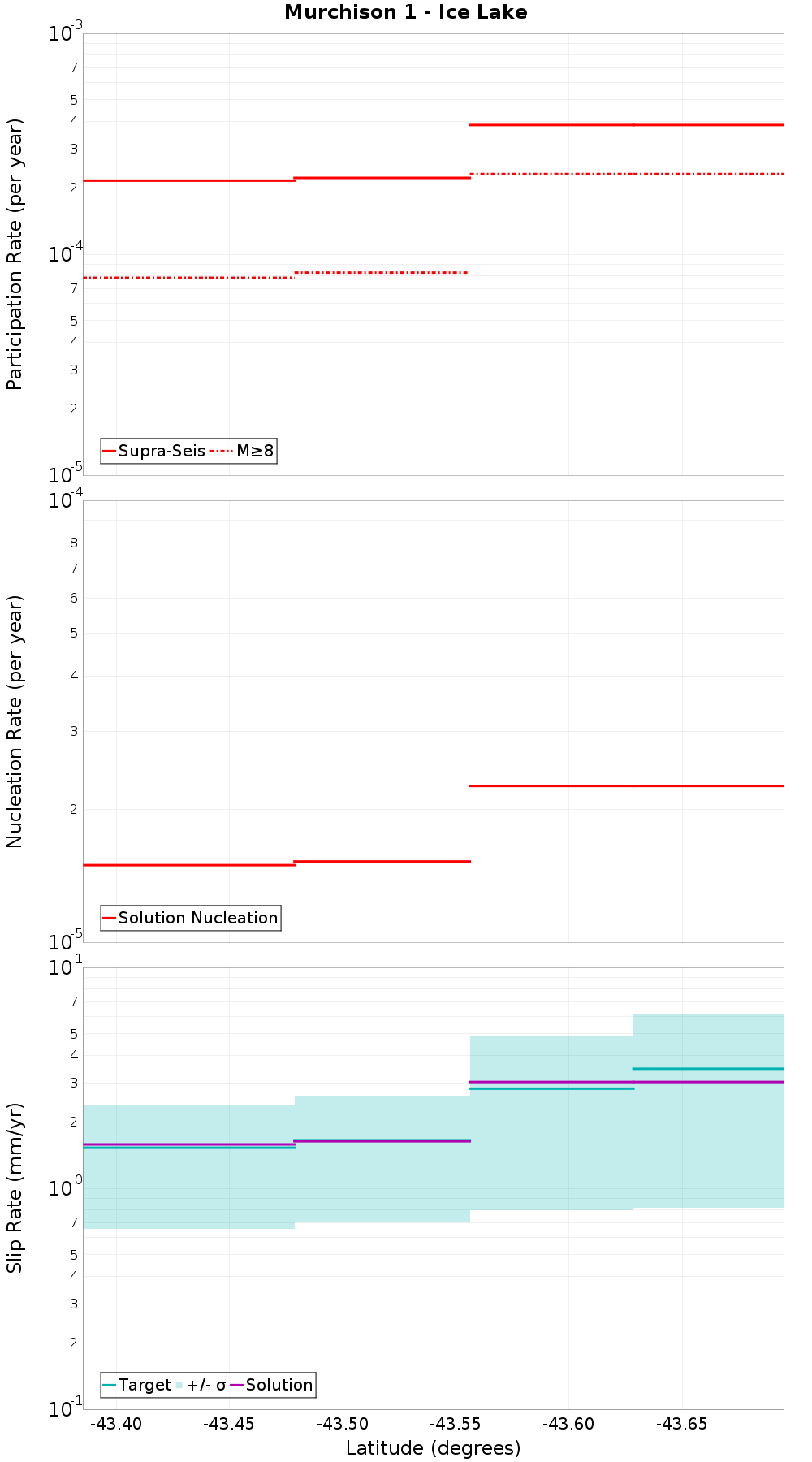

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hohonu South, 0.15 km away
Straight Creek, 0.23 km away
Alpine: Jacksons to Kaniere, 0.28 km away
Gunn Glacier, 0.3 km away
Mt Roon, 0.46 km away
Black Blob - Haast Ridge, 2.29 km away
Liebig North, 3.29 km away
Mt Adams, 4.56 km away
Karangarua, 5.3 km away
Great Groove, 6.66 km away
Lord Range, 6.99 km away
McKerrow - Douglas Duplex, 9.71 km away
Macaulay 2, 12.38 km away
Landsborough 2, 13.81 km away
Veil Stream, 14.64 km away

Hohonu South, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	22,906
Co-rupture Rate	5.4284505E-6

Straight Creek, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	12,324
Co-rupture Rate	0.0

Alpine: Jacksons to Kaniere, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	19,444
Co-rupture Rate	2.9097713E-4

Gunn Glacier, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	15,479
Co-rupture Rate	1.5414797E-4

Mt Roon, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	1,147
Co-rupture Rate	8.277013E-5

Black Blob - Haast Ridge, 2.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	14,217
Co-rupture Rate	6.3202043E-7

Liebig North, 3.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	1,436
Co-rupture Rate	1.0180705E-6

Mt Adams, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	6,748
Co-rupture Rate	0.0

Karangarua, 5.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	false
Co-rupture Count	1,709
Co-rupture Rate	0.0

Great Groove, 6.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	false
Co-rupture Count	12,254
Co-rupture Rate	6.296224E-7

Lord Range, 6.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	false
Co-rupture Count	10,376
Co-rupture Rate	9.2205046E-5

McKerrow - Douglas Duplex, 9.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	false
Co-rupture Count	10,052
Co-rupture Rate	0.0

Macaulay 2, 12.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	true
Co-rupture Count	769
Co-rupture Rate	1.5207626E-4

Landsborough 2, 13.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	false
Co-rupture Count	6,623
Co-rupture Rate	9.7216006E-11

Veil Stream, 14.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyNzcuMHBKUmVl
Connected?	true
Directly Connected?	false
Co-rupture Count	502
Co-rupture Rate	1.3538048E-4
