Paritu West Details

PropertyValue
Rupture Count442
Ruptures Above Sect Min Mag441
Ruptures w/ Nonzero Rates39
Magnitude Range[6.78, 8.27]
Length Range[17, 440] km
Total Rate1.4646949E-7 /yr
Multi-Fault Rate1.4646949E-7 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults24

Table Of Contents

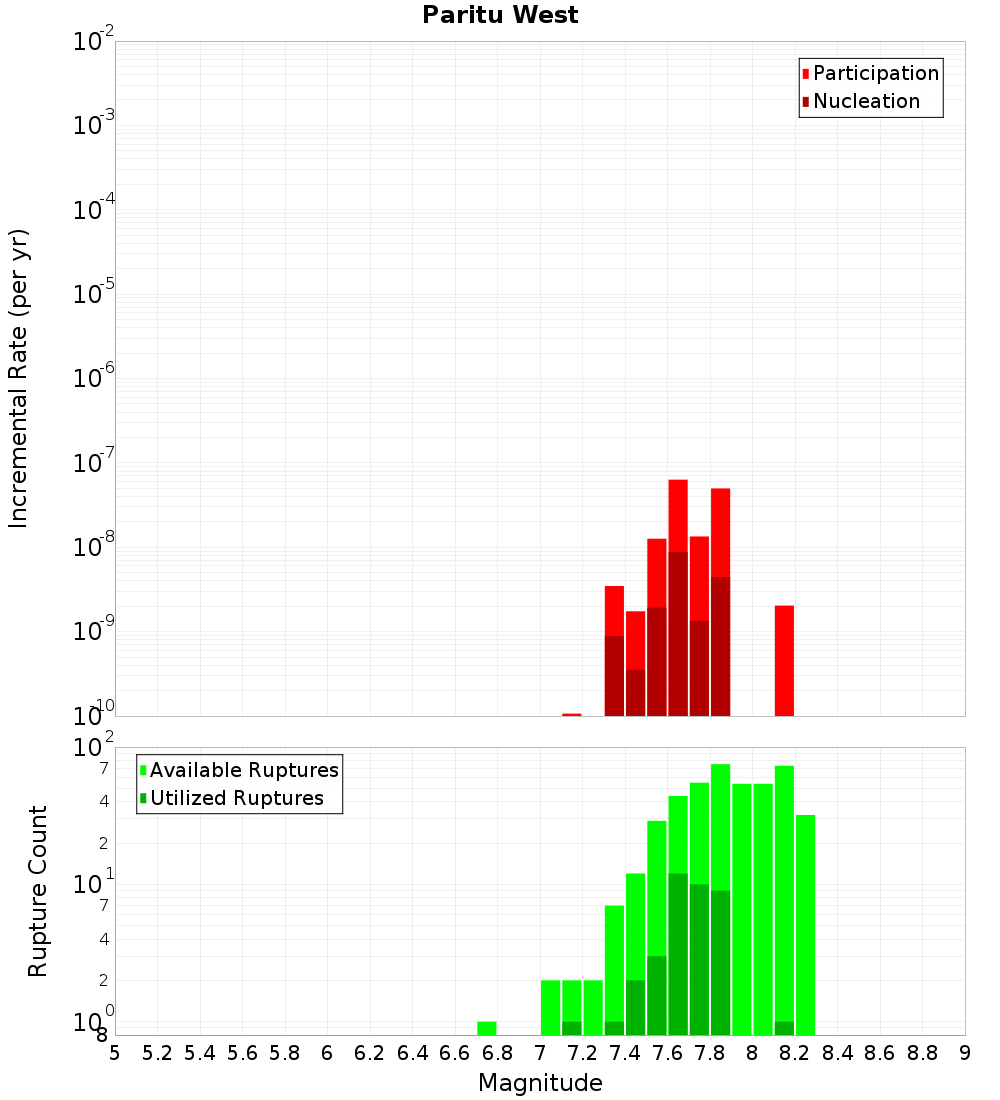

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Paritu Ridge, 1.47 km away
Tuaheni Ridge, 4.22 km away
Riwha, 4.67 km away
Puke Knoll, 6.34 km away
Whaiti Ridge, 8.89 km away
Te Kapu Bank East, 12.55 km away

Paritu Ridge, 1.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyODUuMHpCcXhV
Connected?true
Directly Connected?true
Co-rupture Count120
Co-rupture Rate1.7503176E-9

Tuaheni Ridge, 4.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyODUuMHpCcXhV
Connected?true
Directly Connected?true
Co-rupture Count222
Co-rupture Rate1.4471915E-7

Riwha, 4.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyODUuMHpCcXhV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Puke Knoll, 6.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyODUuMHpCcXhV
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate8.9259875E-15

Whaiti Ridge, 8.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyODUuMHpCcXhV
Connected?true
Directly Connected?true
Co-rupture Count305
Co-rupture Rate9.6309236E-8

Te Kapu Bank East, 12.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyODUuMHpCcXhV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
