Kermadec Trench slope1 Details
| Property | Value |
|---|---|
| Rupture Count | 1,500 |
| Ruptures Above Sect Min Mag | 1,496 |
| Ruptures w/ Nonzero Rates | 43 |
| Magnitude Range | [7.17, 8.40] |
| Length Range | [27, 451] km |
| Total Rate | 2.8883424E-4 /yr |
| Multi-Fault Rate | 2.8883424E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 19 |
Table Of Contents

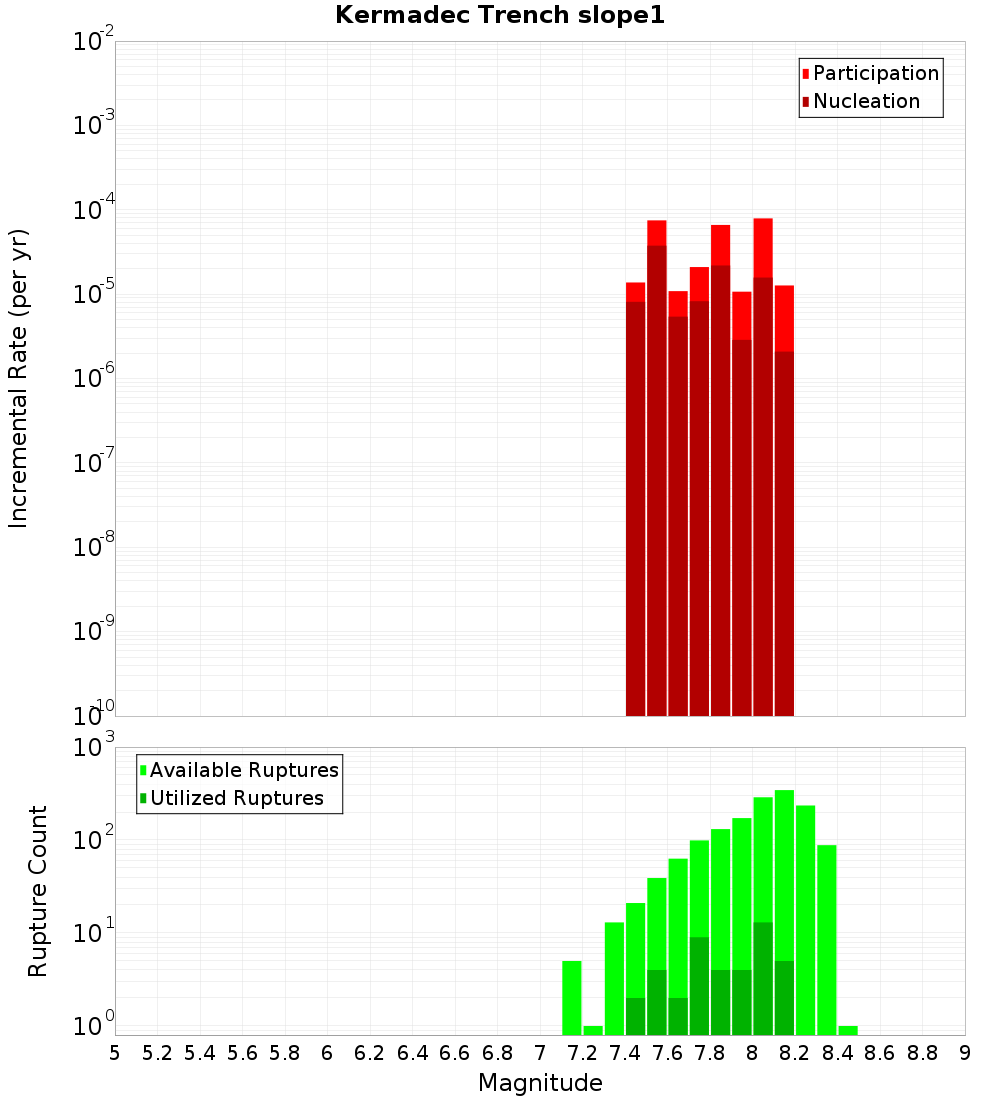

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

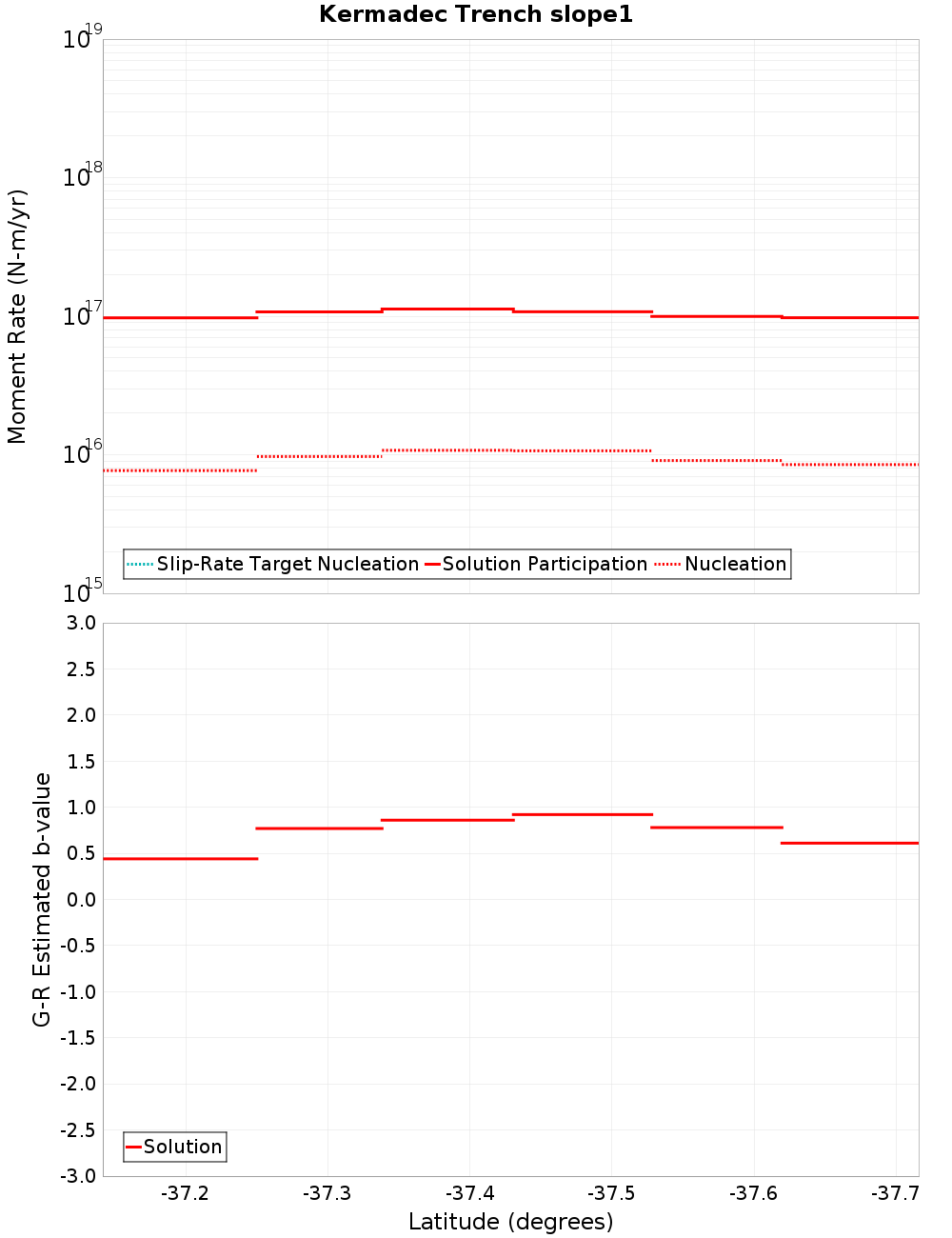

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruatoria, 1.3 km away |
| Kermadec Trench, 2.56 km away |
| Awanui 1, 3.21 km away |
| Awanui 2, 3.49 km away |
Ruatoria, 1.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyODguMExjaE5H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,152 |
| Co-rupture Rate | 9.746226E-5 |
Kermadec Trench, 2.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyODguMExjaE5H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 739 |
| Co-rupture Rate | 8.8065666E-5 |
Awanui 1, 3.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyODguMExjaE5H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 278 |
| Co-rupture Rate | 1.4672155E-4 |
Awanui 2, 3.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyODguMExjaE5H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 325 |
| Co-rupture Rate | 1.421127E-4 |
