Kaikorai Details

Property	Value
Rupture Count	20
Ruptures Above Sect Min Mag	19
Ruptures w/ Nonzero Rates	7
Magnitude Range	[6.81, 7.66]
Length Range	[15, 109] km
Total Rate	2.2073045E-4 /yr
Multi-Fault Rate	2.2073045E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

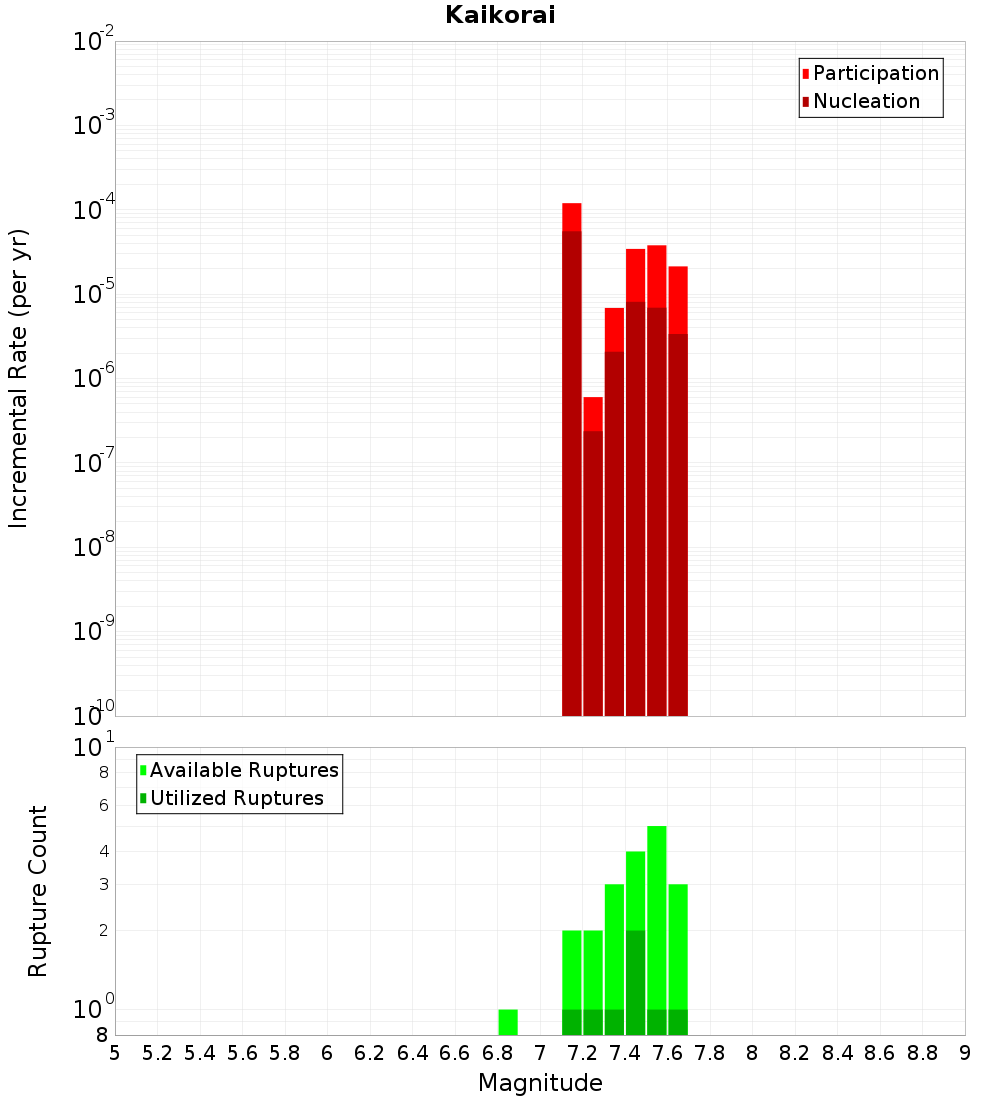

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

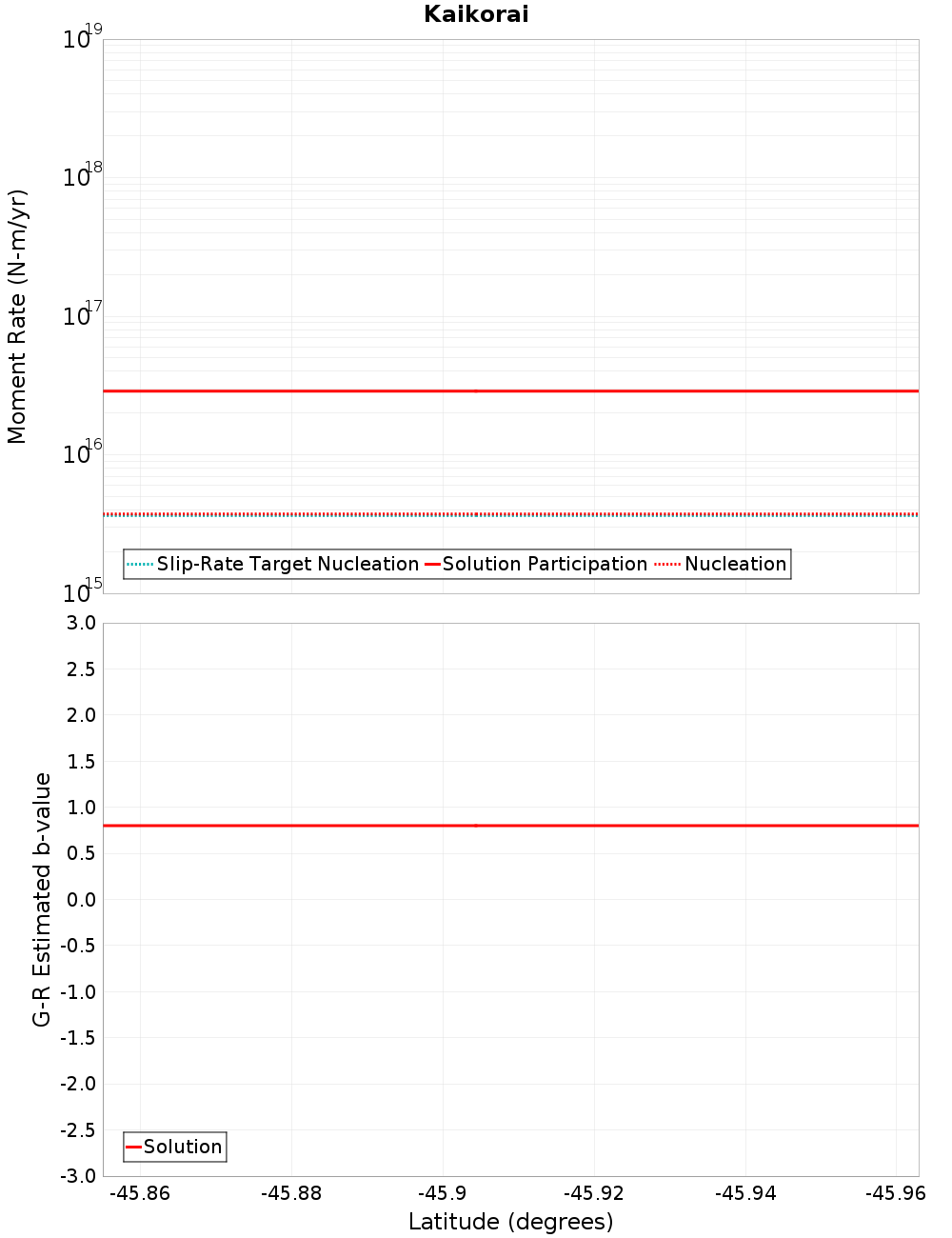

Moment-Rates and b-Values

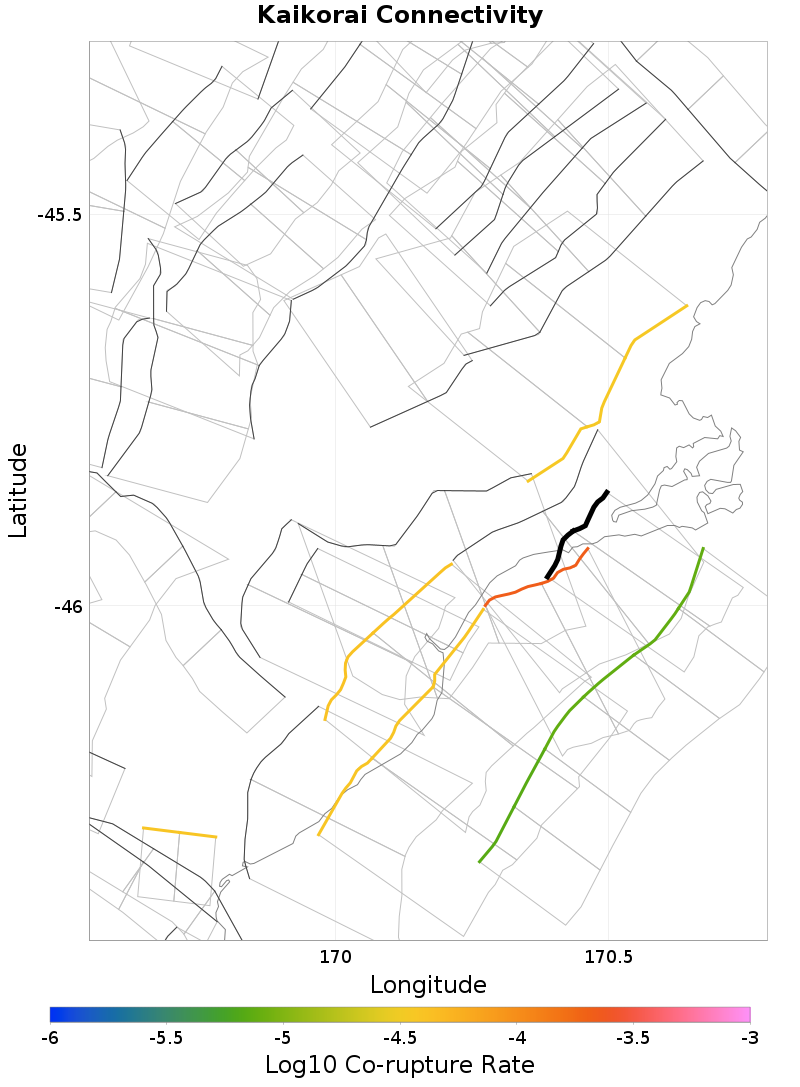

Connectivity

Nearby Sections

Fault Section
Green Island, 0.53 km away
Titri North, 2.69 km away
Maungatua - North Taieri, 7.31 km away
Sliver Stream - Merton, 7.87 km away
Akatore, 9.64 km away
Titri Central, 10.97 km away
Takapu, 11.18 km away

Green Island, 0.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	2.1326923E-4

Titri North, 2.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maungatua - North Taieri, 7.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Sliver Stream - Merton, 7.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?	true
Directly Connected?	true
Co-rupture Count	11
Co-rupture Rate	3.6020672E-5

Akatore, 9.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	3.790222E-5

Titri Central, 10.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	4.098244E-5

Takapu, 11.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	7.4612194E-6
