Kenepuru Details
| Property | Value |
|---|---|
| Rupture Count | 5,987 |
| Ruptures Above Sect Min Mag | 5,974 |
| Ruptures w/ Nonzero Rates | 66 |
| Magnitude Range | [6.76, 8.47] |
| Length Range | [21, 944] km |
| Total Rate | 4.3702888E-4 /yr |
| Multi-Fault Rate | 3.698621E-4 /yr (84.63%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 79 |
Table Of Contents

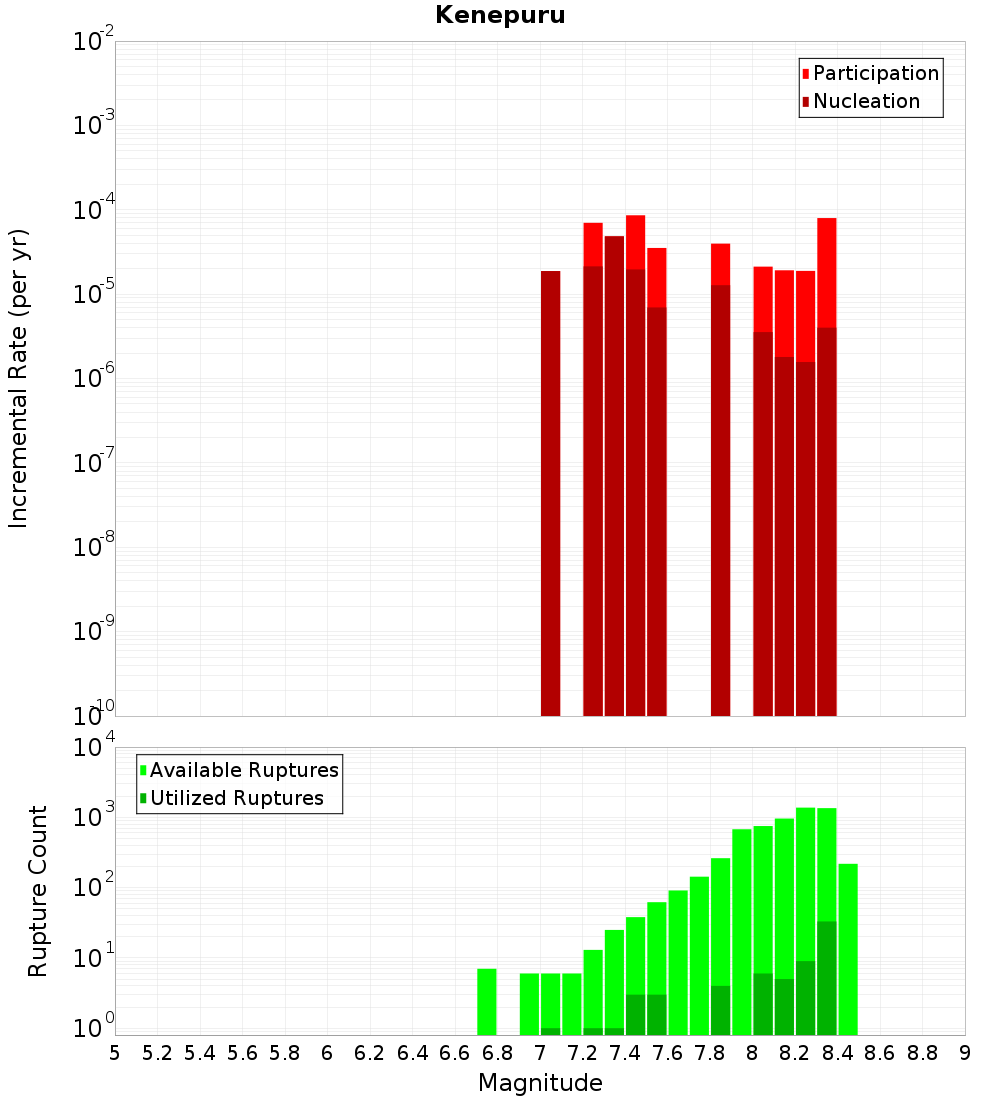

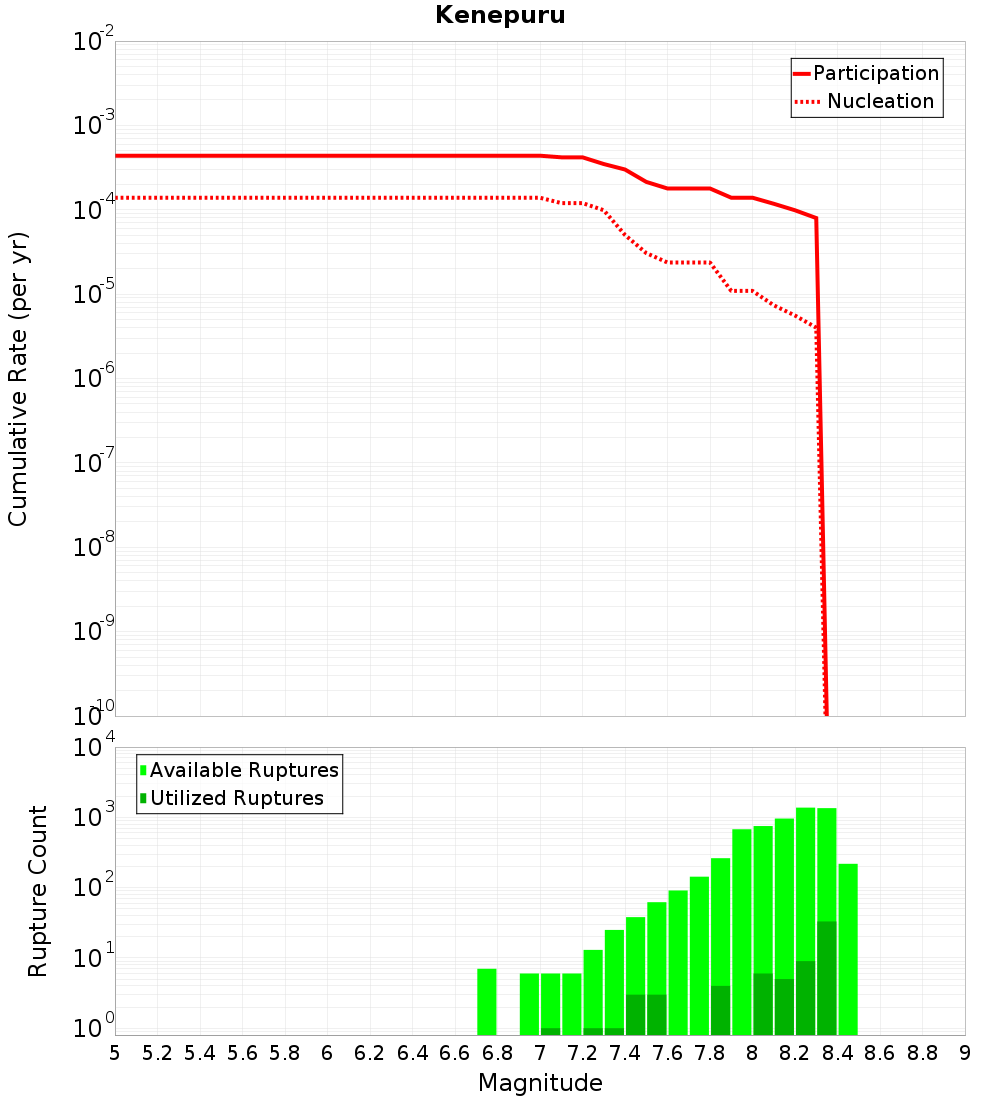

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

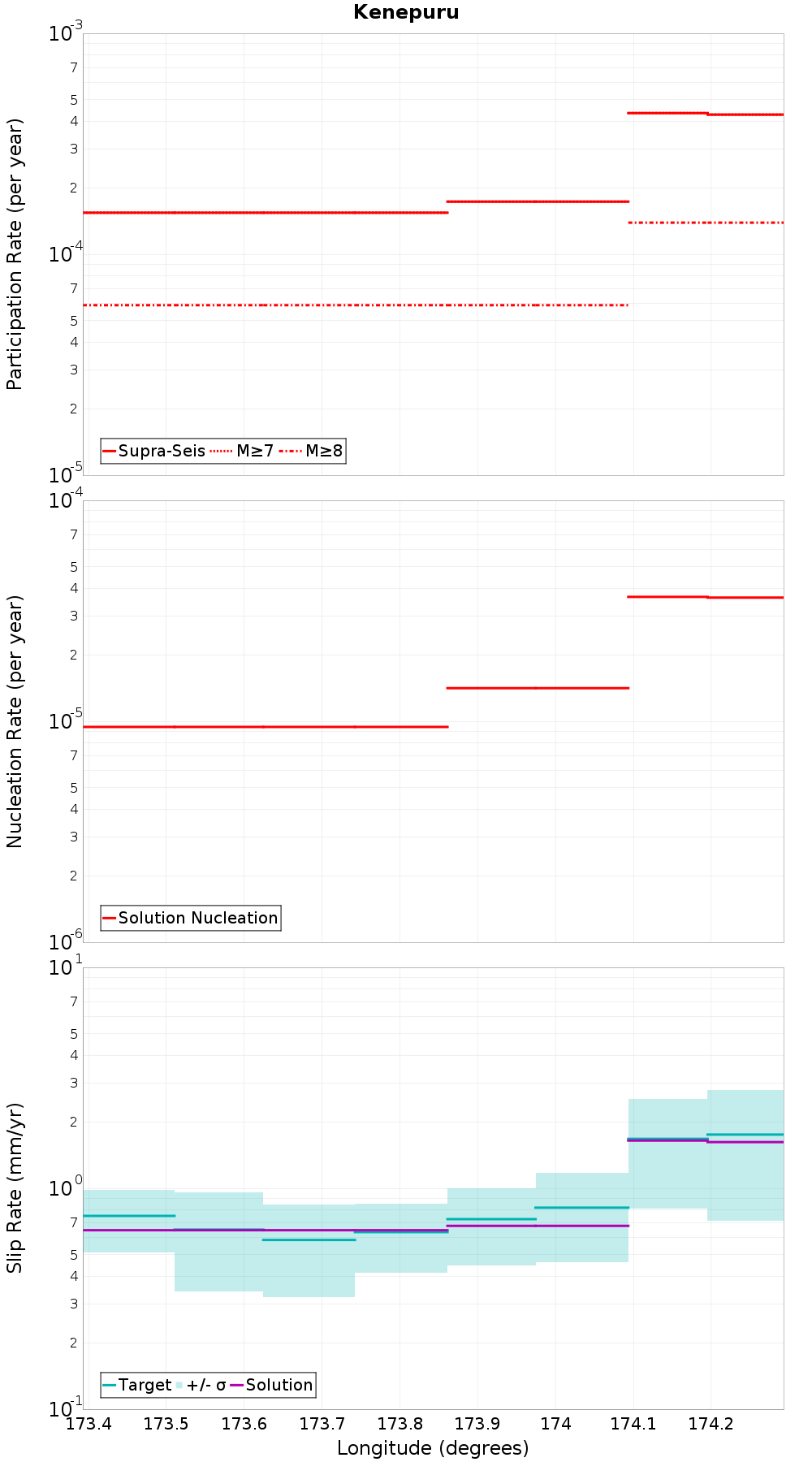

Along-Strike Values
Moment-Rates and b-Values

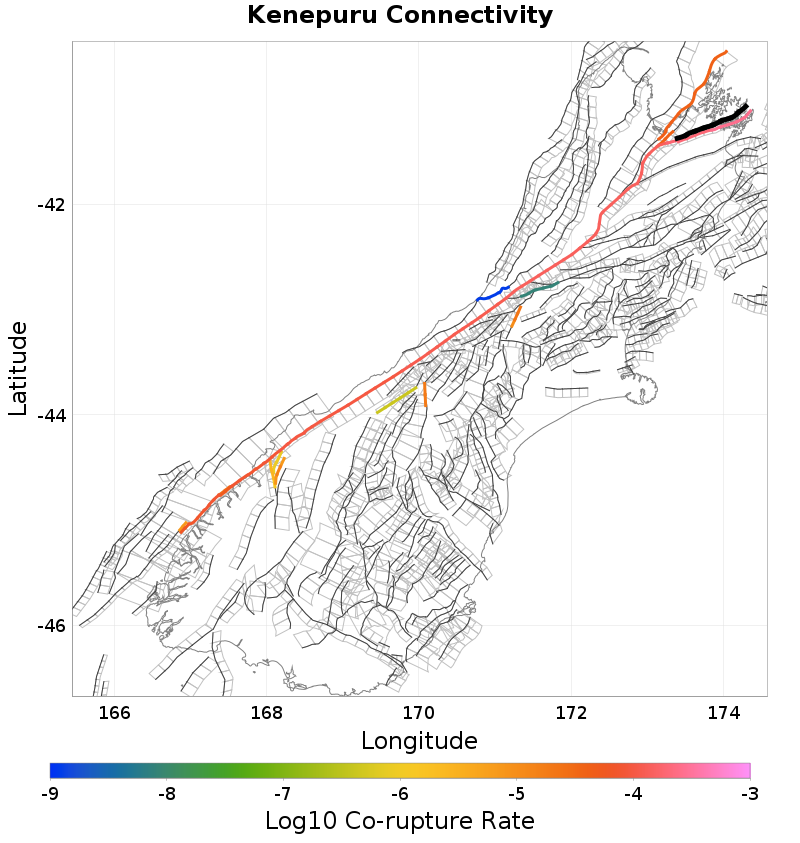

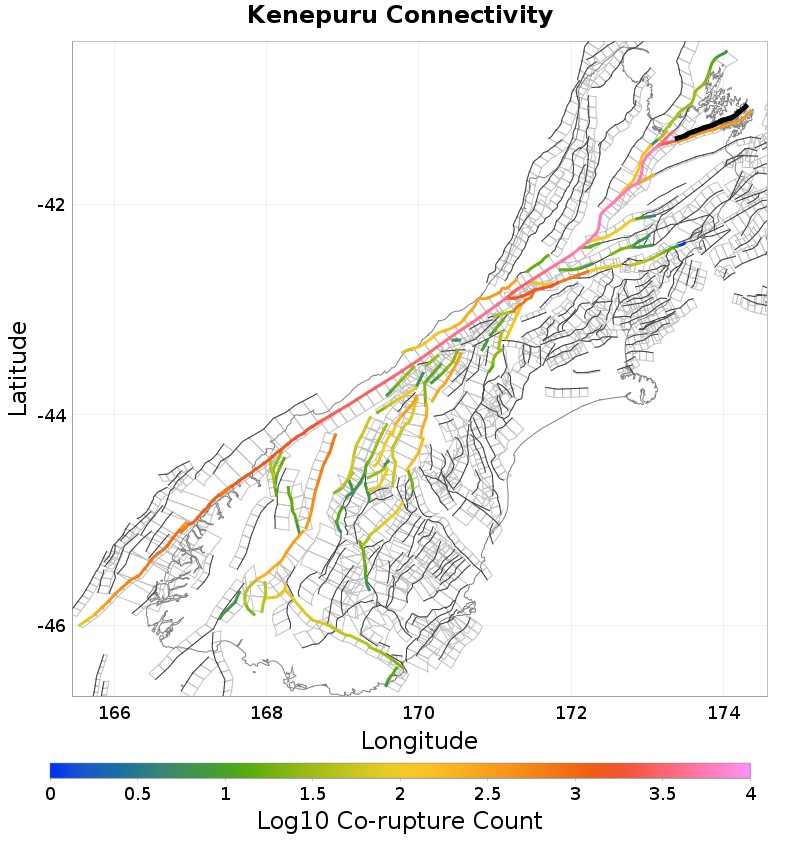

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Whangamoa, 0.43 km away |
| Totara Saddle, 3.23 km away |
| Queen Charlotte, 3.32 km away |
| Flaxmore - Waimea - Tahunanui, 7.04 km away |
Whangamoa, 0.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,907 |
| Co-rupture Rate | 1.5191956E-4 |
Totara Saddle, 3.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,316 |
| Co-rupture Rate | 1.7881364E-4 |
Queen Charlotte, 3.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 359 |
| Co-rupture Rate | 2.6410958E-4 |
Flaxmore - Waimea - Tahunanui, 7.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 188 |
| Co-rupture Rate | 4.2036136E-5 |
