Levin Anticline Details

PropertyValue
Rupture Count11
Ruptures Above Sect Min Mag11
Ruptures w/ Nonzero Rates5
Magnitude Range[6.96, 7.76]
Length Range[22, 158] km
Total Rate1.283431E-4 /yr
Multi-Fault Rate1.283431E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults9

Table Of Contents

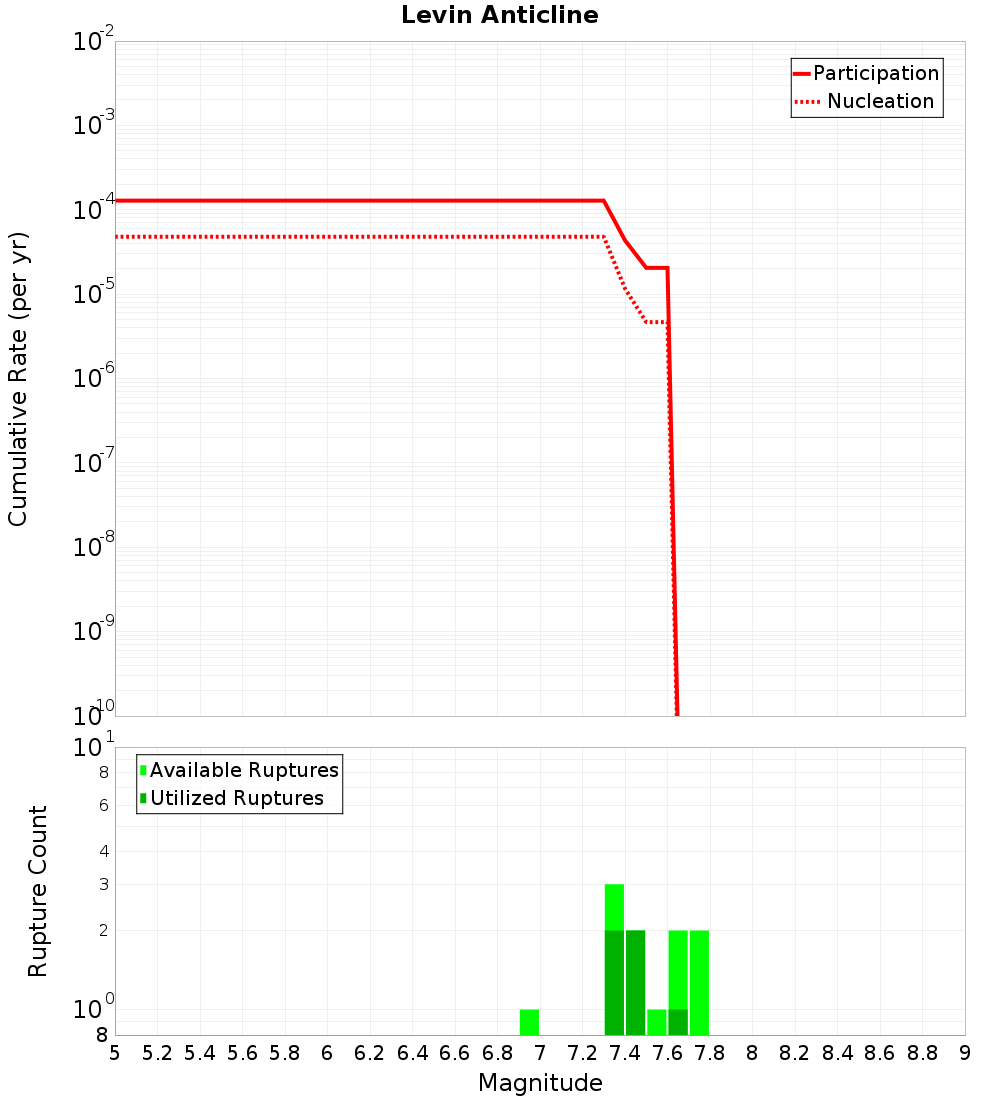

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

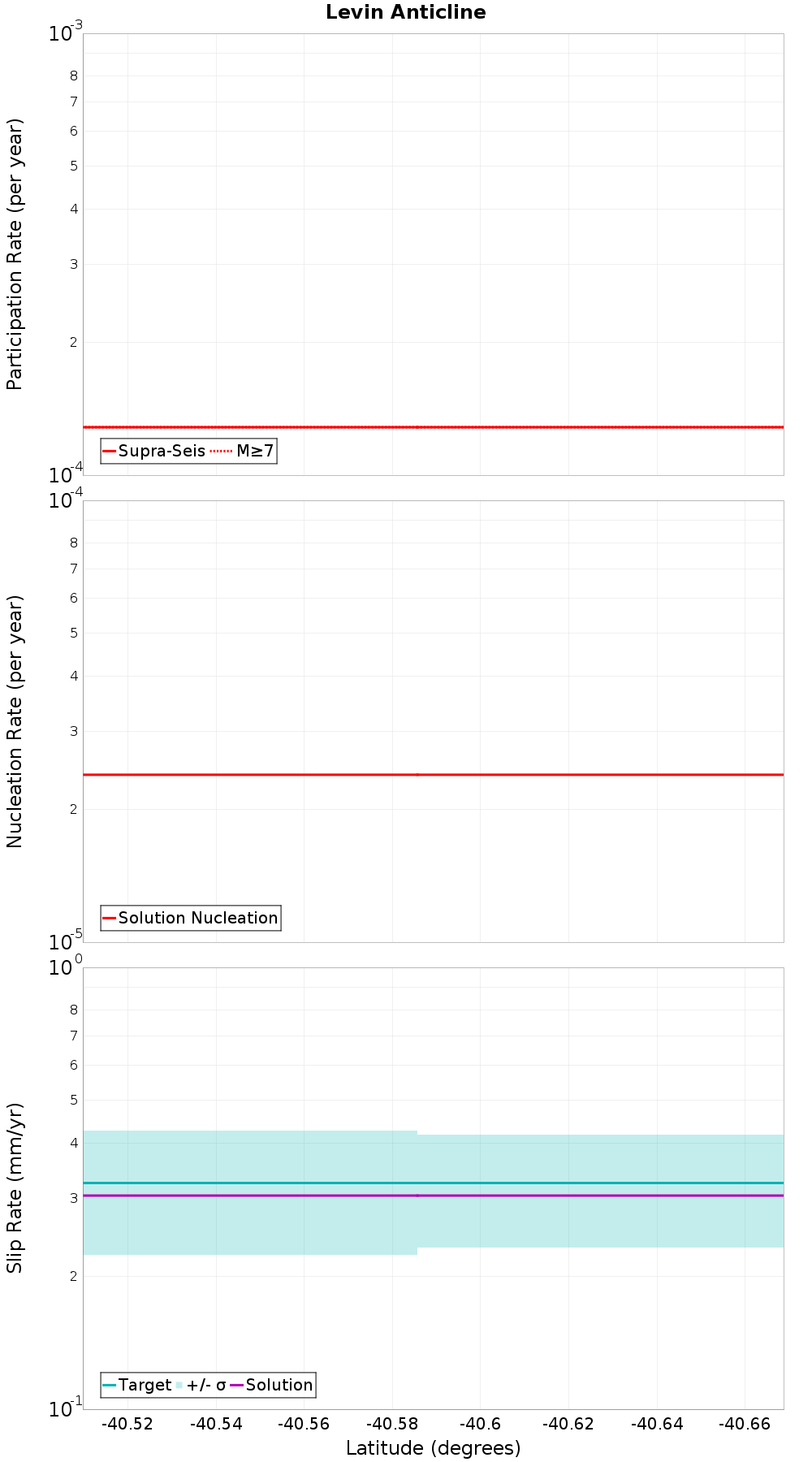

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

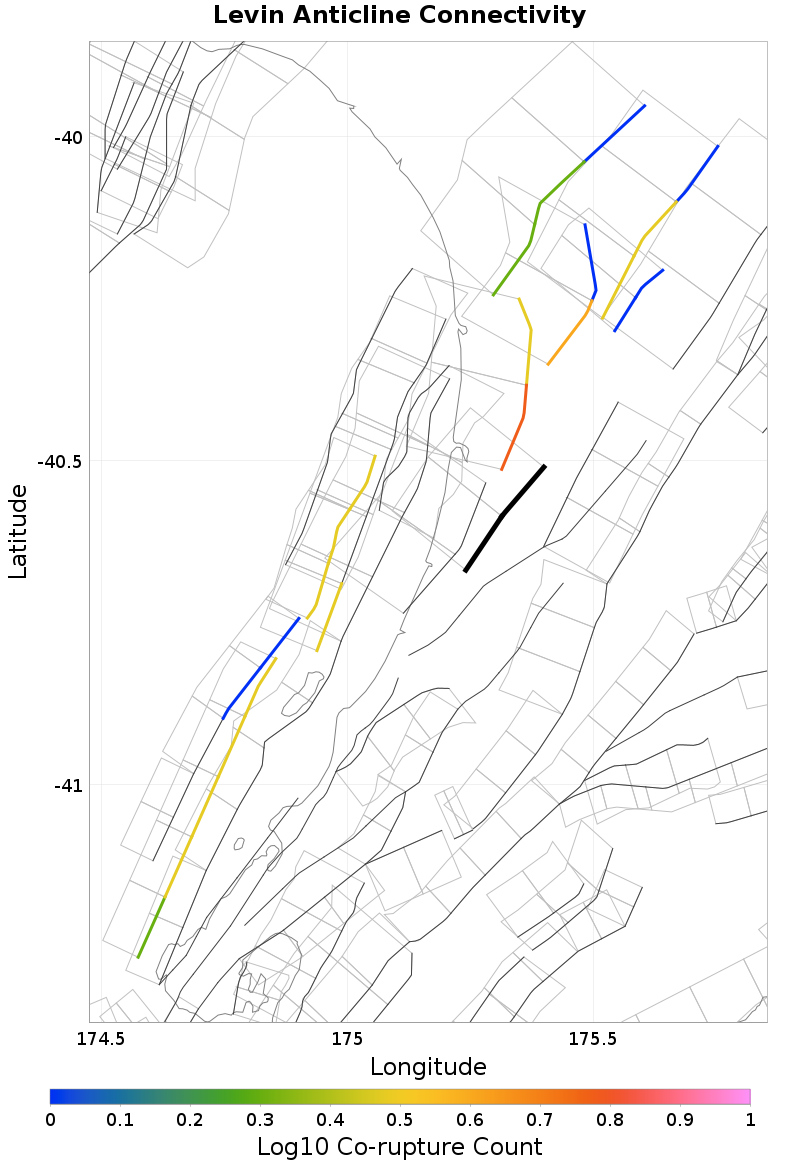

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Rangitikei Offshore 1, 0.17 km away
Poroutawhao, 2.59 km away
Mascarin, 2.93 km away
Himatangi, 3.13 km away
Northern Ohariu, 4.08 km away
Tokomaru, 5.87 km away
Otaheke North, 10.06 km away
Onepoto, 13.21 km away
Fisherman 3, 13.23 km away
Otaki Forks: 2, 14.48 km away
Mt Stewart, 14.8 km away

Rangitikei Offshore 1, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poroutawhao, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mascarin, 2.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Himatangi, 3.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate6.776446E-5

Northern Ohariu, 4.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tokomaru, 5.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke North, 10.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Onepoto, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Fisherman 3, 13.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Otaki Forks: 2, 14.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Stewart, 14.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate6.0578644E-5
