Mohaka: South Details

PropertyValue
Rupture Count70,707
Ruptures Above Sect Min Mag70,699
Ruptures w/ Nonzero Rates126
Magnitude Range[6.88, 8.51]
Length Range[25, 1,132] km
Total Rate0.0014577161 /yr
Multi-Fault Rate0.0014416655 /yr (98.90%)
Directly-Connected Faults11
All Co-Rupturing Faults130

Table Of Contents

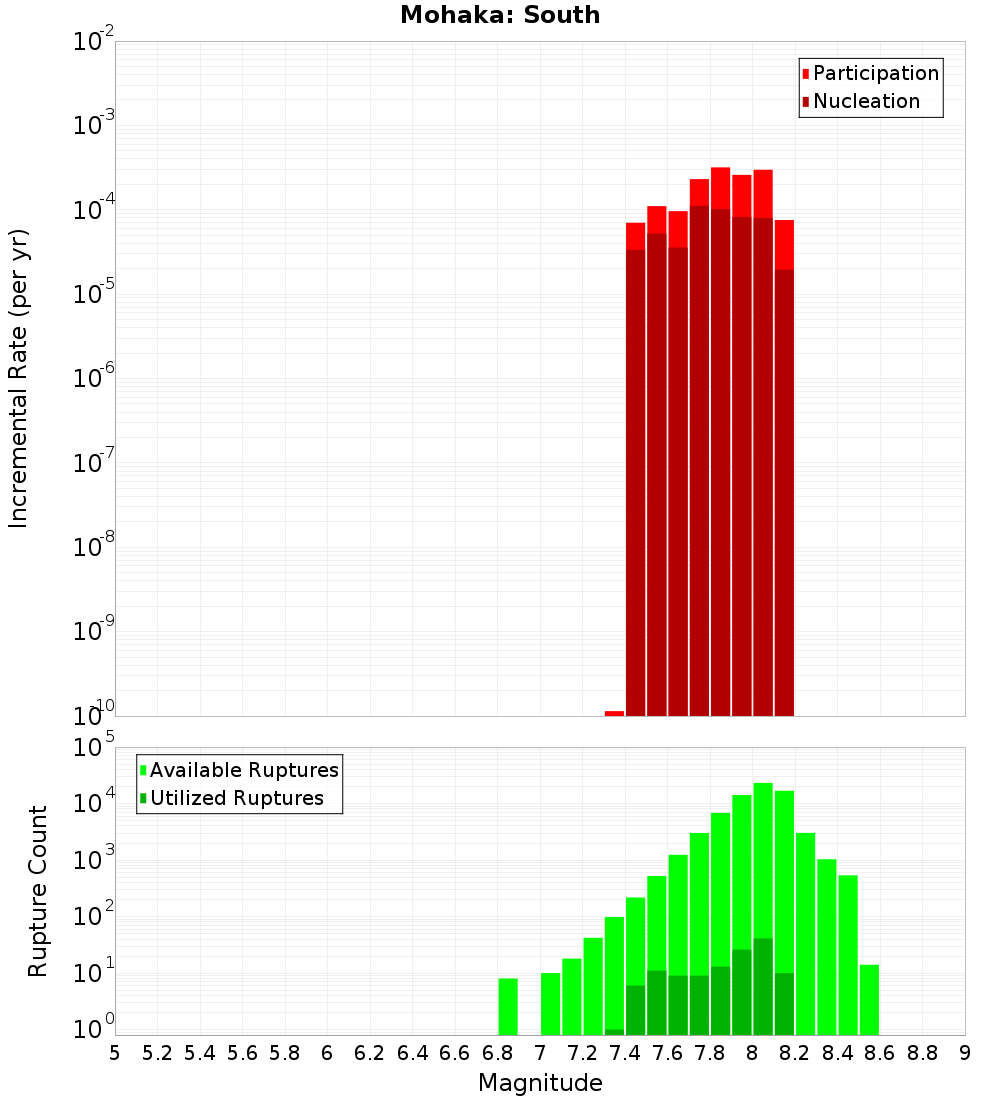

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

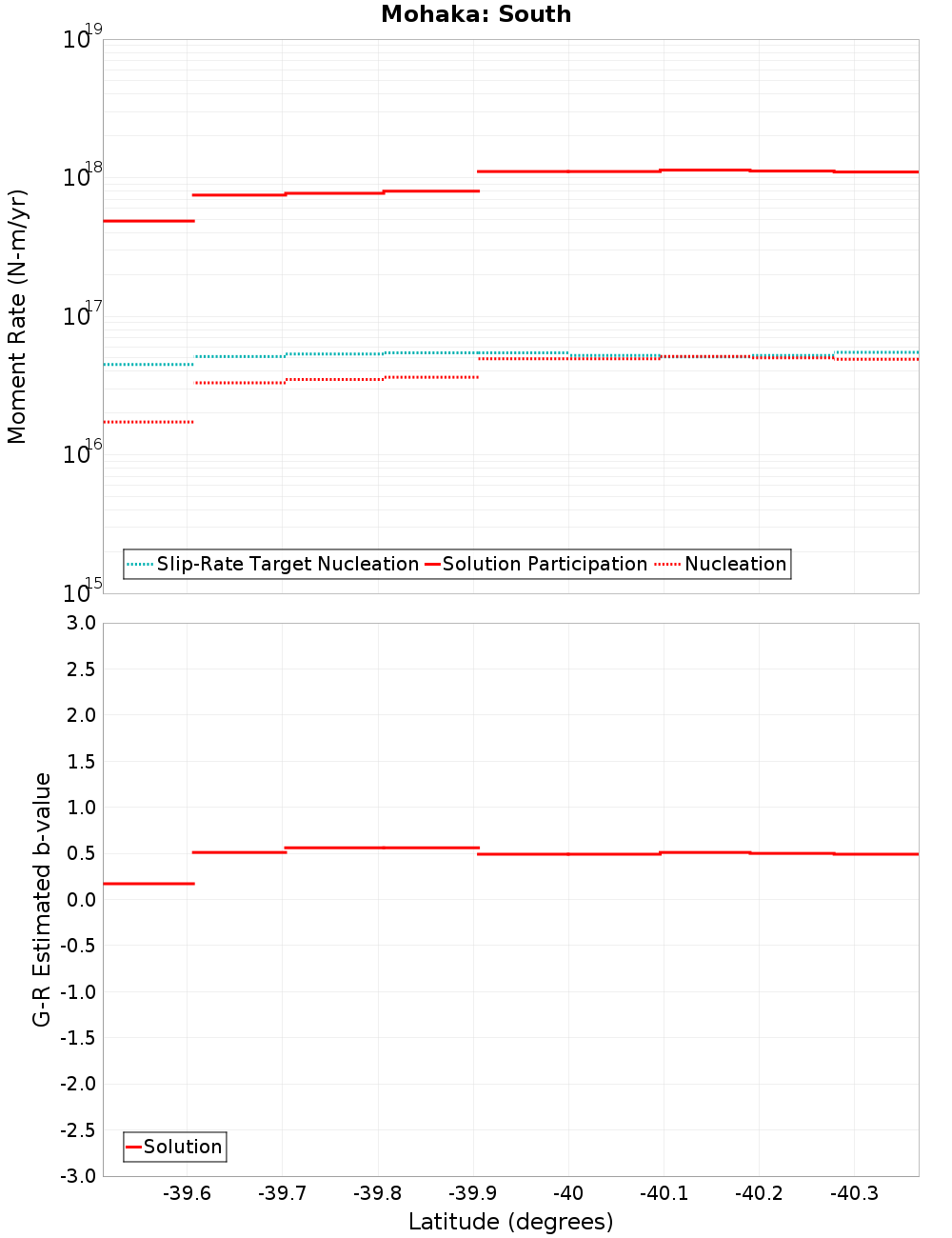

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington: Pahiatua, 0 km awayRuahine: North, 4.35 km away
Ruahine: South, 0 km awayPatoka - Rangiora, 5.52 km away
Mohaka: North, 0 km awayRuataniwha, 6.61 km away
Wakarara, 0.06 km awayMaunga, 9.06 km away
Rangefront, 0.18 km awayPohangina, 9.44 km away
Woodville, 0.4 km awayAwanui, 12.72 km away
Ruahine: Central, 2.68 km awayTokomaru, 14.29 km away
Pahiatua, 4.27 km awayTe Heka, 14.96 km away

Wellington: Pahiatua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count60,952
Co-rupture Rate0.0010441294

Ruahine: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count9,685
Co-rupture Rate3.9586183E-5

Mohaka: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count43,100
Co-rupture Rate1.845735E-4

Wakarara, 0.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count1,925
Co-rupture Rate1.3731513E-4

Rangefront, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count6,520
Co-rupture Rate1.0327524E-4

Woodville, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count6,344
Co-rupture Rate4.5949193E-5

Ruahine: Central, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count6,819
Co-rupture Rate4.1265882E-4

Pahiatua, 4.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count1,399
Co-rupture Rate5.903754E-5

Ruahine: North, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count18,065
Co-rupture Rate4.8514517E-4

Patoka - Rangiora, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count4,456
Co-rupture Rate2.3641989E-4

Ruataniwha, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count1,203
Co-rupture Rate5.981086E-5

Maunga, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?false
Co-rupture Count591
Co-rupture Rate5.981086E-5

Pohangina, 9.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?false
Co-rupture Count183
Co-rupture Rate8.484546E-5

Awanui, 12.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?false
Co-rupture Count129
Co-rupture Rate0.0

Tokomaru, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?false
Co-rupture Count710
Co-rupture Rate3.5534513E-11

Te Heka, 14.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
